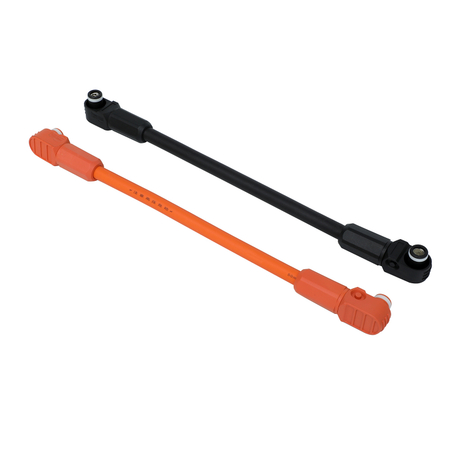

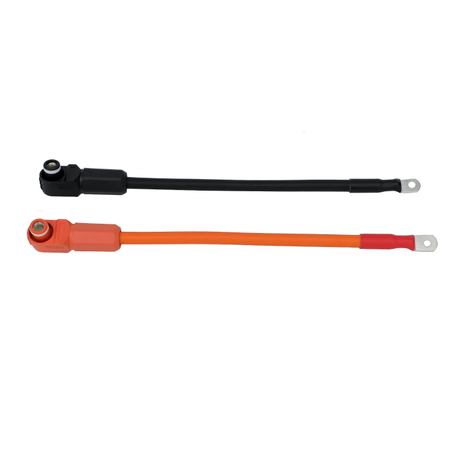

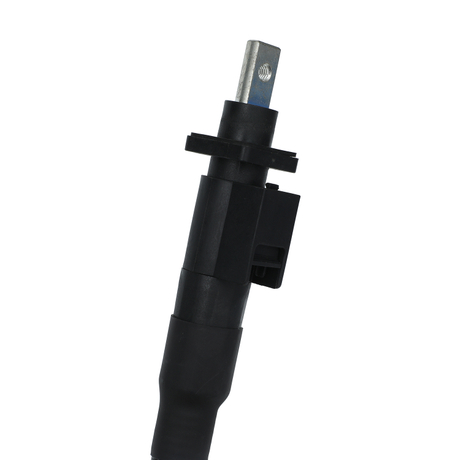

| Product | High Current Wire Harness 350A Storage Plug Socket for ESS | |
| Plug/Socket | Rated Current | 60A~600A |
| Rated Voltage | 300V~2000V | |
| Operating Temp. | -40℃~125℃ | |
| Wire | Model | NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc. |
| Size | 1mm2~120mm2 | |
| Lug/Terminal | Model | SC1.5~SC120 |
| Applicable Wire Range | 1mm2~120mm2 | |
| Crrugated Pipe | Optional | |
| Features | IP67 Waterproof, Flame Retardant, High Temperature Retardant | |
| Touch Proof, Safe Handling, Durable Design, Reliable Connection | ||
| Quick Lock, Press-to-Release Design, High Pressure Resistance | ||
| Application | Solar Energy Storage System(ESS) | |
| Energy Storage Cabinet, Battery Pack, Battery Storage Tank | ||
| Energy Storage Converter, Power Energy Storage System | ||
| Verification | UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc. | |
| OEM | Welcomed | |
| 1. Material |
| Shell: PA66+30%GF |
| Electrical Copper Row: Brass, Sliver-plated |
| 2. Electrical Performance |
| Rated Current: 60A，100A，120A，150A，200A, 350A |
| Rated Voltage: DC690V |
| Impulse Withstand Voltage: AC5000V, Leakage≤1mA |
| Insulation Resistance: DC1000V, Resistance Value≥1000MΩ |
| 3. Operating Environment |
| Operating Temp.: -40℃~125℃ |
| Operating Humidity: 5%~95%RH |
| Flame Resistance: UL94 V-0 |
| Salt Spray Test: 48H |
Socket Datasheet
| 1. Material |
| Shell: PA66+30%GF |
| Electrical Copper Row: Brass, Sliver-plated |
| 2. Electrical Performance |
| Rated Current: 100A, 150A, 200A, 250A, 350A |
| Rated Voltage: DC690V |
| Impulse Withstand Voltage: AC5000V, Leakage≤1mA |
| Insulation Resistance: DC2500V, Resistance Value≥2000MΩ |
| 3. Operating Environment |
| Operating Temp.: -40℃~125℃ |
| Operating Humidity: 5%~95%RH |
| Flame Resistance: UL94 V-0 |
| Salt Spray Test: 48H |
Model | Size | Rated Voltage | Rated Temperature | Insulation | Conductor |
| UL1015 | 20~2/0AWG | 600V | 105ºC | PVC | Tinned or Bare, Stranded or Solid Copper |
| UL10269 | 20~2/0AWG | 1000V | 105ºC | PVC | |
| UL11627 | 20~2/0AWG | 2000V | 105ºC | PVC | |
| UL3271 | 20~2/0AWG | 600V | 125ºC | XLPE | |
| UL3321 | 20~2/0AWG | 600V | 150ºC | XLPE | |
| NSGAFÖU | 1.5~120mm⊃2; | 1.8/3KV | -40~90ºC | Rubber |
| Model | Wire Range A.W.G.(mm2) | Stud Size (mm) | Material | |
| Min. | Max. | Cu | ||
| SC1.5 | 12AWG (1.5mm2) | 4.3 | 6.4 | |
| SC2.5 | 14AWG (2.5mm2) | 4.3 | 8.4 | |
| SC4 | 12AWG (4mm2) | 4.3 | 8.4 | |
| SC6 | 10AWG (6mm2) | 4.3 | 8.4 | |
| SC10 | 8AWG (10mm2) | 4.3 | 13 | |
| SC16 | 6AWG (16mm2) | 4.3 | 10.5 | |
| SC25 | 4AWG (25mm2) | 4.2 | 10.5 | |
| SC35 | 2AWG (35mm2) | 6.4 | 10.5 | |
| SC50 | 1/0AWG (50mm2) | 5.3 | 13 | |
| SC70 | 2/0AWG (70mm2) | 5.3 | 13 | |
| SC95 | 3/0AWG (95mm2) | 6.4 | 15 | |
| SC120 | 4/0AWG (120mm2) | 6.4 | 17 | |
VDE Certificate
UL Certificate-XSD
UL Certificate-SINGDER
Click here: XSD Cable_Company Profile
Q1: Are you a manufacturer?
A1: Yes, we are a manufacturer located in Dongguan city of China. We are able to provide OEM/ODM services for wires, cables, custom cable assembly around the world.
Q2: Can I get a free sample?
A2: Yes, we are willing to provide sample in stock for free but freight collected. Welcome to contact us for customized products.
Q3: Is the quality of your product guaranteed?
A3: Yes, our workshop are equipped with Brand-new and Advanced Machines & Test Equipments. Our production process and quality control are in strictly accordance with the international standards and customers’ requirements.
Q4: What is the delivery lead time?
A4: Generally, the lead time is around 10-15 days for wire production, around 20-40 days for cable assembly. It depends on quantity and the complexity of the products.
