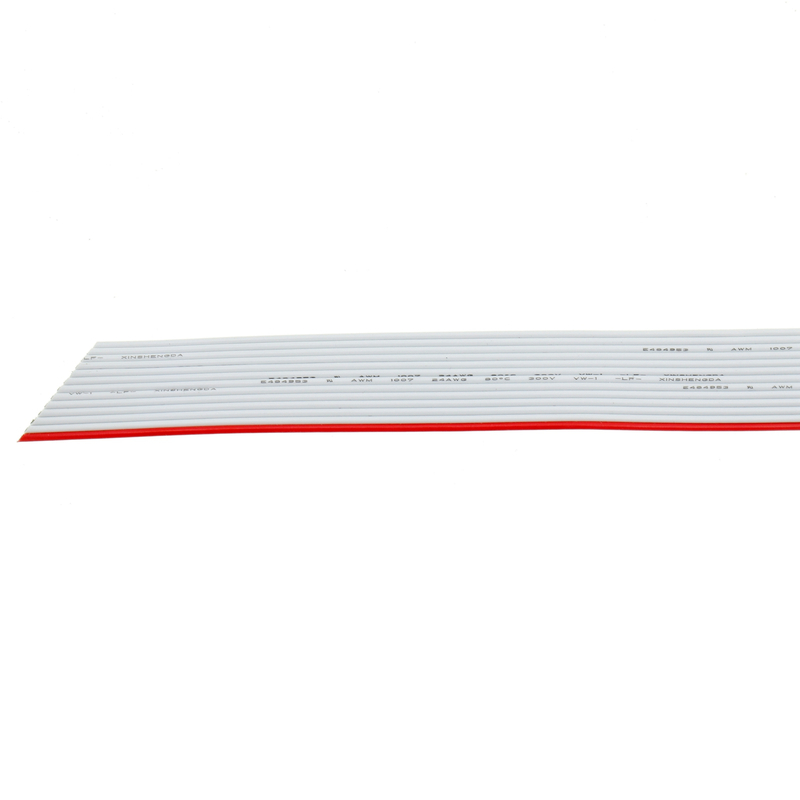

Flat Ribbon Cable PVC Multi Conductor OEM UL1007 24AWG AWM
Rated Voltage: 300V
Rated Temperature: 80ºC
Insulation Material: PVC
Conductor: Tinned or Bare, Stranded or Solid Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of electronic and electrical equipment and appliance, computer, mainframe, lighting, electric circuit, etc.
| Conductor | Insulation | Max. Cond. Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 32 | 7/0.08 | 0.24 | 0.37 | 1.00 | 597 |
| 30 | 7/0.10 | 0.30 | 0.39 | 1.10 | 381 |
| 28 | 7/0.127 | 0.38 | 0.41 | 1.20 | 239 |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 150 |
| 24 | 11/0.16 | 0.61 | 0.39 | 1.41 | 94.2 |
| 22 | 17/0.16 | 0.76 | 0.41 | 1.60 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.41 | 1.80 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.40 | 2.10 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.45 | 2.40 | 14.6 |
| ※The above datasheet is for reference only, please refer to the final specification. | |||||
