Automotive wire harness applications refer to the various systems and components within a vehicle where wiring harnesses are used to transmit electrical power and signals efficiently.
In the modern automotive industry, the wire harness is the central nervous system of every vehicle. From engine management and safety systems to infotainment and electric vehicle (EV) power distribution, reliable wiring is essential for performance, safety, and durability.
Dongguan XSD Cable Technology Co., Ltd. stands at the forefront of automotive wiring solutions, delivering high-quality wire harnesses and cables that meet the rigorous demands of today’s vehicles.

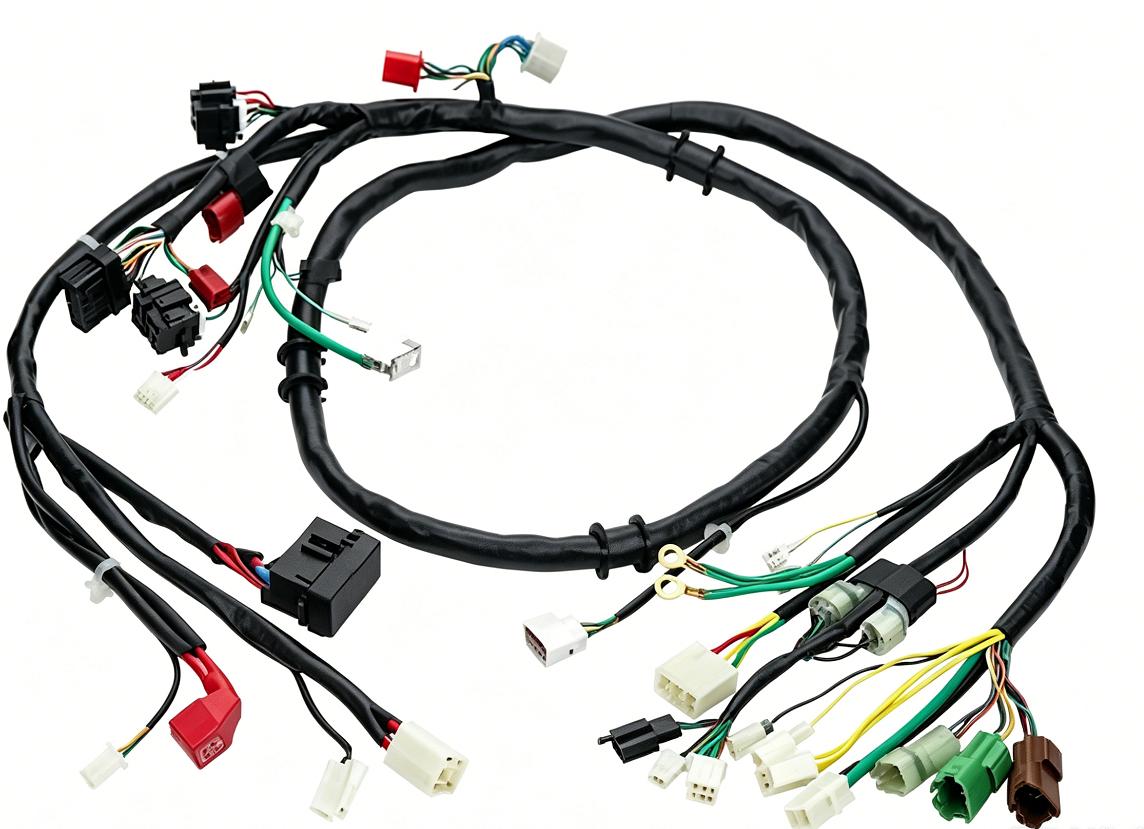

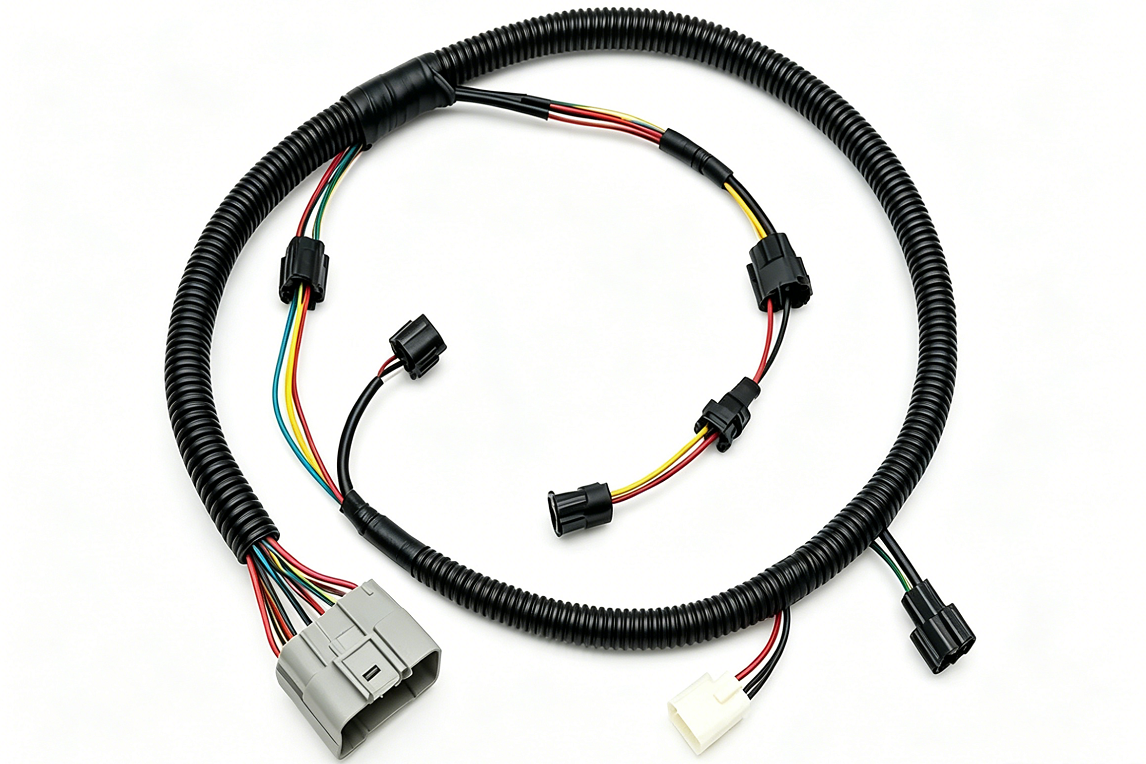

A wire harness is a bundled assembly of wires, connectors, terminals, and protective coverings designed to:
Simplify electrical system installation
Improve reliability and safety
Reduce space and weight compared to loose wiring
Protect circuits from vibration, heat, and moisture
In modern vehicles, wire harnesses act as the central nervous system, enabling communication between electronic control units (ECUs), sensors, and power systems.
Wire harnesses in the powertrain system are responsible for transmitting signals and power between critical engine components.
Typical applications include:
Engine control unit (ECU) connections
Fuel injection systems
Transmission control systems
Sensors (temperature, pressure, speed)
Key requirements:
High temperature resistance
Oil and chemical resistance
Strong vibration durability
Chassis wire harnesses support vehicle stability, safety, and control systems.
Common applications:
Anti-lock braking systems (ABS)
Electronic stability control (ESC)
Steering systems
Suspension monitoring
Key requirements:
High reliability and durability
Resistance to mechanical stress
Stable signal transmission
Body harnesses are used in comfort, convenience, and safety-related features.
Typical applications:
Lighting systems (headlights, tail lights, interior lights)
Power windows and door locks
Seat adjustment systems
Airbag systems
Key requirements:
Flexible routing
Compact design
Fire and safety compliance
With the rise of connected vehicles, infotainment systems require complex wiring solutions.
Applications include:
Navigation systems
Audio and multimedia systems
Displays and dashboards
Connectivity modules (Bluetooth, Wi-Fi)
Key requirements:
Signal integrity (low interference)
EMI shielding
High data transmission capability
In electric vehicles, wire harnesses play a critical role in power distribution.
Main applications:
Battery management systems (BMS)
High-voltage battery packs
Inverters and motors
Charging systems
Key requirements:
High voltage resistance (typically 300V–1000V+)
Thermal management capability
Enhanced insulation and shielding
Safety compliance (orange cables, HV standards)
High-voltage wire harnesses are one of the fastest-growing segments in the automotive industry.
Electric vehicles introduce new challenges and opportunities for wire harness design.
Key EV-specific applications include:
Battery pack interconnections
Fast charging systems
Thermal management systems
Power distribution units (PDU)
Compared to traditional vehicles, EV wire harnesses require:
Higher voltage capacity
Lightweight materials for efficiency
Advanced shielding for electromagnetic compatibility
Modular and scalable designs
As EV adoption increases globally, demand for customized high-voltage wire harness solutions continues to rise.
Different automotive systems require specific wire harness specifications. Below is a simplified overview:
Application Area | Voltage Level | Temperature Range | Key Features |
Powertrain | Low–Medium | High | Heat & oil resistance |
Chassis | Low | Medium | Durability & stability |
Body Electronics | Low | Low–Medium | Flexibility & compactness |
Infotainment | Low | Low | EMI shielding & signal quality |
EV Systems | High | High | Insulation & safety compliance |
Key technical considerations include:
Temperature resistance
Voltage rating
Waterproofing (IP protection levels)
EMI/RFI shielding
Mechanical strength and flexibility
Selecting the right wire harness depends on the specific application and system requirements.
Important factors to consider:
Electrical Requirements
Voltage and current capacity
Signal vs power transmission
Environmental Conditions
Temperature range
Exposure to moisture, chemicals, or vibration
Design Complexity
Space constraints
Routing paths
Compliance and Standards
Automotive certifications (ISO, IATF 16949)
Safety requirements
Customization Needs
Connector types
Cable length and layout
Shielding requirements
Working with an experienced wire harness manufacturer ensures that all these factors are properly addressed.
In the automotive industry, standard solutions are often insufficient due to the complexity of modern vehicle systems.
Custom wire harnesses offer:
Optimized design for specific applications
Improved reliability and performance
Reduced installation time and errors
Better integration with vehicle systems
For EV and advanced automotive systems, customization is no longer optional—it is essential.
At XSD, quality is built into every product through a multi-stage quality management system:
Incoming Material Inspection – All raw materials, including copper, insulation compounds, and connectors, are tested against specifications before production begins.
In-Process Quality Control – Real-time monitoring during cutting, stripping, and crimping ensures that every operation is performed within tight tolerances.
100% Electrical Testing – Every harness is verified for continuity, insulation resistance, and hi-pot (dielectric withstand) to guarantee electrical safety and functionality.
Final Visual Inspection – Dimensional accuracy and workmanship are checked against customer drawings and IPC/WHMA-A-620 standards.
Traceability Systems – Full documentation, including lot numbers and test records, is maintained for regulatory compliance and potential recalls.
This rigorous quality system has earned XSD high marks from automotive auditors and long-term trust from customers.
Frequently Asked Questions (FAQ)
What are the main applications of wire harnesses in vehicles?
Wire harnesses are used in powertrain systems, chassis systems, body electronics, infotainment systems, and electric vehicle power systems.
What is the difference between low-voltage and high-voltage wire harnesses?
Low-voltage harnesses handle standard vehicle electronics, while high-voltage harnesses are used in EVs for battery and power distribution systems.
Why are wire harnesses important in electric vehicles?
They ensure safe and efficient transmission of high-voltage power between critical components such as batteries, motors, and charging systems.
Automotive wire harness applications span across all critical vehicle systems, from traditional powertrain and chassis systems to advanced infotainment and electric vehicle technologies.
As the automotive industry moves toward electrification and smart mobility, the demand for high-performance, customized wire harness solutions continues to grow.
Choosing the right wire harness partner is essential to ensure product reliability, safety, and long-term performance.
If you are looking for a reliable manufacturer for automotive or EV wire harness applications, working with a supplier that offers custom engineering, strict quality control, and industry certifications can significantly improve your project success.
Partner with XSD Today
Whether you are developing a new passenger vehicle, electric commercial truck, construction equipment, or agricultural machinery, XSD Cable Technology has the expertise, certifications, and production capacity to deliver automotive wire harnesses you can rely on.
