When designing wire harnesses for automotive, industrial, aerospace, or consumer electronics applications, choosing the right outer protection is critical. It directly impacts durability, reliability, maintenance costs, and even system weight. Two of the most popular solutions on the market today are braided sleeving and corrugated tubing. Both have distinct strengths and weaknesses, and the right choice depends on your specific operating environment, mechanical requirements, and budget.
In this comprehensive guide, we’ll break down the material properties, performance metrics, installation ease, application scenarios, and cost differences between these two protection methods. By the end, you’ll know exactly which one fits your next project.

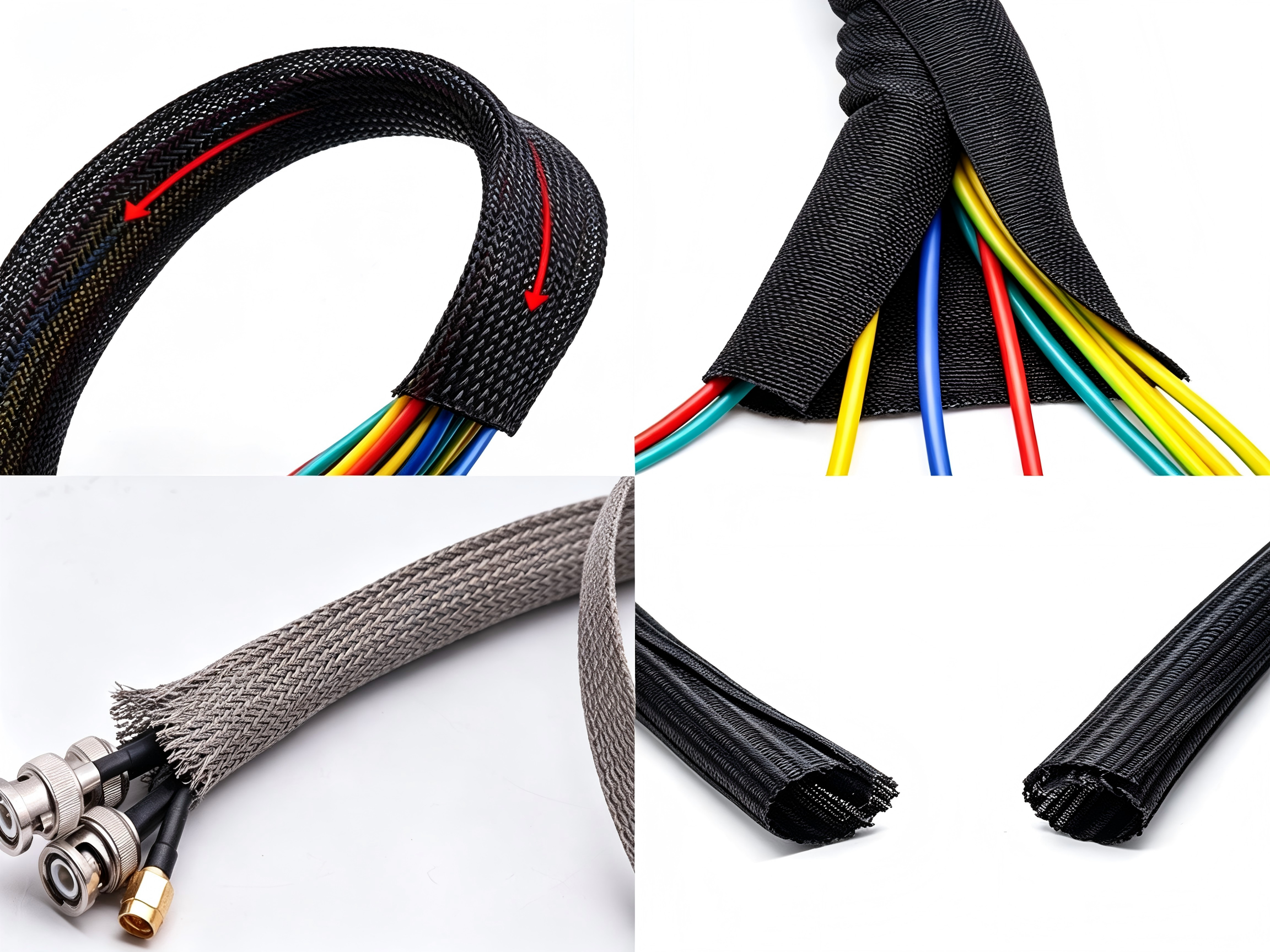

Braided sleeving is a flexible, tubular protective cover manufactured by interweaving strands of materials such as polyester (PET), nylon (PA66), or fiberglass. Its open-weave structure gives it an expansion ratio of 2:1 to 3:1, allowing it to stretch over connectors and conform tightly to bundles of varying diameters. Operating temperatures typically range from 50°C to +150°C, with special glass fiber versions enduring up to 260°C continuously.
Key advantages:
Superior flexibility – Easily bends around tight corners and through confined spaces without cracking.
Lightweight – Adds minimal mass, crucial for fuel efficiency and handheld devices.
Noise reduction – Soft texture dampens vibration induced rattling, ideal for passenger compartments.
Breathability – Open weave permits air circulation, preventing moisture build up and corrosion.
EMI shielding optional – Metal infused variants provide electromagnetic interference protection.
Professional appearance – Neat, woven finish enhances visual quality for exposed harnesses.
Easy rework – Self wrap styles allow side entry installation and quick access for repairs.

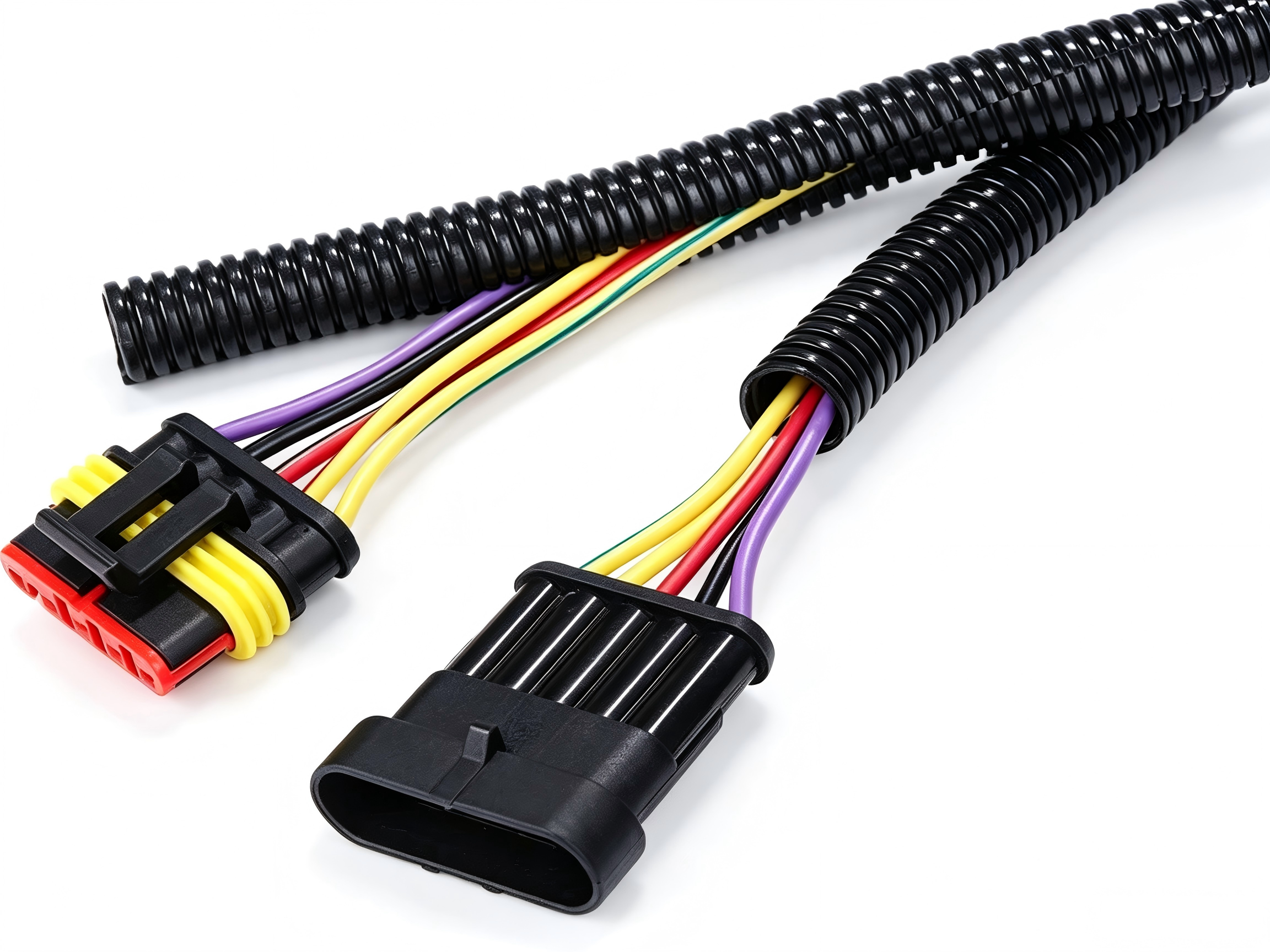

Corrugated tubing is manufactured via extrusion with a wavy, accordion like profile. Common materials include polypropylene (PP), polyamide (PA/nylon), and polyethylene (PE). It comes in two forms: slit (with a longitudinal cut for post assembly) and unslit (full enclosure for maximum protection). The corrugations provide exceptional radial strength and impact resistance.
Key advantages:
Outstanding crush and impact resistance – The ribbed structure absorbs shocks, making it ideal for under chassis and heavy equipment wiring.
Excellent abrasion resistance – PA66 heavy wall tubing meets ISO 6722 Class C and D wear standards.
Wide temperature range – Typically 40°C to +150°C; PA6 grades offer higher heat deflection and flame retardancy.
Chemical resilience – Resists oils, fuels, acids, and many solvents.
Cost effective – Lower material and processing costs suit high volume production.
Aspect | Braided Sleeving | Corrugated Tubing |
Materials | PET, PA66, fiberglass, metal coated yarns | PP, PA, PE |
Operating Temp | 50°C to +150°C (special up to 260°C) | 40°C to +150°C |
Flexibility | ★★★★★ – bends freely without damage | ★★★ – limited; excessive flex may cause cracking |
Crush/Impact Resistance | ★★★ – moderate; depends on density | ★★★★★ – excellent due to corrugated walls |
Abrasion Resistance | ★★★★ – good for most applications | ★★★★★ – superior, especially PA66 |
EMI Shielding | ★★★★ – available with metallic braids | ★ – not offered |
Installation | ★★★★★ – self wrap or expandable over connectors | ★★★★ – slit type can be side loaded; unslit requires pre threading |
Noise Damping | ★★★★★ – soft, quiet | ★★ – hard surface may transmit vibrations |
Space Efficiency | ★★★★★ – conforms tightly to bundle | ★★★ – thicker walls take up more space |
Aesthetics | ★★★★★ – clean woven texture | ★★ – industrial, utilitarian look |
Cost (relative) | 2–3× higher than tubing | Low, ideal for mass production |
Braided sleeving shines in applications that demand:
High flexibility – Harness routes with multiple bends, moving parts, or limited clearances.
Visible wiring – Consumer electronics, custom automotive builds, audio installations where appearance matters.
Serviceability – Self wrap sleeving allows easy access for adding or removing wires without disconnecting terminals.
EMI protection – Sensitive signal lines (sensors, data buses) benefit from metal braided sleeves.
Quiet operation – Interior cabin wiring where rattling must be minimised.
Weight reduction – Aerospace and electric vehicles where every gram counts.
Corrugated tubing is the go to solution for:
High mechanical stress – Underbody chassis, wheel arches, engine bay areas exposed to stone chips and gravel.
Severe abrasion – Continuous rubbing against metal edges or moving parts.
Chemical exposure – Oil, fuel, or solvent rich environments.
Cost sensitive bulk production – Large scale manufacturing where unit price is critical.
High temperature engine compartments – PA66 tubing offers good heat and flame resistance.
With the rapid shift toward electric vehicles, autonomous driving, and smart devices, wire harnesses are becoming denser, lighter, and more complex. Traditional corrugated tubing struggles to meet the growing demands for flexibility, space savings, and ease of assembly. In response, high temperature fibre braided sleeving is increasingly replacing corrugated tubing in many new designs. Its combination of lightweight construction, vibration damping, and rework friendliness makes it a favourite among modern engineers.
However, corrugated tubing remains irreplaceable for extreme mechanical protection. The two solutions are not mutually exclusive – many harnesses use a hybrid approach, with braided sleeving in interior sections and corrugated tubing in high risk external zones.
There is no universal “best” – the optimal choice depends entirely on your application profile.
Prioritise impact resistance, abrasion, and chemical durability? → Corrugated tubing is your safe bet.
Prioritise flexibility, lightweight, easy maintenance, and aesthetics? → Braided sleeving delivers superior value.
As a professional wire harness manufacturer, we offer both solutions and provide customised recommendations based on your mechanical, thermal, and electrical requirements. We also support hybrid designs to maximise performance while controlling costs.
Q1: Which is more abrasion resistant – braided sleeving or corrugated tubing?
Corrugated tubing, especially PA66 heavy wall grades, offers higher abrasion resistance (ISO 6722 Class C/D). Braided sleeving provides good abrasion protection for most normal applications but is not as robust against continuous heavy rubbing.
Q2: Can braided sleeving withstand high engine bay temperatures?
Standard PET sleeving operates up to 150°C. For hotter environments (up to 260°C), glass fibre or special high temperature nylon sleeving is available. Always check the continuous service temperature rating.
Q3: Does corrugated tubing become brittle over time?
Yes, especially when exposed to prolonged heat and UV. In engine compartments, PA66 grades are more durable than PP, but even they may show signs of cracking after 3 5 years in extreme conditions. Regular inspection is recommended.
Q4: How easy is it to install braided sleeving on an existing harness?
Very easy. Self wrap braided sleeving has a longitudinal slit that allows side entry installation without removing connectors. Expandable sleeving can stretch to 2 3 times its diameter, sliding over large terminals with ease.
Q5: Why is braided sleeving more expensive than corrugated tubing?
The weaving process is more labour and energy intensive, and the raw materials (especially fine fibres and metal yarns) cost more. However, the total cost of ownership may be lower when considering reduced assembly time, better space utilisation, and lower warranty claims.
Q6: Can I use both products in the same harness?
Absolutely. Many OEM designs combine them – corrugated tubing for exposed underbody sections and braided sleeving for interior or engine top harnesses. We can help you design a hybrid protection strategy that optimises performance and cost.
Choosing between braided sleeving and corrugated tubing doesn’t have to be a guessing game. Our engineering team can evaluate your specific operating conditions – temperature, mechanical loads, chemical exposure, and assembly workflow – and recommend the most reliable, cost effective solution. We also provide free samples for testing.
Visit our website to explore our full range of wire harness protection products, request a quote, or download technical datasheets.
