Wire harness failures are among the most underestimated risks in electrical systems across automotive, aerospace, industrial, and medical applications. A single compromised connection can trigger intermittent faults that are notoriously difficult to diagnose, lead to costly downtime, or in critical systems, create genuine safety hazards. Understanding the most common failure modes and their root causes is the first step toward building more reliable wiring solutions. This guide breaks down the most frequent wire harness failures, explains why they happen, and outlines proven solutions that engineers and procurement professionals can apply immediately.

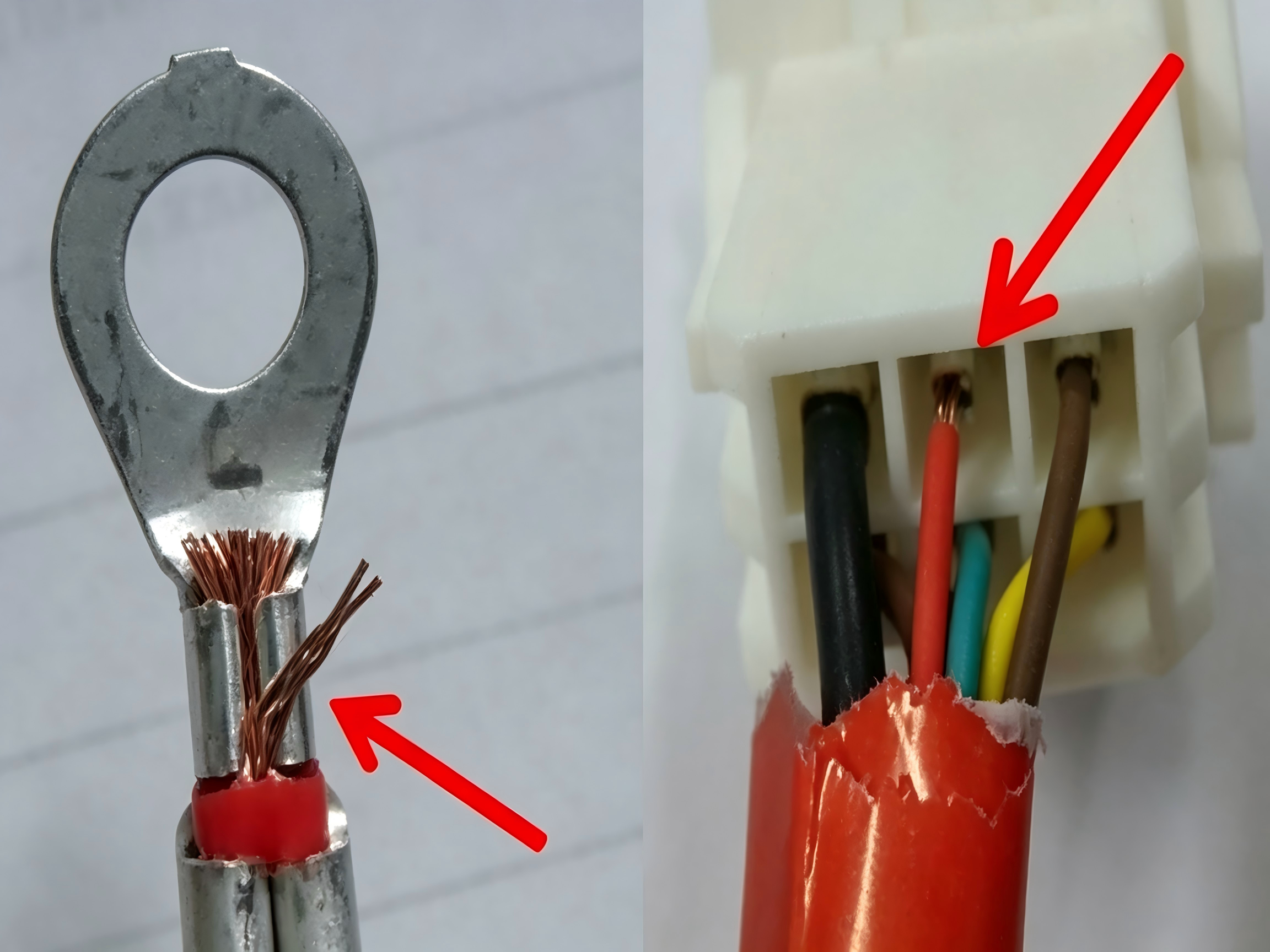

If you ask any experienced wire harness engineer what causes the most quality issues, the answer is almost always the same: crimping. Industry data suggests that approximately 80% of wire harness quality problems originate from crimping processes. The reason is straightforward—the crimp is the single point where electrical current transitions from the wire conductor to the terminal, and unlike other manufacturing steps, crimping is an irreversible process.
Crimp failures typically stem from three sources. First, crimp height deviations: a crimp height that is too large leaves the conductor insufficiently compressed, raising contact resistance and causing overheating; too small, and copper strands fracture. The acceptable tolerance is often as tight as ±0.02 mm. Second, tooling wear: crimping dies degrade over time, leading to inconsistent crimp geometry, insufficient conductor compression, and batch-level quality issues. Third, wire stripping quality: nicked strands or incorrect strip lengths result in uneven compression and insufficient pull force, defects that are nearly invisible in visual inspection.
Solutions: Implement Crimp Force Monitoring (CFM) at every press station to detect anomalies in real time. Conduct pull tests at a defined frequency, and perform periodic cross-section analysis to verify conductor compression. Control crimp height as a critical process parameter with statistical process control (SPC), and establish strict die life management protocols with scheduled replacement intervals.
Fretting corrosion is one of the most frustrating failure modes in wire harness systems because it produces intermittent faults that come and go—frequently referred to in the industry as the "Intermittent Ghost". This phenomenon occurs when microscopic relative motion between mating contact surfaces, caused by vibration or thermal cycling, repeatedly exposes fresh metal to oxidation. Over time, insulating oxide debris accumulates at the contact interface, causing contact resistance to rise progressively until the connection fails entirely.
Tin-plated terminals are particularly susceptible to fretting corrosion, despite being widely used for their cost and commercial advantages. In automotive environments, where connectors experience constant vibration from road conditions and engine operation, fretting degradation can develop over months or years, making it extremely challenging to reproduce in diagnostic testing.
Solutions: Select connector systems with gold-plated or conductive polymer contacts in high-vibration applications. Ensure proper terminal retention force to minimize relative movement. Apply contact lubricants specifically designed to reduce fretting wear. In critical applications, consider sealed connector systems that prevent oxygen ingress at the contact interface. If your application involves high-vibration environments, consult with your harness supplier about connector selection early in the design phase.
Wire chafing occurs when harnesses rub against structural components, other bundles, or sharp edges, gradually wearing through the insulation. This is particularly common in areas where clamping is inadequate or where wire bundles have been modified after original installation. Chafing is aggravated by damaged clamps, cushion migration, or improper clamp installations. Improperly installed tie wraps can also cause insulation damage by compressing wires too tightly.
Chafing failures often develop undetected over extended periods. The insulation may maintain electrical integrity until the conductor is suddenly exposed, at which point a short circuit or ground fault can occur without warning. In aerospace applications, wire bundle chafing has been identified as a contributing factor in several major accidents.
Solutions: Use the correct clamp type and size specified for each routing location. Maintain proper bundle spacing to prevent sagging and structural contact. Apply abrasion-resistant protective sleeving—such as heat-shrink fabric tubing or braided sleeving—in high-risk areas. Ensure tie wraps are tightened to the correct tension. For harsh environments with significant vibration, consider conduit systems that provide comprehensive mechanical protection. Regular visual inspections at known chafing points are essential for catching wear before it becomes a failure.
Shielding is critical for maintaining signal integrity in environments with electromagnetic interference (EMI). Shield failures can manifest in several ways: physical damage to the braid or foil, degradation of the bond between the shield and connector backshell, or improper grounding that renders the shield ineffective. Research on aircraft wiring has demonstrated that harness shield loop resistance is an important indicator of bond quality between the cable shield, backshells, connectors, and metallic structures.
A particularly common shield failure involves excessive grounding lead length. When the shield's grounding wire is too long, high-frequency impedance increases, effectively negating the shield's performance at higher frequencies. A documented case involving a new energy vehicle found that radiated emissions exceeded regulatory limits specifically because the shield ground lead was excessively long.
Solutions: Maintain shield continuity along the entire harness length. Keep shield grounding leads as short as possible. Ensure conductive gaskets and bonding surfaces remain intact through thermal cycling. Verify shield effectiveness through shield loop resistance testing as part of routine quality checks. When designing shielded harnesses, confirm that the shield-to-connector interface meets the required transfer impedance specifications.
Water ingress through connector seals is a leading cause of harness failure in automotive and outdoor applications. When low-voltage harness connectors experience poor sealing, water can enter the connector housing, leading to corrosion, short circuits, and in severe cases, vehicle fire. Worn environmental seals, loose connectors, missing seal plugs, and lack of strain relief on connector grommets all contribute to compromised connector integrity.
Contamination accelerates multiple failure mechanisms. Connector pin corrosion causes overheating, arcing, and pin-to-pin shorting. Dust and debris accumulation at terminal blocks can sustain a fire if ignited by an overheated or arcing terminal. Even sealed splices are susceptible to environmental deterioration over time.
Solutions: Use sealed connector systems with properly rated IP protection for the application environment. Verify that all seal plugs and dummy contacts are installed correctly. Maintain drip loops when connectors are positioned below the harness level. Apply dielectric grease to connectors in moisture-prone areas. Implement regular inspection protocols that include checking seal condition and terminal cleanliness.

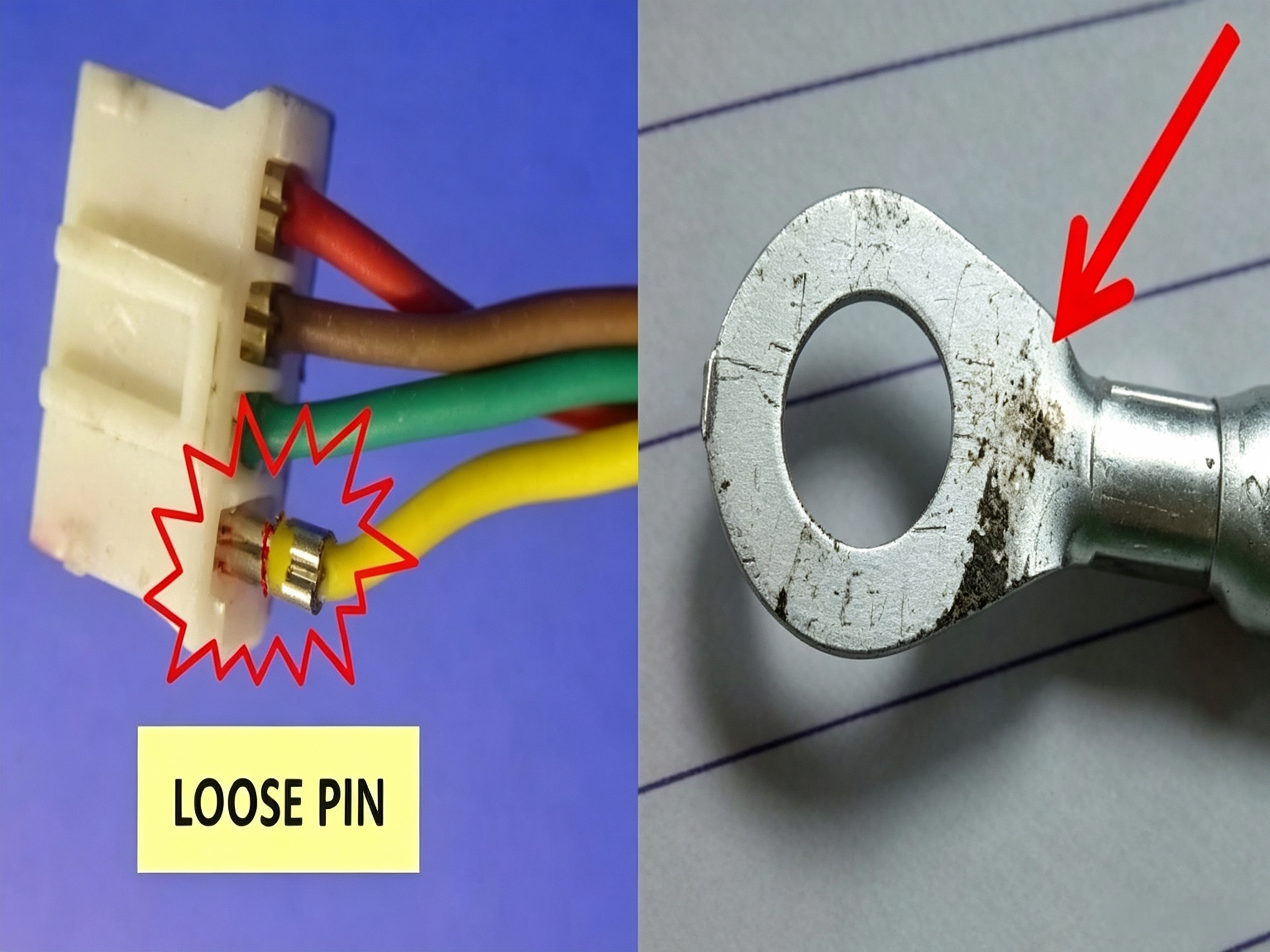

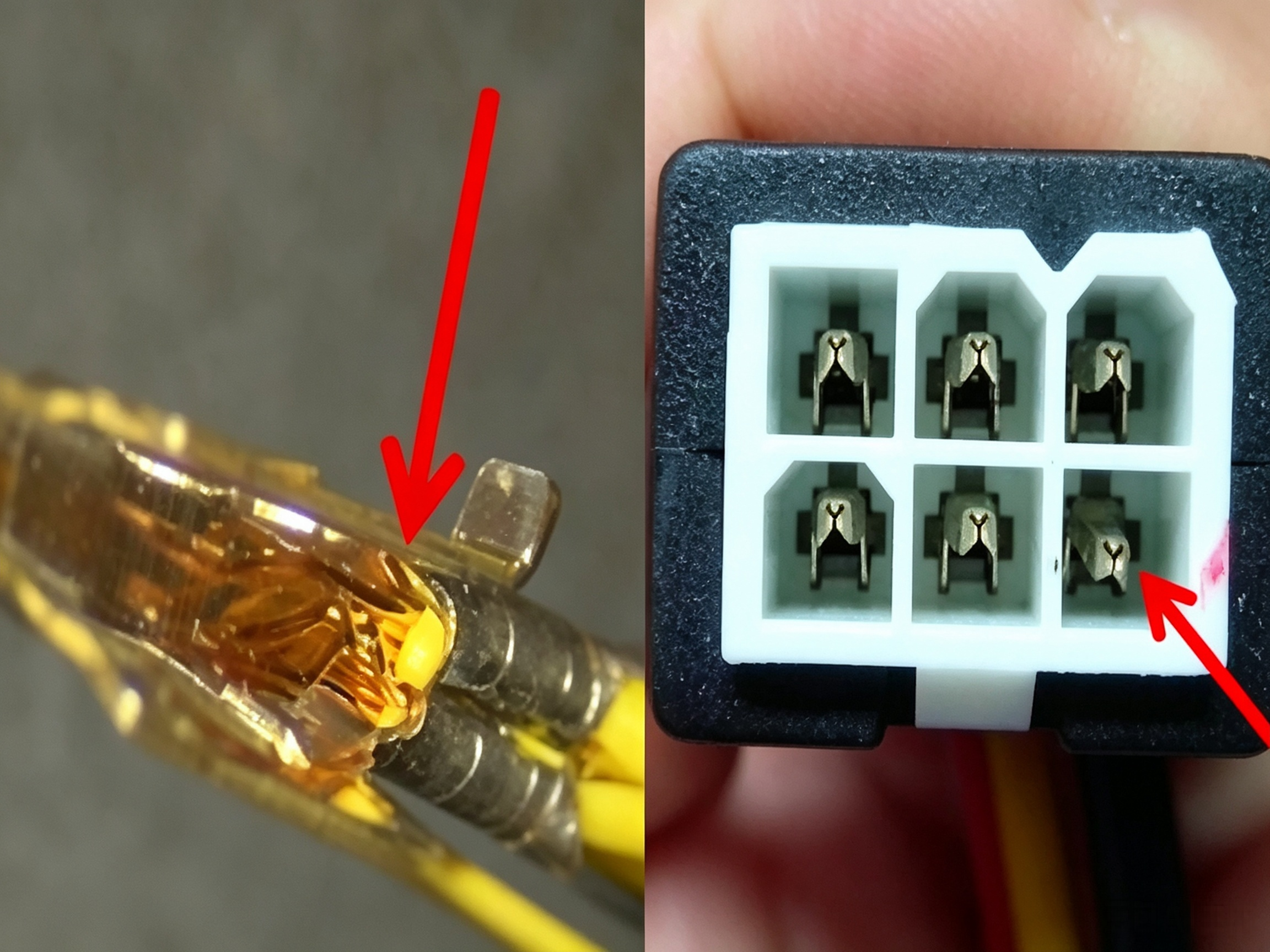

Terminal-related failures are widespread in high-volume wiring harness production. In a single SUV model, there can be over 1,000 harness connectors, and daily assembly feedback commonly includes terminal push-back and bent terminal issues. These failures can escape end-of-line electrical testing and reach the customer as intermittent functional problems.
Root causes include inadequate dimensional tolerance between mating halves, improper wire routing that induces twist in the connector housing, and insufficient terminal retention within the connector cavity. Cold solder joints and solder wicking—where capillary action draws solder up the wire strands—create rigid stress risers that lead to vibration-induced failures hidden beneath insulation.
Solutions: Verify dimensional compatibility between mating connector halves with adequate design margin. Implement terminal retention force testing as part of connector qualification. Use proper strain relief at connector backshells to prevent tension transfer to terminals. Address wire twist at the design stage to ensure straight terminal insertion. For critical applications, consider ultrasonic welding as an alternative to crimping or soldering for splice connections.
Open circuit failures occur when the conductor breaks and electrical energy can no longer be transferred. Repeated bending stress is a primary cause—most industry best practices recommend that the bend radius of a wire should be at least 10 times its diameter, and tighter bends place additional strain that manifests as insulation cracks and eventual conductor fatigue. Wires may also break at backshells due to excessive flexing or lack of strain relief.
Solutions: Design harness routing with generous bend radii that exceed the minimum 10:1 ratio. Provide adequate strain relief at all termination points. Use flexible conductor constructions (such as higher strand count) in applications subject to repeated flexing. Perform fatigue testing on harness designs before production release, especially for dynamic applications.
The foundation of reliable wire harness manufacturing is adherence to recognized industry standards. IPC/WHMA-A-620F-2025 is the only industry-consensus standard for requirements and acceptance of cable and wire harness assemblies, covering materials, methods, tests, and acceptance criteria for crimped, mechanically secured, and soldered interconnections. The standard defines three product classes: Class 1 (general electronic products), Class 2 (dedicated service), and Class 3 (high-performance/harsh environment), allowing manufacturers to align quality requirements with application criticality.
Key quality checkpoints from the standard include first article inspection (FAI), 100% electrical testing for opens, shorts, and miswires, and destructive pull testing at defined frequencies. A process-validated crimp—with correct height, passing pull-force, and verified cross-section—remains the single most important quality control measure in harness manufacturing. When evaluating wire harness suppliers, requesting evidence of compliance with IPC/WHMA-A-620 is a practical way to assess manufacturing capability.
Wire harness failures rarely stem from a single dramatic cause. They result from the gradual interaction of mechanical stress, environmental exposure, manufacturing variability, and design limitations. The most effective strategy is prevention through design validation, process control, and routine inspection. By understanding these seven common failure modes and implementing the corresponding solutions, engineers and procurement teams can dramatically improve system reliability, reduce warranty costs, and avoid the operational disruptions that harness failures inevitably cause. Whether you are specifying a custom wire harness for a new product or troubleshooting failures in an existing system, the principles remain the same: control the crimp, protect the routing, seal the connection, and verify the shield.
Q1: What is the single most common cause of wire harness failure?
Crimping defects are widely regarded as the leading cause. Industry experience indicates that roughly 80% of wire harness quality issues trace back to the crimping process, largely because the crimp is an irreversible operation with extremely tight tolerance requirements.
Q2: How can I prevent wire chafing in my harness installation?
Use the correct clamp type and size for each routing location, maintain proper bundle spacing, and apply abrasion-resistant sleeving or conduit in high-risk areas. Regular visual inspection at known chafing points is essential, as wear develops gradually and can be caught before it causes failure.
Q3: What is fretting corrosion, and why does it cause intermittent faults?
Fretting corrosion occurs when vibration or thermal cycling causes microscopic movement between mated contact surfaces, repeatedly exposing fresh metal to oxidation. The resulting oxide debris raises contact resistance, producing intermittent faults that are difficult to diagnose because they disappear when the connector is disturbed during testing.
Q4: What is IPC/WHMA-A-620, and why does it matter?
IPC/WHMA-A-620 is the only industry-consensus standard for wire harness requirements and acceptance criteria. It covers materials, methods, testing, and acceptance criteria for crimped, soldered, and mechanically secured interconnections, with three product classes that align quality requirements with application criticality.
Q5: How often should wire harnesses be inspected for preventive maintenance?
Inspection frequency depends on the application environment and criticality. High-vibration or high-moisture environments typically require more frequent inspection intervals. A common approach is to conduct initial inspections at defined intervals—such as quarterly or semi-annually—and adjust the schedule based on observed degradation rates.
Q6: Can a damaged wire harness be repaired, or must it be replaced?
Minor insulation damage can sometimes be repaired with approved splice or insulation repair methods, provided the conductor is not compromised. However, crimp failures, shield damage, and water-contaminated connectors typically require replacement of the affected harness section. Always refer to the relevant industry standard for acceptable repair criteria.
