Diagnosing Electrical Connection Problems: A Professional Guide for Wire Harness And Cable Systems

Electrical connection problems are among the most common and costly failures in automotive, industrial, aerospace, medical, and renewable energy systems. A loose terminal, corroded contact, poor crimp, or damaged insulation can cause intermittent power loss, signal distortion, voltage drops, overheating, and even fire. For engineers, maintenance teams, and manufacturers, knowing how to systematically diagnose these faults is essential.

At XSDSingder, we manufacture high-reliability wire harnesses and cable assemblies for demanding applications. This guide explains the root causes of electrical connection failures, the most effective diagnostic procedures, and the testing tools that help reduce downtime and improve long-term performance.

Why Electrical Connections Fail

Understanding failure patterns is the first step in diagnosing electrical connection problems. Industry data shows that oxidation, corrosion, and contamination cause approximately 44% of connector failures. Moisture, salt spray, chemicals, and airborne pollutants create non-conductive layers on terminal surfaces, increasing contact resistance.

Mechanical stress causes about 17% of failures. Vibration, wire movement, and thermal expansion reduce contact pressure between terminals. As contact pressure drops, resistance rises, and heat begins to build. Heat damage accounts for roughly 11% of failures. Once a connection overheats, insulation may soften, terminals may deform, and the risk of fire increases.

Improper crimping is another critical issue. Asymmetric crimps, insufficient crimp force, or voids between wire strands raise resistance and create localized hot spots. These defects may not appear during initial testing, but they can develop into intermittent open circuits after vibration and thermal cycling. Aging, wear, and moisture intrusion complete the list of common failure modes.

The Five Main Circuit Faults

In practical troubleshooting, electrical connection problems usually fall into five categories:

Blown fuse – often caused by a downstream short circuit.

Loose or dirty connection – the most common and most underestimated fault.

Broken wire – an open circuit that stops current flow completely.

Insulation failure – a short to ground or between conductors.

Faulty component – a failed device that mimics a wiring problem.

Each fault requires a different diagnostic approach. The key is to test logically rather than replacing parts randomly.

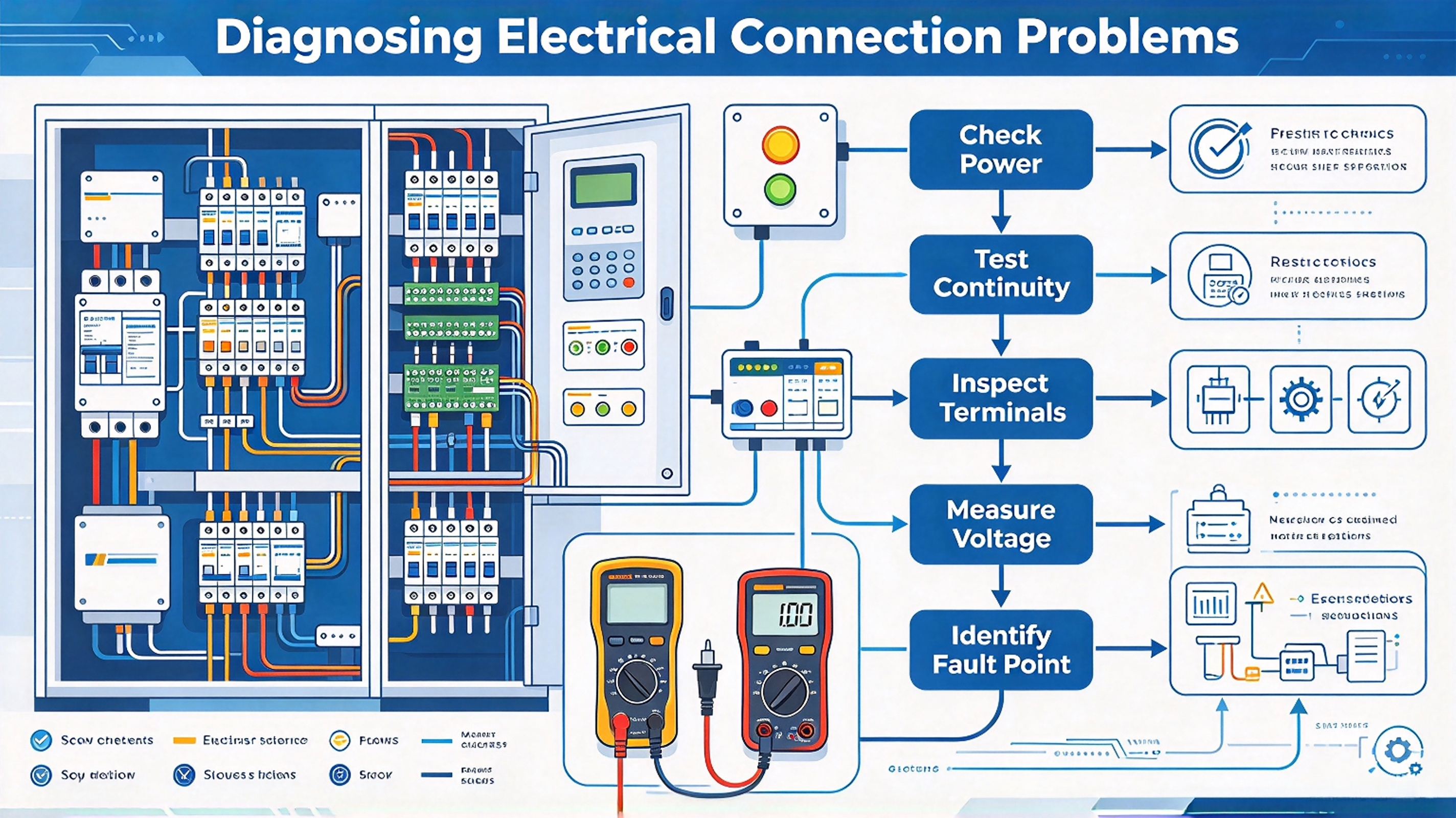

Step-by-Step Diagnostic Procedure

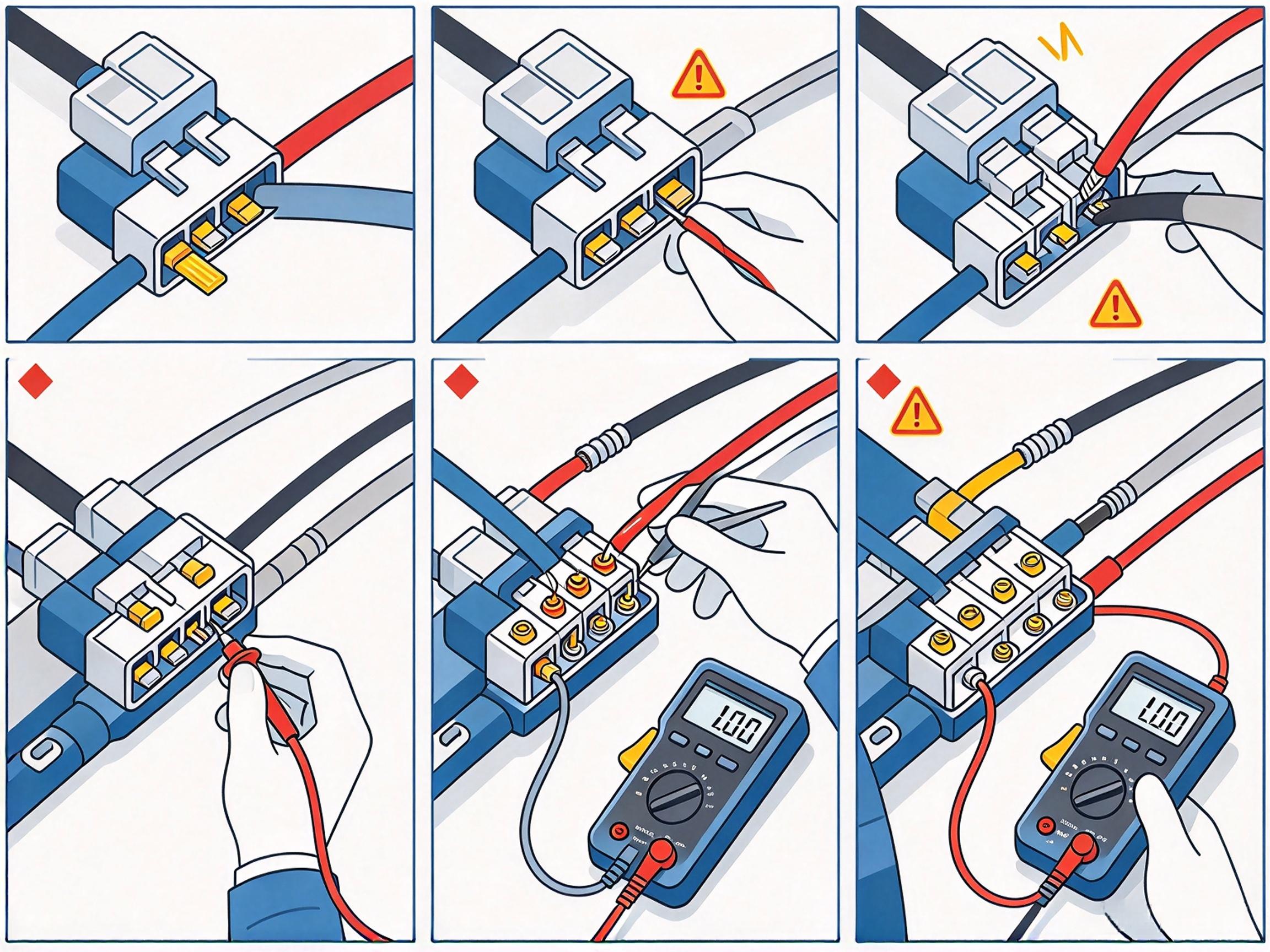

Step 1: Visual Inspection

Begin with a careful visual inspection. Check connector housings for discoloration, melting, or burn marks. Look for green or white corrosion on terminals. Inspect pins for bending, spreading, or backing out. Examine wire insulation for cracks, chafing, or heat damage, especially near flex points and heat sources. Verify that connector seals are present and intact.

Cleaning and reconnecting a suspect connector may temporarily solve the problem. However, if the fault returns, the connector or terminal usually needs replacement.

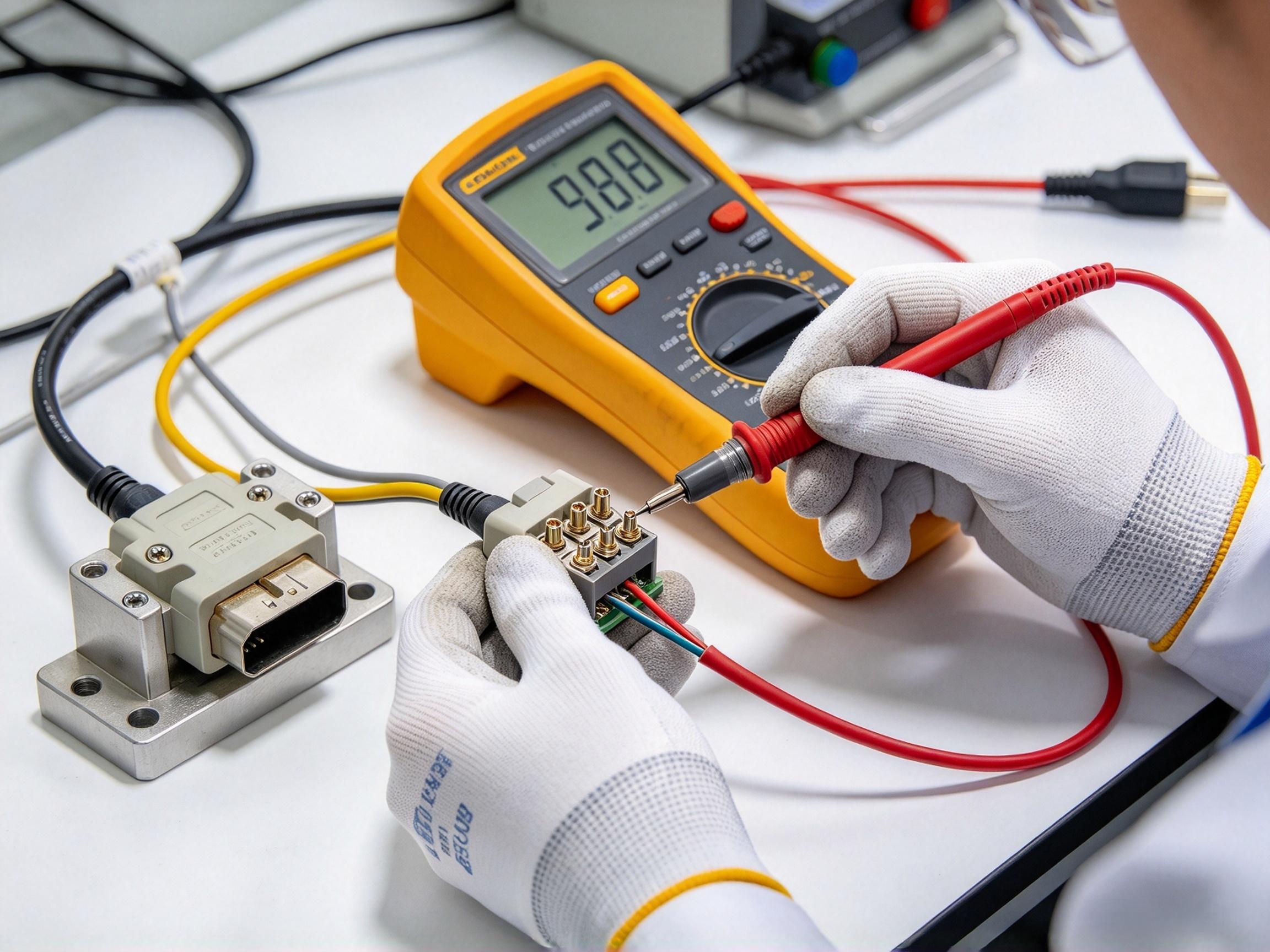

Step 2: Continuity Testing

A digital multimeter is the essential tool for continuity testing. Set the meter to continuity mode, disconnect both ends of the suspect wire, and place one probe on each end. An audible tone or a resistance reading below approximately 100 ohms indicates a complete circuit. An “OL” display or infinite resistance indicates an open circuit.

For long circuits with multiple connectors, disconnect sections progressively and test each segment until the faulty area is isolated.

Step 3: Voltage Drop Testing

Voltage drop testing is the most reliable method for finding high-resistance connections. Measure the voltage across a connection while current is flowing. A healthy connection typically shows only a few millivolts of drop. A degraded connection may show several hundred millivolts or more. International standards such as EN 2591-217 provide procedures for measuring voltage drop in terminal lugs and in-line splices, ensuring consistent and comparable results.

Step 4: Short Circuit and Ground Fault Testing

To test for a short to ground, set the multimeter to resistance mode and measure between the suspect wire and the chassis or ground point. A low resistance reading indicates a short. To detect a short between two wires, isolate both circuits and measure resistance between them. Any reading below the specified threshold suggests insulation failure or a pinched conductor.

Step 5: Intermittent Fault Diagnosis

Intermittent faults are difficult because they may not appear during static testing. Perform a wiggle test: monitor continuity or voltage while gently flexing the harness and manipulating connectors. If readings change during movement, the fault location is confirmed. Advanced tools such as Time Domain Reflectometry (TDR) analyzers can pinpoint the distance to an open, short, or impedance fault inside a harness.

Essential Diagnostic Tools

For automotive and industrial work, a CAT III 600V True RMS multimeter is recommended. Always use terminal test adapters sized for the connector cavity. An oversized probe can deform terminals and create a new fault.

How Manufacturing Quality Reduces Connection Problems

As a professional wire harness manufacturer, XSDSingder controls connection reliability at the source. Our production processes include 100% continuity and resistance verification, crimp pull-force testing, visual and dimensional inspection, and environmental stress screening for sealed assemblies. By selecting the right terminal plating, connector sealing, strain relief, and wire gauge, we help customers reduce field failures and extend maintenance intervals.

High-quality crimping, correct terminal selection, and stable manufacturing processes are essential for reducing the frequency of diagnosing electrical connection problems in the field.

Preventive Maintenance Recommendations

Inspect connectors for corrosion, loose terminals, and damaged seals. Use dielectric grease where appropriate. Protect connections from standing water and chemical splash. Choose IP-rated connectors for harsh environments. Recommended inspection intervals: annually for automotive underhood applications, every six months for industrial equipment, and quarterly for aerospace or medical systems.

FAQ

1. What is the most common cause of electrical connection failure?
Oxidation and corrosion account for about 44% of connector failures, followed by mechanical stress, heat damage, and improper crimping.

2. How do I test a wire harness for continuity?
Use a digital multimeter in continuity mode. Disconnect both ends, probe each end, and check for a tone or resistance below about 100 ohms. “OL” means an open circuit.

3. What voltage drop is acceptable across a connection?
A good connection usually shows only a few millivolts. A drop of several hundred millivolts indicates excessive resistance and should be investigated.

4. Can a bad crimp cause intermittent electrical problems?
Yes. Voids between wire strands increase resistance and heat. Under vibration or thermal cycling, this can become an intermittent open circuit.

5. How often should wiring harnesses be inspected?
Annually for automotive underhood use, every six months for industrial equipment, and quarterly for high-reliability applications.

6. How can I prevent connector corrosion?
Use sealed IP-rated connectors, intact seals, appropriate plating, and dielectric grease. Avoid prolonged exposure to water and chemicals.
