A wire harness works by organizing, protecting, and routing multiple electrical wires into a single integrated assembly. It allows electrical power and signals to travel safely between components while reducing installation complexity, improving reliability, and protecting wiring from environmental and mechanical damage.
For manufacturers and OEMs, a properly designed wire harness can significantly reduce assembly time, improve product quality, and lower overall production costs.
In this guide, we will explain how a wire harness works, its key components, manufacturing processes, applications, and how to select the right custom wire harness manufacturer for your project.
A wire harness, sometimes called a wiring harness or cable harness, is a structured assembly of wires, terminals, connectors, protective coverings, and supporting components bundled together to transmit electrical power and signals throughout a system.
Instead of routing dozens or hundreds of individual wires separately, a wire harness groups them into a single organized assembly. This improves installation efficiency, reduces errors, and enhances protection against environmental hazards.
A wire harness is an organized collection of wires, terminals, connectors, and protective materials that safely distributes electrical power and signals between various components within a machine, vehicle, or electronic device.
A typical wire harness consists of several critical components:
Component | Function |
Wires and Cables | Carry electrical power and signals |
Terminals | Create secure electrical connections |
Connectors | Connect circuits and devices |
Insulation | Prevent electrical shorts |
Sleeves and Tubing | Protect wires from abrasion and heat |
Cable Ties and Clamps | Secure wire routing |
Labels and Markers | Simplify identification and maintenance |
Each component contributes to the overall safety, reliability, and performance of the harness assembly.
Understanding the working principle of a wire harness is relatively straightforward. A wire harness acts as the electrical nervous system of a machine or device, transmitting power and information between different components.
The process begins at a power source or control unit.
Examples include:
Vehicle battery
Power supply unit
Electronic control unit (ECU)
PLC controller
Sensor interface module
Electrical current or signals are generated and introduced into the wire harness through designated connectors and terminals.
Inside the harness, individual conductors transport electrical energy and communication signals.
Depending on the application, the wires may carry:
DC power
AC power
Analog signals
Digital communication signals
Data transmission protocols
Each conductor is selected according to voltage, current capacity, temperature requirements, and environmental conditions.
The wire harness distributes electricity to various components throughout the system.
Examples include:
Motors
Sensors
Lighting systems
Displays
Control modules
Actuators
Switches
Connectors ensure secure and repeatable connections while allowing easy assembly and maintenance.
Industrial environments often expose wiring to harsh conditions such as:
Vibration
Moisture
Dust
Chemicals
Heat
Mechanical abrasion
Protective materials help prevent premature failure.
Common protection methods include:
Corrugated tubing
Braided sleeves
PVC sheathing
Heat shrink tubing
Rubber grommets
Protective tapes
These materials extend service life and improve reliability.
A properly designed wire harness follows predetermined routing paths.
Benefits include:
Reduced wire fatigue
Less vibration damage
Improved airflow
Easier maintenance
Faster assembly
Enhanced safety
Without a wire harness, loose wires can become tangled, damaged, or disconnected, increasing the risk of system failure.
A wire harness works by bundling multiple electrical conductors into a protected assembly that efficiently distributes power and signals while reducing installation complexity and protecting the wiring system from damage.
Many manufacturers ask why they should invest in a custom wire harness instead of routing individual wires.
The answer lies in efficiency, reliability, and cost reduction.
Pre-assembled wire harnesses arrive ready for installation.
Benefits include:
Faster production
Reduced labor costs
Simplified assembly procedures
In many applications, harnesses can reduce wiring installation time by 30% to 50%.
Wire harnesses minimize:
Human wiring errors
Incorrect connections
Loose terminals
Damaged conductors
Consistent assembly leads to higher product quality and fewer field failures.
Proper wire organization reduces the risk of:
Electrical shorts
Overheating
Fire hazards
Mechanical damage
This is especially important in automotive, aerospace, and industrial applications.
Technicians can quickly identify and troubleshoot circuits using labeled harness assemblies.
This reduces downtime and maintenance costs.
Although harnesses require upfront engineering, they typically lower total production costs by:
Reducing assembly labor
Minimizing rework
Improving quality control
Increasing manufacturing efficiency
The automotive industry is one of the largest users of wire harness technology.
Consider a vehicle's lighting system.
Battery
↓
Fuse Box
↓
Main Wire Harness
↓
Body Control Module
↓
Headlights
↓
Turn Signals
↓
Brake Lights
↓
Interior Lighting
The wire harness serves as the communication and power distribution network connecting all these systems.
Without a properly designed harness, modern vehicles containing thousands of electrical connections would be impossible to manufacture efficiently.
Wire harnesses are used across virtually every industry that relies on electrical systems.
Applications include:
Engine wiring
Dashboard systems
Lighting systems
Battery management systems
Electric vehicles
Applications include:
Automation systems
Robotics
CNC machines
PLC control panels
Manufacturing equipment
Applications include:
Diagnostic equipment
Patient monitoring systems
Surgical instruments
Imaging devices
Applications include:
Aircraft control systems
Avionics
Communication equipment
Navigation systems
Applications include:
Home appliances
Gaming equipment
Smart devices
Communication products
Applications include:
Solar energy systems
Wind turbines
Battery storage systems
EV charging infrastructure
The quality of a wire harness depends heavily on the manufacturing process.
Engineers develop:
Wiring schematics
Circuit layouts
Connector selections
Routing plans
Design optimization improves performance and manufacturability.
Automated equipment cuts wires to precise lengths according to design specifications.
Insulation is removed from conductor ends to prepare for termination.
Precision stripping prevents conductor damage.
Terminals are attached using calibrated crimping equipment.
Proper crimping ensures:
Low electrical resistance
Strong mechanical retention
Long-term reliability

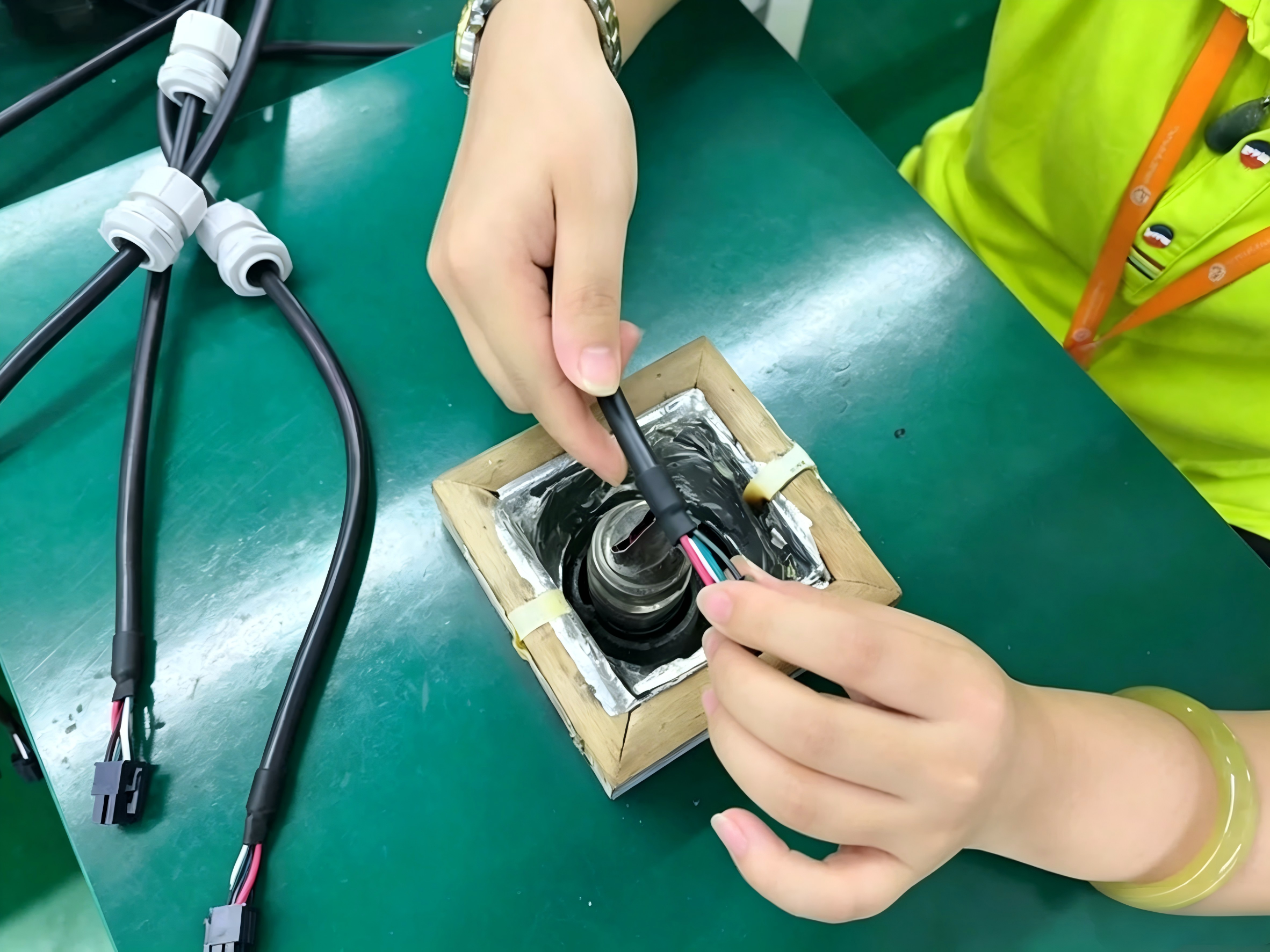

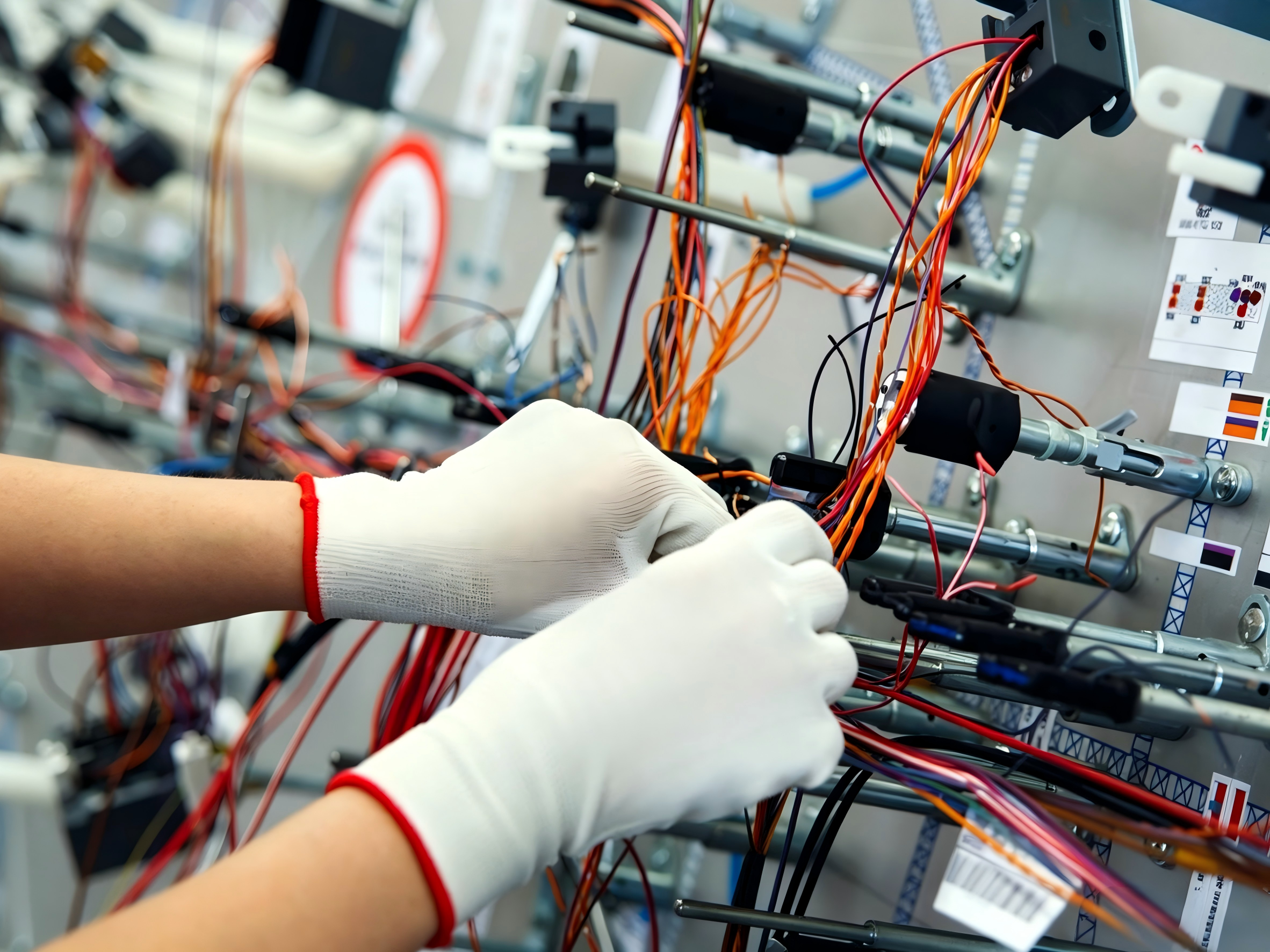

Wires, connectors, sleeves, and protective components are assembled according to the harness design.

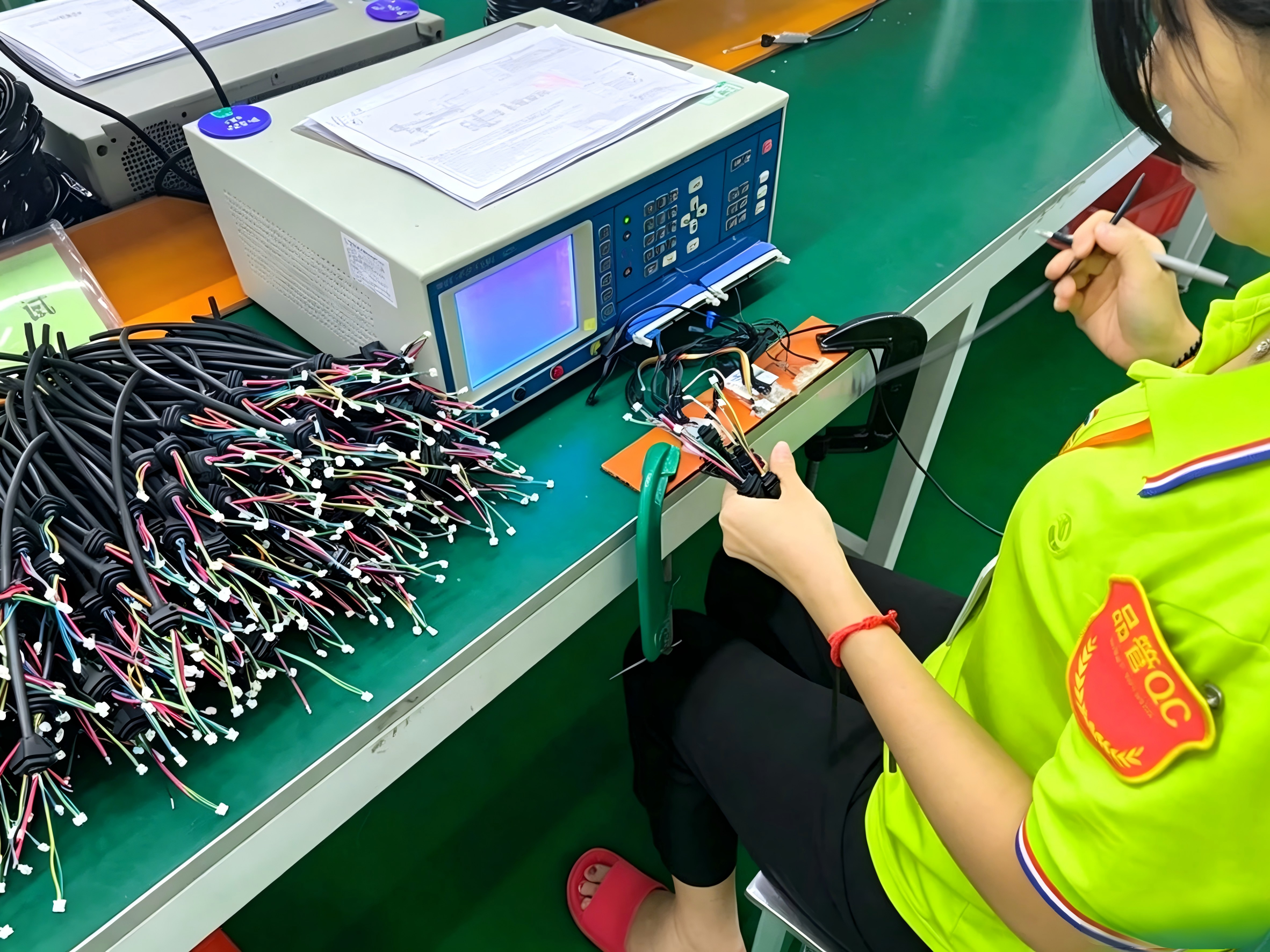

Comprehensive testing verifies:
Continuity
Short circuits
Pin configuration
Electrical resistance
Functional performance
Testing is essential for ensuring product quality.
Finished harnesses are inspected, labeled, packaged, and shipped according to customer requirements.
Common causes include:
Vibration damage
Connector corrosion
Excessive heat
Abrasion
Improper installation
Moisture ingress
Minor damage can often be repaired through:
Re-splicing
Terminal replacement
Connector replacement
However, severe damage may require complete harness replacement.
Service life depends on operating conditions.
High-quality wire harnesses can often operate reliably for 10 to 20 years or longer in properly maintained systems.
Manufacturers commonly perform:
Continuity testing
Hi-pot testing
Pull force testing
Functional testing
Visual inspection
These tests ensure compliance with quality standards and customer specifications.
Many people confuse wire harnesses with cable assemblies.
While they share similarities, they serve different purposes.
Feature | Wire Harness | Cable Assembly |
Protection Level | Moderate | High |
Flexibility | High | Medium |
Cost | Lower | Higher |
Installation | Easy | Easy |
Environmental Resistance | Moderate | Excellent |
Typical Applications | Internal systems | Harsh environments |
A cable assembly generally provides more robust environmental protection, while a wire harness emphasizes organization and routing efficiency.
Selecting the right manufacturing partner can directly impact product quality and project success.
Look for a supplier capable of assisting with:
Design optimization
Material selection
Cost reduction
DFM analysis
Evaluate:
Prototype production
Low-volume manufacturing
High-volume production
Automated processing equipment
Reliable manufacturers implement:
Incoming material inspection
Process control
100% electrical testing
Traceability systems
Experience in your target industry often leads to faster development and fewer production issues.
Every application has unique requirements.
Choose a supplier capable of producing:
Custom wire lengths
Specialized connectors
Waterproof harnesses
High-temperature harnesses
Complex multi-branch assemblies
Off-the-shelf wiring solutions may not meet the exact requirements of modern equipment.
Custom wire harnesses provide:
Better fit and routing
Improved reliability
Reduced installation time
Enhanced performance
Lower total ownership cost
For OEMs and manufacturers, custom solutions often deliver significant long-term value.
A wire harness organizes and protects electrical wiring while transmitting power and signals between system components.
It reduces wiring errors, protects conductors, and minimizes damage caused by vibration, heat, and abrasion.
Common materials include copper conductors, PVC insulation, nylon sleeves, heat shrink tubing, and engineered connectors.
Yes. Wire harnesses can be fully customized to meet specific electrical, mechanical, and environmental requirements.
Automotive, industrial automation, aerospace, medical, telecommunications, consumer electronics, and renewable energy industries all rely on wire harnesses.
Yes. Waterproof wire harnesses use sealed connectors, gaskets, and specialized protective materials to prevent moisture ingress.
Costs vary based on wire count, complexity, materials, connectors, testing requirements, and production volume.
From automotive systems and industrial automation equipment to medical devices and renewable energy solutions, wire harnesses have become essential components in virtually every modern industry.
As products become more sophisticated and electrically complex, partnering with an experienced custom wire harness manufacturer becomes increasingly important. A reliable supplier can provide engineering support, precision manufacturing, rigorous quality control, and customized solutions tailored to your specific application requirements.
If you are developing a new product or looking to improve an existing electrical system, investing in a professionally engineered wire harness can significantly enhance performance, reliability, and long-term value.
