As electric vehicles (EVs) become more advanced, reducing vehicle weight has become an important engineering objective. Batteries, electric motors, power electronics, sensors, and other electrical systems add substantial weight and complexity to modern vehicles. At the same time, the wiring harness must safely distribute power and signals throughout the vehicle.
Lightweight wire harnesses for electric vehicles are designed to reduce harness weight and packaging space while maintaining the required electrical, thermal, mechanical, and safety performance. Weight reduction can be achieved through conductor selection, optimized wire sizes, lightweight insulation, improved routing, connector optimization, and advanced harness architectures.
This guide explains the key materials, design considerations, applications, manufacturing processes, and supplier selection criteria for lightweight EV wire harnesses.

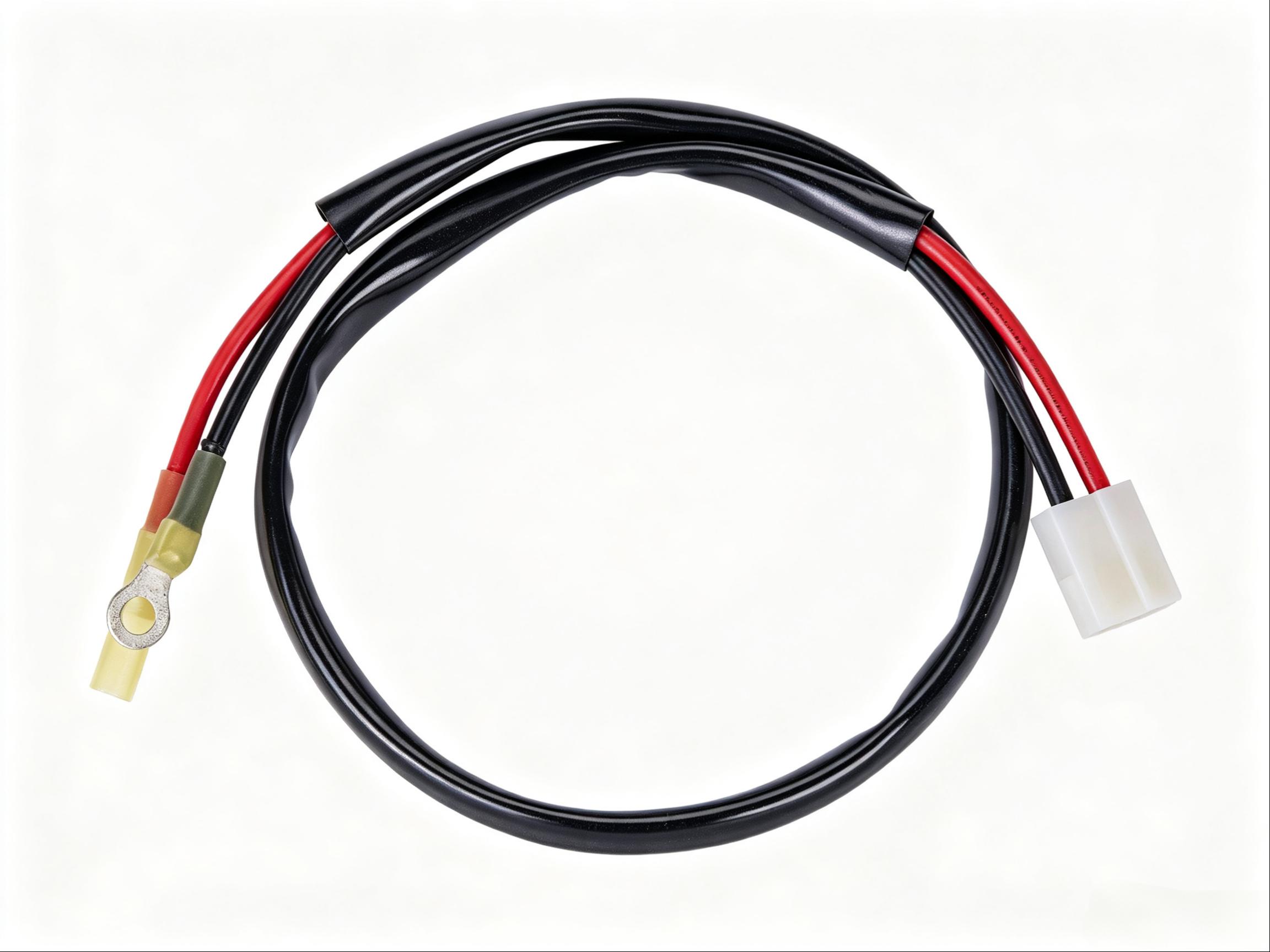

A lightweight EV wire harness is an electrical assembly engineered to minimize weight and packaging requirements without compromising electrical performance, durability, or safety.
Traditional automotive wire harnesses mainly use copper conductors. However, aluminum and other lightweight conductor technologies can reduce mass in appropriate applications. Major automotive wiring-system suppliers have developed aluminum harnesses and lightweight high-voltage solutions specifically to address vehicle weight and packaging requirements.
A lightweight EV harness may incorporate:
Copper or aluminum conductors
Lightweight insulation materials
Optimized wire gauges
Compact connectors and terminals
Optimized routing and branching
Shielding for high-voltage applications
Waterproof and sealed connections
Flexible protective sleeving and conduits
The objective is not simply to make the wire thinner. Instead, the complete harness must be engineered around the vehicle's current, voltage, temperature, mechanical, space, and safety requirements.
Weight reduction is particularly important for electric vehicles because the battery pack itself represents a significant portion of vehicle mass. Reducing unnecessary weight in other systems can help engineers optimize the overall vehicle architecture.
Replacing heavier materials or eliminating unnecessary harness length can reduce the mass of the electrical system. Furukawa, for example, has developed aluminum automotive wiring technologies specifically to address the weight of conventional copper wiring.
EV platforms contain batteries, inverters, motors, charging systems, thermal-management components, and electronic control units within increasingly compact spaces. A smaller and lighter harness can make routing and packaging easier.
Reducing unnecessary vehicle mass can contribute to overall vehicle efficiency. However, harness weight reduction must always be balanced against conductor resistance, voltage drop, thermal performance, and reliability.
Optimized harness routing, connectors, and protective structures can help engineers create more compact electrical architectures.
There is no single solution for making an EV harness lighter. The most effective approach is usually a combination of material selection and design optimization.
Wire cross-sectional area should be selected according to current capacity, voltage drop, temperature, installation conditions, and applicable electrical requirements.
Reducing wire size without engineering analysis can increase resistance and heat generation. Therefore, lightweight harness design should optimize conductor size rather than simply use smaller wires.
Aluminum has a significantly lower density than copper, making it an attractive option for weight-sensitive automotive applications. Automotive manufacturers and wiring-system suppliers have developed aluminum conductor technologies for both conventional and electric vehicles.
However, aluminum requires careful engineering at terminals and connection points. Differences between aluminum and copper can introduce issues such as contact resistance and galvanic corrosion, particularly where moisture is present. Specialized terminal and joining technologies can therefore be important.
The insulation system should provide the required:
Temperature resistance
Abrasion resistance
Chemical resistance
Electrical insulation
Flexibility
Environmental durability
Using an unnecessarily thick or heavy protective layer can increase harness weight. The right insulation and protection system should be selected according to the application.
Harness weight can also be reduced by optimizing the physical architecture.
Engineers can evaluate:
Overall harness length
Branch locations
Routing paths
Connector positions
Unnecessary loops
Protective components
Mounting points
A well-designed harness can eliminate unnecessary material without reducing functionality.
Connectors and terminals contribute to both weight and packaging volume. Compact components can help reduce the overall harness footprint, but they must still meet electrical, mechanical, sealing, and environmental requirements.
Both copper and aluminum can be suitable for EV wiring applications. The appropriate choice depends on the electrical load, available space, connection technology, temperature, mechanical requirements, and cost target.
Factor | Copper | Aluminum |
Density | Higher | Lower |
Electrical conductivity | Higher | Lower |
Weight | Higher | Lower |
Lightweight potential | Moderate | High |
Terminal design | Relatively straightforward | Requires specialized consideration |
Corrosion considerations | Generally lower | Requires careful material and connection design |
Typical use | Power and signal applications | Weight-sensitive power and automotive applications |
Aluminum should therefore not be considered an automatic replacement for copper. The conductor, terminal, connector, sealing, and manufacturing process need to be evaluated as one system.
High-voltage wiring harnesses are critical components in modern electric vehicles. They typically connect major power components such as the battery pack, inverter, electric motor, onboard charger, and DC-DC converter.
High-voltage EV harnesses must address requirements including:
High current capacity
Electrical insulation
Thermal performance
EMI/EMC shielding
Mechanical protection
Vibration resistance
Waterproofing
Connector reliability
High-voltage safety
Industry suppliers commonly provide high-voltage harnesses using copper or aluminum conductors, shielding structures, and protective materials for demanding EV applications.
Battery harnesses transmit high electrical power between the battery and other vehicle systems. Weight, thermal performance, insulation, routing, and connector reliability are particularly important.
These harnesses carry power between the battery, inverter, and electric motor. Their design may require high-temperature materials, shielding, flexible routing, and robust mechanical protection.

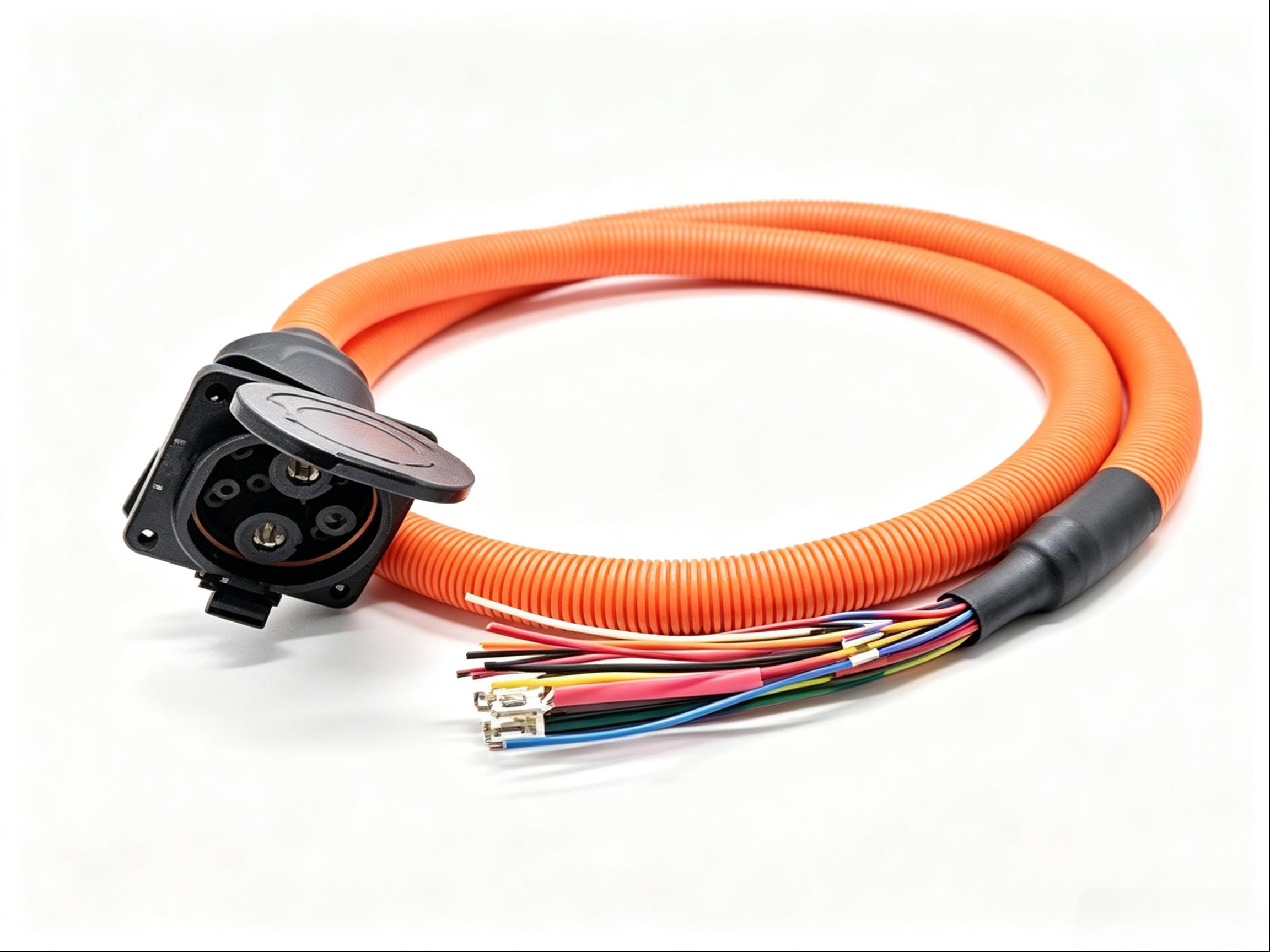

These assemblies connect charging and power-conversion systems. Their design depends on voltage, current, thermal conditions, available space, and connector requirements.
EVs typically contain both high-voltage power circuits and low-voltage control and signal circuits.
Feature | Low-Voltage Harness | High-Voltage Harness |
Primary function | Signals, controls, auxiliary power | High-power transmission |
Typical design priority | Compactness and signal reliability | Electrical safety and power capacity |
Shielding | Application dependent | Frequently required |
Insulation requirements | Application dependent | More demanding |
Key components | Sensors, ECUs, controls | Battery, inverter, motor, charger |
A lightweight design strategy should therefore be adapted to the specific circuit rather than applied uniformly across the entire vehicle.
Weight reduction should never be considered separately from performance.
The conductor must safely carry the required current while maintaining acceptable voltage drop and temperature rise.
High-current EV circuits can generate significant heat. Wire size, insulation, routing, ambient temperature, and heat dissipation should be evaluated together.
High-voltage systems require appropriate insulation and protection against electrical breakdown and environmental damage.
High-power switching systems can generate electromagnetic interference. Shielding may be required to protect sensitive electronics and maintain signal integrity.
EV harnesses can be exposed to vibration, abrasion, impact, bending, moisture, road debris, and temperature changes. Protective structures must therefore be designed for the installation environment.
For battery compartments, underbody applications, and other exposed areas, connectors and harness assemblies may require appropriate sealing and environmental protection.
Connector selection should consider voltage, current, temperature, sealing, mechanical locking, vibration, and compatibility with the selected conductor.
A reliable lightweight harness depends not only on component selection but also on manufacturing quality.
The manufacturing process should begin with a review of the customer's drawing, BOM, wire specifications, connector requirements, and application conditions.
Design-for-manufacturing (DFM) can identify potential issues before production begins.
Wire is cut to the required length and stripped according to the specified terminal and connector requirements.
Crimp quality is critical because the connection must provide reliable electrical conductivity and mechanical strength.
Wires, terminals, connectors, sleeves, clips, seals, shielding, and protective components are assembled according to the approved drawing and work instructions.
High-voltage applications may require braided shielding, foil shielding, protective conduits, heat-resistant sleeves, or other protection depending on the design.
Depending on the application, testing may include:
Continuity testing
Short-circuit testing
Insulation resistance testing
Hi-pot testing
Terminal pull-force testing
Dimensional inspection
Connector inspection
Waterproof testing where applicable
For B2B EV projects, customers should confirm the manufacturer's testing procedures, traceability, quality system, and process controls before approving a supplier.
When selecting a supplier, EV manufacturers, Tier 1 suppliers, and engineering teams should evaluate more than unit price.
Consider the following:
Engineering capability: Can the supplier review drawings, BOMs, and technical specifications?
Material expertise: Can the supplier recommend appropriate copper, aluminum, insulation, terminals, and connectors?
HV/LV capability: Does the manufacturer have experience with both low-voltage and high-voltage harness assemblies?
Manufacturing capability: Can the supplier support prototyping, small-volume production, and mass production?
Testing capability: Are electrical, mechanical, and environmental tests available?
Quality management: Does the supplier maintain documented inspection and traceability procedures?
Customization: Can the supplier manufacture according to customer drawings, samples, or application-specific requirements?
For EV projects, these factors can be more important than simply choosing the lowest initial quotation.
For a new EV platform or electrical subsystem, an experienced custom wire harness manufacturer can support the project from prototype development through production.
A capable supplier should be able to work with:
Customer drawings
2D/3D CAD data
BOMs
Wire specifications
Connector specifications
Prototype requirements
Production testing requirements
The supplier can then help translate the electrical design into a manufacturable harness assembly while considering routing, crimping, protection, testing, and production efficiency.
If your project requires a custom lightweight EV wire harness, provide your drawing, BOM, wire specifications, connector requirements, or sample harness. A professional harness manufacturer can review the requirements and recommend a suitable manufacturing approach.
A lightweight EV wire harness is an electrical assembly designed to minimize weight and packaging space while meeting the required electrical, thermal, mechanical, and safety requirements.
Yes. Aluminum is used in automotive wiring applications because its lower density provides significant weight-reduction potential. However, conductor-to-terminal connections, corrosion protection, mechanical strength, and manufacturing processes require careful engineering.
Neither material is universally better. Copper provides higher electrical conductivity, while aluminum offers lower weight. The appropriate material depends on the electrical load, application environment, connection technology, and vehicle architecture.
Yes. Lightweight design can be applied to high-voltage EV harnesses, but voltage rating, current capacity, insulation, shielding, thermal management, connector design, and safety requirements must all be considered.
Yes. Custom manufacturers can produce harnesses based on customer drawings, BOMs, samples, connector specifications, and application requirements. Custom EV harness production can include prototyping, assembly, testing, and mass production.
Choosing the right lightweight wire harness is an engineering decision, not simply a material-selection decision. The best solution balances weight, electrical performance, thermal performance, mechanical durability, safety, manufacturability, and cost.
If you are developing an electric vehicle, battery system, charging system, motor assembly, inverter, or other EV electrical system, a custom wire harness manufacturer can help evaluate the requirements and develop a production-ready harness solution.
