When designing electrical systems, selecting the correct wire is just as critical as choosing the right connector or power supply. Among the most common insulation materials on the market—silicone wire and PVC wire—the choice can significantly impact your project's safety, longevity, and overall performance. While both are widely used across industries, they are by no means interchangeable.
This comprehensive guide will walk you through the key differences, performance metrics, application scenarios, and cost-benefit analyses of silicone wire versus PVC wire. By the end, you will have a clear understanding of which wire is the right fit for your specific needs.

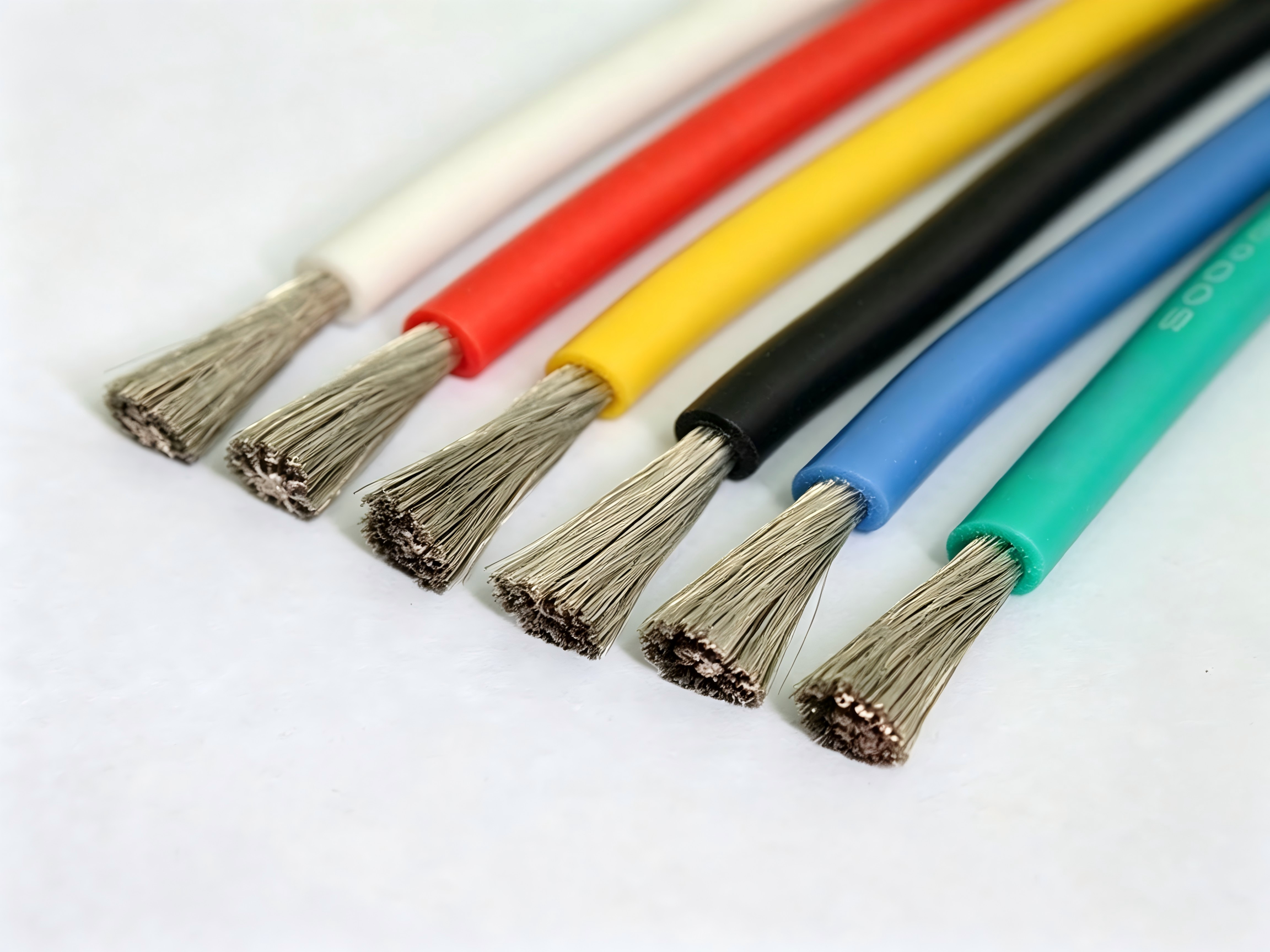

Silicone wire features an insulation layer made from silicone rubber, a synthetic elastomer known for its remarkable thermal stability and flexibility. Unlike conventional plastics, silicone rubber maintains its physical properties across an exceptionally wide temperature range, typically from -60°C to +200°C (-76°F to +392°F). This makes it the go-to choice for applications that experience extreme heat, severe cold, or continuous mechanical motion.
Key characteristics of silicone wire:
Superior flexibility; remains pliable even in sub-zero environments
Excellent resistance to UV radiation, ozone, and weathering
Good dielectric strength and electrical insulation properties
Low smoke emission and halogen-free (when specified)
Common UL styles: UL 3135, UL 3239

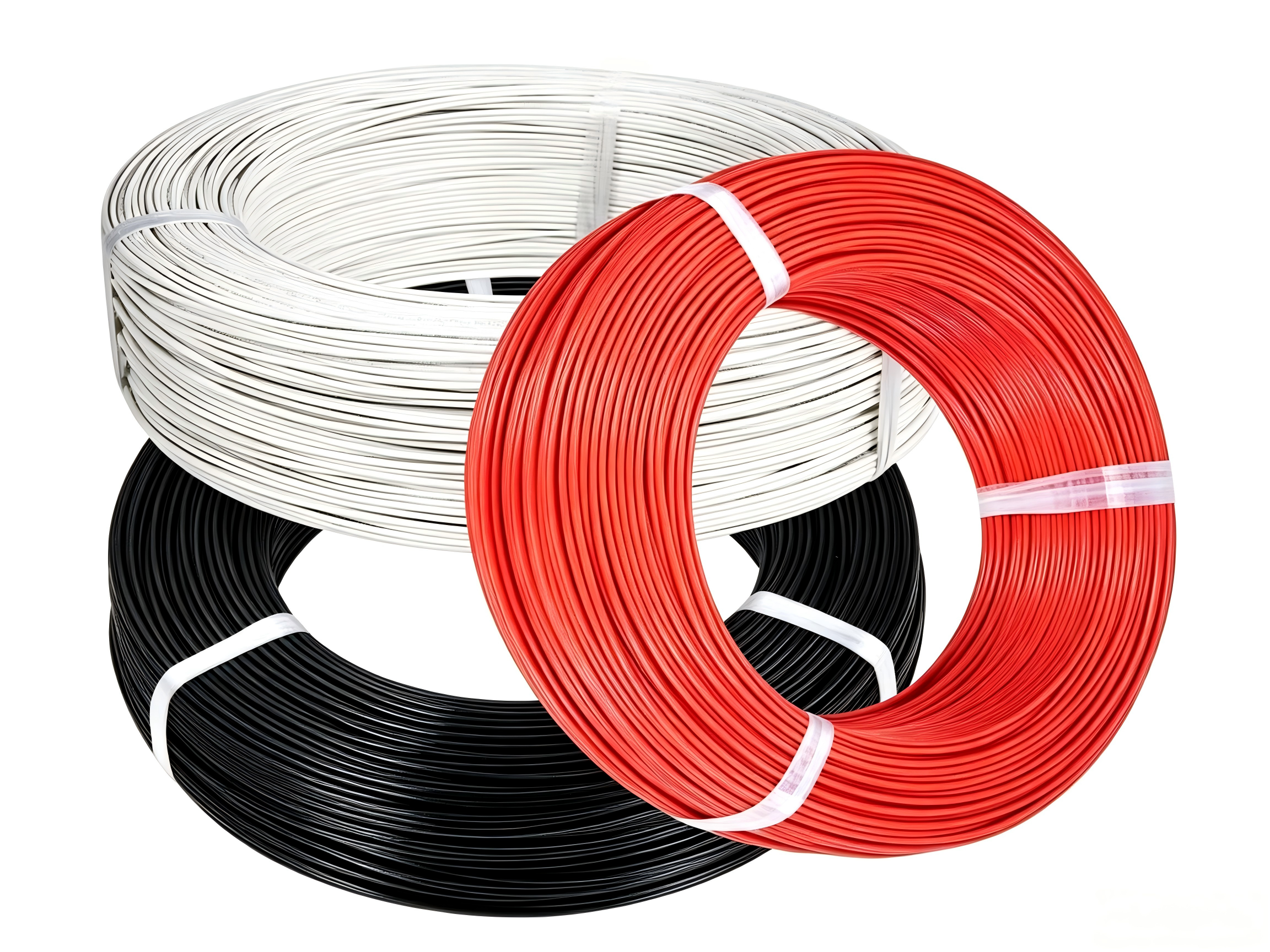

PVC wire uses polyvinyl chloride as its insulating material—a versatile and cost-effective thermoplastic that has dominated the wire and cable industry for decades. PVC offers a balanced combination of mechanical strength, flame retardancy, and chemical resistance at a fraction of the cost of specialty materials. Its standard operating temperature range is -20°C to +105°C (-4°F to +221°F), making it suitable for most indoor and general-purpose applications.
Key characteristics of PVC wire:
Excellent abrasion and cut-through resistance
Good flame retardant properties (often self-extinguishing)
Wide availability and low manufacturing cost
Common UL styles: UL 1007, UL 1015
To make an informed decision, you must understand how these two materials perform across key engineering parameters. Below is a detailed comparison:
Performance Factor | Silicone Wire | PVC Wire | Impact on Application |
Temperature Range | -60°C to +200°C | -20°C to +105°C | Silicone thrives in engine bays, industrial ovens, and outdoor winter conditions; PVC is limited to mild environments |
Flexibility & Bend Radius | Exceptional; soft and "noodle-like" | Moderate; stiffens and becomes brittle in cold | Silicone is ideal for robotics, cable carriers, and wearable devices with continuous flexing |
Chemical & Oil Resistance | Superior; resists oils, solvents, acids, and UV | Fair; can swell or harden when exposed to certain chemicals | Silicone is mandatory in industrial settings with chemical exposure |
Abrasion & Tear Resistance | Poor; surface is soft and prone to cuts | Excellent; hard surface withstands friction and impact | PVC is better when wires pass through sharp metal edges or high-friction areas |
Combustion Safety | Low smoke, halogen-free, minimal toxic gas | Produces dense black smoke and toxic HCl gas when burned | Silicone is preferred in aerospace, mass transit, and medical devices |
Cost | Higher (2–4× more expensive than PVC) | Very economical | PVC is the clear winner for cost-sensitive, high-volume production |
High Heat is Involved – For applications such as 3D printer heater cartridges, automotive under-hood wiring, industrial heating elements, or battery interconnects in EVs, silicone's 200°C rating ensures long-term reliability where PVC would melt or degrade rapidly.
Continuous Motion or Flexing – In robotic arms, pick-and-place machines, drones, and foldable electronic devices, wires experience millions of bending cycles. Silicone's exceptional flexibility and memory retention prevent conductor fatigue and failure.
Outdoor or Harsh Environments – Silicone wire resists UV degradation, ozone cracking, and extreme weather, making it perfect for solar panel connections, outdoor LED lighting, and marine electronics.
Safety-Critical Applications – In aircraft cabins, subway systems, and hospital operating rooms, low-smoke, halogen-free silicone wires minimize toxic fume hazards during fires.
Cost is a Primary Constraint – For consumer electronics, household appliances, and mass-produced goods, PVC offers reliable performance at a fraction of silicone's cost.
The Wiring is Static – In building wall installations, control panel internal wiring, or power supply cords that remain fixed in place, PVC's rigidity is actually beneficial for neat cable management.
Physical Protection is Needed – PVC's hard outer surface resists cuts and abrasion, making it suitable for power tool cords, extension leads, and wiring that passes through conduit.
One of the most overlooked factors in wire selection is fire safety. When PVC burns, it releases hydrogen chloride gas and thick black smoke—both extremely dangerous in confined spaces. In contrast, high-quality silicone wires are formulated with halogen-free flame retardants, producing minimal smoke and significantly lower toxicity during combustion. This makes silicone wire the mandatory choice for public transportation, aviation, and life-support systems.
Furthermore, silicone's longer service life (often exceeding 20 years under rated conditions) reduces electronic waste and replacement costs. While the initial investment is higher, the total cost of ownership often favors silicone in demanding environments.
On paper, PVC wire appears to be the undisputed winner in terms of purchase price. However, when evaluating lifetime value, consider this:
A PVC wire operating near its 105°C limit may become brittle and crack within 1–2 years, leading to equipment downtime and costly repairs.
A silicone wire in the same environment will maintain its integrity for a decade or more, reducing maintenance overhead and enhancing brand reputation for reliability.
For industrial equipment manufacturers, the long-term savings in warranty claims and field service calls often far outweigh the initial material cost difference.
The debate between silicone wire and PVC wire is not about which is universally superior—it is about matching the material to the mission.
Choose Silicone Wire for extreme temperatures, dynamic flexing, chemical exposure, and safety-critical environments where performance and reliability cannot be compromised.
Choose PVC Wire for general-purpose, cost-conscious projects with mild operating conditions and static installations.
By understanding the trade-offs, you can avoid over-engineering (and overspending) or under-engineering (and risking failure) your electrical system.
Q1: Can I use silicone wire as a direct replacement for PVC wire?
A: Yes, provided the voltage rating and current-carrying capacity are matched. Silicone wire offers superior thermal and flexibility performance. However, keep in mind that silicone insulation is softer and less abrasion-resistant than PVC, so additional mechanical protection (such as sleeving or conduit) may be needed in high-friction environments.
Q2: Why does silicone wire cost significantly more than PVC wire?
A: The cost difference stems from raw materials—silicone rubber is more expensive to produce than PVC polymer—and the more complex manufacturing process, which involves high-temperature vulcanization. PVC, being a high-volume commodity plastic, benefits from economies of scale.
Q3: How can I quickly tell silicone wire apart from PVC wire in practice?
A: Use the fingernail test—press your nail into the insulation. Silicone feels soft, elastic, and rebounds after indentation; PVC feels hard and plastic-like with little to no rebound. Additionally, if you hold a flame near the insulation (without direct burning), PVC will emit black smoke and a pungent odor, while silicone produces a light white residue and a mild smell.
Q4: Which wire performs better in extremely cold environments (e.g., -40°C)?
A: Silicone wire is the clear winner. Standard PVC becomes hard, brittle, and prone to cracking below -20°C, making it unsafe for outdoor winter or high-altitude applications. Silicone retains its flexibility and electrical integrity even at -60°C, making it the preferred choice for polar expeditions and cold-chain logistics equipment.
Q5: Is PVC wire being phased out due to environmental concerns?
A: While some regulations (such as RoHS and REACH) restrict certain plasticizers and heavy-metal stabilizers in PVC, the material remains widely used and is continuously improved with eco-friendly formulations. However, for applications requiring halogen-free and low-toxicity standards, silicone is the preferred alternative.
