In the world of electrical connectivity, terminals are the unsung heroes. They are the critical conductive components that join wires to devices, circuit boards, or other wires, enabling the seamless flow of power and signals. For wire harness manufacturers, choosing the right terminal is not just a technical detail—it’s a decision that affects product reliability, assembly efficiency, and long-term customer satisfaction.
Whether you are producing harnesses for automotive, home appliances, industrial controls, or renewable energy systems, understanding the diverse terminal types and their applications is essential. This guide covers the most common terminals used in wire harness production, their key characteristics, selection criteria, and industry trends to help you make informed choices.
A terminal is a metallic connector attached to the end of a wire to establish an electrical connection with another component. The vast majority of terminals in modern harness manufacturing are crimp terminals—they are compressed around a stripped wire using a crimping tool or machine to form a cold-welded, gas-tight joint. Crimping is preferred over soldering for high-volume production because it offers excellent mechanical strength, low electrical resistance, and high resistance to vibration and temperature cycling.

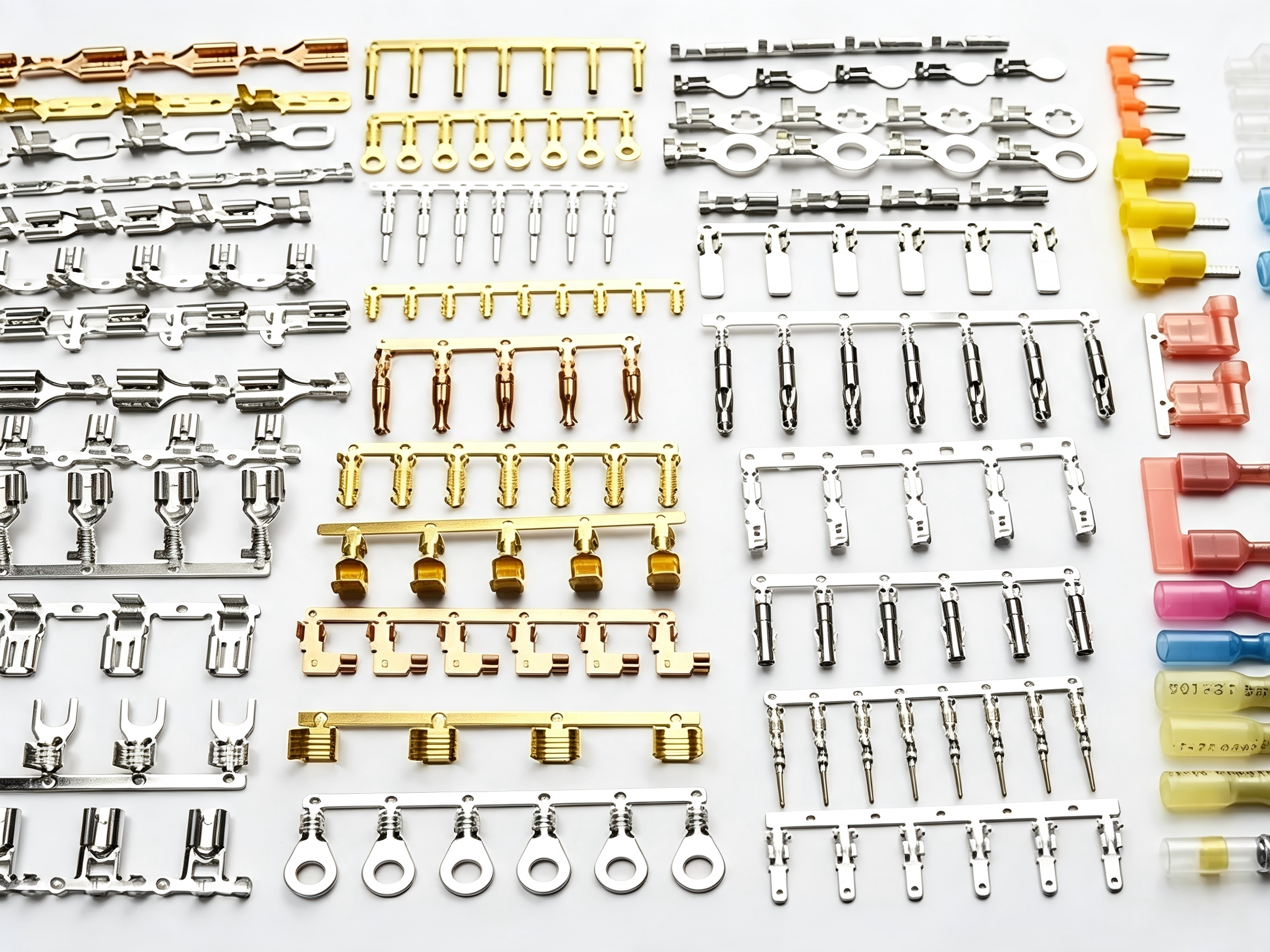

Terminals come in a wide array of shapes, sizes, materials, and insulation options. Each design serves a specific purpose, and selecting the wrong type can lead to loose connections, overheating, or even system failure.

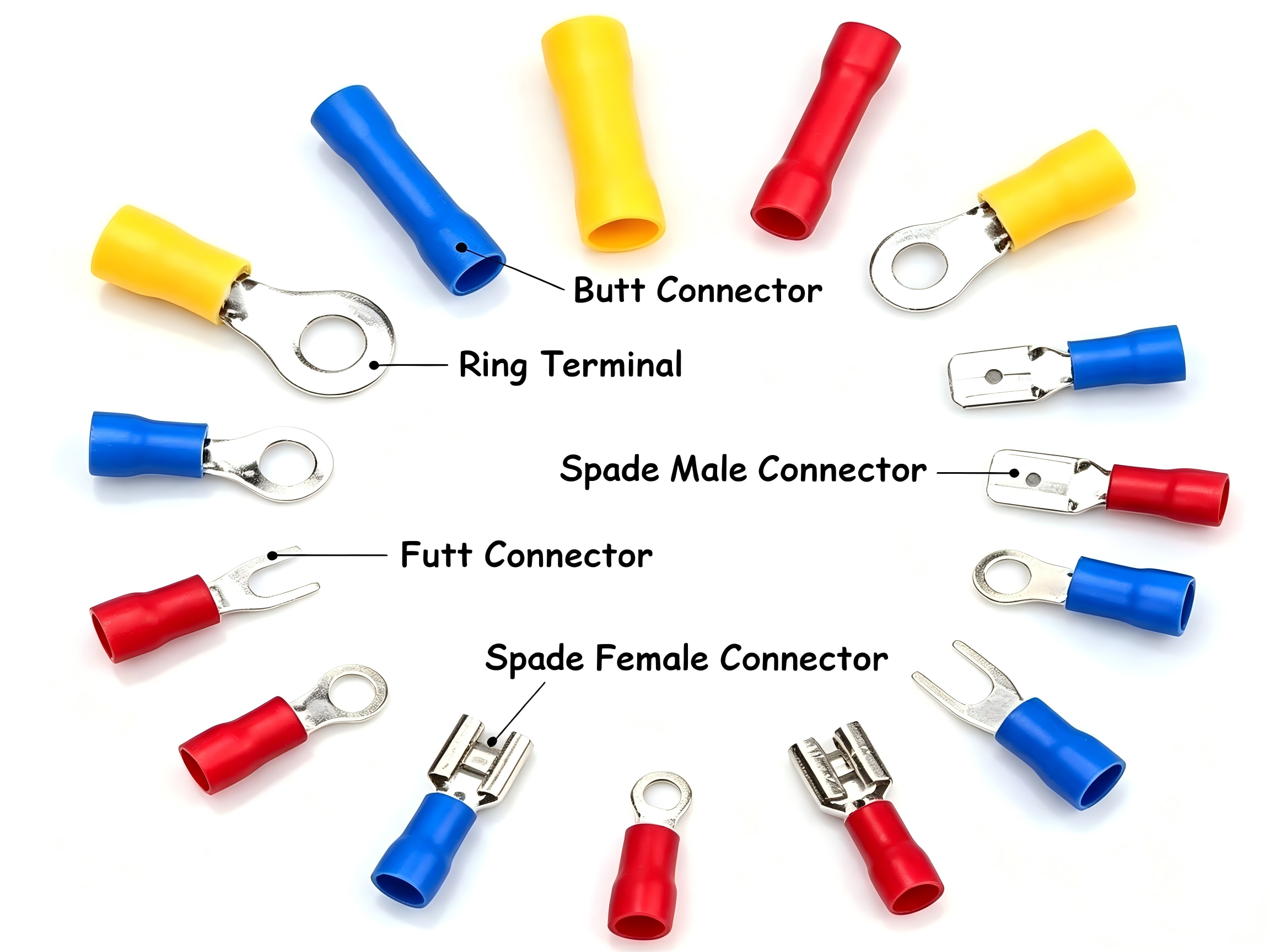

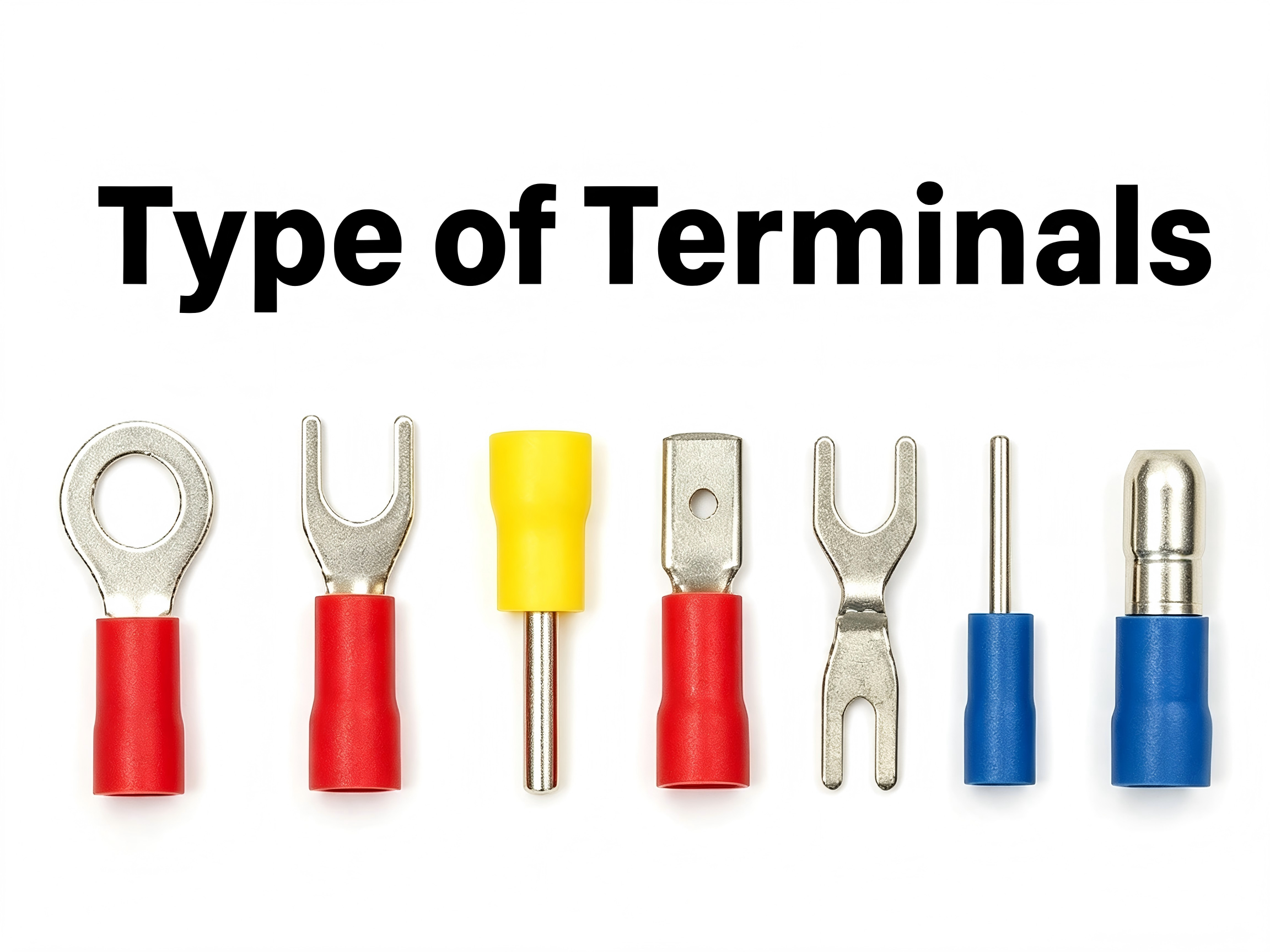

Below are the most frequently specified terminal categories in the wire harness industry, along with their typical applications and advantages.
Ring terminals feature a closed circular hole at the tongue end, designed to be secured under a screw or stud. Because the ring is closed, it provides a permanent, vibration-proof connection that will not loosen even under severe mechanical stress.
Applications: Ground connections, battery cables, power distribution panels, alternator and starter wiring in automotive harnesses.
Advantages: High pull-out strength, excellent resistance to loosening, ideal for high-current applications.
Insulation options: Non-insulated, PVC-insulated (color-coded), or heat-shrink insulated for waterproofing.
Color coding: Red (22–18 AWG), Blue (16–14 AWG), Yellow (12–10 AWG) – standard for insulated types.
Fork terminals (also called U-type or Y-type) have an open-ended tongue that slips over a stud without requiring full removal of the screw or nut. This design enables quick installation and removal, making maintenance much easier.
Applications: Control cabinets, motor connections, terminal blocks, and any equipment that requires frequent disconnection.
Advantages: Faster assembly and disassembly; saves time during servicing.
Trade-off: Slightly less vibration resistance than ring terminals, so they are not recommended for high-vibration environments unless secured with locking hardware.
These are male (blade/tab) and female (receptacle) terminals that allow quick plug-in and pull-out connections. They are standardized in sizes such as 110 (2.8mm), 187 (4.8mm), 205, and 250 (6.3mm), and they are widely used in appliances and automotive relay boxes.
Applications: Lighting systems, HVAC blowers, washing machine wire harnesses, and any modular assembly that requires easy field replacement.
Advantages: Tool-less connection, reliable locking mechanisms, and availability in fully insulated housings.
Variants: Some include a locking lance to prevent accidental disengagement.
Flag terminals are a variation of the quick-disconnect design, but with a 90-degree bent tongue (flag shape) that reduces stress on the wire and saves space in tight enclosures. They often include a locking feature to enhance retention.
Applications: Compact devices, automotive interior harnesses, power tools, and small appliances where space is constrained.
Advantages: Minimises cable bending, improves routing, and increases serviceability in confined areas.
Bullet terminals are cylindrical male/female pairs used for in-line connections. Tube terminals (ferrules) are uninsulated metal tubes that are crimped over stranded wires to prepare them for screw-clamp or spring-clamp terminal blocks. Ferrules prevent wire strands from splaying, reduce contact resistance, and improve safety in dense wiring panels.
Applications: Control cabinets, PLC wiring, multi-strand wire termination, and industrial automation harnesses.
Advantages: Neat termination, prevents stray strands, and increases insulation clearance between adjacent terminals.
Although often considered a connector family, PCB terminal blocks are integral to many wire harness assemblies. These are modular blocks that mount directly onto printed circuit boards, providing a secure point for wire-to-board connections via screw, spring, or push-in technologies.
Applications: Power supplies, motor drives, sensors, and control modules.
Advantages: Modular design, space-saving, and available in single- or multi-level configurations.
Butt splice connectors are cylindrical tubes used to join two wires end-to-end. They are available in uninsulated, PVC-insulated, or heat-shrink-insulated versions. The heat-shrink type provides a sealed, environmentally protected splice.
Applications: Wire repair, harness extensions, and aftermarket modifications.
Advantages: Simple, reliable, and compatible with automated crimping machines.
To select the optimal terminal for a given harness design, wire harness manufacturers must evaluate the following parameters:
Parameter | Description |
Wire Gauge (AWG/mm²) | The terminal must match the conductor size exactly. Using an oversized terminal reduces crimp compression; undersized terminals may damage the wire. |
Rated Current | Choose a terminal rated for at least 150% of the maximum expected circuit current to avoid overheating. |
Rated Voltage | Must exceed the system’s highest operating voltage, especially in high-voltage EV and renewable applications. |
Base Material | Brass (cost-effective, moderate spring), Phosphor Bronze (good elasticity and fatigue resistance, ideal for automotive), Beryllium Copper (premium spring for high-reliability), and Copper (excellent conductivity for high-power). |
Plating | Tin (general purpose), Nickel (barrier layer), Gold (low contact resistance, corrosion-resistant), Silver (high-current applications). |
Insulation Material | PVC (economical, indoor), Nylon (more durable and chemical-resistant), Heat-shrink (provides waterproof sealing). |
Crimp Profile | Must be compatible with your crimping tooling to ensure consistent pull-off force and gas-tight quality. |

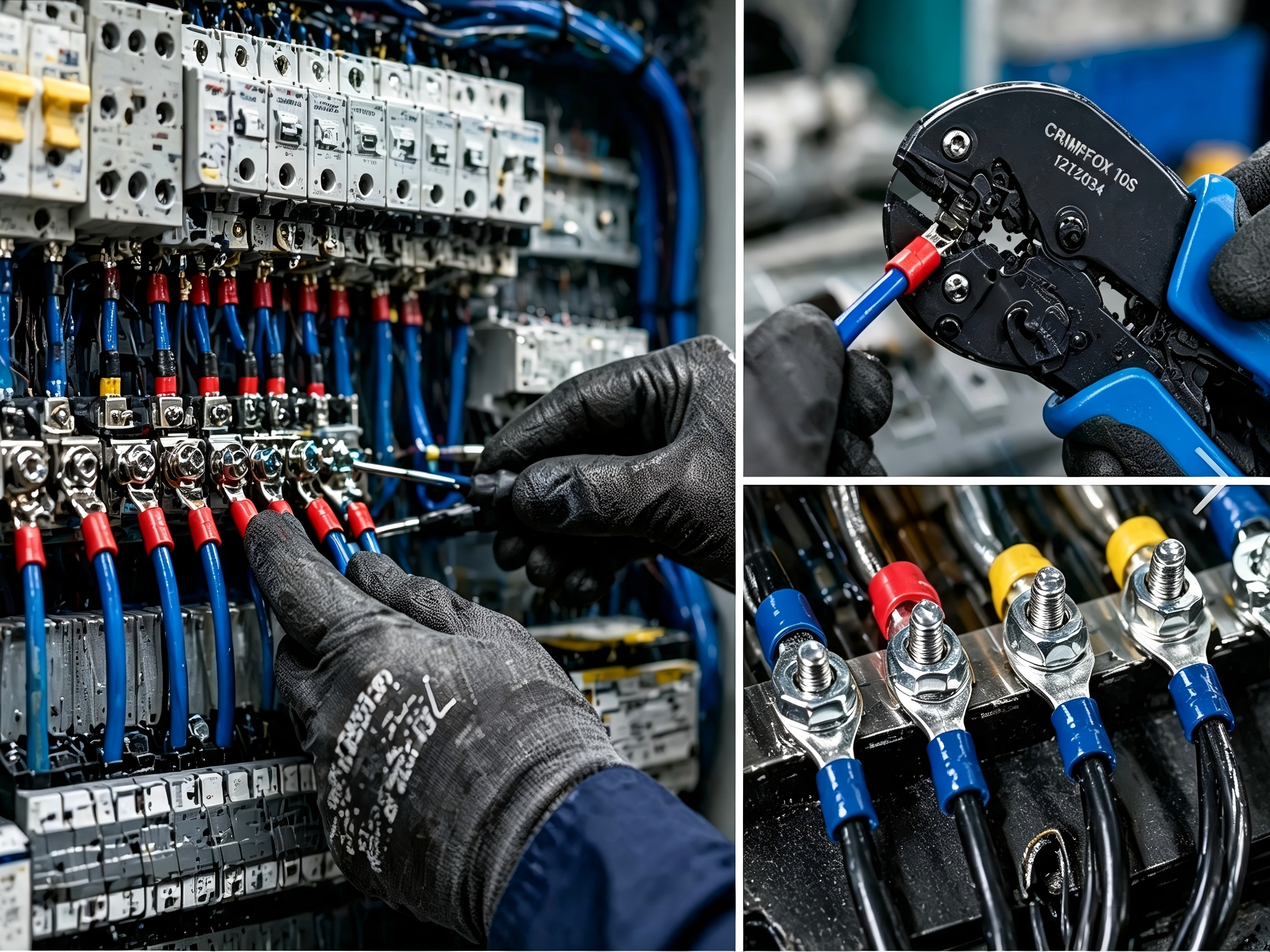

Different industries place varying demands on terminals. Here’s a quick reference table:
Industry | Common Terminal Types | Typical Use Cases |
Automotive | Ring, Quick Disconnect, Flag, Automated-ready terminals | Engine harnesses, body harnesses, lighting, sensors, battery packs |
Home Appliances | Quick Disconnect, Flag, Butt Splice | Refrigerators, washing machines, HVAC, heating elements |
Industrial Controls | Fork, Ferrules, PCB Terminal Blocks | Control panels, PLC cabinets, motor connections |
Renewable Energy | High-current Ring, Silver-plated terminals | Solar combiner boxes, wind turbines, battery interconnects |
Telecom/Data | Gold-plated precision terminals, IDC | Signal transmission, high-frequency modules |
The wire harness terminal market is expanding rapidly. The automotive terminal market was valued at approximately $30.03 billion in 2025** and is projected to reach **$33.69 billion in 2026, driven by electric vehicle adoption and software-defined vehicle architectures. The broader electrical terminal market is also growing, with increasing demand for:
High-voltage terminals (for EV battery packs and charging systems)
Miniaturized signal terminals (for sensor-rich applications)
Sealed and waterproof connectors (for harsh environments)
Automation-ready terminals that support fully automated crimping and insertion processes
For wire harness manufacturers, staying ahead means investing in versatile crimping equipment, maintaining close relationships with terminal suppliers, and continuously evaluating new materials and plating technologies.
Selecting the correct terminal type is only half the story. Proper crimping quality, consistent pull-force testing, and robust quality management systems are equally critical. A professional wire harness manufacturer doesn’t just supply terminals—they offer engineering support, custom tooling design, and full traceability to ensure every harness meets the highest standards.
Whether your project demands rugged ring terminals for an off-road vehicle or miniature ferrules for a densely packed control panel, working with an experienced partner guarantees that your terminals are matched not only to the wire but also to the application’s environmental and electrical demands.
A: A ring terminal has a closed circular hole that requires full removal of the screw/stud for installation. It offers superior vibration resistance and is ideal for permanent connections. A fork terminal has an open U-shaped end that slips over the stud without removing the nut, making it faster for maintenance but less resistant to vibration.
A: Crimping is generally preferred for high-volume manufacturing because it creates a gas-tight, cold-welded joint that is mechanically strong and resistant to heat and vibration. Soldering can introduce brittle intermetallic layers and is more difficult to automate consistently. However, soldering may be used for very small gauge wires or special applications.
A: These colours follow a standard industry convention: Red for 22–18 AWG, Blue for 16–14 AWG, and Yellow for 12–10 AWG. This colour coding helps assembly operators quickly select the correct terminal for the wire size, reducing errors.
A: Automation-ready terminals are designed with precise dimensions and tape-and-reel packaging to be used with fully automated wire processing machines (such as Komax or Schleuniger). They ensure consistent crimp heights, feed reliability, and traceability, which are essential for high-volume harness production.
A: Phosphor bronze is the most commonly used material for automotive terminals due to its excellent balance of conductivity, strength, and fatigue resistance. For high-current EV applications, copper with silver or tin plating is often specified. Brass is more cost-effective but has lower spring retention.
A: The three key checks are: crimp height and width (measured with a micrometer), pull-out force (using a tensile tester to ensure it meets the specified minimum), and visual inspection (the crimp should be symmetrical, free of cracks, and the insulation should not be trapped in the conductor crimp). A periodic cross-section analysis is also recommended for process validation.
