Troubleshooting High Resistance Connections in Wire Harnesses: Causes, Testing Methods, And Solutions

A high-resistance electrical connection can cause voltage drop, localized heating, intermittent signals, equipment malfunction, and premature component failure. In wire harnesses, the problem may originate from a poor crimp, damaged conductor, loose terminal, contaminated contact surface, corrosion, connector damage, or an incorrectly selected wire and terminal combination.

One of the most challenging aspects of troubleshooting high-resistance connections is that the harness may appear normal during visual inspection and may even pass a basic continuity test. A continuity test can confirm that an electrical path exists, but additional resistance or voltage-drop testing may be necessary to determine whether the connection performs correctly under actual operating conditions.

For OEMs and equipment manufacturers, identifying high-resistance connections early is important because a small connection defect can develop into overheating, intermittent faults, connector degradation, or complete system failure.

This guide explains how to identify, test, locate, and prevent high-resistance connections in wire harnesses, with a focus on practical troubleshooting methods and manufacturing quality control.

What Is a High-Resistance Electrical Connection?

A high-resistance connection is an electrical connection whose resistance is higher than the value required for the application.

Every electrical connection has some resistance. The important question is whether that resistance remains within the acceptable range defined by the wire, terminal, connector, circuit, operating current, and customer specification.

A connection may have excessive resistance because of:

· Poor crimping

· Insufficient terminal contact

· Loose or improperly seated terminals

· Corrosion

· Contamination

· Damaged wire strands

· Poor soldering or splicing

· Terminal wear

· Connector damage

· Incorrect wire or terminal selection

The problem becomes particularly important in high-current circuits because even a relatively small resistance can generate significant heat when current flows through the connection.

A useful engineering relationship is:

Voltage Drop = Current × Resistance

Therefore, when resistance increases, voltage drop across the defective connection also increases for a given current.

This is why a connection that looks acceptable during a visual inspection may still create a serious problem when the equipment is operating under load.

What Are the Symptoms of a High-Resistance Connection?

High-resistance connections can produce different symptoms depending on the circuit and application.

Common symptoms include:

· Excessive voltage drop

· Connector or terminal overheating

· Intermittent electrical failures

· Equipment malfunction under load

· Unstable sensor signals

· Motor or actuator performance problems

· Discolored or melted connector housings

· Burning odor

· Fluctuating electrical readings

· Wire harnesses that pass continuity but fail functional testing

In automotive and industrial applications, intermittent failures can be especially difficult to diagnose. A connection may function normally when the equipment is stationary but fail when exposed to vibration, temperature changes, mechanical movement, or higher current.

A field failure analysis published by SAE demonstrates that a crimp connection can exhibit intermittent high contact resistance even when the connection initially appears visually acceptable. This illustrates why visual inspection alone cannot always identify a marginal electrical connection.

What Causes High-Resistance Connections in Wire Harnesses?

High resistance can originate from the wire itself, the terminal, the connector interface, the crimp, or the surrounding environment.

Understanding the possible root causes is essential because replacing the entire harness without identifying the actual failure mechanism may only solve the immediate symptom rather than prevent recurrence.

Poor Crimp Quality

Crimping is one of the most important processes in wire harness manufacturing because the crimp must provide both mechanical retention and a stable electrical connection.

Potential crimp-related causes of high resistance include:

· Incorrect crimp height

· Incorrect crimp tooling

· Insufficient compression

· Excessive compression

· Incorrect terminal-to-wire combination

· Damaged conductor strands

· Incorrect conductor positioning

· Incomplete insertion of the conductor

· Excessive insulation inside the conductor crimp area

· Tool wear or incorrect machine setup

A crimp can look acceptable from the outside while still containing a problem inside the terminal barrel. Cross-section analysis can reveal conductor compression, symmetry, voids, and other characteristics that cannot be confirmed through external visual inspection alone.

For this reason, manufacturers should establish controlled crimping parameters and verify the process using appropriate inspection and mechanical testing methods.

Loose or Improperly Seated Terminals

A terminal does not necessarily make a reliable connection simply because it has been inserted into a connector housing.

Potential problems include:

· Terminal not fully inserted

· Terminal back-out

· Damaged locking mechanism

· Incorrect terminal position

· Insufficient contact force

· Connector not fully mated

· Damaged connector housing

These problems can increase contact resistance and may also produce intermittent electrical faults.

Terminal position and retention should therefore be considered part of the overall wire harness quality-control process.

Corrosion and Contamination

Corrosion and contamination can increase contact resistance by degrading the conductive contact surface.

Potential contaminants include:

· Moisture

· Salt

· Oil

· Dust

· Chemical residues

· Manufacturing contaminants

· Oxidation products

This is particularly important in automotive, EV, outdoor, industrial, agricultural, and marine applications.

Connector sealing, terminal plating, material selection, and environmental protection should therefore be considered during wire harness design.

Damaged Conductors

A wire can have electrical continuity while still having damaged or reduced conductor cross-section.

Possible causes include:

· Excessive bending

· Abrasion

· Pulling

· Improper stripping

· Excessive crimping

· Mechanical fatigue

· Broken conductor strands

A damaged conductor can increase resistance and may become more problematic when the harness is subjected to vibration or repeated movement.

Poor Soldering or Splicing

For harnesses containing solder joints or wire splices, poor workmanship can create excessive resistance.

Potential problems include:

· Insufficient solder

· Cold solder joints

· Contamination

· Incomplete wetting

· Mechanical damage

· Incorrect splice design

Where soldering or splicing is used, the process should be controlled according to the applicable manufacturing requirements and customer specifications.

Terminal Wear and Fretting

Electrical connectors used in environments with vibration or repeated mechanical movement can experience contact degradation.

Small relative movements between contact surfaces can gradually damage protective surface layers and contribute to increased contact resistance.

This is particularly relevant to:

· Automotive wire harnesses

· EV systems

· Robotics

· Industrial machinery

· Moving equipment

· High-vibration applications

Therefore, troubleshooting should consider both electrical and mechanical conditions.

Incorrect Wire or Terminal Selection

High resistance is not always caused by a defective manufacturing process.

The wire itself may have excessive resistance because of:

· Incorrect conductor size

· Excessive harness length

· Incorrect conductor material

· Incorrect terminal selection

· Inadequate current-carrying capacity

The complete circuit should therefore be evaluated before identifying a specific connector or crimp as the root cause.

How to Test for High-Resistance Connections

A systematic troubleshooting process is more reliable than simply replacing components until the problem disappears.

A practical diagnostic sequence is:

Visual Inspection → Continuity Test → Resistance Measurement → Voltage Drop Test → Component-Level Inspection → Root Cause Analysis

The exact test method and acceptance limits should always be based on the applicable drawing, specification, standard, and operating conditions.

Start With a Visual Inspection

Before connecting test equipment, inspect the harness and connector assembly.

Look for:

· Discolored terminals

· Melted plastic

· Damaged connector housings

· Corrosion

· Loose terminals

· Damaged seals

· Broken wires

· Poorly positioned wires

· Evidence of overheating

· Damaged insulation

· Incorrect connector mating

Visual inspection is useful for identifying obvious defects, but it should not be considered sufficient for detecting all high-resistance connections.

Perform a Continuity Test

Continuity testing determines whether an electrical path exists between specified points.

It is particularly useful for detecting:

· Open circuits

· Incorrect wiring

· Mis-pinned connectors

· Missing connections

· Some short-circuit conditions

However, continuity testing has limitations.

A circuit can show continuity while still having a marginal connection that produces excessive voltage drop when current flows through it.

This distinction is important:

Continuity confirms that a path exists.

Resistance and voltage-drop testing help determine whether the path performs adequately.

Wire harness electrical testing guides similarly distinguish continuity testing from resistance testing because the two tests answer different engineering questions.

Measure Connection Resistance

Resistance measurement can provide additional information about the electrical condition of a connection.

For low-resistance connections, the measurement method becomes increasingly important because the resistance of test leads, probes, and contact interfaces can affect the result.

For critical low-resistance applications, specialized low-resistance or milliohm measurement equipment may be more appropriate than a standard multimeter.

The acceptance value should not be based on a generic number copied from another application. Instead, it should be established according to:

· Wire size

· Wire length

· Terminal specification

· Connector design

· Operating current

· Temperature

· Circuit requirements

· Customer specification

Use Voltage Drop Testing to Find High-Resistance Connections

Voltage-drop testing is one of the most useful methods for locating high-resistance connections because it can evaluate the circuit while current is flowing.

The basic principle follows Ohm's law:

V = I × R

When current flows through a high-resistance point, more voltage is lost across that point.

For troubleshooting, the technician can measure the voltage directly across a suspect connection while the circuit is operating under the appropriate load.

The measurement can be performed across:

· A terminal

· A connector

· A splice

· A ground connection

· A section of wire

· A complete connection interface

A connection that appears normal during a no-load continuity check may show a much more significant voltage drop when current is applied.

This is why voltage-drop testing is particularly valuable when troubleshooting equipment that fails only under load.

Why Can a Wire Harness Pass Continuity Testing but Still Have High Resistance?

This is one of the most important questions in wire harness troubleshooting.

A continuity test generally answers:

Is there an electrical path between these two points?

It does not necessarily answer:

Is the connection resistance low enough to maintain the required electrical performance under the actual operating load?

For example, a marginal crimp may provide enough electrical contact for a basic continuity tester to detect a circuit, but the same connection may generate excessive voltage drop or heat when a high current flows through it.

This distinction becomes particularly important for:

· High-current power circuits

· Automotive harnesses

· EV harnesses

· Motor connections

· Battery systems

· Industrial equipment

· Actuator circuits

Therefore, a complete testing strategy should be based on the failure risks of the specific application rather than assuming that one electrical test can detect every possible defect.

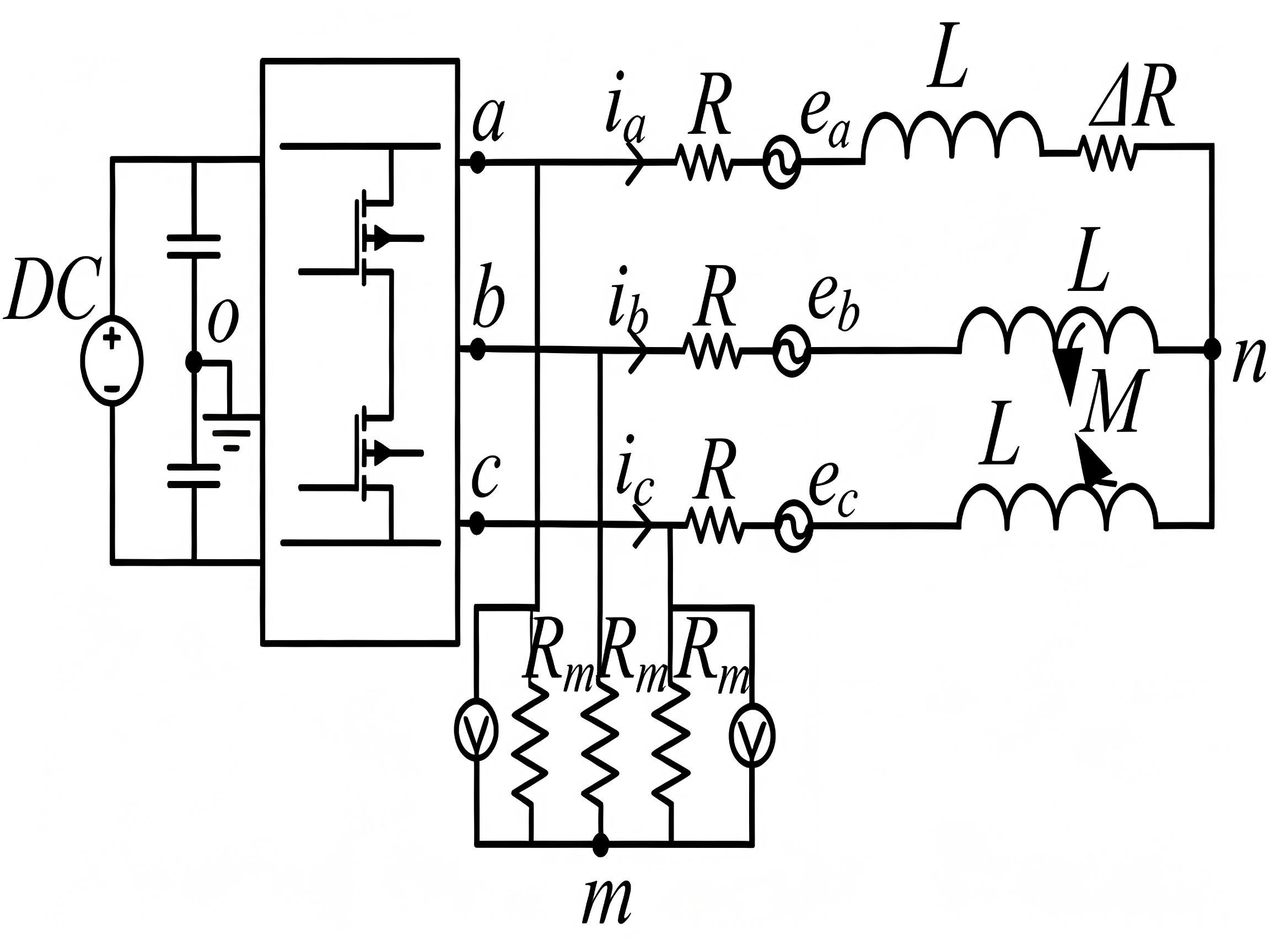

How to Locate a High-Resistance Connection in a Wire Harness

Once high resistance has been confirmed, the next step is to locate the actual failure point.

A practical approach is to divide the circuit into sections.

For example:

Power Source → Wire → Terminal → Connector → Splice → Terminal → Load

Measure the relevant electrical characteristics across each section.

If the voltage drop is concentrated at one connector or terminal, that location becomes a strong candidate for further inspection.

The troubleshooting process should compare:

· Expected performance

· Actual measurement

· Operating current

· Temperature

· Mechanical condition

· Connector condition

· Crimp condition

For intermittent faults, measurements may need to be performed while the harness is exposed to controlled movement, vibration, temperature variation, or other conditions that reproduce the failure.

High Resistance vs Open Circuit vs Short Circuit

These three failure modes should not be confused.

An open circuit means that the intended electrical path is broken.

A short circuit means that an unintended low-resistance electrical path exists between conductors or between a conductor and another electrical reference.

A high-resistance connection is different because an electrical path still exists, but its resistance is higher than acceptable.

Correctly identifying the failure type helps engineers select the appropriate diagnostic method.

How Poor Crimping Causes High Resistance

Crimp quality deserves particular attention because the terminal-to-wire interface is a critical electrical and mechanical connection.

A properly controlled crimp should create a stable electrical interface between the conductor and terminal while providing the required mechanical retention.

Potential crimp defects include:

· Under-crimping

· Over-crimping

· Incorrect crimp height

· Incorrect tooling

· Wrong terminal

· Wrong conductor size

· Damaged strands

· Poor conductor positioning

Crimp quality can be evaluated using a combination of:

· Visual inspection

· Crimp-height measurement

· Pull-force testing

· Crimp-force monitoring

· Cross-section analysis

· Electrical resistance testing

Cross-section analysis can be particularly useful during process validation because it provides information about the internal geometry of the crimp that cannot be confirmed externally.

Troubleshooting High-Resistance Connections in Automotive Wire Harnesses

Automotive wire harnesses can be exposed to:

· Vibration

· Thermal cycling

· Humidity

· Water

· Salt

· Chemicals

· Mechanical movement

· High current

These conditions can accelerate degradation of electrical connections.

Common automotive symptoms include:

· Intermittent sensor signals

· ECU communication problems

· Lighting failures

· Motor or actuator issues

· Voltage drop at power connections

· Ground-related faults

· Connector overheating

When troubleshooting automotive harnesses, engineers should evaluate not only electrical resistance but also the mechanical environment.

A connection that is stable in a laboratory may behave differently after prolonged vibration and temperature cycling.

Automotive research has documented intermittent increases in contact resistance associated with crimp-joint degradation, demonstrating the importance of combining electrical measurements with physical failure analysis.

Troubleshooting High-Resistance Connections in Industrial Equipment

Industrial equipment can experience similar problems, particularly where wiring harnesses are exposed to continuous operation, vibration, movement, dust, oil, or temperature variation.

Applications include:

· Industrial automation

· Robotics

· CNC equipment

· Sensors

· Motors

· Actuators

· Control cabinets

· Production machinery

An intermittent high-resistance connection can be particularly expensive in industrial environments because it may cause unexplained downtime.

For example, a machine may operate normally for several hours and then experience a sensor or actuator fault.

When this occurs, engineers should consider whether the electrical connection changes under:

· Load

· Temperature

· Vibration

· Movement

· Mechanical stress

How to Prevent High-Resistance Connections in Wire Harness Manufacturing

The most effective way to address high-resistance connections is to prevent them during design and manufacturing rather than relying entirely on field troubleshooting.

A controlled wire harness manufacturing process should include several layers of quality control.

Control Crimping Parameters

Crimping parameters should be established according to the approved wire and terminal combination.

Important parameters may include:

· Crimp height

· Crimp width

· Tooling

· Terminal position

· Conductor insertion

· Insulation support

· Machine setup

Production personnel should use controlled tooling and defined work instructions.

Use the Correct Wire and Terminal Combination

Wire and terminal compatibility should be confirmed before production.

The approved combination should consider:

· Conductor size

· Conductor material

· Insulation diameter

· Terminal specification

· Crimp tooling

· Current requirements

· Environmental conditions

Using an incorrect terminal or wire size can compromise both electrical and mechanical performance.

Inspect Crimp Quality

Crimp inspection can include:

· Visual inspection

· Dimensional measurement

· Pull-force testing

· Cross-section analysis

· Electrical testing

Pull-force testing is generally a destructive test and is therefore used for process verification or sampling rather than for testing the finished harness itself. Crimp quality should be validated during setup and controlled throughout production according to the applicable requirements.

Control Connector Assembly

Manufacturers should verify:

· Terminal insertion

· Terminal locking

· Connector orientation

· Connector mating

· Seal installation

· Terminal position

A terminal that is not fully seated can create an intermittent or high-resistance connection even when the wire and crimp themselves are acceptable.

Prevent Contamination and Corrosion

Manufacturing processes should protect terminals and connector interfaces from unnecessary contamination.

Depending on the application, additional protection may include:

· Sealed connectors

· Appropriate terminal plating

· Environmental boots

· Protective tubing

· Proper harness routing

· Suitable connector design

Perform Appropriate Electrical Testing

Electrical testing should be defined according to the harness design and application.

Depending on the product, testing may include:

· Continuity testing

· Resistance testing

· Contact resistance testing

· Insulation resistance testing

· Hi-Pot testing

· Functional testing

No single test can identify every possible wire harness defect. A suitable test plan should match the actual failure risks and customer requirements.

Use End-of-Line Testing

End-of-line testing provides a final verification before the wire harness is released.

Depending on the application, an EOL test system can verify:

· Circuit continuity

· Pin-to-pin wiring

· Opens

· Shorts

· Resistance

· Insulation performance

· Functional characteristics

The exact test coverage should be established from the approved drawing, electrical specifications, and customer requirements.

Testing Equipment for Detecting High-Resistance Connections

Different equipment serves different diagnostic purposes.

The most appropriate equipment depends on the required measurement range, production volume, application, and customer specification.

For a production wire harness, the goal is not simply to own advanced equipment. The important factor is whether the testing method can reliably detect the failure modes that matter to the final application.

High-Resistance Connection Troubleshooting Checklist

When troubleshooting a suspected high-resistance connection, engineers can use the following checklist:

· Inspect the complete wire harness visually.

· Check the connector housing for damage.

· Check for corrosion or contamination.

· Verify that terminals are fully inserted.

· Check connector mating and locking.

· Perform a continuity test.

· Measure circuit resistance where appropriate.

· Perform a voltage-drop test under load.

· Inspect suspect crimps.

· Check for damaged conductor strands.

· Verify wire and terminal specifications.

· Check ground connections.

· Reproduce intermittent faults under controlled conditions.

· Compare results with the approved specification.

· Identify the root cause before replacing components.

· Document the failure and corrective action.

This approach helps distinguish between a defective harness, a defective connector, a poor crimp, an environmental issue, and a system-level problem.

How to Choose a Wire Harness Manufacturer

For OEMs and equipment manufacturers, preventing high-resistance connections starts with selecting a supplier that can control the complete manufacturing process.

When evaluating a wire harness manufacturer, consider:

· Engineering capability

· Experience with custom wire harnesses

· Crimping process control

· Terminal and connector knowledge

· Electrical testing capability

· End-of-line testing

· Quality inspection

· Traceability

· Process documentation

· Ability to work from customer drawings and BOMs

· Experience with automotive or industrial applications

A supplier should be able to explain not only how a harness is assembled, but also how critical electrical and mechanical characteristics are controlled during production.

Custom Wire Harness Manufacturing and Electrical Testing

XSD Cable specializes in custom wire harness and cable assembly manufacturing for OEMs and equipment manufacturers.

For applications where connection resistance, voltage drop, electrical reliability, or intermittent failures are critical, the wire harness should be evaluated as a complete system.

Our engineering and manufacturing process can be based on customer requirements including:

· Wire and cable specifications

· Connector and terminal specifications

· BOM and engineering drawings

· Crimping requirements

· Electrical testing requirements

· Environmental conditions

· Functional requirements

· Quality inspection requirements

For demanding applications, the objective is not simply to manufacture a harness that works during an initial inspection. The goal is to establish a controlled manufacturing process that consistently produces assemblies meeting the specified electrical, mechanical, and environmental requirements.

If your application has experienced high resistance, voltage drop, connector overheating, intermittent electrical faults, or crimp-related failures, providing the relevant drawing, BOM, connector information, wire specifications, and test requirements can help the manufacturer identify the appropriate production and testing approach.

FAQ: Troubleshooting High Resistance Connections

What causes high resistance in a wire harness?

Common causes include poor crimping, loose or improperly seated terminals, corrosion, contamination, damaged conductors, poor splicing, terminal wear, and incorrect wire or terminal selection.

How do you test for a high-resistance connection?

Start with visual inspection and continuity testing, followed by appropriate resistance measurement and voltage-drop testing. For connections that operate under load, voltage-drop testing can be particularly useful because it evaluates the connection while current is flowing.

Can a continuity test detect high resistance?

A continuity test can identify whether an electrical path exists, but it may not adequately evaluate whether a connection performs correctly under operating load. A marginal connection can pass a basic continuity test while still producing excessive voltage drop or heat during operation.

How do you find a high-resistance connection in a wire harness?

Divide the circuit into sections and measure resistance or voltage drop across individual wires, terminals, connectors, splices, and ground connections. A localized increase in voltage drop can help identify the suspect connection.

Why does a connector get hot?

A connector can heat up because of excessive current, high contact resistance, poor crimping, insufficient contact force, corrosion, contamination, or an improperly selected connector. The root cause should be confirmed through electrical and physical inspection rather than assuming that corrosion or poor crimping is responsible.

Can a bad crimp cause high resistance?

Yes. Incorrect crimp height, poor tooling, conductor damage, insufficient compression, excessive compression, or an incorrect wire-terminal combination can create an unstable or high-resistance electrical connection.

Why does a wire harness pass continuity but fail during operation?

A continuity test may confirm that the circuit is connected without fully evaluating its performance under load. A marginal crimp, terminal, connector, or conductor can therefore pass continuity while producing excessive voltage drop when current increases.

What is the difference between contact resistance and wire resistance?

Wire resistance is the resistance of the conductor itself. Contact resistance is associated with the interface between conductive components, such as a terminal and connector contact or a crimped terminal and wire. Both contribute to the total resistance of a circuit.

What testing equipment is used to detect high-resistance connections?

Depending on the application, engineers may use digital multimeters, low-resistance ohmmeters, milliohm meters, wire harness testers, voltage-drop measurement equipment, and thermal imaging cameras.

How can high-resistance connections be prevented during wire harness manufacturing?

Prevention requires controlled crimping, correct wire-terminal selection, connector assembly control, contamination prevention, appropriate electrical testing, process validation, and end-of-line inspection.

Are high-resistance connections common in automotive wire harnesses?

They can occur in automotive harnesses because connectors and terminals may be exposed to vibration, temperature cycling, moisture, chemicals, and mechanical movement. Proper terminal selection, crimp quality, connector design, environmental protection, and validation are important for long-term reliability.

How should an OEM specify high-resistance testing for a wire harness?

The OEM should define the relevant circuit, acceptable resistance or voltage-drop limits, operating conditions, test method, test points, equipment requirements, and applicable standards or internal specifications. The limits should be based on the actual electrical design rather than a generic value.

Conclusion

Troubleshooting high-resistance connections requires more than checking whether a wire harness has continuity.

A reliable diagnostic process should connect the observed symptom with the appropriate measurement method and then trace the result back to the physical root cause.

The general troubleshooting sequence is:

Symptom → Visual Inspection → Continuity → Resistance Measurement → Voltage Drop → Component Inspection → Root Cause → Corrective Action

For wire harness manufacturers, prevention is even more important than troubleshooting. Controlled crimping, correct component selection, connector assembly, contamination control, electrical testing, and end-of-line inspection can significantly reduce the risk of high-resistance connections reaching the customer's equipment.

For OEMs developing automotive, EV, industrial, robotics, medical, or other equipment, selecting a wire harness supplier with appropriate engineering and quality-control capabilities can help address electrical reliability from the design stage through mass production.

If you are experiencing high resistance, voltage drop, intermittent connections, connector overheating, or crimp-related failures, a detailed review of your wire harness drawing, BOM, connector specifications, operating conditions, and testing requirements can help identify the most appropriate manufacturing and validation approach.
