A damaged wire harness can cause electrical failures, equipment downtime, and unreliable system performance. Whether a wire harness can be repaired depends on the extent of the damage, the application, and the manufacturer's repair requirements.
Some localized defects may be repairable using approved methods. However, severe damage, extensive corrosion, or problems affecting safety-critical circuits may require replacement.
In this guide, we explain how to identify wire harness damage, evaluate repair options, and determine when to work with a custom wire harness manufacturer.
Yes, some damaged wire harnesses can be repaired if the damage is limited and an approved repair procedure is available. However, not every harness is suitable for repair.
Before deciding, consider these factors:
Damage severity: Is the problem limited to one wire, or are multiple wires and connectors damaged?
Application requirements: Does the harness carry power, control signals, or safety-critical circuits?
Repair materials: Are compatible wires, terminals, connectors, and protective materials available?
Verification: Can the repaired harness meet the required electrical and mechanical specifications?
Always consult the applicable manufacturer's service documentation before attempting a repair. If the damage cannot be repaired reliably or the manufacturer requires replacement, replacing the harness is the appropriate option.
Understanding the symptoms of a damaged wiring harness helps identify the underlying problem.
Abrasion, sharp edges, excessive bending, and aging can damage wire insulation. Exposed conductors may cause short circuits or electrical faults.
Vibration, repeated flexing, and excessive tension can damage conductors. Symptoms may include intermittent equipment operation, sensor failures, or loss of electrical continuity.
Moisture, contamination, mechanical stress, and improper installation can damage connector housings and terminals, leading to unreliable electrical connections.
Excessive temperatures, chemicals, moisture, and vibration can deteriorate insulation and other harness components. If damage affects multiple sections, a full replacement may be more appropriate than a localized repair.
Wire harness repair must follow the procedures and safety requirements applicable to the specific equipment.
Follow the manufacturer's shutdown, isolation, and verification procedures before inspecting the harness. High-voltage systems, airbags, braking systems, and other safety-critical applications require specialized procedures and appropriately qualified personnel.

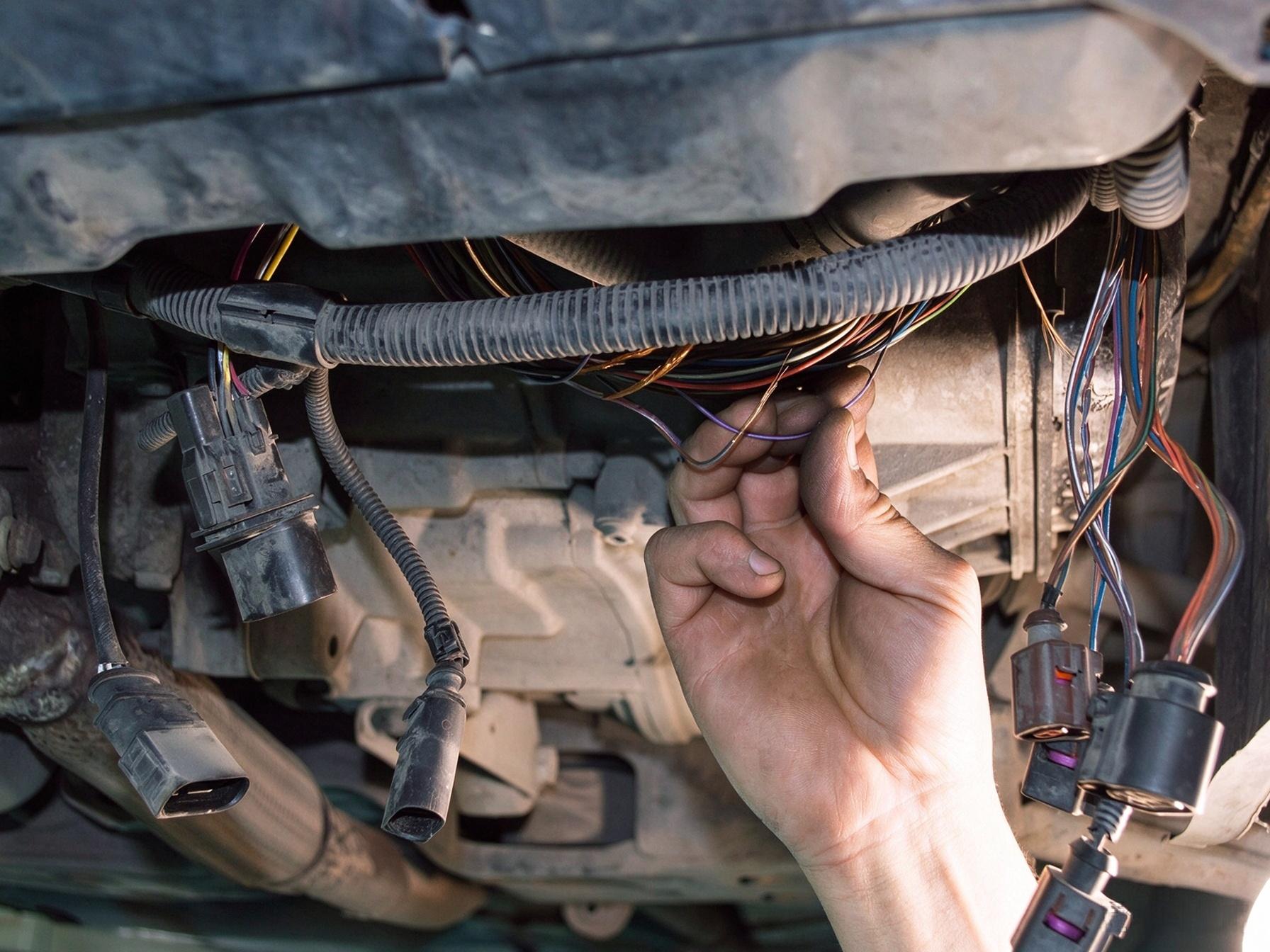

Look for broken conductors, exposed wires, damaged insulation, corrosion, melted materials, and defective connectors.
Record the harness identification, wire specifications, connector details, and location of the damage. Also investigate the potential cause, such as abrasion, vibration, or excessive tension.
Consult the wiring diagram and manufacturer documentation to confirm the circuit configuration and approved repair options.
Important specifications may include wire gauge, insulation type, terminal compatibility, connector requirements, shielding, and environmental protection.
Do not assume that wires or connectors are interchangeable simply because they look similar.
A localized defect may be repairable if the required components and an approved procedure are available.
However, extensive thermal damage, widespread corrosion, multiple damaged circuits, or damage that cannot be adequately verified may require replacement.
If the application prohibits a particular repair or the correct procedure is unavailable, do not improvise.

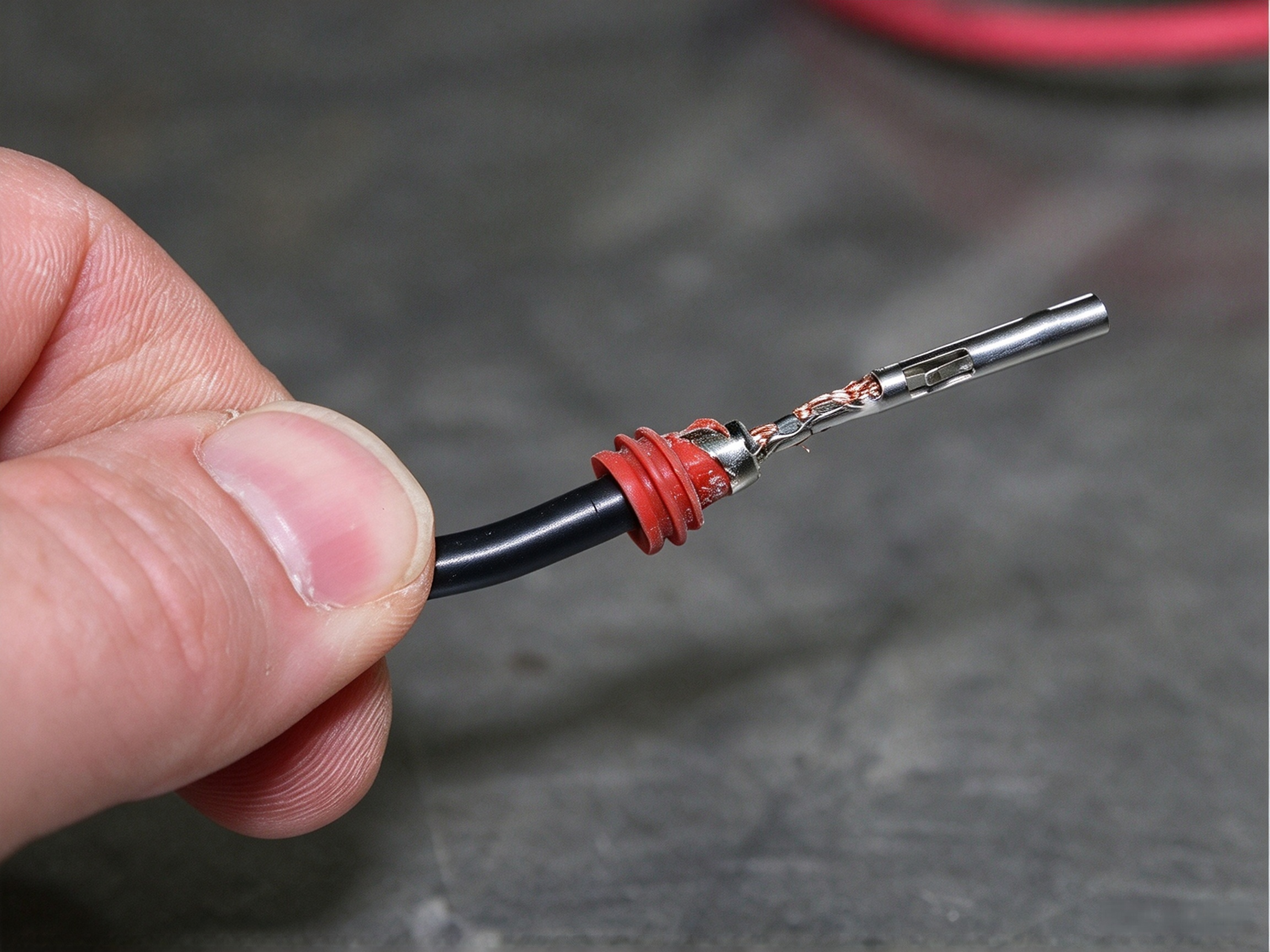

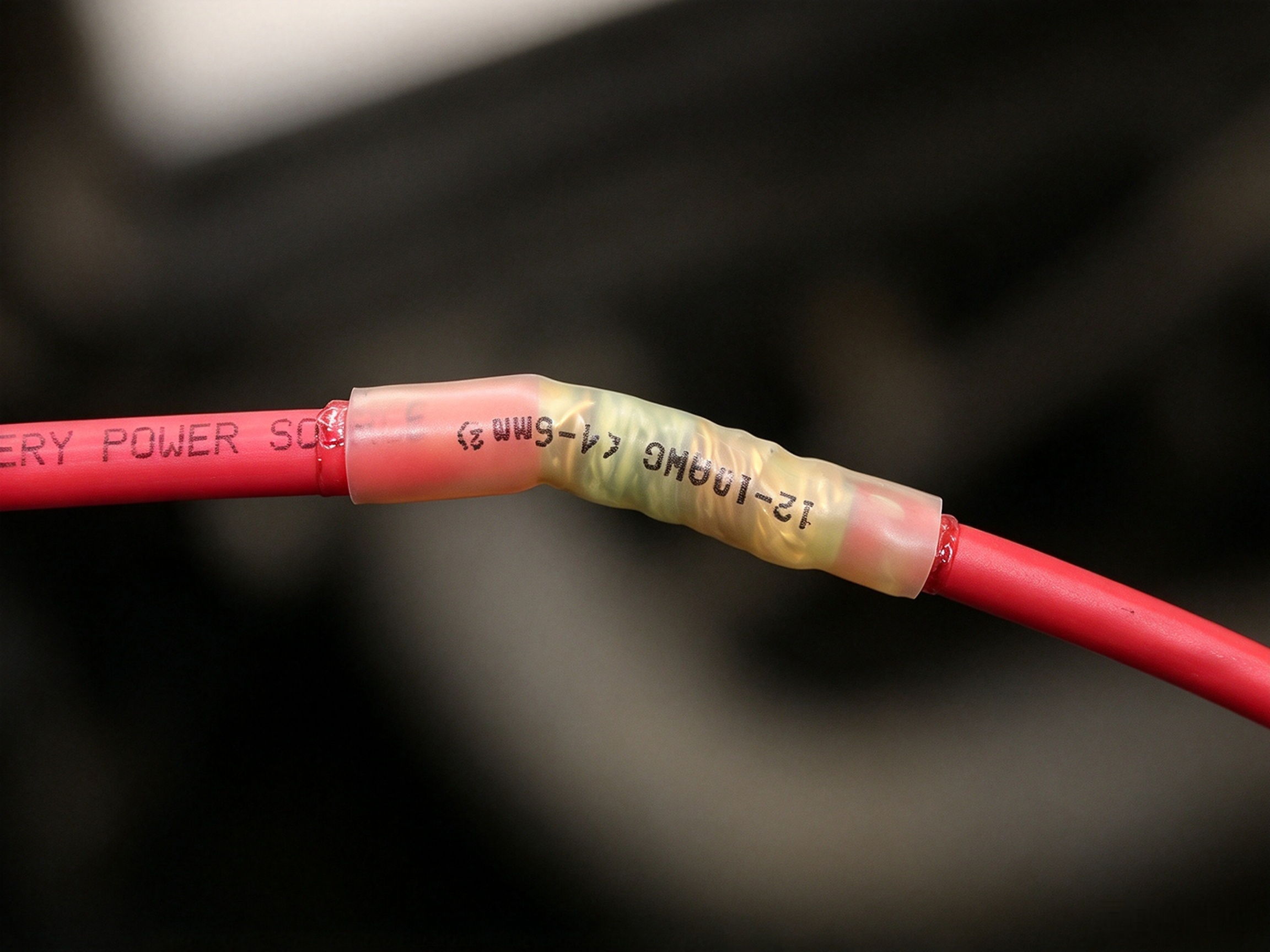

When repair is permitted, use the specified wires, terminals, connectors, joining methods, and insulation materials.
The repair must preserve the harness's required electrical performance, mechanical strength, sealing, and environmental resistance. Shielded cables and high-speed data circuits may require specialized termination methods.
Before returning equipment to service, verify the repair against the applicable requirements.
Depending on the application, testing may include:
Visual inspection
Electrical continuity testing
Short-circuit checks
Connection resistance testing where required
Insulation testing where appropriate
Functional testing of the affected circuit
Document the results when required. A circuit that appears to work is not necessarily proof that the harness meets all safety and performance requirements.
Choosing between repair and replacement depends on damage severity, cost, reliability, and equipment downtime.
Factor | Repair | Replacement |
Damage | Limited, repairable defects | Extensive or multiple damaged sections |
Initial cost | May be lower | May require higher upfront investment |
Lead time | Depends on diagnosis and parts | Depends on inventory or manufacturing lead time |
Reliability | Depends on repair quality and verification | Depends on replacement quality and correct installation |
Best suited for | Approved localized repairs | Severe damage, obsolete parts, or unrepairable assemblies |
Repair may be practical when the defect is isolated and the assembly can be restored to the required specifications.
Replacement should be considered when the damage is extensive, repeated failures occur, suitable repair components are unavailable, or the manufacturer's requirements call for replacement.
For industrial equipment, the decision should also consider long-term maintenance costs and production downtime rather than the immediate repair cost alone.
A custom wire harness manufacturer may be a suitable partner when an original harness is unavailable, obsolete, difficult to repair, or needed in larger quantities.
Older machinery may use discontinued harnesses. A custom replacement may be feasible if the necessary technical specifications can be established and validated.
OEMs and maintenance providers may need multiple replacement harnesses for machinery, automation systems, agricultural equipment, or other industrial applications. A manufacturing partner can help assess repeat production requirements and component consistency.
Engineering teams may need replacement assemblies that match existing electrical configurations, connector arrangements, dimensions, and operating conditions.
To evaluate a project, provide as much of the following information as possible:
Engineering drawings and wiring diagrams
Bill of materials (BOM)
Existing harness samples
Wire, terminal, and connector specifications
Operating environment and application details
Testing and quality requirements
Estimated order quantities and delivery expectations
The manufacturer should review technical requirements and identify any missing information before confirming feasibility.
If a damaged harness cannot be reliably repaired, a custom replacement may be a suitable alternative.
We manufacture wire harness assemblies based on customer drawings, specifications, or approved samples. Our team can discuss your application, technical requirements, and production needs.
Contact us to discuss your wire harness project. Share your drawings, BOM, sample information, and estimated quantities to help us evaluate your requirements.
Preventive measures can reduce recurring failures and improve harness service life.
Improve routing: Avoid sharp edges, excessive bending, and contact with moving components.
Provide mechanical protection: Use suitable clips, sleeves, grommets, and strain relief where required.
Select appropriate materials: Match wires, connectors, insulation, and protective coverings to the operating environment.
Control assembly quality: Verify terminal crimping, connector assembly, dimensions, and electrical performance according to the applicable specifications.
Investigate recurring failures: Address the underlying cause instead of repeatedly repairing the same damaged section.
For manufacturers, effective design reviews and documented quality controls can help improve consistency across production batches.
Yes, if the damage is limited and an approved repair method can restore the required performance. Severe damage or safety-critical applications may require replacement.
Consider replacement when multiple sections are damaged, heat or corrosion has affected the assembly extensively, or the harness cannot meet the applicable repair and testing requirements.
Common causes include abrasion, vibration, repeated flexing, excessive tension, moisture, corrosion, heat, and chemical exposure.
Costs depend on damage severity, labor, replacement components, accessibility, and testing requirements. Compare repair costs with replacement costs and potential downtime.
A manufacturer may be able to produce a replacement based on drawings, wiring diagrams, a BOM, or an existing sample. Technical compatibility and applicable requirements must be confirmed before production.
Repairing a damaged wire harness may be practical when the defect is limited and an approved procedure is available. When damage is extensive or reliability cannot be verified, replacement should be considered.
For OEMs, engineering teams, maintenance providers, and procurement professionals, a qualified custom wire harness manufacturer can help evaluate replacement requirements and potential production solutions.
Looking for a Custom Wire Harness Manufacturer?
Contact our team with your drawings, BOM, sample details, and estimated quantities to discuss your replacement wire harness or OEM manufacturing project.
