Types of Wire Used in Wire Harnesses: A Complete Guide

Introduction

Wire harnesses are the nervous system of modern electrical equipment. From automotive and industrial machinery to medical devices, the reliability of your product depends on selecting the right wire. Choosing incorrectly can lead to signal loss, overheating, premature failure, or safety hazards.

This guide covers the most common wire types used in custom wire harnesses—their characteristics, trade-offs, and typical applications. Use this knowledge to specify the optimal wire for your next project.

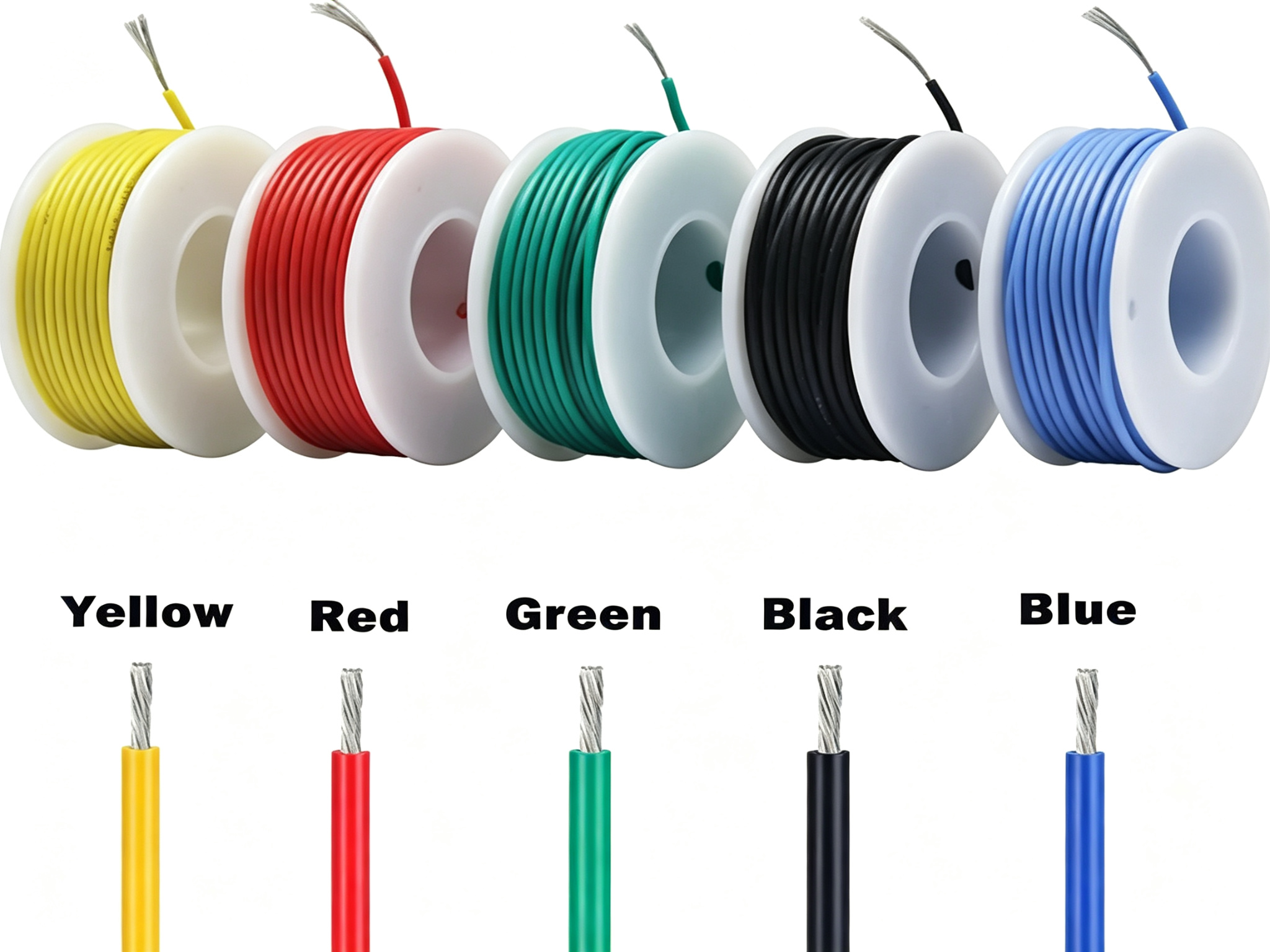

1. PVC Hook-Up Wire – The Workhorse

Polyvinyl Chloride (PVC) is the most widely used insulation for general-purpose harnesses due to its low cost, good flexibility, and color availability.

Advantages: Easy to strip and terminate, excellent dielectric strength, low cost.
Limitations: Not for high heat (>105°C) or extreme cold; releases chlorine when burned.

Applications: Consumer electronics, appliance interior wiring, control panels, automotive interior harnesses (non-engine bay).

Choose PVC when: Cost matters, temperatures are moderate, and high production volume requires easy processing.

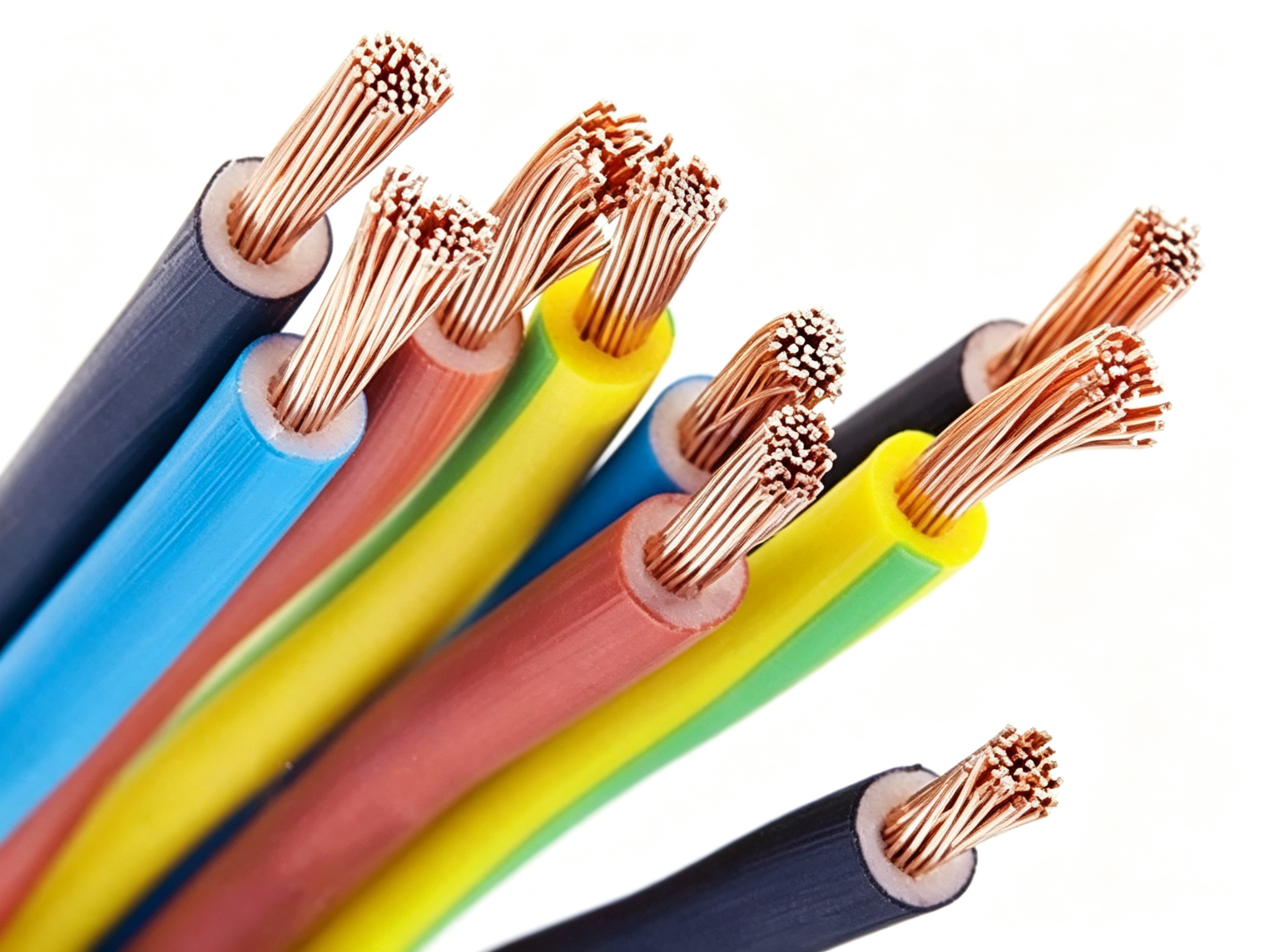

2. XLPE Wire – Heat & Moisture Resistant

Cross-linked Polyethylene (XLPE) uses a thermosetting insulation that handles higher temperatures and resists moisture, chemicals, and abrasion better than PVC.

Advantages: Higher current capacity for same gauge, thinner insulation saves space, excellent chemical resistance, halogen-free options available.
Limitations: Harder than PVC (special stripping tools needed), less flexible in cold.

Applications: Automotive engine compartments, industrial motors, solar panel combiner boxes, outdoor equipment.

Choose XLPE when: Your harness sees heat (up to 125°C), moisture, or oils, and space is limited.

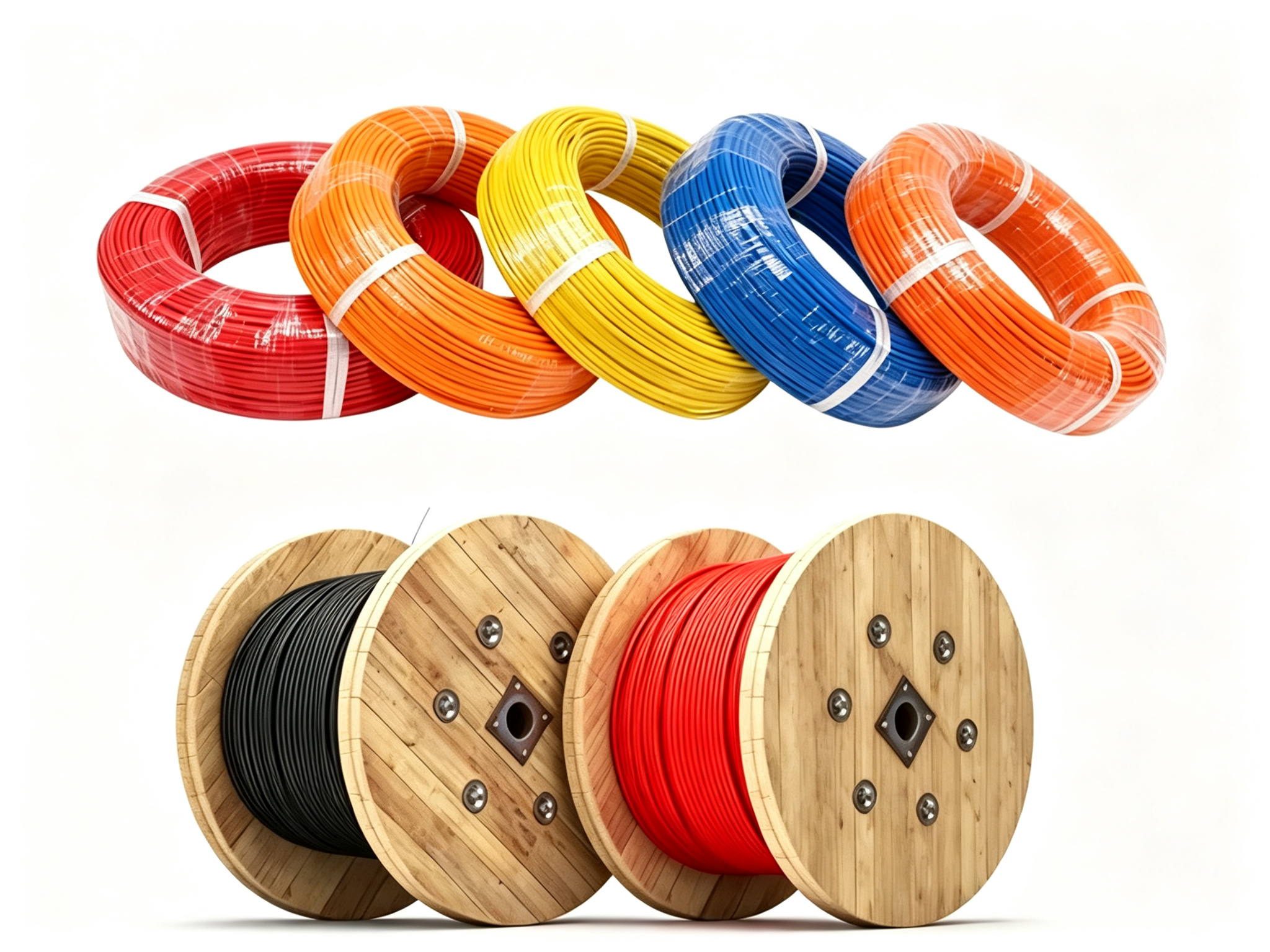

3. Silicone Rubber Wire – Extreme Flexibility & Temperature Range

Silicone rubber remains flexible from -60°C to +200°C, making it ideal for dynamic applications with constant flexing or wide temperature swings.

Advantages: Stays soft and flexible in extreme cold, withstands sterilization cycles (autoclave, radiation), excellent dielectric properties.
Limitations: Lower abrasion resistance (requires mechanical protection), higher cost than PVC/XLPE.

Applications: Robotics (cable carriers), medical devices, LED lighting, aerospace, high-power test leads.

Choose silicone when: Your harness must flex continuously or survive extreme temperatures (-60°C or >150°C).

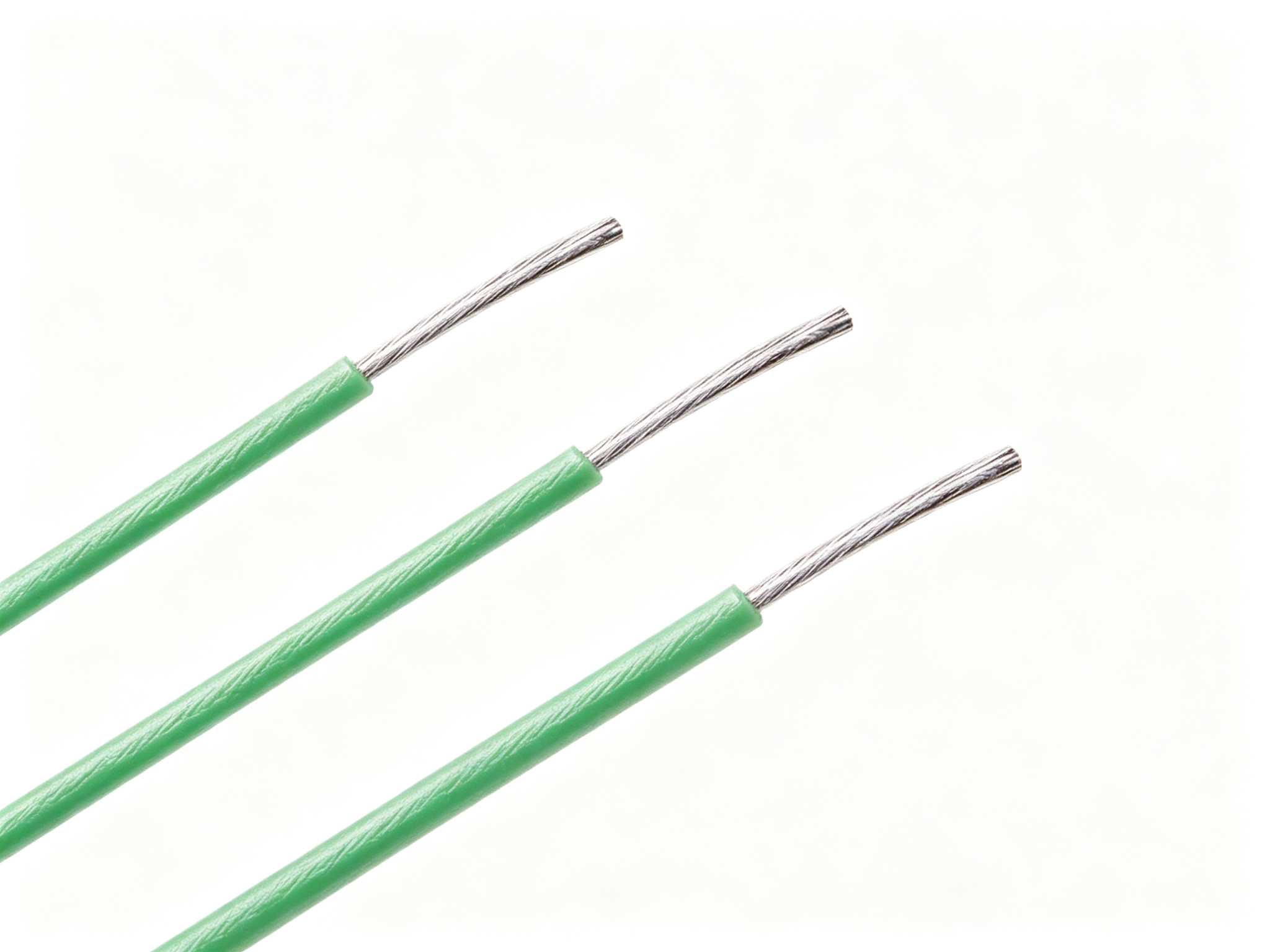

4. Teflon (PTFE / ETFE) Wire – High-Performance Specialist

For the harshest environments—extreme heat, aggressive chemicals, vacuum, or high-altitude corona—fluoropolymer wires (PTFE, ETFE, FEP) are the gold standard.

Advantages: Near-zero moisture absorption, outstanding chemical resistance, very low dielectric constant (2.1), self-extinguishing.
Disadvantages: High cost (5–10× PVC), requires specialized stripping equipment (thermal or laser).

Applications: Military vehicles, spacecraft, down-hole oil/gas tools, industrial ovens, mission-critical systems.

Choose PTFE/ETFE when: Failure is not an option, and your harness faces extreme heat, chemicals, or vacuum.

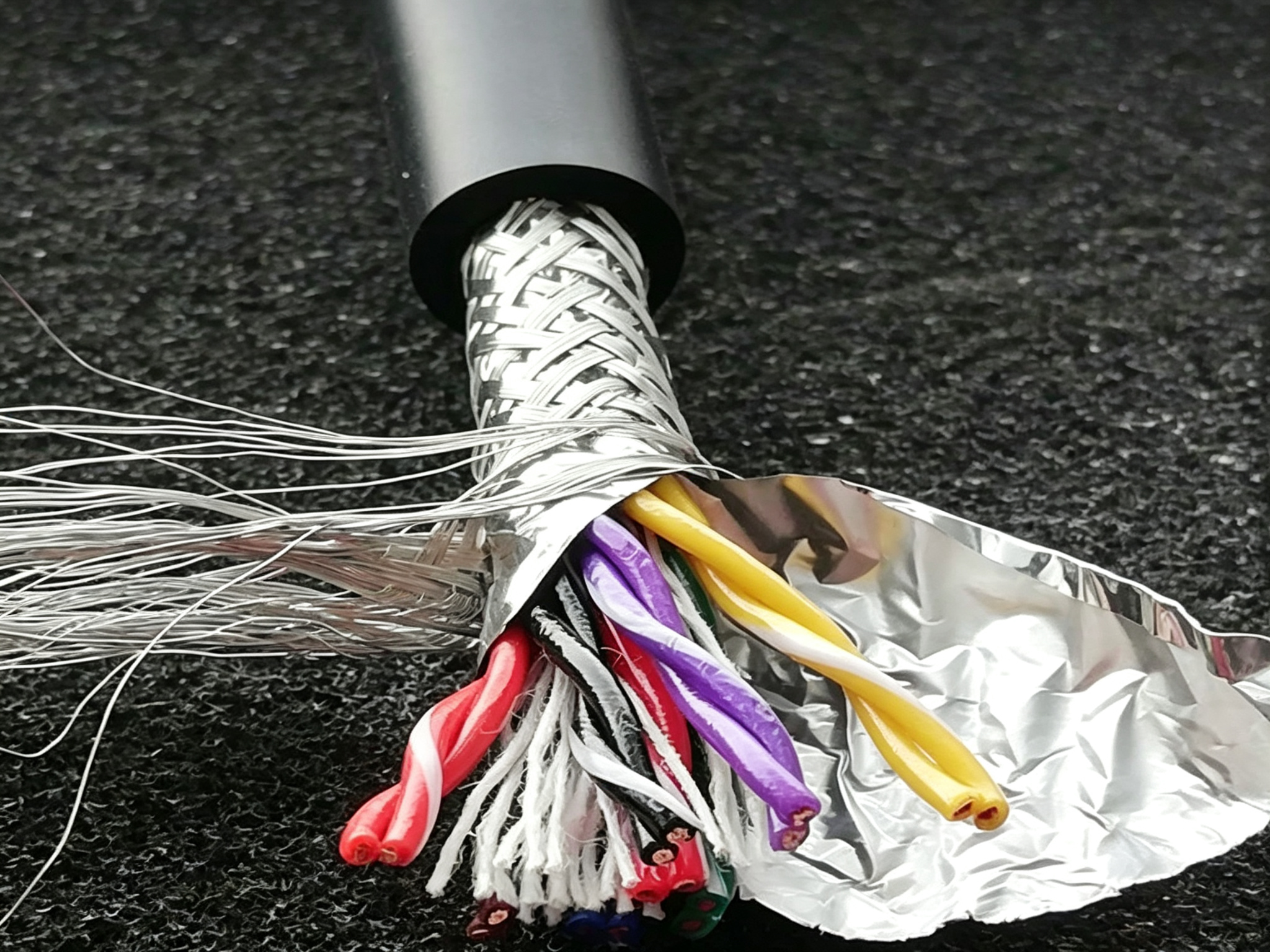

5. Shielded Wire – EMI Protection for Sensitive Signals

Shielded wires prevent electromagnetic interference (EMI) from corrupting low-voltage signals (sensors, CAN bus, audio). Two common shield types:

Construction: Inner conductor (often twisted pair) + dielectric + shield + outer jacket (PVC, PUR, TPE).
Applications: Automotive CAN bus, industrial sensors, medical cables, audio/video.

Tip: Always terminate the shield properly (360° connection at the connector)—a floating shield can worsen EMI.

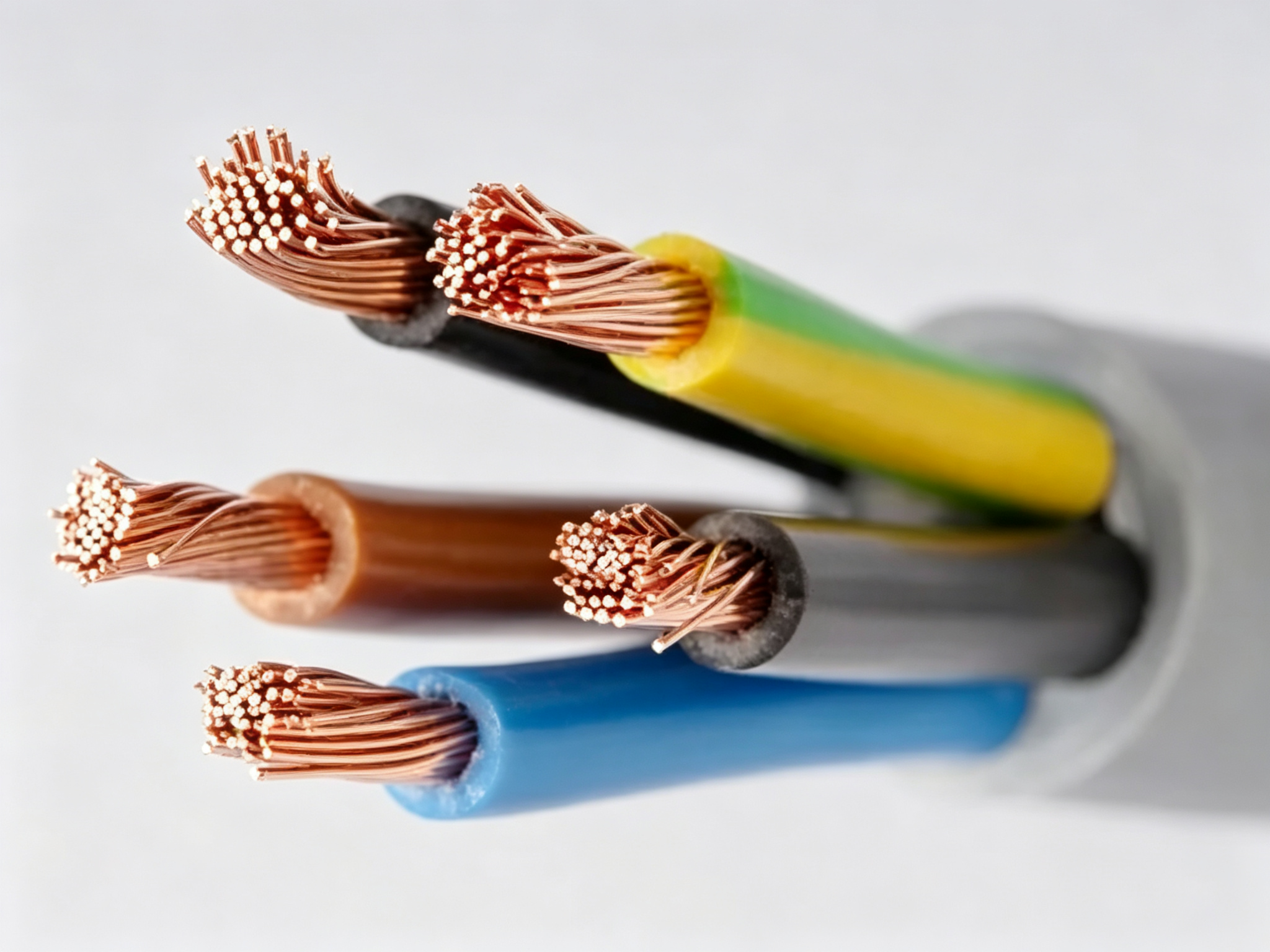

6. Multi-Conductor Cable – Organized Bundles

Multi-conductor cable contains two or more insulated conductors inside a common jacket. It simplifies harness assembly and ensures consistent electrical performance.

Common constructions: Twisted pairs (for differential signals), parallel conductors (power/control), triads (3-phase).
Jacket materials: PVC (cost), PUR (abrasion/oil resistant), TPE (flexible, halogen-free), rubber (weather resistant).
Optional: Overall shield + drain wire, fillers, armor.

Benefits: Reduces assembly time, maintains consistent impedance, improves cable management.
Applications: Industrial automation, building HVAC, medical imaging, audio snakes.

Choose multi-conductor when: You need to route several circuits together and want to lower labor costs.

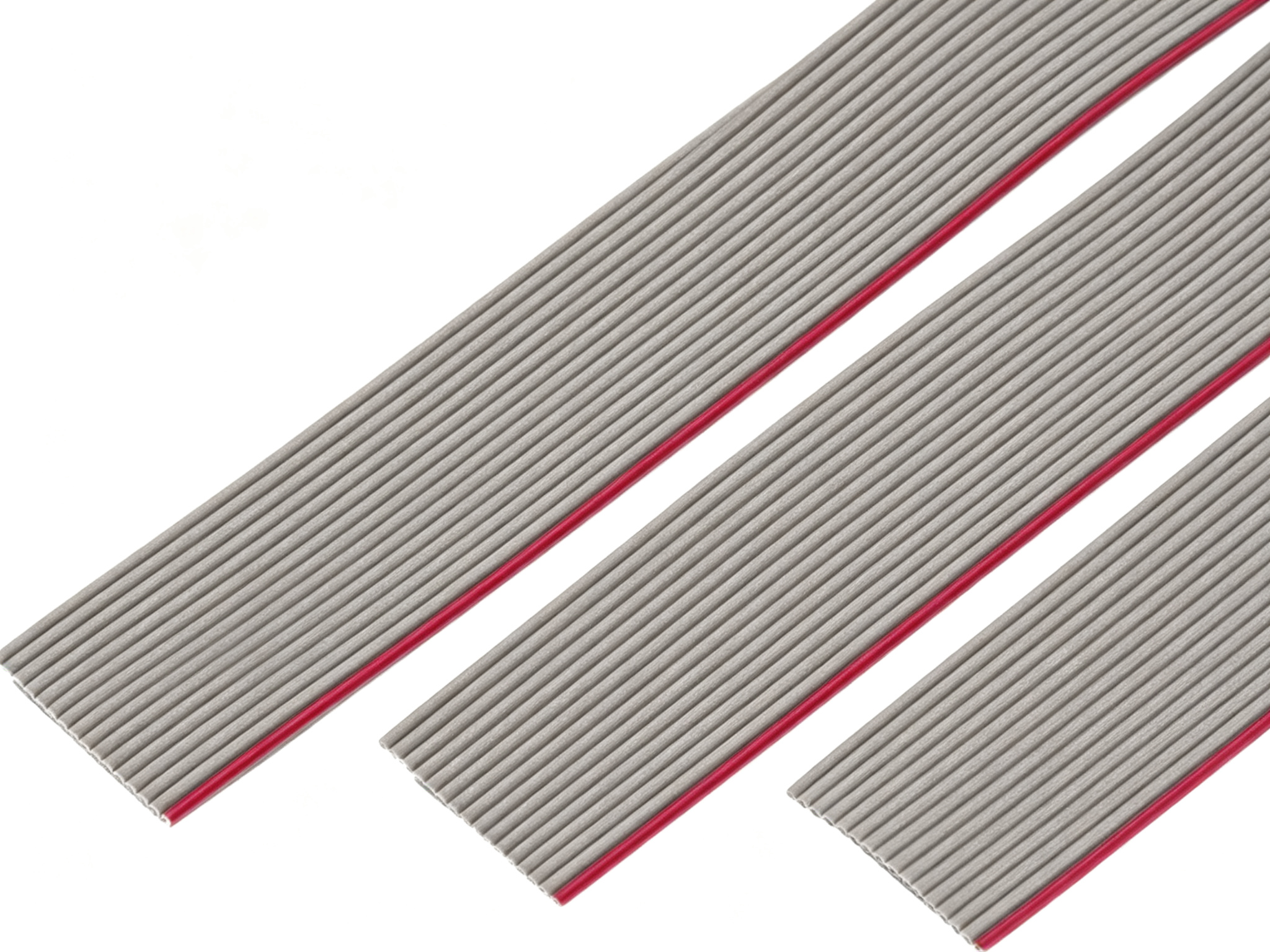

7. Flat Ribbon Cable – Space-Saving & Mass Termination

Flat ribbon cable consists of parallel conductors on a 0.050” (1.27mm) pitch, color-coded for easy identification.

Advantages: Mass termination saves 80% assembly time, low profile, predictable capacitance.
Limitations: Low current per conductor (~1A), poor EMI immunity, not for high-flex.
Applications: Computer internal buses, printers, medical imaging displays, test equipment.

Choose ribbon cable when: You have many parallel, low-current signals over short distances and high-volume assembly is critical.

How to Choose the Right Wire – Quick Selection Guide

Always consider: Current (AWG), voltage rating, temperature extremes, chemical exposure, abrasion, flexibility needs, and flammability rating (UL VW-1, FT1, etc.).

Frequently Asked Questions (FAQ)

Q1: What is the difference between a wire and a cable in a harness?

A: A wire is a single conductor (stranded or solid) with insulation. A cable consists of two or more insulated wires bundled under a common outer jacket. Harnesses can use both—single wires for point-to-point connections and multi-conductor cables for organized bundles.

Q2: Can I use PVC wire in an engine compartment?

A: Generally no. Engine compartments exceed 105°C near the exhaust or turbo. Use XLPE (up to 125°C) or silicone (up to 200°C) for under-hood harnesses. PVC may soften, melt, or become brittle over time.

Q3: What does “stranded vs. solid conductor” mean for harness flexibility?

A: Stranded wire (many thin copper strands) is flexible and resists breakage from vibration and bending—ideal for harnesses that move or experience shock. Solid wire (single thick conductor) is stiff and used only in stationary applications like building wiring.

Q4: Do I always need shielded wire for sensor signals?

A: Not always. If your environment has low electrical noise (no motors, relays, or radio transmitters) and the signal is strong (e.g., 24V digital), unshielded twisted pair may suffice. For low-voltage analog signals (thermocouples, 4–20mA loops) or high-speed data (CAN, RS-485), shielding is highly recommended.

Q5: What is the most heat-resistant wire for harnesses?

A: PTFE (up to 200°C continuous, 260°C short-term) and silicone (up to 200°C). For brief extreme exposure, fiberglass or ceramic insulated wires exist but are rare in standard harnesses.

Q6: How do I specify wire for a custom harness?

A: Provide your harness manufacturer with: AWG gauge, insulation type (PVC, XLPE, silicone, etc.), temperature range, voltage, flexibility needs, color codes, and any approvals (UL, CSA, RoHS). Send a schematic or wiring diagram for best results.

Q7: What does UL VW-1 mean?

A: UL VW-1 is a vertical wire flame test. A wire with VW-1 rating self-extinguishes within 60 seconds after the flame is removed, with minimal flaming drips. It’s required for most commercial and industrial harnesses.

Q8: Can I mix different wire types in one harness?

A: Yes—it’s common. For example, an automotive harness may use XLPE for engine sensors (heat), PVC for cabin lighting (cost), and shielded twisted pair for CAN bus (EMI). Ensure proper separation and bundling.

Conclusion

No single wire type fits every application. PVC is the cost effective generalist; XLPE handles heat and moisture; silicone masters flexibility and extreme temperatures; PTFE conquers harsh chemicals and vacuum; shielded wires protect signals; multi conductor cables organize bundles; and ribbon cables enable mass termination.

By matching the wire to your real operating conditions—temperature, chemical exposure, flexing, EMI, and budget—you ensure a reliable, safe, and cost effective wire harness.
