When you look at the back of your computer or beneath a heavy industrial machine, you likely see cables with thick, plastic-shrouded ends. These are not just standard plugs; they are molded cables. In simple terms, a molded cable is a cable assembly where the connector and the wire are permanently joined by a process called injection molding. Instead of using a separate shell that screws or snaps together, the plastic material flows around the junction, creating a single, solid piece.
Engineers and buyers choose molded cables because they offer superior durability. Because the connector is physically fused to the wire, it provides excellent strain relief. It prevents the wires from pulling out of the pins when someone yanks the cord. They are essential for industrial, automotive, and outdoor applications where vibration, moisture, and rough handling are daily challenges. In this guide, we will dive deep into why this technology is the backbone of modern connectivity and how you can design the perfect one for your project.
A molded cable consists of three primary components: the raw cable, the internal connector (terminals or pins), and the overmold. The "magic" happens during the overmolding process. We place the pre-terminated cable into a steel mold cavity. High-pressure machinery then injects molten plastic—usually PVC or TPU—into that cavity. Once it cools, the plastic hardens, encapsulating the connection point entirely.
This process transforms a fragile electrical connection into a rugged, unified component. Unlike mechanical backshells, a molded cable leaves no internal gaps. This solid construction is why they are often rated as waterproof IP68, meaning they can withstand submersion without failing. When we talk about high-performance environments, the industrial molded cable stands out because it resists dust, chemicals, and mechanical stress better than any other assembly type.
The integration of the "boot" (the part you grip) and the cable jacket is seamless. This creates a transition zone that distributes bending stress over a wider area. If you use a high flex molded cable in a robotic arm, this design prevents the copper strands inside from snapping during millions of cycles. It is not just about looks; it is about extending the lifecycle of the equipment it powers.
Enhanced Pull Strength: The overmold grips the cable jacket, making it nearly impossible to pull the wires away from the solder or crimp points.
Environmental Sealing: It creates a moisture-proof barrier.
Aesthetic Branding: Companies can mold their logos directly into the connector.
Tamper Resistance: Since the connector is sealed, users cannot open it and mess with the internal wiring.
There is no "one-size-fits-all" in the world of cabling. Different industries require specific configurations of molded cables to handle unique stresses. Understanding these types helps you select the right one for your specific environment, whether it is a clean laboratory or a muddy construction site.

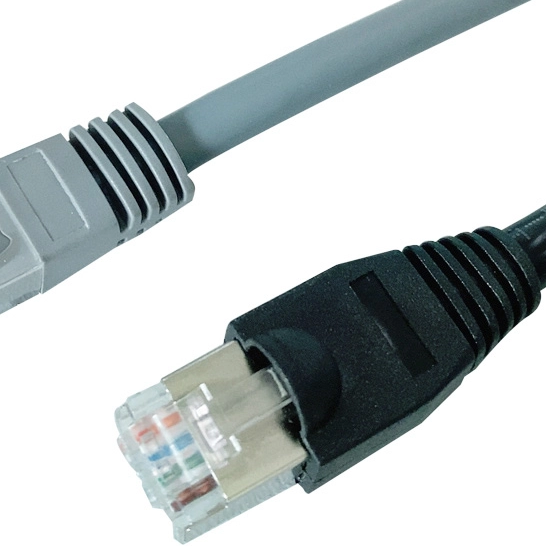

You see these every day. USB chargers, HDMI leads, and power cords are the most common molded cable types. They prioritize low cost and high production volume. While they are durable enough for home use, they lack the chemical resistance needed for factory floors.
An industrial molded cable is built for punishment. These often feature M12 or M8 circular connectors. They frequently carry a waterproof IP68 rating to handle washdowns in food processing plants. They also use tougher materials like PUR (Polyurethane) to resist oil and abrasion.
Vehicles are high-vibration environments. An automotive molded cable must endure extreme temperature swings—from freezing winters to scorching engine bays. These are often used for sensors, lighting, and diagnostic ports. We design them to be compact and heat-resistant.
In automation, cables move constantly. A high flex molded cable uses specialized internal stranding and a flexible overmold material. This prevents "corkscrewing" or internal wire breakage when the cable is bent repeatedly in a cable carrier.
| Cable Type | Primary Environment | Key Feature |
| Consumer | Home/Office | Low cost, sleek design |
| Industrial | Factories | Waterproof IP68, Oil resistance |
| Automotive | Cars/Trucks | Heat resistance, vibration damping |
| Outdoor | Telecommunications | UV resistance, weatherproofing |
Medical devices require cables that can be sterilized. These molded cables often use medical-grade silicone or specialized plastics that won't degrade when wiped down with harsh disinfectants. They also focus on ergonomics so doctors can grip them easily.
The material you choose for the overmold dictates how the molded cable will perform in the field. If you pick the wrong plastic, the cable might crack in the cold or melt in the heat. We generally categorize these materials into "thermoplastics," which can be melted and reshaped.
PVC is the most common material for molded cable assemblies. It is cost-effective, versatile, and offers decent resistance to chemicals. It is perfect for indoor industrial use and general-purpose power leads. However, it can become brittle in extreme cold and may release toxic fumes if it catches fire (unless it is a specialized low-smoke zero-halogen version).
When you need a high flex molded cable, TPU is the gold standard. It is incredibly tough. It resists tears, abrasions, and oils. We use TPU for outdoor molded cable applications because it handles low temperatures without cracking. It also provides a "rubbery" feel that improves grip.
TPE feels like rubber but processes like plastic. It is excellent for automotive molded cable designs because it has a wide temperature range. It also resists sunlight (UV) and ozone, making it a top choice for outdoor environments.
While harder to mold than PVC, silicone is used for high-heat or medical applications. It is incredibly flexible and can withstand temperatures that would melt standard industrial molded cables.
Temperature Range: Will the cable be in a freezer or near an engine?
Chemical Exposure: Will it touch hydraulic fluid, salt water, or cleaning agents?
Flexibility Requirements: Does it need to bend once, or a million times?
Regulatory Compliance: Does it need to be RoHS, REACH, or UL-rated?
The versatility of the molded cable means it appears in almost every sector of modern technology. Its ability to provide a "plug-and-play" solution that is also ruggedized makes it indispensable for field technicians and end-users alike.
In a factory, downtime is expensive. An industrial molded cable ensures that sensors and actuators stay connected despite constant motion and splashes of coolant. These are often high flex molded cable types that connect PLC (Programmable Logic Controller) systems to the hardware on the floor.
Standard cables fail quickly when exposed to rain and salt. An outdoor molded cable with a waterproof IP68 rating is used for security cameras, street lighting, and marine navigation equipment. The overmold prevents water from "wicking" through the connector into the sensitive electronics.
Modern vehicles are computers on wheels. From GPS antennas to engine sensors, automotive molded cable assemblies provide the reliable data paths needed for safety. They must be compact to fit into tight spaces while being tough enough to survive the vibration of a diesel engine.
Reliability is a matter of life and death here. Molded cables for EKG machines or ultrasound probes are designed for comfort and frequent cleaning. The molded strain relief ensures that the cable doesn't fail even if a nurse quickly pulls the equipment across a room.
The towers that provide your 5G signal use rugged molded cables to connect antennas to base stations. These must be UV-resistant and able to survive decades of exposure to wind, snow, and sun.
Designing a molded cable requires more than just choosing a wire gauge. You must consider the interaction between the metal components and the plastic mold. A well-designed cable is easier to manufacture and lasts longer in the field.
Before you draw anything, ask: Where will this live? If it is going on a boat, you need a waterproof IP68 rating. If it is going inside a machine tool, it needs oil-resistant materials. This "environment-first" approach prevents costly redesigns later.
The "insert" is the metal connector that will be overmolded. You must ensure the connector is designed for molding. Some connectors have holes that let plastic leak into the contact area, which ruins the electrical connection. We often use "pre-molds" (a primary layer of hard plastic) to protect the pins before the final "overmold" is applied.
The transition between the stiff connector and the floppy wire is a failure point. A good molded cable design uses a tapered strain relief. This looks like a series of ribs or a gradual thinning of the plastic. It forces the cable to bend in a wide arc rather than a sharp angle.
Molding requires a steel tool. This is an upfront cost, but it pays off in high-volume production.
Gate Placement: Where the plastic enters the mold. It shouldn't be on a visible face if you want a clean look.
Draft Angles: The mold walls must be slightly slanted so the finished molded cable can pop out easily.
Shut-off Points: Areas where the mold pinches the cable to prevent plastic from leaking down the wire.
Since you are making a custom mold, why not add your logo? You can also include arrows to show which way is "up" or use different colors for different ports. This improves the user experience and makes your industrial molded cable look professional.
You cannot just assume a molded cable is good because it looks solid. Rigorous testing is the only way to prove a cable meets its waterproof IP68 or high flex claims. High-quality manufacturers follow strict protocols to ensure every batch performs.
Every molded cable should undergo a continuity test. We check if pin A connects to pin A on the other side. We also perform "Hipots" (High Potential) tests to ensure the insulation can handle high voltage without sparking through the plastic.
For an outdoor molded cable, we use salt spray chambers to simulate years of ocean exposure. We also use thermal shock testers that move the cable from -40°C to +85°C in minutes. If the overmold cracks, the design is rejected.
A high flex molded cable is put into a "flex tester." This machine bends the cable back and forth thousands of times. We monitor the electrical resistance; if it spikes, it means the copper strands are breaking.
To certify a waterproof IP68 rating, we submerge the cable under a specific pressure of water for an extended period. We then check for any moisture ingress inside the overmold. This is critical for industrial and automotive applications where a single drop of water could short out a multi-million dollar system.
| Test Name | What it Measures | Importance |
| Continuity | Electrical path | Basic functionality |
| Flex Life | Bending durability | Critical for high flex |
| IP Rating | Water/Dust seal | Essential for outdoor |
| Pull Test | Strain relief strength | Safety and longevity |
Why not just use a connector that screws onto the cable? Field-attachable connectors have their place, but they rarely beat a molded cable in long-term performance.
Molded cables are generally cheaper in high volumes. They are smaller and sleeker because they don't need screws or heavy shells. Most importantly, they are factory-tested. When you buy a waterproof IP68 molded lead, you know it was made in a controlled environment. Field-attachable versions rely on the skill of the person installing them in the rain or wind.
The only real advantage of non-molded types is repairability. If a cable breaks in a remote mine, a technician can strip the wire and screw on a new connector. With a molded cable, you must replace the whole assembly. However, because industrial molded cables are so much tougher, they break far less often in the first place.
In automotive settings, space is at a premium. A molded cable takes up about 30% less space than a mechanical equivalent. In industrial settings, the vibration resistance of a molded part is significantly higher. Mechanical connectors can vibrate loose over time; a molded part is a single solid mass that stays put.
Choosing or designing a molded cable is a balance of environment, material, and cost. If you are building an outdoor sensor network, your priority is UV resistance and a waterproof IP68 seal. If you are designing a robotic arm, you need a high flex molded cable that won't fatigue.
By understanding the materials—like PVC for cost or TPU for toughness—and following a structured design guide, you can create a connection that lasts for years. Remember that the "overmold" is more than just plastic; it is a protective shield that ensures your data and power keep flowing, no matter how harsh the conditions. Whether it is an automotive molded cable or an industrial backbone, the quality of the mold is the quality of the machine.
Almost any electrical or fiber optic cable can be overmolded. However, the jacket material must be compatible with the overmold material so they bond correctly. For example, a PVC overmold bonds best to a PVC cable jacket.
"Waterproof" is a general term, while waterproof IP68 is a specific technical rating. It means the molded cable is dust-tight and can be continuously submerged in water under conditions specified by the manufacturer.
In a standard connector, the wires are held by tiny pins and air gaps. Vibration causes those wires to wiggle and eventually snap. In a molded cable, the plastic fills every gap, holding the wires perfectly still.
Tooling for a molded cable can range from $500 for a simple prototype mold to several thousand dollars for a high-volume multi-cavity steel tool. However, the cost per unit drops significantly once the tool is made.
At XSD Cable, we take pride in being more than just a manufacturer; we are a dedicated factory with a deep focus on precision and reliability. We operate a state-of-the-art facility where we specialize in producing high-performance industrial molded cables and automotive molded cable solutions. Our team understands that in the world of industrial automation and outdoor infrastructure, a cable failure is not an option.
We have invested heavily in our R&D and testing labs to ensure that every waterproof IP68 assembly leaving our floor meets global standards. Whether you need a high flex molded cable for a complex robotic system or a ruggedized lead for automotive diagnostics, we have the machinery and the expertise to deliver. We don't just sell cables; we provide the "nerve system" for your technology, backed by our commitment to quality and our years of experience in the cable extrusion and overmolding industry. Explore our capabilities and see how we can bring your next design to life with the strength and durability of XSD Cable.
