Wire Gauge Chart And Electrical Wire Sizes: A Complete Guide

Understanding wire gauge is essential for anyone involved in electrical work, whether you're a professional electrician, an engineer, or a homeowner performing DIY projects. The American Wire Gauge (AWG) system offers a standardized way to measure and label wire thickness, helping ensure safety, code compliance, and electrical performance across a wide range of applications.

This in-depth guide covers what wire gauge is, why it matters, how to match wire sizes to devices, and how to read a wire gauge chart. It also explores the role of stranded versus solid wires, electrical codes, and typical wire applications around the home.

What Is Wire Gauge?

Wire gauge refers to the diameter of an electrical wire, which directly affects how much current the wire can carry without overheating. It is measured using a numerical system where:

Lower numbers mean thicker wires

Higher numbers indicate thinner wires

For example, a 10 AWG wire is much thicker than a 20 AWG wire.

The AWG (American Wire Gauge) system, established in the United States, is the standard for identifying wire diameters. It covers 44 gauge sizes, from 0000 (4/0) — the thickest — down to 44 AWG — the thinnest. This measurement applies primarily to solid wire, though stranded wires (composed of multiple smaller wires) follow the same current-carrying rules but with slightly larger overall diameters.

Why Wire Gauge Matters in Electrical Wiring

Choosing the correct wire gauge is not just a matter of efficiency — it is a matter of safety. Each wire gauge has a defined ampacity — the maximum current it can safely carry. Using a wire that is too small for the intended load can result in:

Excess heat buildup

Melted insulation

Fire hazards

Device damage

For example, using a 16-gauge wire on a high-powered kitchen appliance may overheat the wire, causing circuit failure or even a house fire. Conversely, using a wire gauge that is too large is generally safer but more expensive and harder to work with due to reduced flexibility.

Wire Gauge in Residential and Commercial Projects

In residential applications, different areas of the home require different wire gauges. For example:

Lighting circuits often use 14-gauge wire.

Kitchen outlets that power high-load appliances use 12-gauge wire.

Ovens and HVAC systems may require 6 or even 4-gauge wiring.

The National Electrical Code (NEC) provides strict guidelines on which wire gauge is appropriate based on the amperage and application. Local codes may also apply and often require work to be done by a licensed electrician.

The American Wire Gauge (AWG) System Explained

Here are some key characteristics of the AWG system:

4/0 gauge (0000 AWG) = 0.46 inches in diameter

12 AWG = 0.0808 inches in diameter

44 AWG = 0.0031 inches in diameter

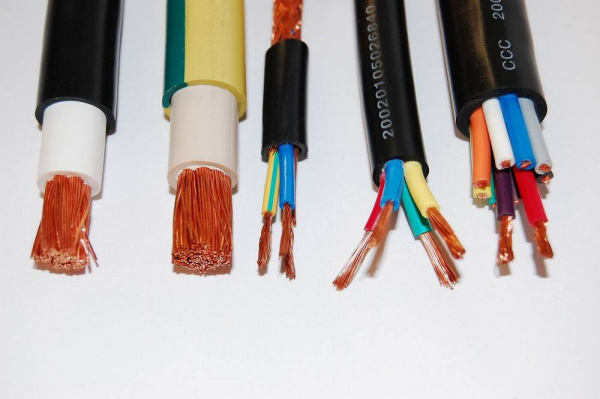

For stranded wires, the AWG designation is based on the total cross-sectional area of the strands. A stranded wire labeled 8 AWG 7/16 means it is made of seven strands of 16-gauge wire, equivalent in total capacity to a single 8 AWG wire.

�� Tip: Knowing the gauge lets you use wire strippers efficiently. Each slot is labeled with its gauge size to strip insulation without damaging the conductor.

Wire Gauge Chart

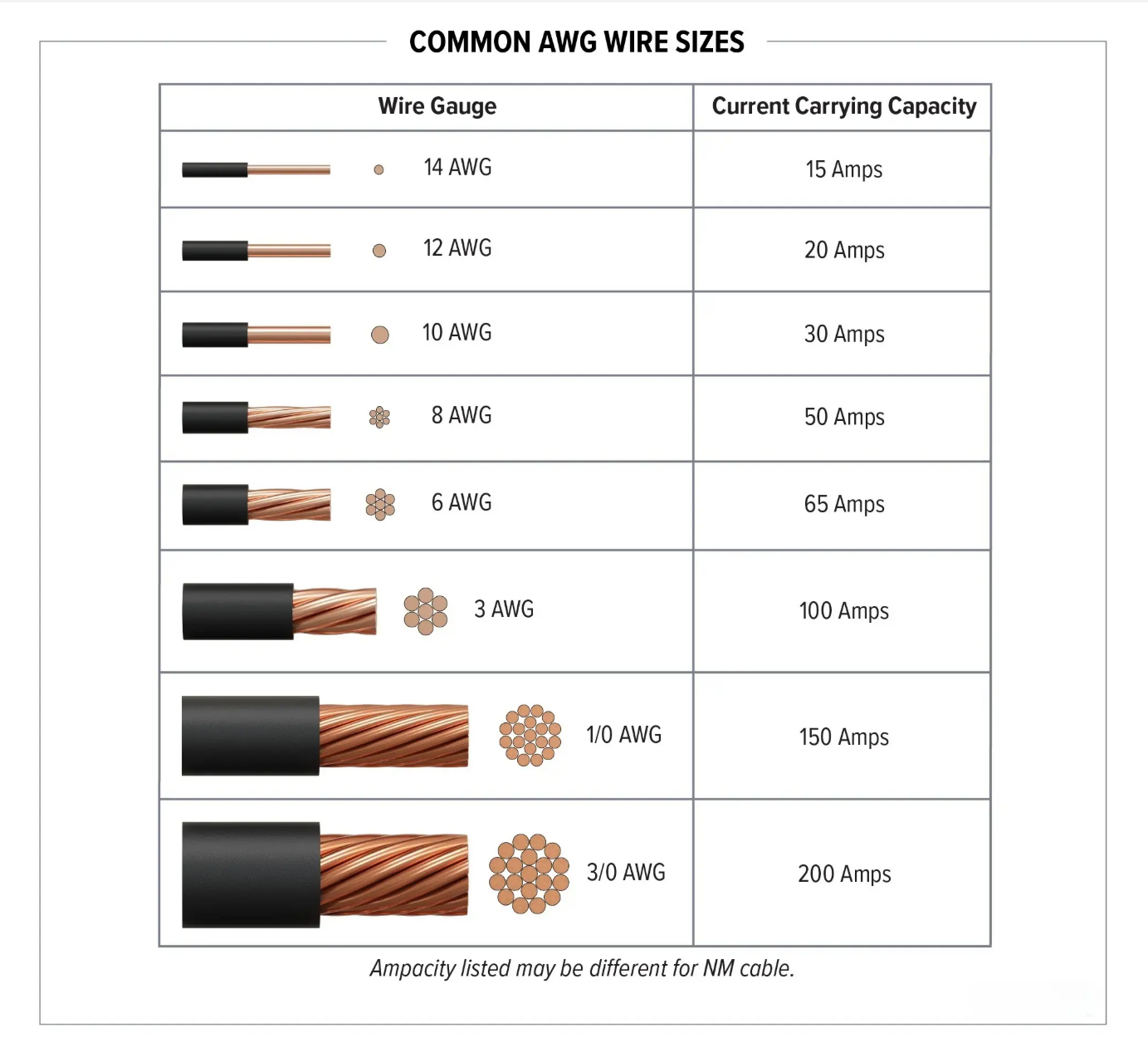

Here is a simplified reference chart for common wire gauges. Always verify with NEC tables and local code requirements.

Note: These values apply to copper wires. Aluminum wires carry less current and require larger gauges for the same load.

Electrical Cable Markings and Configurations

Cables consist of multiple conductors and are labeled with both the wire gauge and the number of conductors. For example:

12/2 with ground: two 12-gauge conductors + one 12-gauge ground

6/3 with ground: three 6-gauge conductors + one ground wire

These markings are printed on the outer jacket of the cable and are essential for ensuring compatibility with circuit requirements.

Matching Wire Gauge to Electrical Devices

Here’s a general breakdown of which gauges are used for typical household applications:

⚠️ Always consider total current on the circuit (not just one device) and check manufacturer recommendations. Some devices require dedicated circuits.

Tips for Safe and Code-Compliant Wiring

Always match connectors and terminals to the wire gauge.

Use the correct extension cords based on length and load.

When in doubt, consult a licensed electrician.

Keep in mind that stranded wire may appear thicker but follows the same AWG guidelines.

Double-check the voltage drop for long cable runs—larger gauges may be needed.

Conclusion

Wire gauge selection is a fundamental part of electrical system design. Using the correct gauge ensures your circuits operate safely, efficiently, and in compliance with electrical codes. Whether you're replacing an outlet, wiring a water heater, or planning an entire panel, knowing how to read a wire gauge chart and apply the AWG system is vital.

By choosing the correct wire size and verifying against standards, you protect your property, improve system performance, and avoid costly mistakes. For larger or high-load projects, always consult an electrician or refer to the NEC for accurate guidance.
