Wire harnesses are the backbone of modern electrical and electronic systems. From automotive vehicles and industrial machinery to medical devices and aerospace equipment, wire harnesses provide organized, reliable, and efficient electrical connectivity.
However, designing a wire harness involves much more than simply connecting wires between components. A well-designed harness improves system reliability, simplifies installation, reduces manufacturing costs, and enhances long-term maintenance performance. Conversely, poor wire harness design can lead to electrical failures, excessive production costs, difficult assembly processes, and shortened product lifecycles.

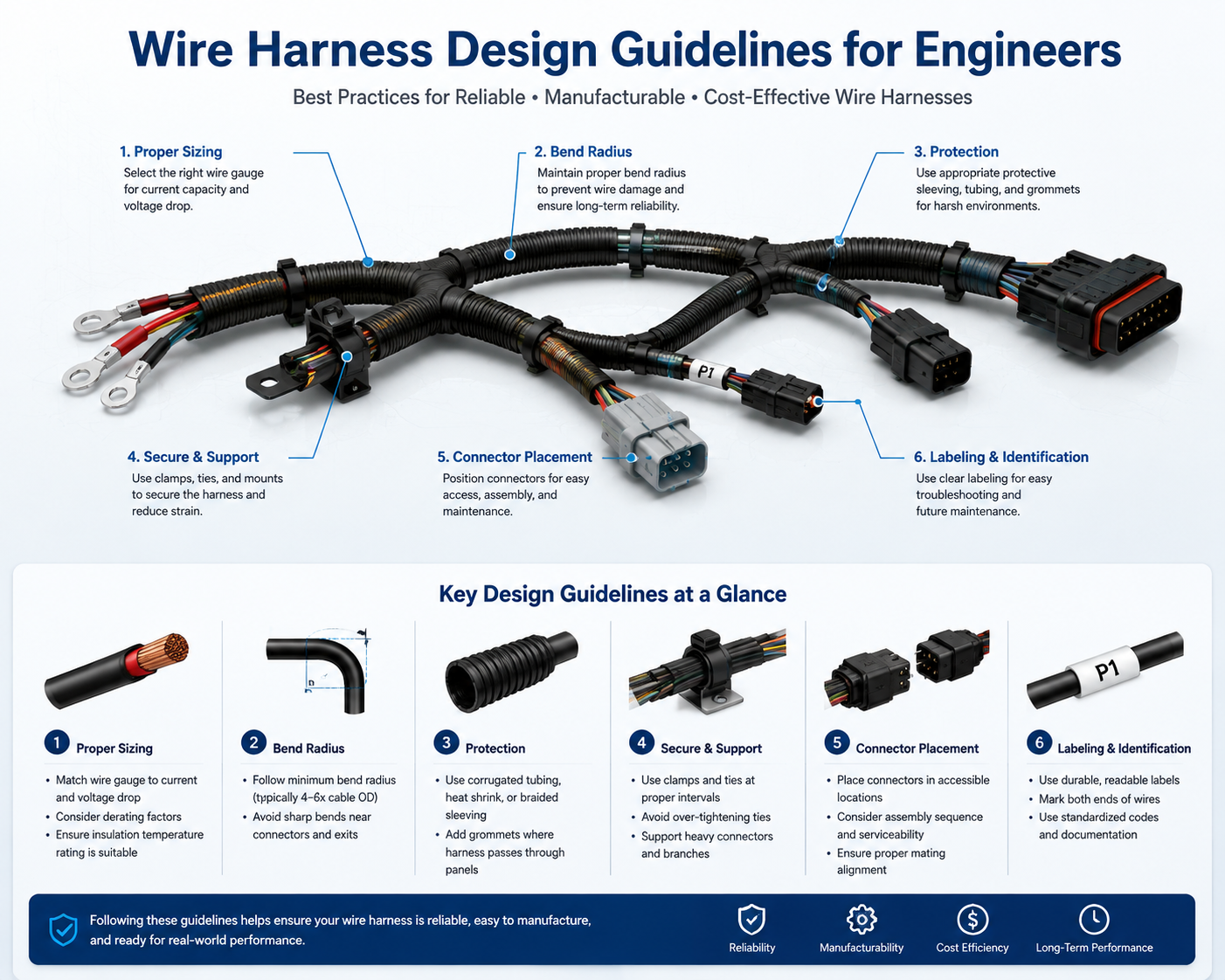

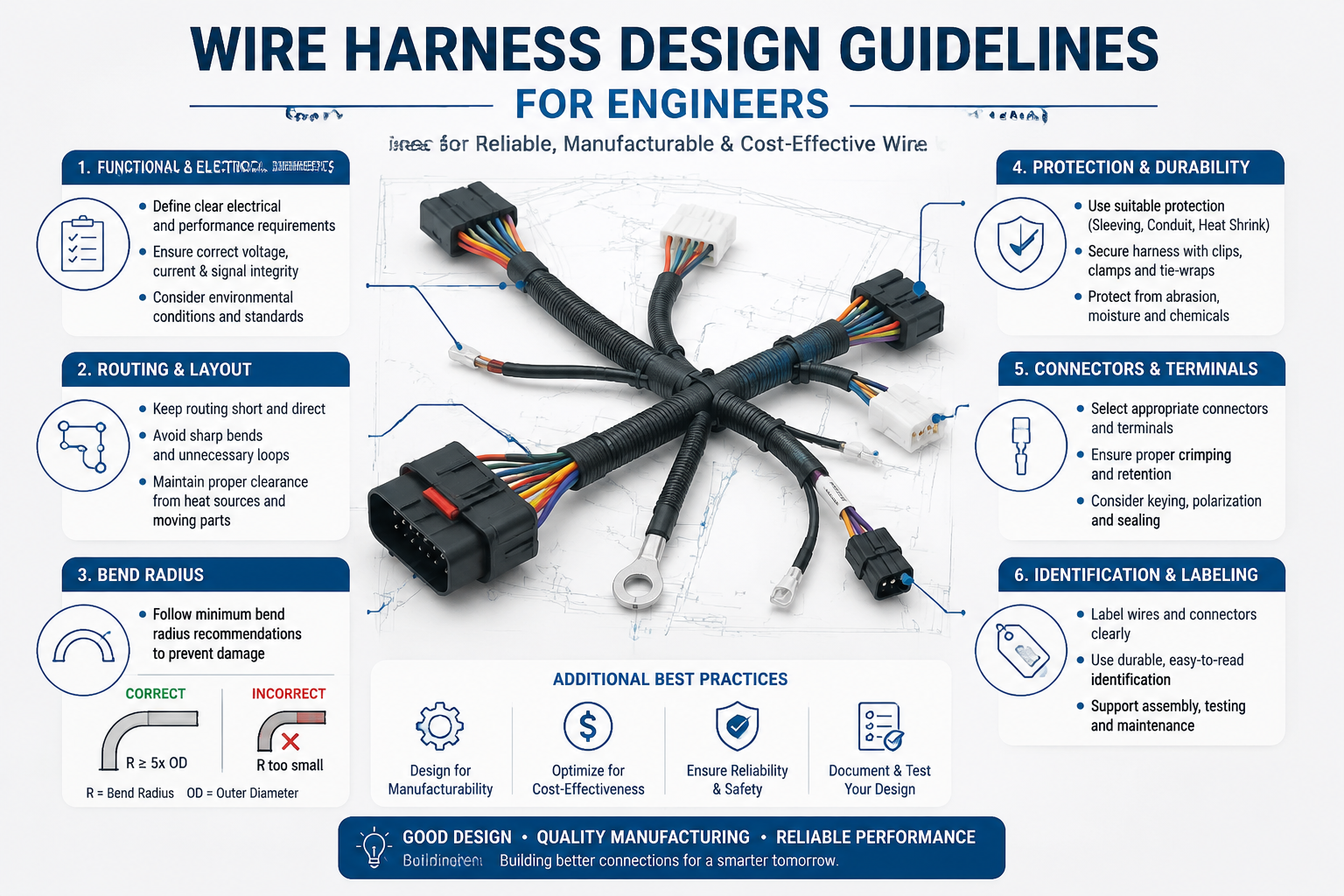

This guide outlines essential wire harness design guidelines that engineers should consider during the development process to ensure optimal performance, manufacturability, and durability.
A professionally designed wire harness offers several advantages:
· Improved electrical reliability
· Reduced assembly time
· Lower manufacturing costs
· Easier maintenance and troubleshooting
· Better protection against environmental factors
· Increased product lifespan
· Enhanced safety compliance
Considering these factors early in the design stage can prevent costly redesigns later in the project.
Before selecting wires, connectors, or routing paths, engineers should clearly understand the application’s requirements.
Key considerations include:
· Operating voltage
· Current carrying capacity
· Signal type (power, data, RF, sensor)
· Frequency requirements
· EMI/EMC considerations
· Operating temperature range
· Humidity exposure
· Water ingress risks
· Chemical exposure
· UV resistance
· Vibration and shock levels
· Installation space constraints
· Dynamic movement
· Flexing cycles
· Bend radius limitations
A comprehensive requirements analysis serves as the foundation of an effective wire harness design.
Choosing the correct conductor size is critical for performance and safety.
Factor | Impact |
Current Load | Determines conductor capacity |
Voltage Drop | Larger wires reduce voltage loss |
Wire Length | Longer runs may require larger gauges |
Ambient Temperature | High temperatures reduce ampacity |
Bundle Density | Closely packed wires generate heat |
Low-current sensors: 22–26 AWG
Control circuits: 18–22 AWG
Power distribution: 10–16 AWG
High-current systems: 4–8 AWG
Engineers should always refer to applicable standards and ampacity charts when sizing conductors.
Proper routing significantly impacts durability and serviceability.
✓ Follow existing structural paths
✓ Avoid sharp edges
✓ Maintain adequate clearance from moving components
✓ Keep away from high-temperature sources
✓ Minimize wire crossing
✓ Allow accessibility for maintenance
Connectors are among the most common failure points in electrical systems.
· Current rating
· Voltage rating
· Number of circuits
· Environmental sealing
· Mating cycle requirements
· Locking mechanism
· Industry certifications
Application | Recommended Connector |
Automotive | Sealed automotive connectors |
Industrial | Heavy-duty rectangular connectors |
Medical | Compact high-reliability connectors |
Aerospace | MIL-spec connectors |
Whenever possible, use proven connector platforms with established reliability records.
A harness that looks perfect in CAD may be difficult or expensive to manufacture.
· Minimize unique components
· Standardize wire colors
· Reduce unnecessary splices
· Simplify branch structures
· Use common connector families
· Minimize manual operations
· Faster production
· Lower labor costs
· Reduced assembly errors
· Better scalability
Early collaboration with wire harness manufacturers often results in significant cost savings.
As electronic systems become more complex, EMI management becomes increasingly important.
· Separate power and signal wires
· Use twisted pair constructions
· Apply shielding when necessary
· Maintain proper grounding
· Avoid parallel routing with noisy circuits
Mechanical stress at connection points can cause premature failures.
· Cable clamps
· Heat shrink boots
· Overmolding
· Grommets
· Tie-down points
· Reduced conductor fatigue
· Improved connector life
· Better vibration resistance
Every wire harness should incorporate strain relief near connector interfaces.
Harsh environments require additional protection measures.
Environmental Risk | Protection Method |
Abrasion | Braided sleeving |
Moisture | Sealed connectors |
Chemicals | Chemical-resistant insulation |
Heat | High-temperature sleeving |
UV Exposure | UV-resistant jacketing |
· PET braided sleeve
· Corrugated conduit
· PVC tubing
· Heat shrink tubing
· Silicone protective sleeves
Selecting the proper protection system extends service life significantly.
Proper documentation improves production consistency and field serviceability.
· Wire list
· BOM (Bill of Materials)
· Connector drawings
· Pinout diagrams
· Assembly instructions
· Test procedures
· Printed markers
· Heat shrink labels
· Laser marking
· Color coding
Accurate documentation minimizes assembly errors and troubleshooting time.
Testing should be integrated into the design process rather than added afterward.
· Continuity test
· Short-circuit test
· Resistance measurement
· Hi-pot testing
· Pull-force testing
· Flex testing
· Vibration testing
· Temperature cycling
· Humidity testing
· Salt spray testing
A robust validation plan helps ensure long-term product reliability.
Compliance is critical in many industries.
Industry | Standard |
General Wiring | IPC/WHMA-A-620 |
Automotive | ISO 16750 |
Aerospace | AS50881 |
Medical Devices | IEC 60601 |
Industrial Equipment | UL 508A |
Understanding applicable standards early can prevent costly certification issues later.
Engineers should avoid these frequent errors:
❌ Undersized conductors
❌ Poor connector selection
❌ Ignoring voltage drop calculations
❌ Tight bend radii
❌ Inadequate strain relief
❌ Lack of EMI planning
❌ Overcomplicated branching
❌ Insufficient documentation
❌ No service loop allowance
❌ Failure to consider manufacturing processes
Preventing these mistakes improves reliability while reducing overall project costs.
Even the most experienced design teams benefit from early collaboration with an experienced wire harness manufacturing partner.
A qualified wire harness supplier can assist with:
· Design optimization
· Material selection
· Cost reduction opportunities
· Prototyping
· Testing support
· Regulatory compliance
· Mass production readiness
Involving manufacturing experts during the design phase often shortens development cycles and improves final product quality.
Successful wire harness design requires balancing electrical performance, mechanical durability, environmental protection, manufacturability, and cost efficiency. By following established wire harness design guidelines, engineers can create harness assemblies that are reliable, serviceable, and scalable for production.
Whether developing automotive systems, industrial automation equipment, medical devices, or advanced electronic products, investing time in proper wire harness design will significantly reduce failures, lower production costs, and improve long-term product performance.
Careful planning today results in reliable connectivity tomorrow.
Understanding the application’s electrical, environmental, and mechanical requirements is the most critical first step. All subsequent design decisions depend on these requirements.
Wire gauge should be selected based on current load, voltage drop requirements, wire length, ambient temperature, and applicable industry standards.
Improper bending can damage conductors and insulation, leading to premature failures and reduced service life.
Shielding is recommended when sensitive signals may be affected by electromagnetic interference (EMI) from nearby power circuits or external sources.
IPC/WHMA-A-620 is widely recognized as the industry standard for cable and wire harness assemblies.
Costs can often be reduced by standardizing components, simplifying routing, minimizing splices, and involving manufacturing experts early in the design process.
A cable assembly typically contains conductors enclosed within a single outer jacket, while a wire harness organizes multiple individual wires using sleeves, tapes, ties, or conduits.
Ideally, manufacturers should participate during the initial design phase to optimize manufacturability, reduce costs, and avoid redesigns later in development.
