In today's connected world, wire harnesses serve as the circulatory system of nearly every electrical product—from automotive and aerospace systems to home appliances and medical devices. At the heart of this precision-driven manufacturing process is the commitment to customization, consistency, and quality. This guide takes you through the step-by-step wire harness manufacturing process, providing a clear view of how companies like Rova Products “Do it Right the First Time.”
Wire harnesses, also known as cable harnesses or wiring assemblies, are complex configurations of electrical cables bundled together to transmit signals or electrical power. Each wire harness is custom-built for its application and often involves hundreds of components. Rova Products, for instance, manufactures over 100 different harnesses simultaneously, each tailored to meet specific client demands.
To ensure reliability and durability in the final product, manufacturers follow a systematic and collaborative process—from concept design to final shipping. Here’s how it all works.
The wire harness journey starts with in-depth collaboration. Engineers, procurement staff, and project managers meet with the client to define the exact electrical and mechanical requirements.
Design Phase: Rova engineers or the client’s own team create schematic drawings of the wire harness. These schematics include wire lengths, gauge, insulation types, connectors, pinouts, and routing paths.
Design Reviews & Revisions: Before anything is built, the design goes through multiple internal reviews to ensure accuracy, manufacturability, and compliance with industry standards.
Client Sign-Off: Only after the client approves the design and BOM (Bill of Materials), does the project proceed to the next stage.
Simultaneous Material Planning: During this phase, the procurement team starts sourcing candidate components from multiple suppliers based on cost, availability, and reliability.
✦ Pro Tip: Early procurement planning shortens lead times and helps prevent supply chain disruptions later.
Prototyping is a critical checkpoint that turns theory into practice.
First Article Build: A small batch (usually one or two units) of the wire harness is assembled following the approved schematic.
In-House Quality Check: Before sending the prototype to the client, Rova’s team performs electrical tests, connector inspections, continuity checks, and visual audits.
Client Feedback & Modifications: Once the prototype is received, clients conduct their own validations. They can then suggest improvements or adjustments for optimal fit, function, and ease of installation.
This phase may go through several iterations, especially for complex designs.
Once the prototype is approved, the client issues a purchase order (PO) specifying volume and delivery timelines.
Procurement Execution: Rova leverages a network of over 500 vetted suppliers to source wires, terminals, insulation sleeves, connectors, and other critical components.
Inventory Optimization: In-house inventory of over 7,000 items ensures quick reaction to urgent orders or supplier delays.
Vendor Comparison: At least two vendors are quoted for each item to ensure optimal cost and availability.
✦ Benefit: The combination of vendor relationships and internal inventory makes Rova’s supply chain extremely agile.
After all components are sourced or confirmed to be in stock, production is scheduled.
Job Order Creation: Each wire harness is scheduled based on delivery deadlines and complexity.
Slotting for Capacity: Production is integrated into existing workflows which may include over 50 different assemblies per day.
Workflow Optimization: Clean, dedicated spaces are reserved to avoid cross-contamination or mix-ups between harness builds.
This marks the start of actual production.
Automation: Wires are cut to exact lengths and stripped using high-speed automated machines like the Schleuniger PowerStrip 9580.
Labeling: Wires are labeled for easy identification during the assembly process, reducing errors during complex builds.
✦ Note: Automation in early steps saves significant time and ensures repeatability.
With wires prepared, the next step is kitting—organizing all required parts for each harness build.

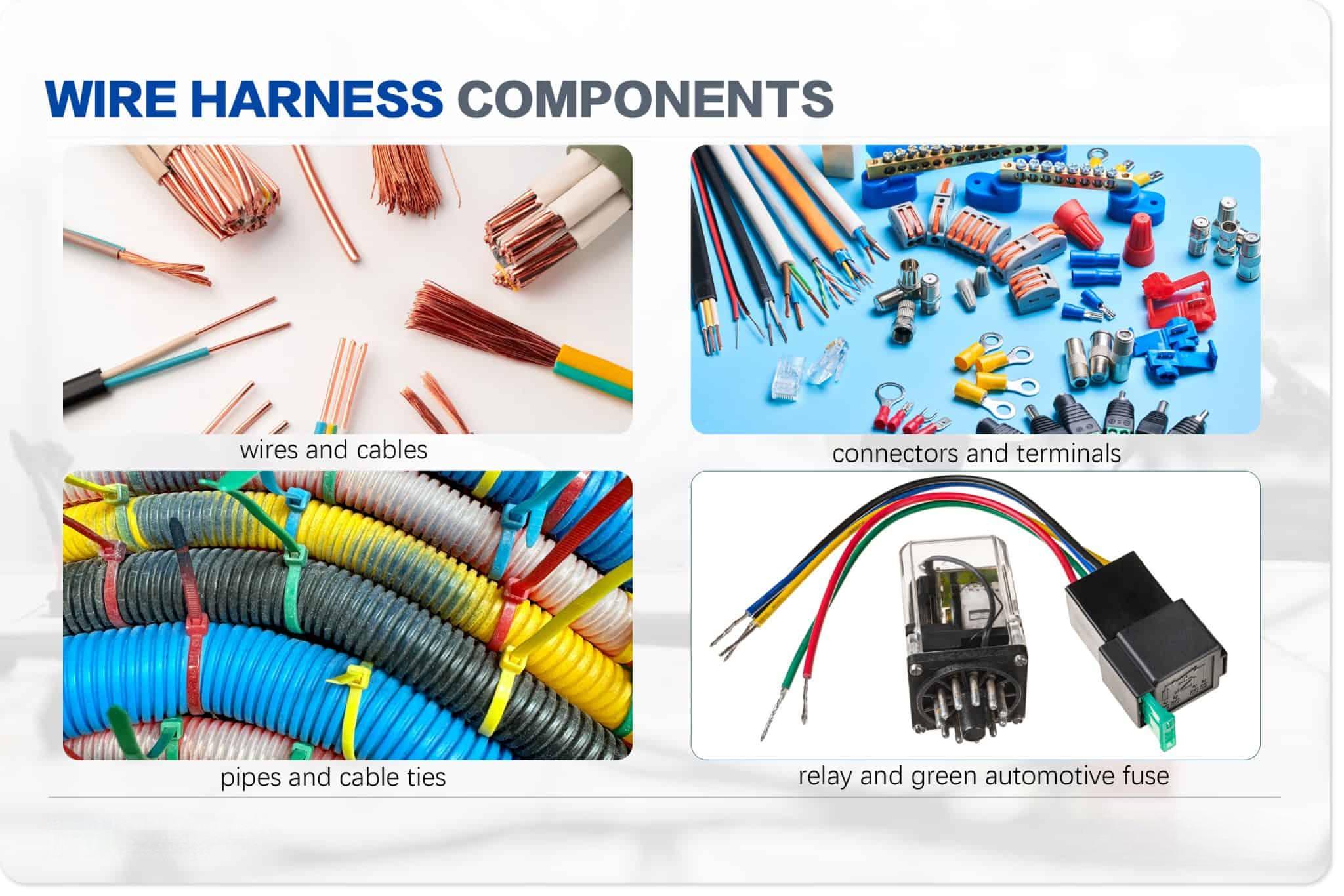

Kit Contents: Each kit contains wires, connectors, terminals, shrink tubing, clips, and any hardware needed for the specific harness.
Kit Verification: Before moving to assembly, each kit is checked for completeness to prevent delays on the shop floor.

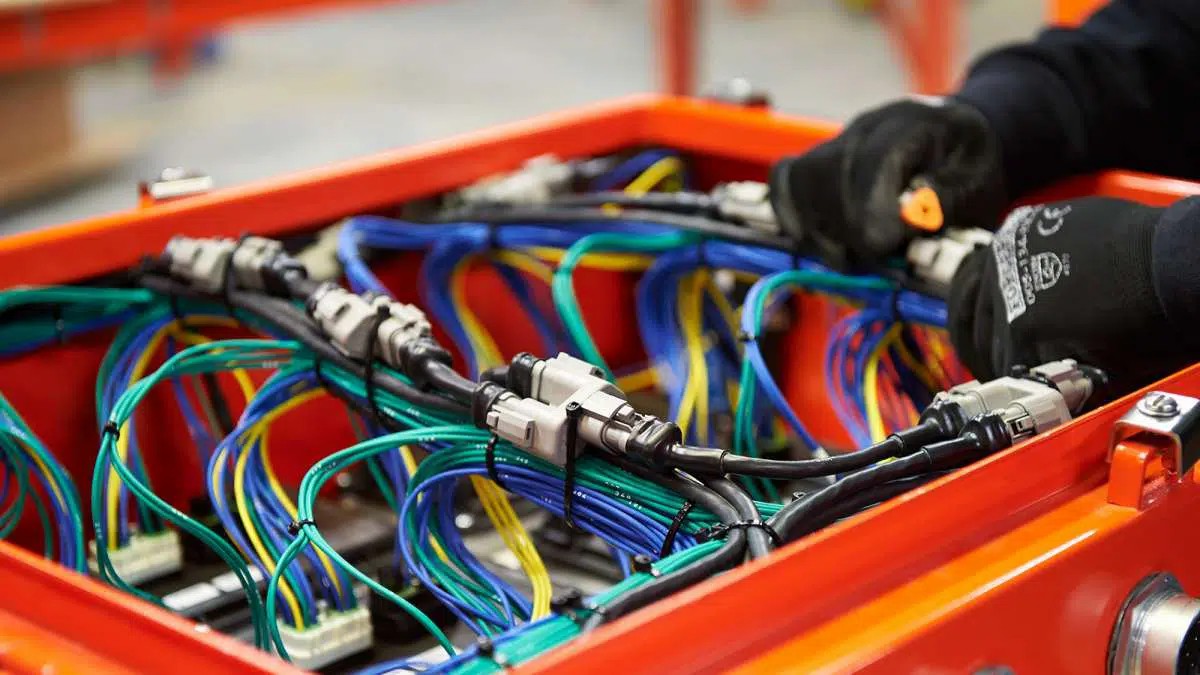

Assembly is the heart of the process—and the most labor-intensive step.
Manual Expertise: Skilled technicians follow detailed drawings and work instructions to route and terminate wires, crimp connectors, apply sleeves, and install grommets.
Fixtures & Jigs: Custom pegboards are often used to hold wires in place and ensure correct routing paths.
Reference to Prototype: Lessons from the prototyping phase are applied to avoid any known pitfalls or inefficiencies.
Depending on complexity, one harness may take from a few hours to several days to complete.
No harness leaves the facility without a comprehensive quality check.
Functional Testing: This includes continuity tests, hi-pot testing (for insulation integrity), resistance measurement, and sometimes even load testing.
Dimensional Verification: Wire lengths, connector spacing, and routing layout are measured and confirmed.
Visual Inspection: The harness is inspected for workmanship, proper labeling, connector seating, and cosmetic appearance.
✦ Only after passing all QC tests does a harness move to packaging.
Custom Packaging: Depending on the harness size and sensitivity, Rova uses cable ties, bags, antistatic wraps, or custom crates for secure shipping.
Direct Delivery: For high-value or large harnesses, Rova may personally deliver the shipment to ensure it arrives intact and on time.
Wire harness manufacturing is a precise and collaborative process involving skilled engineering, robust sourcing, efficient production, and strict quality control. Companies like Rova Products differentiate themselves through transparency, technical know-how, and a deep commitment to doing it right the first time.
Whether you're in aerospace, automotive, industrial equipment, or consumer electronics, understanding this process helps ensure you get a wire harness that meets your design intent—on time, on budget, and with the reliability you expect.
