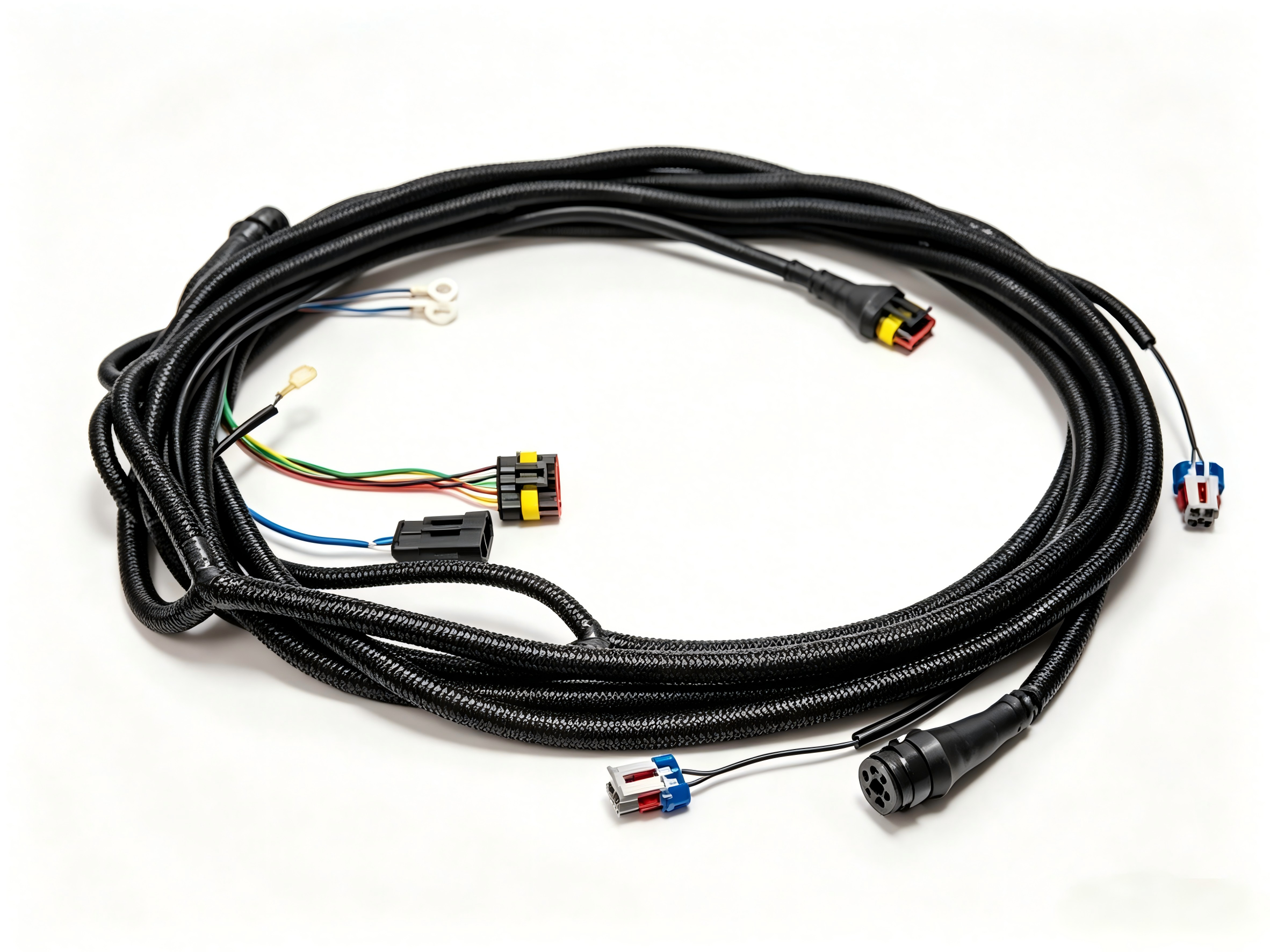

Wire harness manufacturing is the process of assembling wires, terminals, connectors, protective coverings, and other components into a structured electrical assembly designed to transmit power and signals efficiently.
A wire harness serves several important functions:
l Organizes multiple wires into a compact assembly
l Protects wires from vibration, abrasion, moisture, and heat
l Simplifies installation and maintenance
l Improves system reliability and safety
l Reduces manufacturing and installation time
Custom wire harnesses are commonly used in:
l Automotive and EV systems
l Industrial automation equipment
l Medical devices
l Telecommunications systems
l Aerospace and defense applications
l Consumer electronics
l Renewable energy systems
l Robotics and AI equipment
Because every application has unique electrical and environmental requirements, most wire harnesses are custom-designed and manufactured according to customer specifications.
The quality of a wire harness depends not only on the materials used but also on the manufacturing process itself.
Even small production errors can result in:
l Signal interference
l Voltage drops
l Short circuits
l Connector failures
l Equipment downtime
l Safety hazards
A controlled manufacturing process helps ensure:
l Consistent electrical performance
l Mechanical reliability
l Compliance with industry standards
l Longer product lifespan
l Lower warranty and maintenance costs
For OEM manufacturers, selecting a supplier with a well-established manufacturing process is critical to product success.
The manufacturing process begins with wire cutting.
Based on engineering drawings, wires are cut to precise lengths using automated wire processing machines. Modern equipment can achieve high accuracy while significantly improving production efficiency.
Key considerations include:
l Wire gauge
l Wire type
l Cutting tolerance
l Production volume
Quality checks:
l Wire length verification
l Insulation inspection
l Material traceability confirmation
Accurate wire cutting is essential because errors at this stage can affect all subsequent assembly processes.

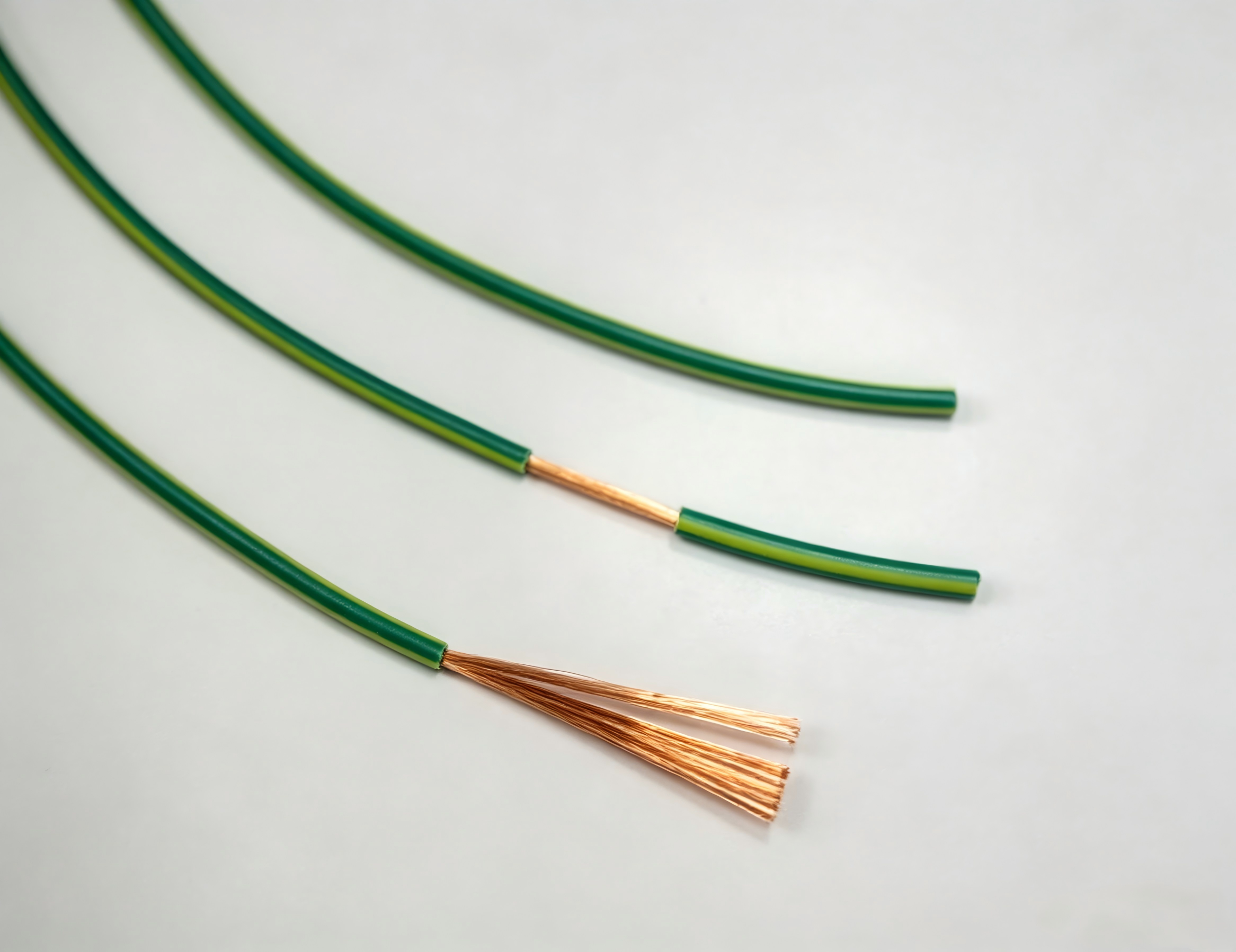

After cutting, the wire insulation is removed from designated sections to expose the conductor.
Wire stripping must be carefully controlled to prevent conductor damage.
Critical parameters include:
l Strip length
l Conductor exposure
l Insulation integrity
Common defects:
l Nicked conductors
l Broken strands
l Excessive stripping
l Insufficient stripping
Damaged conductors can increase electrical resistance and reduce the overall reliability of the harness.

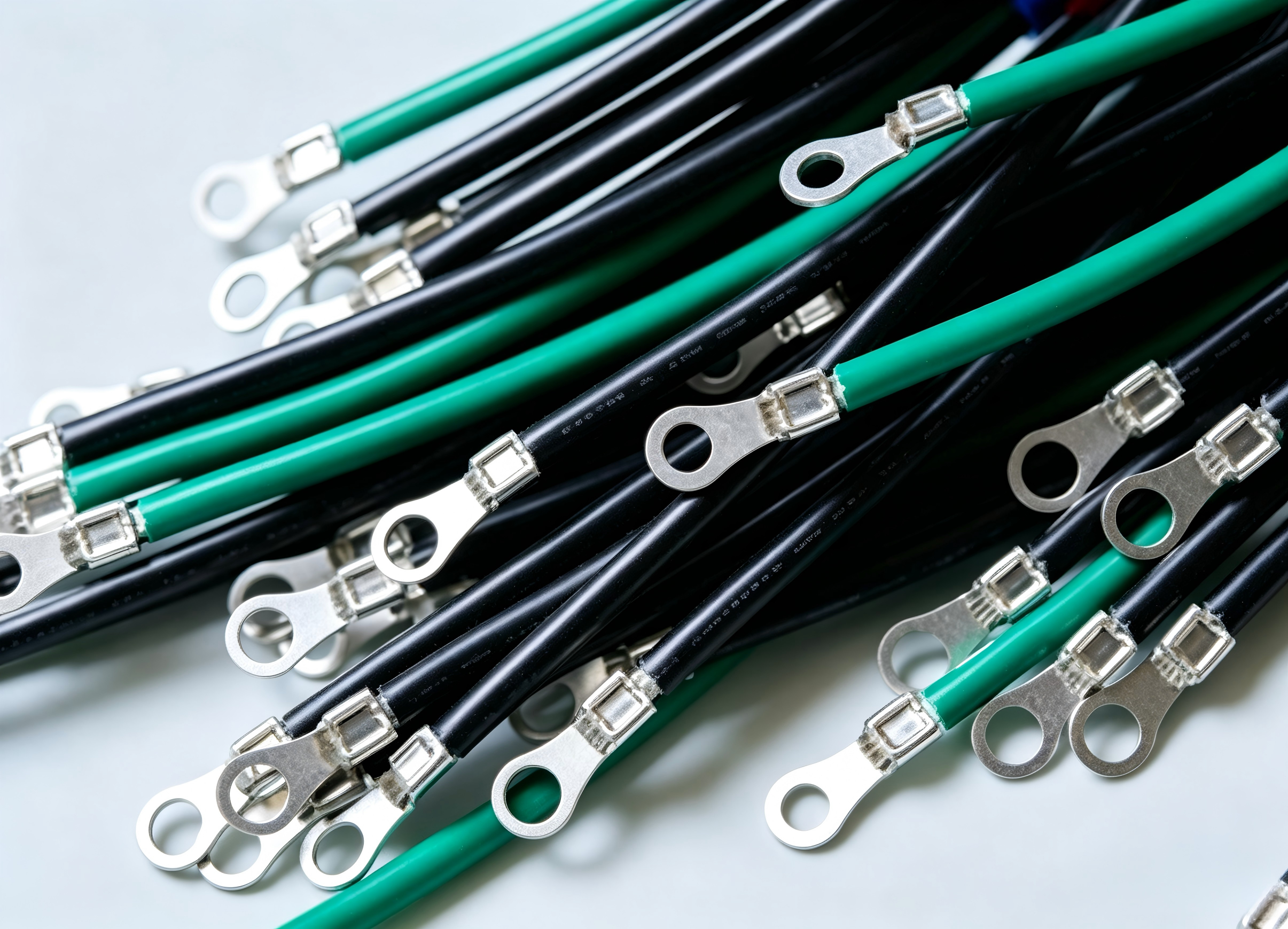

Terminal crimping is widely considered the most critical process in wire harness manufacturing.
During this step, terminals are mechanically attached to conductors using precision crimping equipment.
A properly executed crimp provides:
l Excellent electrical conductivity
l Strong mechanical retention
l Long-term reliability
Important quality factors include:
Crimp height directly affects electrical and mechanical performance.
Pull force testing verifies that the terminal can withstand specified mechanical loads.
Visual inspection confirms proper wire positioning and terminal deformation.
Advanced manufacturers may perform cross-sectional inspections to verify crimp quality according to IPC/WHMA-A-620 standards.
Common crimping defects:
l Loose crimps
l Over-crimping
l Under-crimping
l Missing wire strands
l Improper conductor positioning
A poor crimp connection is one of the leading causes of electrical failure in wire harness assemblies.
Certain applications require soldering to improve electrical conductivity or mechanical strength.
Soldering may be used for:
l Specialized terminals
l PCB connections
l Sensor assemblies
l High-reliability applications
Important considerations:
l Proper solder temperature
l Solder penetration
l Flux control
l Joint cleanliness
Common defects include:
l Cold solder joints
l Excess solder
l Insufficient wetting
l Solder bridging
Not all wire harnesses require soldering, but when used, strict process control is essential.

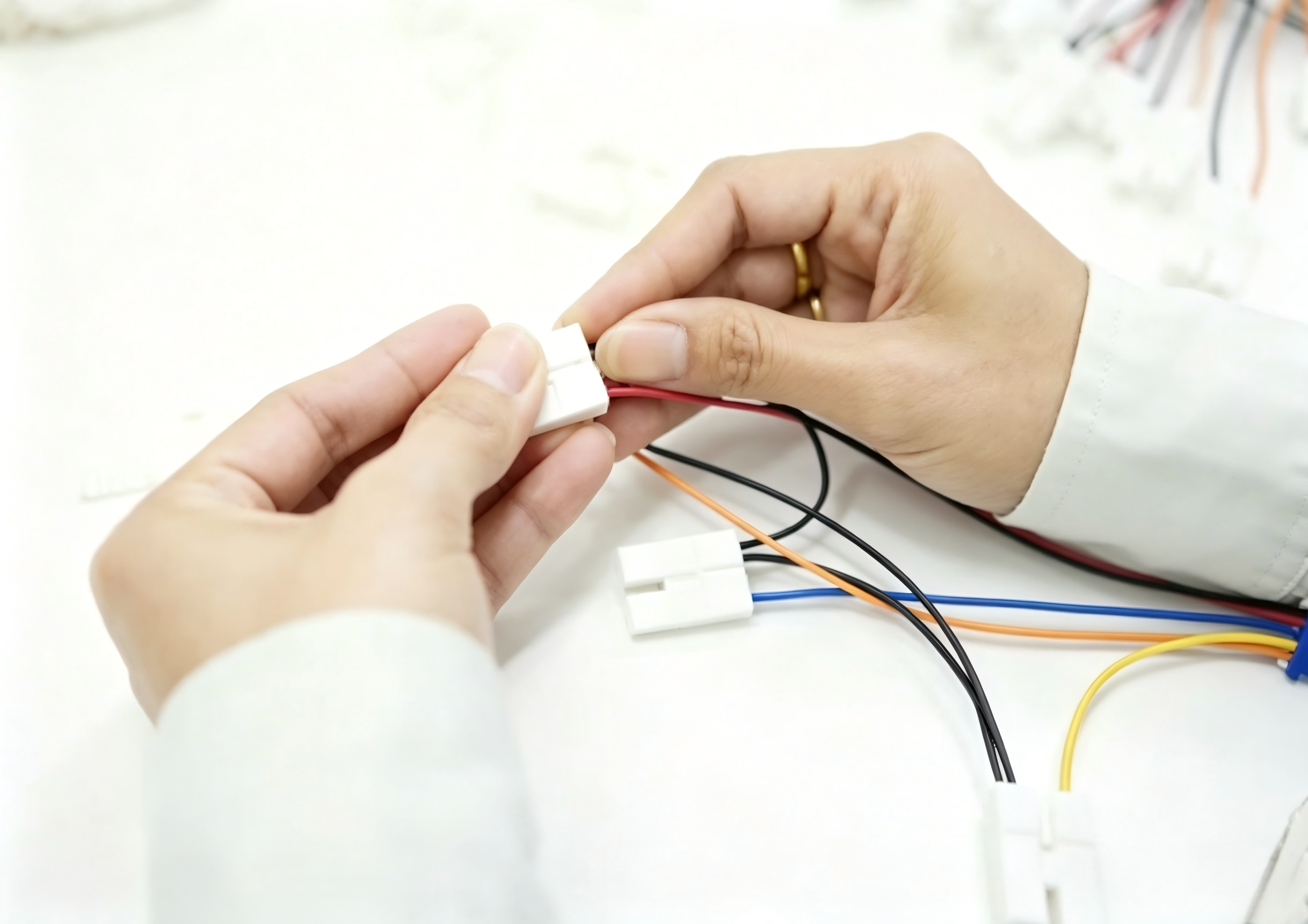

After terminal preparation, terminals are inserted into connectors according to design specifications.
This process involves:
l Terminal insertion
l Lock engagement
l Position verification
l Connector orientation confirmation
Manufacturers often use connector insertion tools and visual inspection systems to reduce assembly errors.
Potential issues:
l Incorrect pin assignments
l Incomplete insertion
l Damaged locking mechanisms
l Connector housing defects
Proper connector assembly ensures reliable electrical connectivity and simplifies installation for end users.

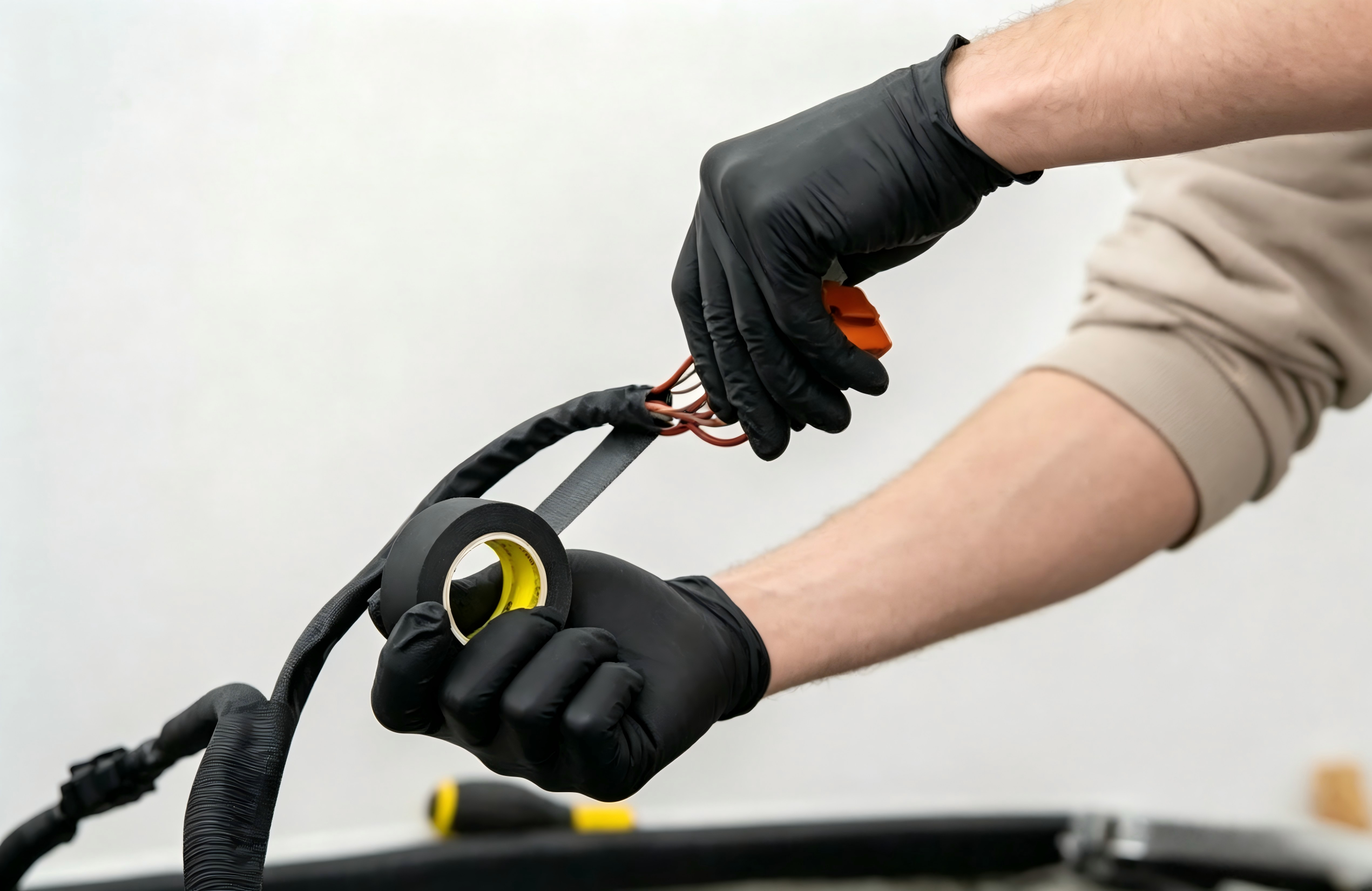

Once individual circuits are assembled, wires are routed and organized into the final harness structure.
Bundling methods may include:
l Cable ties
l Braided sleeving
l Corrugated tubing
l Heat-shrink tubing
l Fabric tape wrapping
The objectives are to:
l Improve organization
l Protect wires
l Reduce vibration damage
l Simplify installation
Proper routing also helps maintain minimum bend radius requirements and prevents excessive stress on conductors.
Wire identification is essential for traceability and maintenance.
Manufacturers may apply:
l Wire markers
l Heat-shrink labels
l Barcode labels
l QR codes
l Part number identification
Benefits include:
l Faster installation
l Easier troubleshooting
l Production traceability
l Quality documentation support
Many OEM customers require complete traceability throughout the manufacturing process.
Electrical testing is one of the most important quality control stages.
Before shipment, wire harnesses undergo testing to verify electrical integrity.
Common tests include:
Confirms all intended circuits are properly connected.
Detects unintended electrical connections.
Measures insulation effectiveness.
Verifies dielectric strength under high voltage conditions.
Ensures electrical resistance meets design requirements.
Modern automated testing systems can verify hundreds of circuits within seconds, significantly improving testing accuracy and efficiency.
Before shipment, finished assemblies undergo final inspection.
Inspection items typically include:
l Visual appearance
l Connector verification
l Label verification
l Dimensional confirmation
l Testing records review
Packaging methods may vary based on customer requirements and transportation conditions.
Proper packaging protects the harness from:
l Moisture
l Dust
l Mechanical damage
l Electrostatic discharge
Only after passing all inspections is the wire harness approved for shipment.
Quality control should be integrated throughout the entire manufacturing process rather than performed only at the final stage.
Raw materials are inspected upon arrival.
Items typically inspected:
n Wires
n Connectors
n Terminals
n Sleeves
n Labels
Quality checks are performed during production.
Examples include:
Ø Wire length verification
Ø Crimp inspection
Ø Connector insertion verification
Ø Assembly audits
Finished products undergo:
Ø Visual inspection
Ø Functional testing
Ø Documentation review
Advanced manufacturers maintain production records that allow each harness to be traced back to specific materials, operators, and production batches.
Reliable manufacturers follow internationally recognized standards.
The most widely recognized standard for cable and wire harness assemblies.
It defines requirements for:
l Crimp quality
l Solder quality
l Assembly workmanship
l Inspection criteria
Focuses on quality management systems and continuous improvement.
Widely used in automotive manufacturing.
Applicable to wire materials, components, and safety requirements.
Compliance with these standards demonstrates a manufacturer's commitment to quality and reliability.
Defect | Cause | Prevention |
Loose Crimp | Incorrect crimp settings | Pull force testing and calibration |
Damaged Conductor | Improper stripping | Automated stripping equipment |
Wrong Pin Assignment | Assembly error | Automated testing and inspection |
Incomplete Connector Locking | Operator error | Connector verification procedures |
Short Circuit | Routing or assembly issues | 100% electrical testing |
Labeling Error | Identification mistakes | Barcode and traceability systems |
Preventing defects requires robust process control and continuous employee training.
Selecting the right supplier can significantly impact product quality and supply chain performance.
Consider the following factors:
Choose a manufacturer capable of reviewing drawings, optimizing designs, and providing technical recommendations.
Evaluate:
l Production equipment
l Automation level
l Capacity
l Process consistency
Look for:
Ø ISO 9001
Ø IATF 16949 (if applicable)
Ensure the manufacturer can perform:
l Continuity testing
l Hi-Pot testing
l Pull force testing
l Functional testing
A qualified supplier should support:
l Prototypes
l Low-volume production
l High-volume production
l Custom labeling
l Specialized materials
Wire harness manufacturing is the process of cutting, stripping, crimping, assembling, testing, and packaging wires and components into a complete electrical assembly.
Terminal crimping is generally considered the most critical step because it directly affects electrical performance and mechanical reliability.
Electrical testing verifies continuity, insulation integrity, and circuit accuracy before shipment.
Common standards include IPC/WHMA-A-620, ISO 9001, IATF 16949, and UL requirements.
Yes. Most wire harnesses are custom-designed according to application requirements, electrical specifications, and installation environments.
Automotive, industrial automation, medical equipment, telecommunications, robotics, aerospace, renewable energy, and consumer electronics.
Lead times vary depending on complexity, material availability, and order quantity. Prototype projects often require several days to a few weeks, while mass production schedules depend on project volume.
A high-quality wire harness begins with a well-controlled manufacturing process. From wire cutting and terminal crimping to electrical testing and final inspection, every production stage contributes to product reliability and performance.
At [Company Name], we provide custom wire harness manufacturing services for customers worldwide. Our experienced engineering team supports projects from prototype development to high-volume production, ensuring consistent quality, competitive pricing, and on-time delivery.
Whether you need wiring harnesses for industrial equipment, medical devices, robotics, telecommunications systems, or automotive applications, we can help transform your design into a reliable and production-ready solution.
To receive a quotation, simply send us:
l Technical drawings
l Wire list or BOM
l Connector specifications
l Annual usage estimates
l Application requirements
Our engineering team will review your project and provide professional recommendations along with a competitive quotation.
