Choosing the right type of cable is crucial for ensuring stable, efficient, and long-lasting network performance. One of the most important decisions is whether to use shielded or unshielded cables. While the names sound technical, understanding the differences between the two can make a big impact on your system’s reliability and cost-efficiency. In this detailed guide, we’ll walk you through everything you need to know.

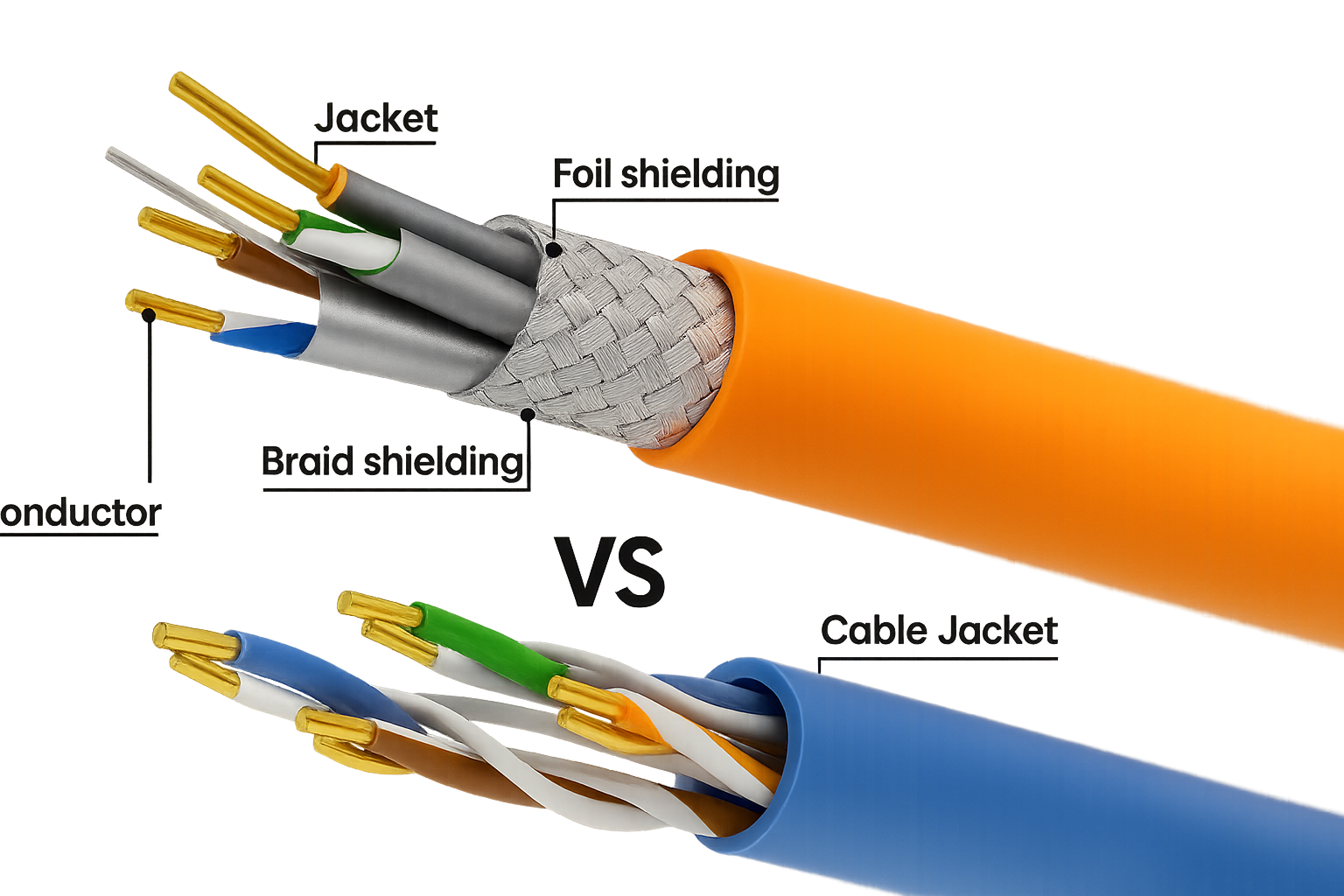

Shielded cables—also known as Shielded Twisted Pair (STP) cables—feature an extra protective layer over the internal conductors. Each twisted pair is wrapped with a foil shield, and sometimes, the entire cable is enclosed in an additional metallic braid or foil.
This construction offers double protection against electromagnetic interference (EMI) and radio frequency interference (RFI). Shielded cables are specifically designed for environments where strong external electrical noise could disrupt data transmission.
Metallic shielding around conductors.
Minimizes EMI and RFI.
Provides stronger and more stable signal transmission.
Typically used in heavy-traffic or high-noise environments.
Unshielded cables—commonly called Unshielded Twisted Pair (UTP) cables—lack any additional shielding around the twisted pairs. While they still have a basic outer jacket for protection, there’s no internal foil or mesh.
UTP cables rely mainly on the twisting of the wire pairs to reduce interference.
No internal shielding, only an external jacket.
Lightweight, flexible, and easy to install.
More susceptible to EMI compared to shielded cables.
Ideal for low-traffic, low-noise network environments.
Feature | Shielded Cable | Unshielded Cable |
Cost | More expensive | Less expensive |
Flexibility | Less flexible | Highly flexible |
Diameter | Thicker due to extra shielding | Thinner and more compact |
EMI Protection | Excellent protection against interference | Limited EMI protection |
Best Use Case | High-traffic, high-noise environments | Small offices or home networks |
Shielded cables are often preferred in commercial and industrial environments where network stability is non-negotiable.
Superior EMI and RFI protection: Perfect for areas with lots of electrical equipment.
Minimized technical issues: Stable signal transmission reduces packet loss and connection drops.
Durability: The shielding protects the cable against physical damage like abrasion.
Moisture Resistance: Better protection against humidity and external elements.
Long-term performance: Provides robust network performance even under tough conditions.
Unshielded cables are a popular choice in smaller networks where conditions are more controlled.
Lower cost: Saves money upfront and on installation.
Easier installation: Lightweight and flexible, making them easier to route through walls and ceilings.
Space-saving: Smaller diameter makes UTP ideal for tight spaces.
No grounding needed: Unlike shielded cables, unshielded cables do not require grounding, simplifying installation.
Good for short-distance communication: Perfect for smaller buildings and residential setups.
Shielded cables are essential in environments where data security and signal clarity are critical.
Airports, train stations, and broadcasting stations: Heavy EMI requires strong protection.
Security surveillance systems: High-fidelity data transmission without interference.
Public address systems: Clear, uninterrupted communication is essential.
Recording studios: No tolerance for static or noise in audio signals.
Industrial facilities: Environments filled with motors, generators, and large machinery.
UTP cables work well in less noisy environments where cost and ease of installation are priorities.
Home LAN networks: Residential environments usually have minimal interference.
Small businesses and offices: Limited traffic and simpler setups.
Short-range communication: Offices where cables are not routed near high-power electrical equipment.
Shielded cables come in various forms, depending on the level of protection required:
Constructed with a woven copper wire mesh.
Highly durable and offers strong mechanical protection.
Best suited for industrial environments.
Higher material and installation costs due to copper content.
Feature a thin layer of aluminum or copper bonded with polyester.
Lightweight and more affordable than braided shields.
Suitable for commercial buildings and moderately noisy environments.
Selecting between shielded and unshielded cables comes down to environment, budget, and future needs. Here’s how you can make an informed decision:
Assess EMI risk: If you expect high EMI (near heavy machinery, elevators, or radio towers), shielded cables are essential.
Consider network size and traffic: Larger networks with high data traffic should lean toward shielded cables.
Balance initial costs and future-proofing: While UTP saves money initially, technical failures and replacements could cost more in the long term.
Prioritize quality: Always buy from reputable cable manufacturers and confirm cable specifications.
Plan for longevity: It’s smarter to invest in high-quality cabling up front rather than replacing faulty networks later.
Consult experts: When in doubt, get professional advice to avoid costly mistakes.
The difference between shielded and unshielded cables extends beyond just the cost or thickness—it impacts the reliability, efficiency, and long-term success of your entire network.
Shielded cables offer unbeatable protection and performance in noisy environments, while unshielded cables are cost-effective and practical for low-traffic areas.
Before installing your network, carefully evaluate your environment and requirements. Making the right choice now will save you from expensive fixes later on.
If you need help selecting the best cables for your project, feel free to contact our technical team—we’re happy to guide you to the perfect solution!
Of course! Here’s the Meta Title, Meta Description, and a set of FAQs to match the detailed article you just had written:
1. What is the main difference between shielded and unshielded cables?
Shielded cables have an extra layer of protection (metallic shielding) to block electromagnetic interference (EMI), while unshielded cables rely only on twisted pairs for minimal EMI resistance.
2. When should I choose shielded cables?
You should choose shielded cables for environments with high electrical noise, such as airports, factories, or near heavy machinery, where strong EMI protection is necessary for stable network performance.
3. Are shielded cables harder to install?
Yes, shielded cables are generally thicker, less flexible, and require grounding, making installation a bit more complex compared to the easier and faster setup of unshielded cables.
4. Is it cheaper to use unshielded cables?
Unshielded cables are less expensive both in terms of material and installation cost. However, they are best suited for low-traffic areas with minimal electromagnetic interference.
5. Can unshielded cables cause network problems?
Yes, in high-EMI environments, unshielded cables can experience more signal interference, which may lead to network slowdowns, data loss, or connectivity issues over time.
