Modern electronic systems operate in increasingly demanding environments. Whether used in electric vehicles, industrial automation, medical equipment, aerospace, renewable energy, agricultural machinery, or heavy-duty construction equipment, a wire harness must withstand far more than electrical current alone.

Environmental conditions directly influence the lifespan, safety, and performance of every cable assembly. Excessive heat can degrade insulation, moisture can cause corrosion, chemicals may attack jacket materials, and constant vibration can lead to conductor fatigue or connector failure. Ignoring these factors during the design stage often results in expensive maintenance, unexpected downtime, warranty claims, and even safety hazards.

This guide explores the most important environmental factors in wire harness design, explains how each affects system reliability, and provides practical engineering recommendations for designing durable custom wire harnesses capable of performing in harsh operating conditions.

Why Environmental Considerations Matter

A wire harness is more than a collection of wires. It is an engineered system that must reliably transmit power and signals throughout the life of a product.

Environmental conditions influence:

· Electrical performance

· Mechanical strength

· Connector integrity

· Insulation lifespan

· EMC performance

· Overall product reliability

· Maintenance costs

Considering environmental factors early in the design process reduces failures while improving product quality and customer satisfaction.

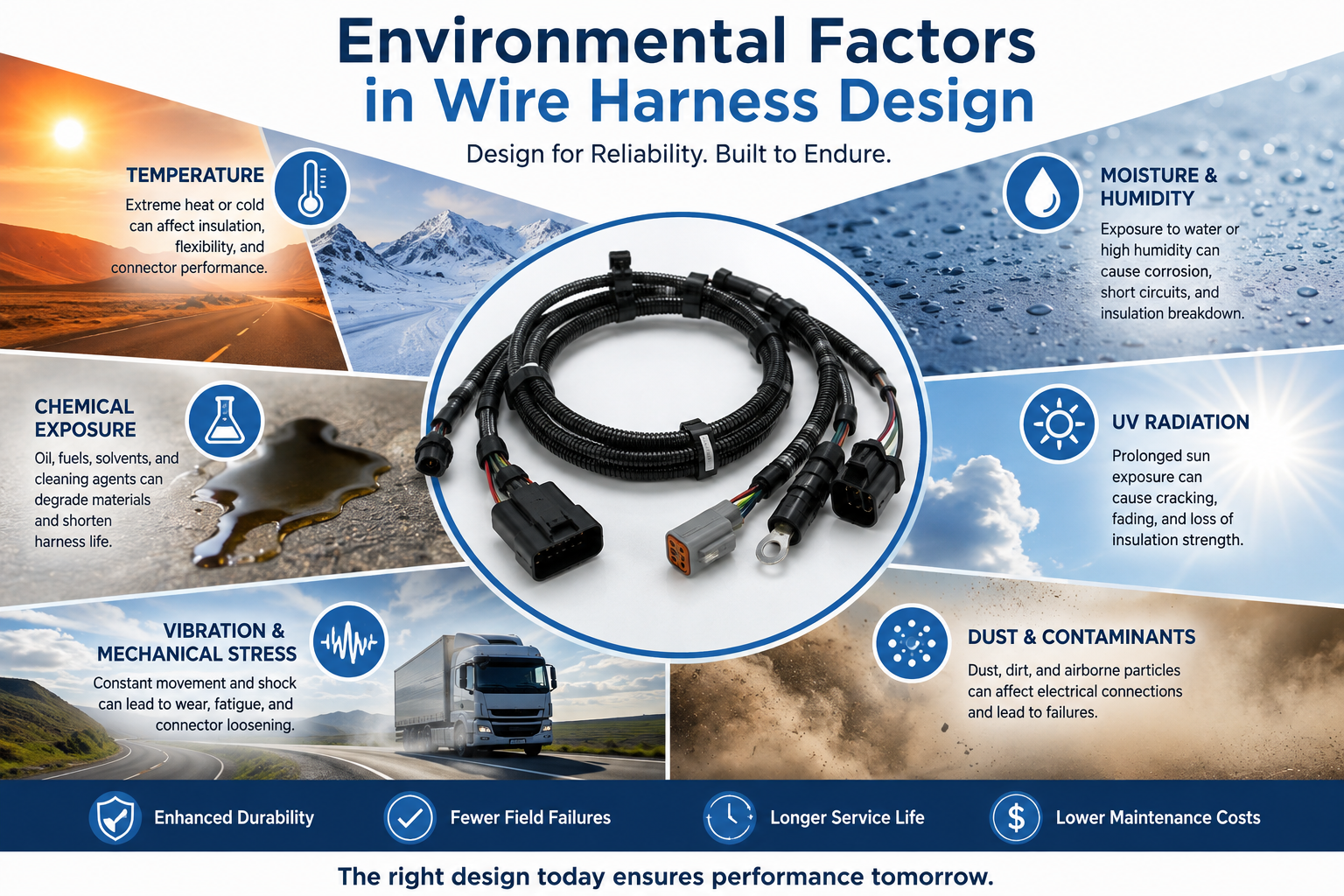

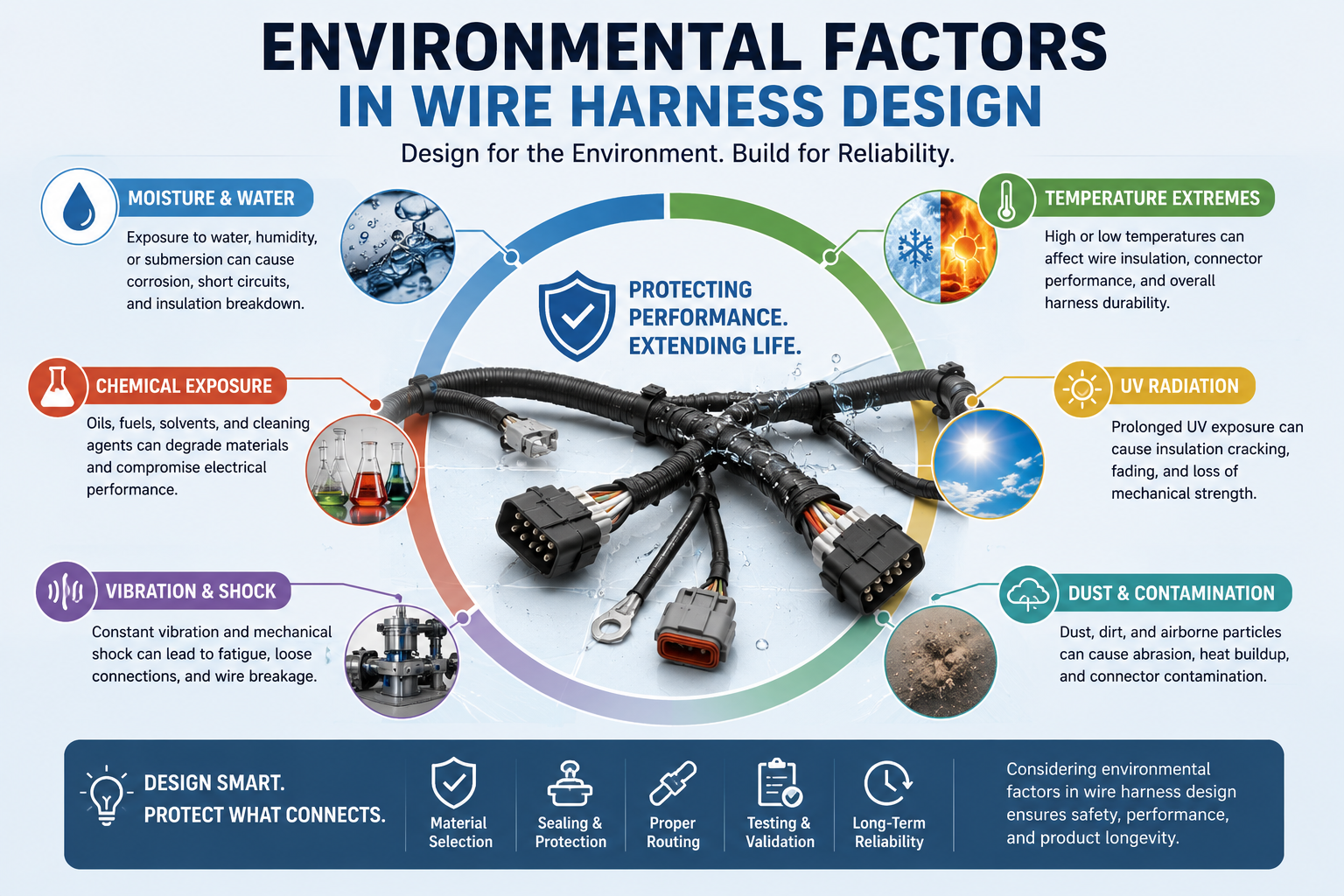

Major Environmental Factors Affecting Wire Harness Design

1. Temperature Extremes

Temperature is one of the most significant design considerations.

High Temperature Risks

Excessive heat can cause:

· Insulation softening

· Material aging

· Reduced dielectric strength

· Connector deformation

· Increased conductor resistance

· Premature cable failure

Applications include:

· Engine compartments

· Battery systems

· Industrial furnaces

· Power electronics

· Electric vehicles

Low Temperature Risks

Cold environments may result in:

· Brittle insulation

· Cracked cable jackets

· Reduced flexibility

· Connector breakage during installation

Design Recommendations

Choose insulation materials based on operating temperatures.

Common options include:

Always consider both continuous operating temperature and short-term overload conditions.

2. Moisture and Water Exposure

Water is a major cause of wire harness failures.

Moisture can lead to:

· Corrosion

· Short circuits

· Increased resistance

· Signal degradation

· Connector oxidation

Applications requiring waterproof protection include:

· Marine equipment

· Outdoor lighting

· Agricultural machinery

· Construction equipment

· Electric vehicles

· Renewable energy systems

Best Practices

Use:

· Waterproof connectors

· IP67 or IP68 sealing

· Heat-shrink tubing with adhesive

· Silicone sealing gaskets

· Waterproof cable glands

Proper strain relief also prevents water intrusion around cable entry points.

3. Humidity

High humidity accelerates corrosion, especially when combined with contaminants such as salt or industrial pollutants.

Long-term exposure may cause:

· Terminal oxidation

· Connector degradation

· Reduced insulation resistance

· Electrical leakage

Design Tips

Consider:

· Gold-plated terminals

· Tin-plated copper conductors

· Corrosion-resistant connector housings

· Moisture-resistant insulation materials

4. Chemical Exposure

Many industrial environments expose wire harnesses to chemicals.

Common contaminants include:

· Engine oil

· Hydraulic fluid

· Fuel

· Cleaning solvents

· Battery acid

· Brake fluid

· Industrial lubricants

Certain chemicals attack standard PVC insulation, causing swelling, cracking, or softening.

Recommended Materials

For chemical resistance, engineers often select:

· PTFE

· FEP

· ETFE

· XLPE

· Fluoropolymer jackets

Always verify material compatibility before production.

5. Vibration and Mechanical Shock

Continuous vibration is one of the leading causes of wire harness failure.

Typical applications include:

· Automotive

· Railway

· Aerospace

· Mining equipment

· Heavy machinery

· Industrial robots

Problems include:

· Broken conductors

· Connector loosening

· Terminal fatigue

· Abrasion

· Insulation wear

Design Solutions

Use:

· Proper cable routing

· Cable clamps

· Protective conduit

· Flexible conductors

· Strain relief

· Secure connector locking mechanisms

Avoid unsupported cable spans whenever possible.

6. UV Radiation

Outdoor installations expose cable assemblies to sunlight for years.

UV radiation gradually causes:

· Insulation cracking

· Color fading

· Reduced flexibility

· Surface degradation

Applications include:

· Solar energy systems

· Outdoor telecommunications

· Traffic control systems

· Agricultural equipment

Recommended Materials

UV-resistant materials include:

· Cross-linked polyethylene (XLPE)

· Polyurethane

· Black UV-stabilized PVC

· Polyethylene

· Fluoropolymers

7. Dust and Contaminants

Dust may seem harmless but can significantly reduce connector performance.

Industrial dust can:

· Increase contact resistance

· Cause overheating

· Block connector seals

· Accelerate wear

In mining and manufacturing environments, abrasive particles further increase cable damage.

Protection Methods

Consider:

· Sealed connectors

· Protective boots

· Corrugated conduit

· Braided sleeves

· Regular maintenance schedules

8. Electromagnetic Interference (EMI)

Modern equipment contains numerous electronic systems operating simultaneously.

EMI sources include:

· Motors

· Inverters

· Power converters

· Wireless devices

· High-voltage cables

EMI can cause:

· Communication errors

· Sensor malfunction

· Signal distortion

· Equipment instability

EMI Protection

Engineers commonly use:

· Shielded cables

· Twisted pair conductors

· Proper grounding

· Cable separation

· Ferrite cores

· Optimized routing

Proper shielding becomes especially important in electric vehicles and industrial automation.

9. Abrasion and Mechanical Wear

Wire harnesses often move during equipment operation.

Repeated rubbing against:

· Metal frames

· Sharp edges

· Fasteners

· Moving components

can gradually wear through insulation.

Protection Options

Install:

· Braided sleeving

· Split loom tubing

· Spiral wrap

· Rubber grommets

· Edge protection clips

Correct routing is often the simplest and most cost-effective solution.

10. Salt Spray and Corrosive Environments

Marine and coastal applications present unique challenges.

Salt accelerates:

· Terminal corrosion

· Connector oxidation

· Metal degradation

· Reduced conductivity

Design Recommendations

Use:

· Marine-grade connectors

· Stainless steel hardware

· Nickel-plated or gold-plated terminals

· Waterproof sealing systems

· Corrosion-resistant cable jackets

Material Selection for Harsh Environments

Selecting suitable materials is fundamental to long-term reliability.

Conductors

Preferred options include:

· Bare copper

· Tinned copper

· Silver-plated copper

· Nickel-plated copper

Insulation

Choose insulation according to environmental exposure:

· PVC for general-purpose applications

· XLPE for automotive systems

· Silicone for high temperatures

· PTFE for chemicals and extreme heat

· TPU for flexibility and abrasion resistance

Connector Materials

Reliable connectors often feature:

· High-quality sealing

· Corrosion-resistant plating

· Strong locking mechanisms

· Vibration-resistant designs

Design Best Practices

To improve reliability under harsh environmental conditions:

· Analyze the operating environment before beginning the design.

· Select insulation and jacket materials based on temperature, chemicals, and UV exposure.

· Use waterproof connectors where moisture is present.

· Minimize cable bending and avoid sharp edges.

· Add sufficient strain relief at all connection points.

· Separate signal cables from high-power conductors to reduce EMI.

· Protect harnesses with conduit, braided sleeving, or protective tubing.

· Validate designs through environmental testing, including thermal cycling, vibration, salt spray, humidity, and ingress protection (IP) testing.

· Follow relevant industry standards such as IPC/WHMA-A-620, ISO 16750, UL, and IEC requirements where applicable.

Environmental Testing for Wire Harnesses

A robust wire harness design should be validated before mass production.

Common qualification tests include:

These tests help identify potential weaknesses before deployment, reducing field failures and maintenance costs.

Conclusion

Environmental conditions play a critical role in determining the reliability and lifespan of a wire harness. Factors such as temperature extremes, moisture, vibration, chemicals, UV radiation, dust, abrasion, and electromagnetic interference should all be considered during the design phase.

By selecting appropriate materials, implementing protective measures, following proven routing practices, and validating designs through environmental testing, manufacturers can produce high-performance custom wire harnesses that deliver dependable operation even in the most demanding applications.

Investing in environmental optimization not only improves product quality and safety but also reduces maintenance costs, extends service life, and enhances customer satisfaction. For OEMs and equipment manufacturers, thoughtful environmental design is a key differentiator in today's competitive market.

Frequently Asked Questions (FAQs)

1. Why are environmental factors important in wire harness design?

Environmental conditions directly affect the durability, electrical performance, and safety of a wire harness. Designing for the intended operating environment helps prevent premature failures and reduces maintenance costs.

2. Which environmental factor causes the most wire harness failures?

There is no single cause, but temperature, moisture, vibration, and mechanical abrasion are among the most common contributors to wire harness failures across industries.

3. What insulation material is best for high-temperature applications?

PTFE and silicone rubber are widely used for high-temperature environments due to their excellent thermal stability. XLPE is also a popular choice for many automotive and industrial applications.

4. How can moisture damage a wire harness?

Moisture can lead to corrosion, oxidation, reduced insulation resistance, short circuits, and connector failures. Waterproof connectors and proper sealing are essential in wet environments.

5. How can EMI be reduced in wire harnesses?

EMI can be minimized by using shielded cables, twisted pair conductors, proper grounding, adequate cable separation, ferrite components, and optimized routing practices.

6. What tests are recommended before production?

Manufacturers typically perform thermal cycling, vibration testing, humidity testing, salt spray testing, UV aging, chemical resistance testing, and ingress protection (IP) testing to verify long-term reliability under real-world environmental conditions.
