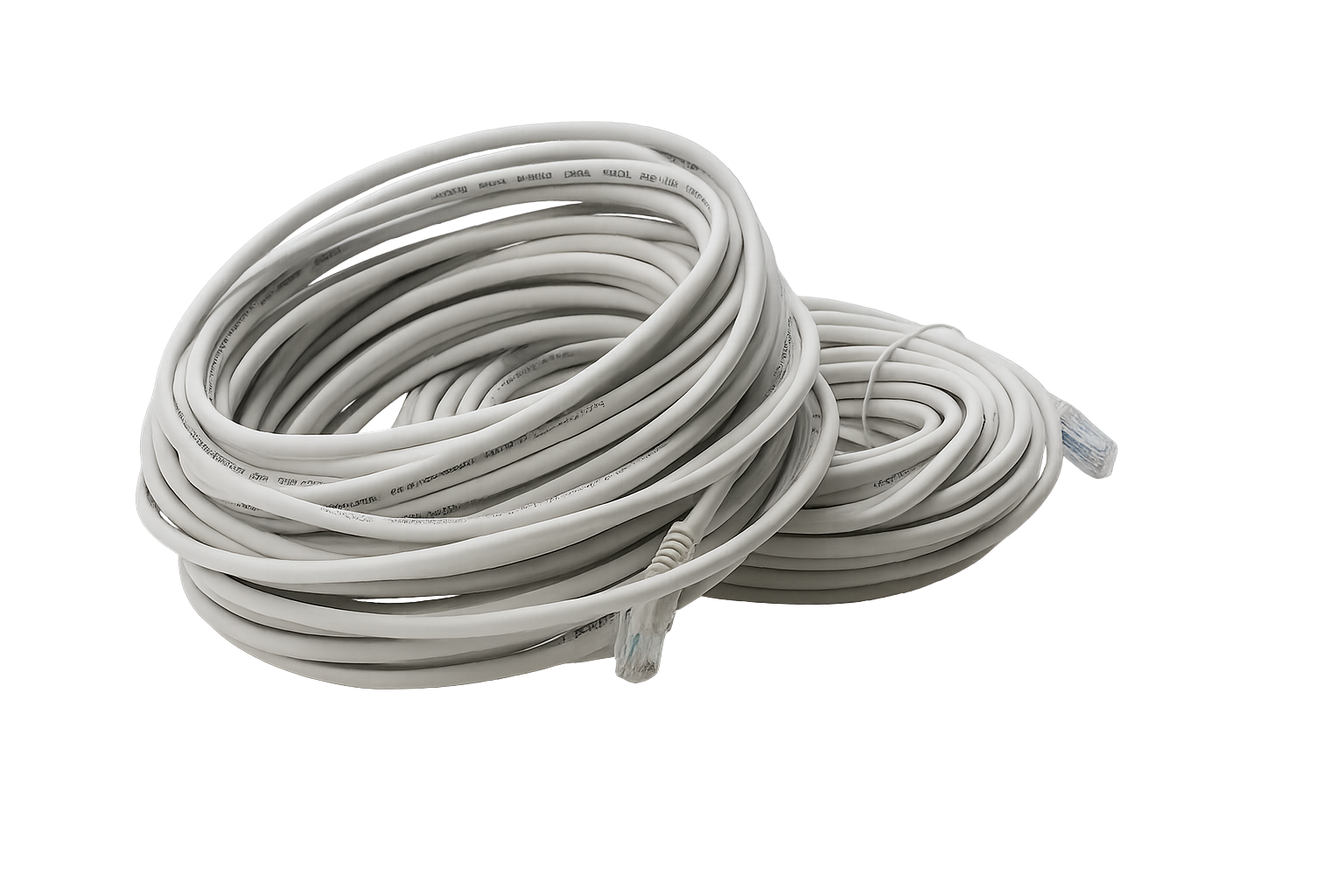

Electrical cables are the lifelines of modern infrastructure. They carry power, signals, and data across homes, factories, and cities. But every cable has limits. These limits are defined by cable ratings—the standardized values that tell us how much temperature, current, and voltage a cable can safely withstand.
Selecting the right cable rating is essential to ensure safety, performance, and cost-efficiency. Misjudging a rating can result in overheating, voltage drops, equipment failure, or even fires. This guide takes a detailed look at the three main cable ratings—temperature, current, and voltage—and explains how to use them correctly.
Cable ratings are not about television or popularity metrics. In engineering terms, they define the safe operating conditions of electrical cables over their service life.
Key parameters include:
Temperature rating – The thermal limit of the cable’s insulation and conductor.
Current rating (ampacity) – The maximum current a cable can carry without overheating.
Voltage rating – The maximum electrical potential a cable can withstand safely.
Additional factors – Resistance, shielding, and attenuation, which influence performance, especially in signal and communication cables.
Together, these ratings determine how a cable should be installed and what applications it can be used for.
Understanding cable ratings is not optional—it’s fundamental to electrical engineering. Choosing an inappropriate cable can cause severe consequences.
Safety – Underrated cables can overheat, melt insulation, or spark fires. Overloaded circuits also increase the risk of electric shock.
Performance – Cables with insufficient ratings can cause excessive voltage drop, wasting power and reducing machine efficiency.
Cost Optimization – Overspecifying a cable increases costs unnecessarily. For example, selecting a much larger conductor than required adds material expense and weight, which can be problematic in aerospace or automotive applications.
Regulatory Compliance – In the UK, compliance with BS 7671 (IET Wiring Regulations) ensures electrical installations meet legal safety standards. Similar codes exist globally, such as NEC (National Electrical Code) in the US and IEC standards internationally.
A cable’s temperature rating indicates the range of temperatures it can safely endure without performance loss or damage. This is primarily determined by the insulation material and conductor properties.
Exceeding temperature limits can cause insulation breakdown, conductor oxidation, or increased resistance, all of which shorten cable lifespan.
In signal cables, high temperatures can also increase electrical noise and signal degradation.
Maximum Operating Temperature – The highest temperature a cable can withstand continuously without failure.
Minimum Cold Bend Temperature – The lowest temperature at which a cable can be bent without cracking. Critical for outdoor or Arctic installations.
Minimum Installation Temperature – A practical minimum that provides a safe margin above the cold bend value during installation.
Minimum Continuous Flexing Temperature – Relevant for robotic or moving machinery applications, where cables are bent thousands of times during operation.
Example: A PVC-insulated power cable may have a maximum operating temperature of 70°C, while a PTFE-insulated cable may withstand up to 200°C.

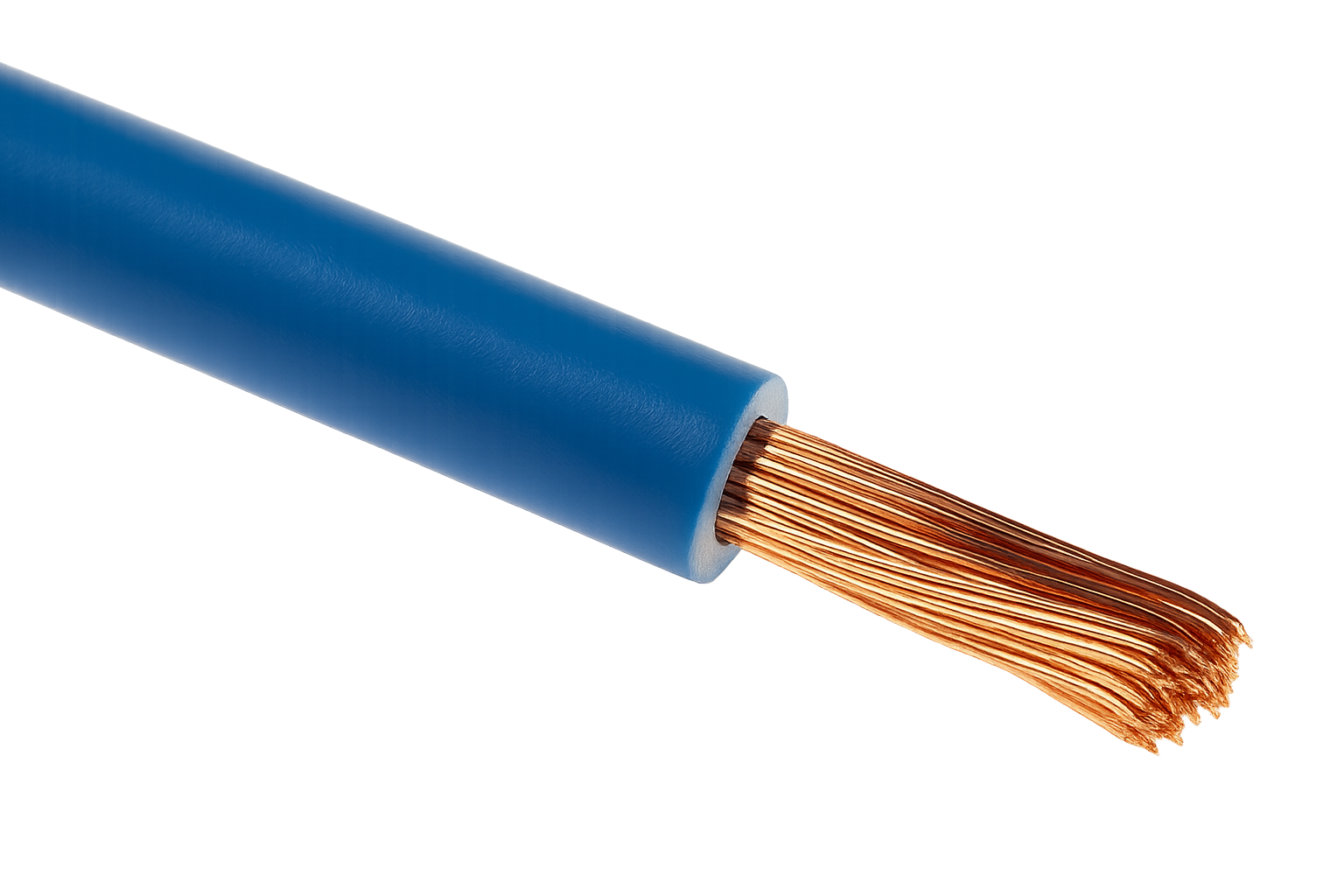

The current rating, also known as ampacity, defines the maximum electric current a cable can carry without exceeding its temperature limit.
Conductor size – Larger cross-sectional areas carry more current.
Conductor material – Copper has higher conductivity than aluminum, leading to higher ampacity.
Insulation type – Materials like XLPE (cross-linked polyethylene) can withstand higher heat compared to PVC.
Ambient conditions – Higher air or soil temperatures reduce a cable’s ability to dissipate heat.
Underrated cable → overheating, insulation damage, and fire risks.
Overrated cable → unnecessary cost and installation difficulty.
Practical Tip: Engineers often use cable sizing calculators or reference ampacity tables (based on NEC, IEC, or local standards) to determine the correct current rating for installations.

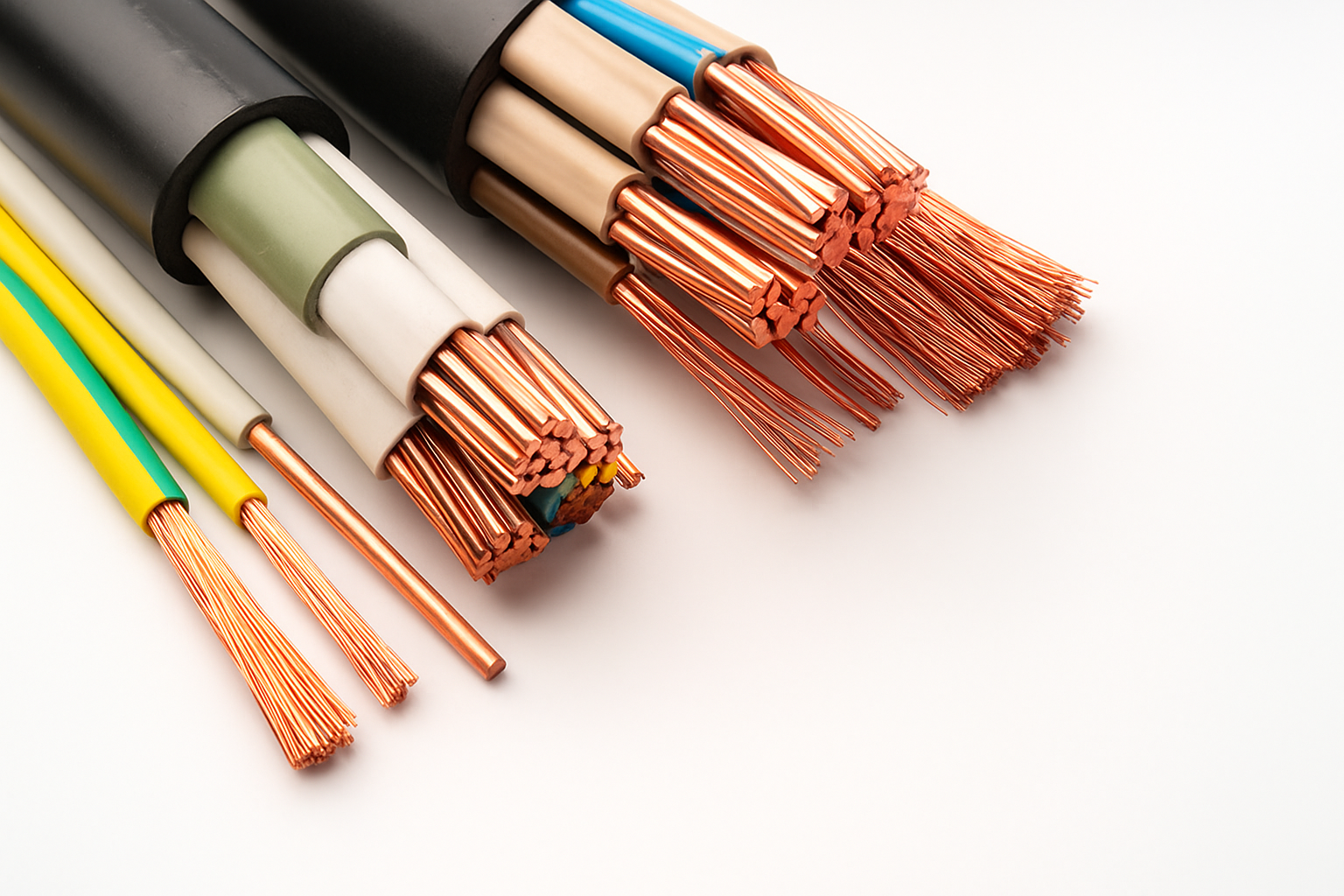

Voltage ratings define the maximum voltage a cable can safely handle without breakdown of insulation.
Uo – RMS voltage between a conductor and earth (ground).
U – RMS voltage between conductors within a multicore cable.
Um – Maximum system voltage the cable can withstand.
Cables are labeled in the format Uo/U (Um). For example:
A 300/500V cable means 300V conductor-to-earth, 500V conductor-to-conductor.
A 600/1000V cable is suitable for heavier industrial loads.
Low Voltage (LV): Up to 1 kV – used in domestic wiring and small commercial systems.
Medium Voltage (MV): 1–33 kV – common in industrial distribution networks.
High Voltage (HV): Above 33 kV – used in long-distance transmission systems.
Signal and data cables typically operate at much lower voltages (e.g., 5V, 12V, or 24V), where the rating ensures signal integrity and insulation protection.
Cable manufacturers provide detailed cable ratings charts showing conductor sizes, diameters, resistance, current ratings, and weight. These charts help engineers match cables to their application requirements.
Example (simplified from an RS hook-up wire specification):
AWG Size | Cross-Section (mm²) | Max Resistance (Ω/km) | Current Rating (A) | Voltage Rating | Temp Range |
22 | 0.5 | 39.0 | 11 | 600/1000V | −15 to +105°C |
16 | 1.5 | 13.3 | 21 | 600/1000V | −15 to +105°C |
10 | 6.0 | 3.3 | 53 | 600/1000V | −15 to +105°C |
2/0 | 70 | 0.272 | 240 | 600/1000V | −15 to +105°C |
Such charts are essential references when selecting the safest and most efficient cable size.
In real-world installations, a cable’s theoretical rating often needs to be de-rated to account for environmental conditions that hinder heat dissipation.
Adjacent Cables: Multiple cables bundled together trap heat.
Contact with Surfaces: Walls or conduits restrict heat dissipation compared to open air.
Heat Sources: Sunlight or nearby machinery increases ambient cable temperature.
Underground Burial: Soil type, depth, and moisture affect thermal resistivity.
Electromagnetic Interference (EMI): For signal cables, proximity to power cables can disrupt data integrity.
Example: A cable rated for 50A in open air might only handle 35A when buried underground without overheating.
1. What are the three main types of cable ratings?
The three primary cable ratings are temperature rating, current rating (ampacity), and voltage rating. These define the safe limits within which a cable can operate without damage or risk.
2. How do I know the right current rating for a cable?
You should check the manufacturer’s cable ampacity chart or use a cable sizing calculator. The current rating depends on conductor size, material, insulation type, and installation conditions.
3. Why is cable de-rating necessary?
De-rating accounts for environmental factors such as heat, bundling with other cables, underground burial, or contact with hot surfaces, which reduce a cable’s ability to dissipate heat.
4. What does 300/500V or 600/1000V mean on a cable?
This is a voltage rating expressed as Uo/U. For example, 300/500V means the cable is rated for 300V conductor-to-earth and 500V conductor-to-conductor.
5. What happens if I use a cable with the wrong rating?
If underrated, the cable may overheat, melt insulation, cause fire hazards, or fail prematurely. If overrated, you’ll waste money and space with unnecessarily large cables.
Cable ratings are the foundation of safe and efficient electrical system design. By understanding temperature limits, current capacity, and voltage thresholds, engineers can select cables that:
Prevent accidents and equipment failures
Deliver reliable performance with minimal energy loss
Balance safety with cost efficiency
Whenever possible, consult manufacturer charts, international standards, and installation guidelines. Careful selection of cable ratings ensures not only compliance but also long-term reliability of your electrical systems.Trust Dongguan XSD Cable Technology Co., Ltd. for your cable needs and let our expertise guide you towards the best solutions for your projects.
