When purchasing a custom wire harness, price and lead time are important—but quality is often the deciding factor. A single defective crimp, incorrect wire connection, or damaged connector can lead to equipment failure, costly downtime, or warranty claims.
Professional wire harness manufacturers understand that quality cannot be achieved through final inspection alone. Instead, quality must be built into every stage of the manufacturing process, from incoming material inspection to final electrical testing before shipment.
In this guide, we'll explain how professional wire harness manufacturers control quality, what inspection methods they use, and what buyers should look for when selecting a reliable supplier.
A wire harness is the backbone of an electrical system. Whether it's used in industrial automation, medical equipment, automotive electronics, or renewable energy systems, every connection must perform reliably throughout the product's service life.
Poor quality control can result in:
l Loose or weak crimp connections
l Incorrect wiring sequences
l Short circuits or open circuits
l Signal loss
l Product failures in the field
l Increased maintenance and warranty costs
For this reason, leading manufacturers implement a comprehensive quality management system that monitors every production stage rather than relying on final inspection alone.
A professional quality control system typically includes five key stages:
Quality starts with raw materials.
Before production begins, manufacturers inspect incoming components, including:
l Wire specifications and insulation quality
l Connectors and terminals
l Cable sleeves and heat shrink tubing
l Labels and accessories
Materials are verified against engineering drawings and supplier specifications to ensure they meet customer requirements.
Many wire processing operations are completed using automated equipment to improve consistency.
Critical processes include:
l Automatic wire cutting
l Precision wire stripping

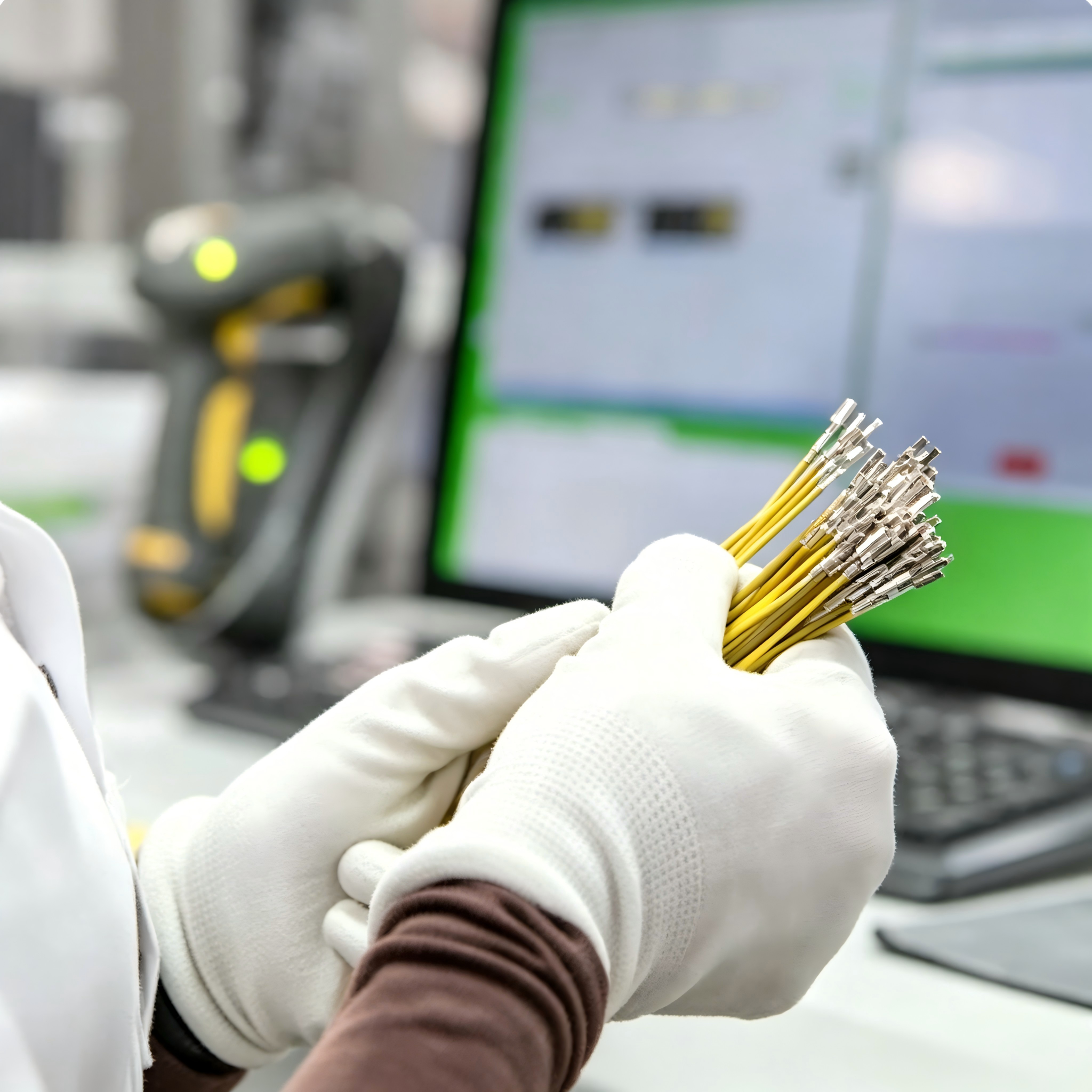

l Terminal crimping
l Seal insertion
l Wire marking
During production, operators monitor important parameters such as:
l Cutting length
l Strip length
l Crimp height
l Crimp width
l Terminal position
Regular equipment calibration helps maintain stable production quality.
Instead of waiting until production is complete, experienced manufacturers inspect products throughout the assembly process.
Typical in-process inspections include:
l First Article Inspection (FAI)
l Connector orientation verification
l Wire color confirmation
l Routing and branching inspection
l Workmanship verification
l Random production audits
Early detection prevents defects from moving to the next manufacturing stage, reducing waste and improving production efficiency.
Electrical testing is one of the most critical quality control procedures.
Before shipment, every finished wire harness should undergo functional testing, including:
l Continuity testing
l Open circuit detection
l Short circuit detection
l Pin-to-pin verification
l Resistance measurement (when required)
For products with higher electrical requirements, additional tests such as insulation resistance or high-voltage testing may also be performed.
Testing every harness helps ensure customers receive products that meet electrical specifications before installation.
Before shipment, inspectors verify that every wire harness meets customer specifications.
Final inspections typically include:
l Appearance inspection
l Connector position verification
l Label confirmation
l Dimensions and routing check
l Packaging inspection
l Quantity verification
Only products that pass all inspections are released for shipment.
Reliable wire harness manufacturers build their quality systems around internationally recognized standards.
Common standards include:
l IPC/WHMA-A-620 for cable and wire harness workmanship
l ISO 9001 quality management systems
l IATF 16949 (for automotive applications)
l RoHS and REACH environmental compliance
l Customer-specific inspection requirements
Following standardized procedures helps ensure consistent manufacturing quality and repeatable production results.
Professional manufacturers use specialized testing equipment to verify product quality.
Common equipment includes:

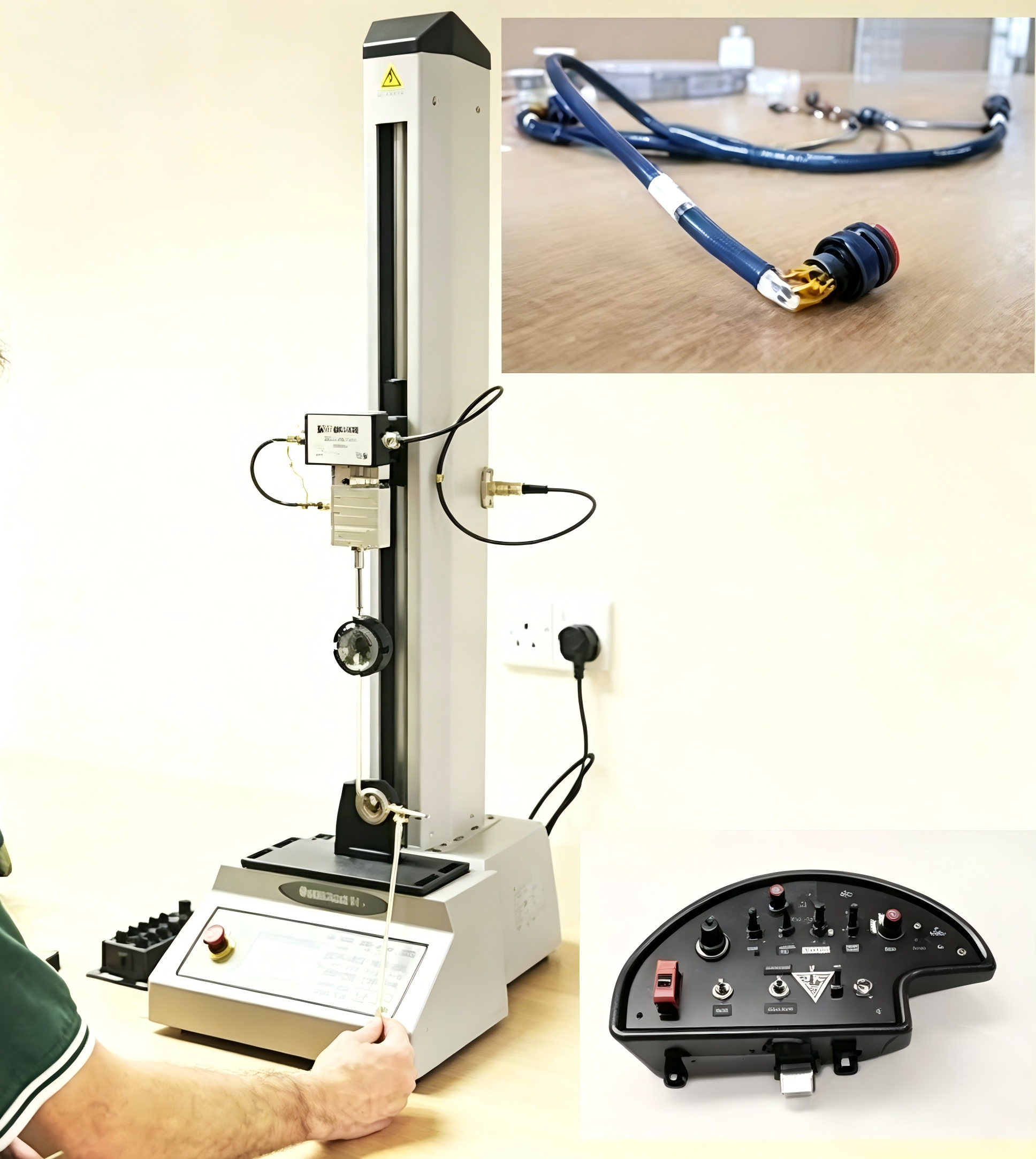

l Pull force testers
l Crimp height measuring tools
l Digital calipers

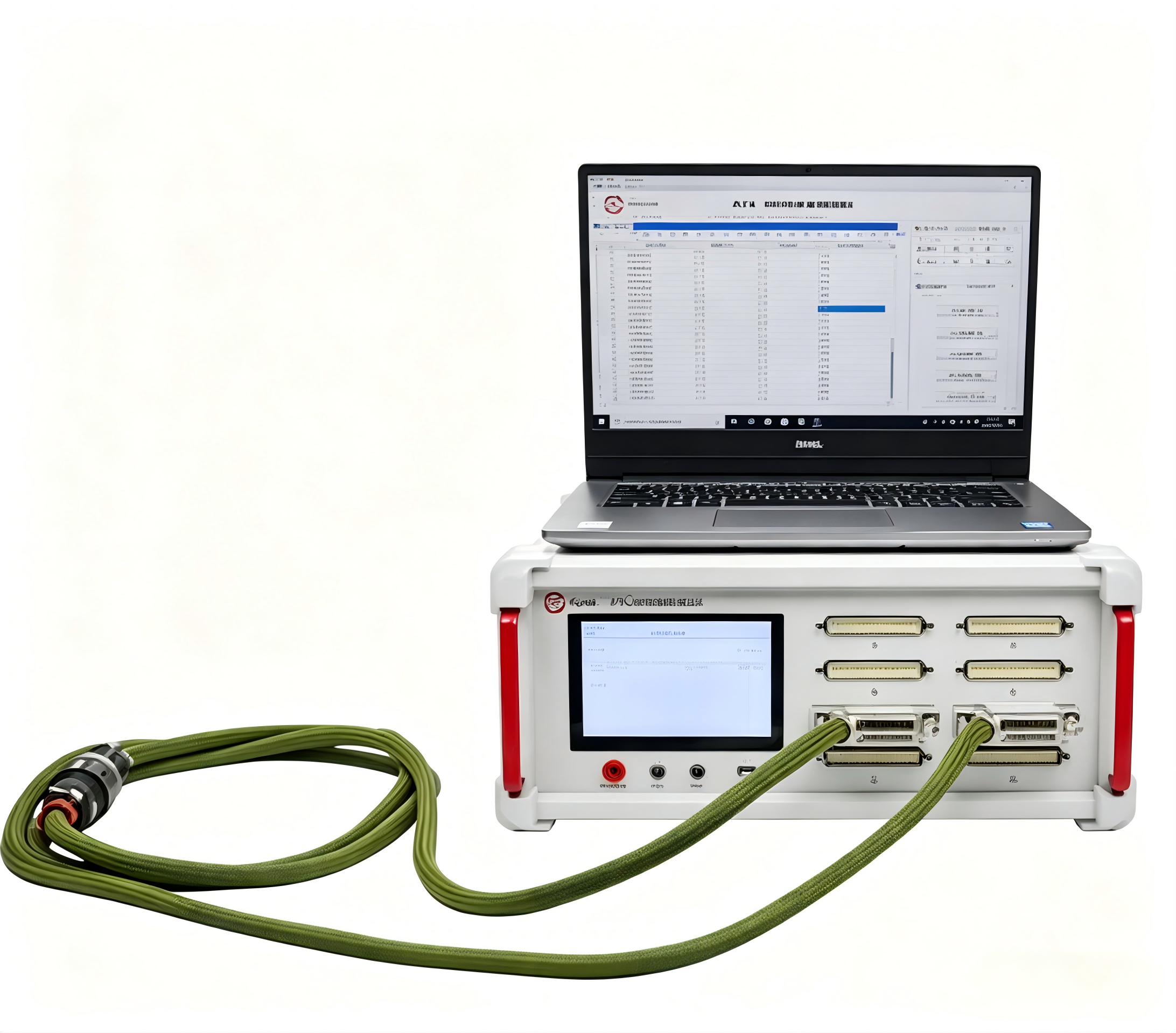

l Continuity testing machines
l High-voltage testers
l Visual inspection systems
These tools help detect defects that cannot always be identified through visual inspection alone.
At XSD Singder, quality is integrated into every stage of the manufacturing process.
Our quality control system includes:
l Incoming material inspection (IQC)
l First Article Inspection before mass production
l Automated wire cutting and precision crimping
l Standardized work instructions for assembly
l In-process quality inspections (IPQC)
l 100% electrical continuity testing
l Final quality inspection before shipment
l Product traceability for every production batch
By combining automated manufacturing equipment with experienced technicians, we ensure every custom wire harness meets our customers' specifications for quality, reliability, and performance.
When evaluating a supplier, don't focus only on price.
Ask these questions:
l Do you perform 100% electrical testing?
l What quality standards do you follow?
l Can you provide inspection reports?
l How do you inspect incoming materials?
l What testing equipment do you use?
l Do you have a traceability system?
l How do you handle non-conforming products?
A manufacturer that can clearly answer these questions is more likely to deliver consistent, high-quality products.
Not always. Professional manufacturers typically test every finished harness, but testing methods may vary depending on customer requirements and product applications.
Continuity testing is essential because it verifies that every circuit is connected correctly. Depending on the application, pull force testing, insulation resistance testing, or high-voltage testing may also be required.
A poor crimp connection can increase electrical resistance, cause intermittent failures, or even lead to overheating. Precision crimping and regular inspection are critical to long-term product reliability.
Review their certifications, inspection process, testing equipment, quality documentation, and ability to provide production traceability. Visiting the factory or requesting sample inspection reports can also help evaluate their quality management system.
Quality control is not a single inspection at the end of production—it's a continuous process that begins with raw material verification and extends through manufacturing, testing, and final shipment.
By implementing strict inspection procedures, standardized workmanship, advanced testing equipment, and complete production traceability, professional wire harness manufacturers can deliver reliable products that meet demanding industry requirements.
If you're looking for a trusted partner for custom wire harness manufacturing, XSD Singder is committed to providing high-quality, precision-engineered wire harness solutions backed by comprehensive quality control and responsive engineering support.
Contact our team today to discuss your project and discover how our quality-focused manufacturing process can help ensure the success of your next application.
