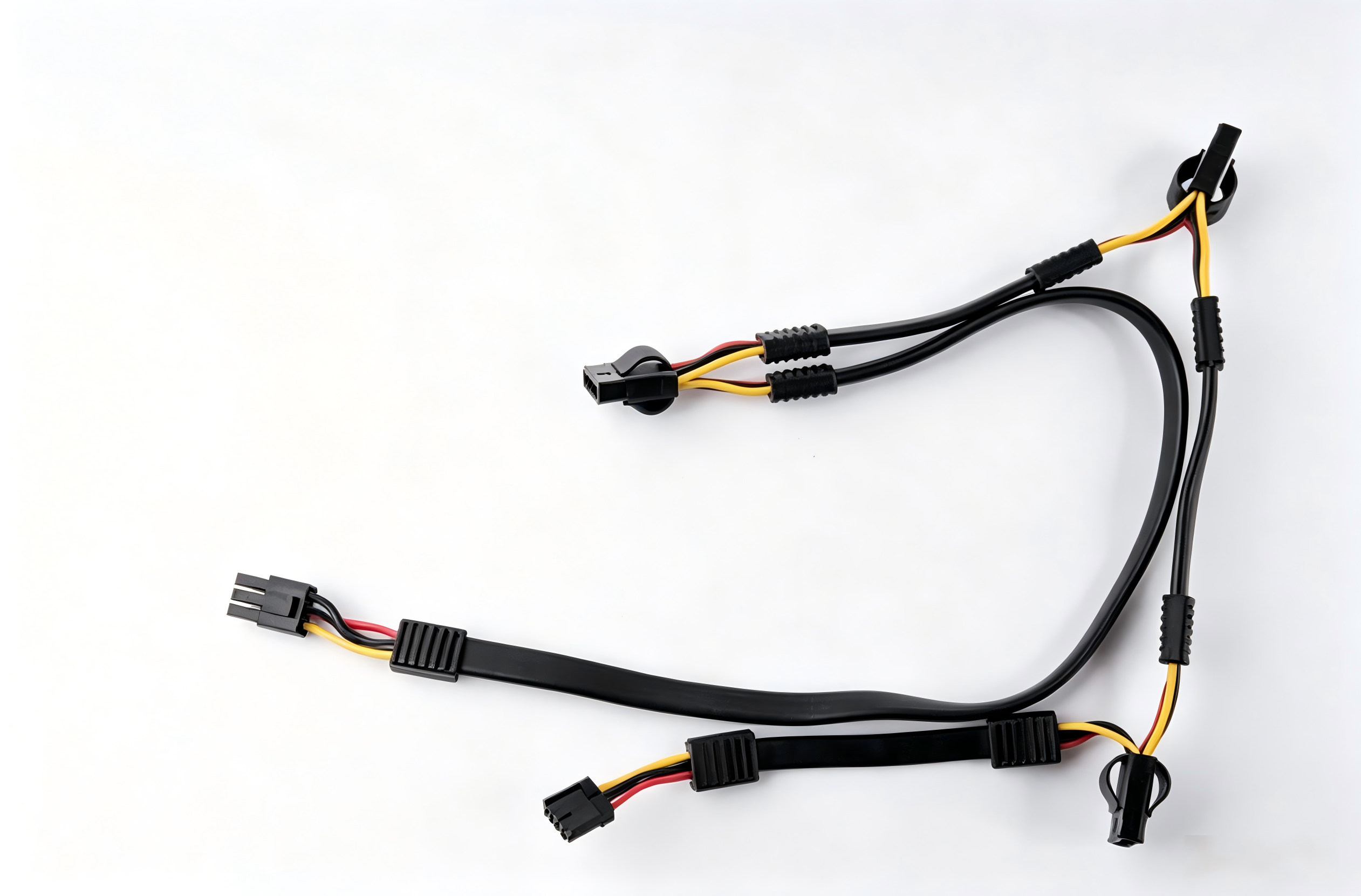

Wire harnesses are essential components in modern electrical and electronic systems. They organize multiple wires, connectors, and terminals into a single assembly, ensuring reliable power and signal transmission while simplifying installation and maintenance. From automotive and industrial automation to medical devices and renewable energy systems, custom wire harnesses play a critical role in product performance and safety.
However, manufacturing a high-quality wire harness involves much more than simply connecting wires. Every stage—from material selection to final testing—must follow standardized procedures and strict quality control measures. In this guide, we'll walk you through the complete wire harness assembly process and explain how professional manufacturers ensure consistent quality and long-term reliability.
Wire harness assembly is the process of cutting, stripping, terminating, connecting, protecting, and testing electrical wires according to a customer's design specifications. The goal is to create an organized wiring solution that improves efficiency, reduces installation time, and minimizes electrical failures.
Compared with installing individual wires, a custom wire harness offers several advantages:
l Faster installation
l Better cable management
l Improved electrical reliability
l Lower maintenance costs
l Reduced risk of wiring errors
l Easier troubleshooting
Professional wire harnesses are widely used in automotive, robotics, industrial machinery, medical equipment, consumer electronics, telecommunications, and many other industries.

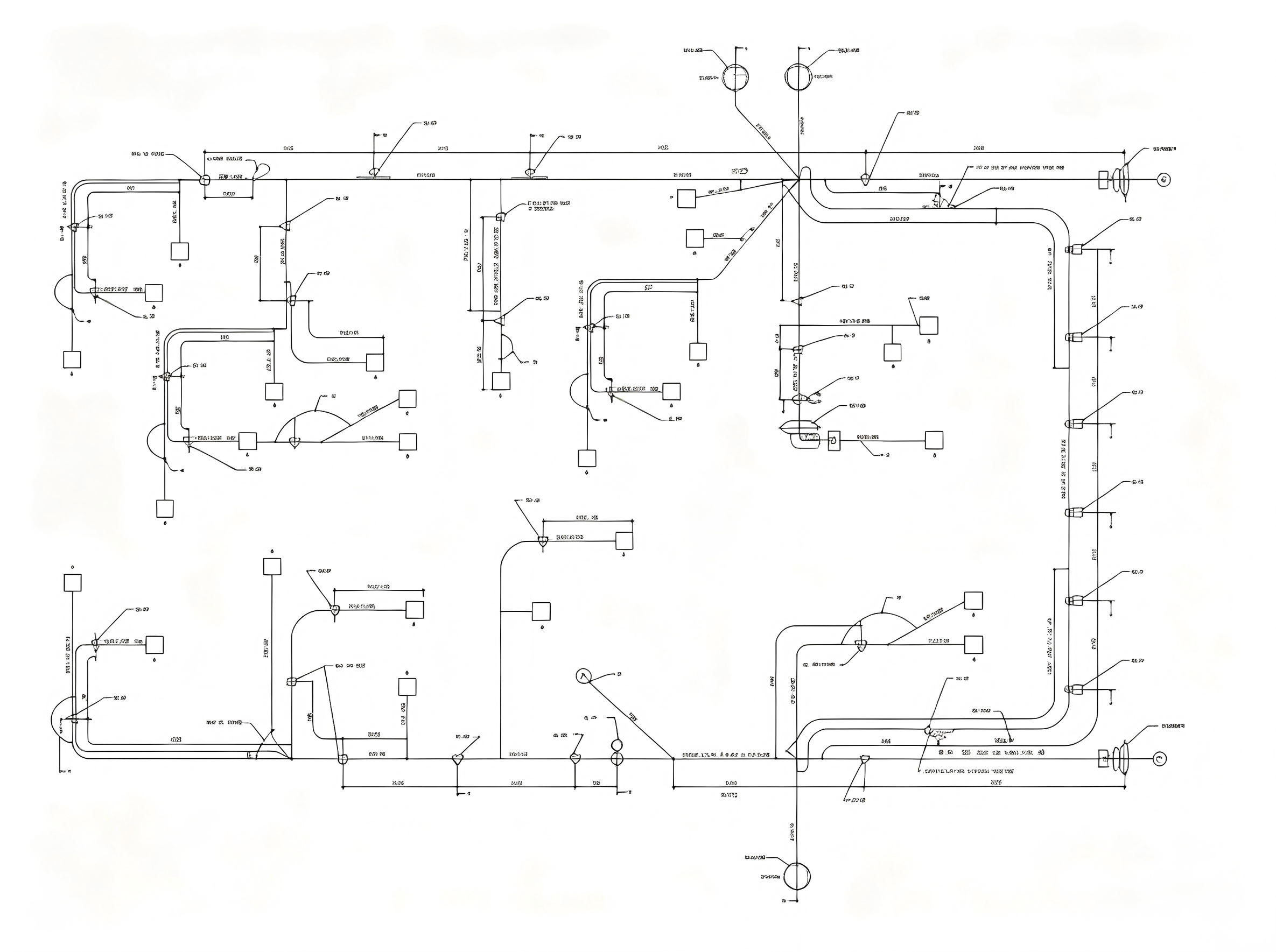

Before production begins, engineers carefully review the customer's drawings, wiring diagrams, Bill of Materials (BOM), and technical requirements. The correct wire type, connectors, terminals, insulation materials, and protective components are selected to ensure compatibility with the application.
Quality Focus: Material verification and engineering approval.
Automatic wire processing machines cut wires to precise lengths and strip insulation without damaging the conductor. Accurate cutting and stripping are essential for reliable electrical connections.
Quality Focus: Wire length tolerance, strip length, and conductor integrity.

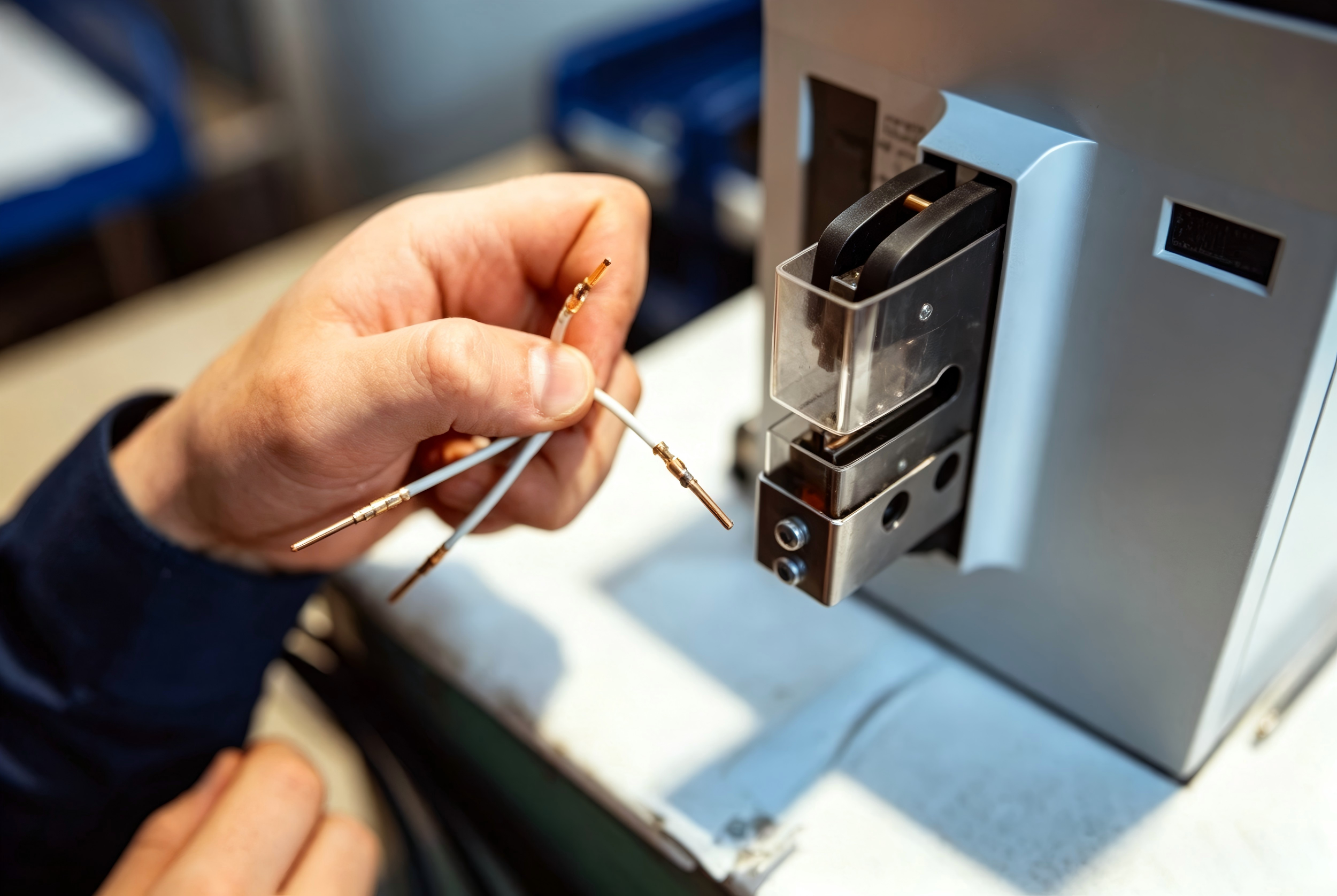

Crimping is one of the most critical steps in wire harness assembly. The stripped wire is attached to a terminal using precision crimping equipment. Proper crimp height and crimp force ensure a strong mechanical and electrical connection.
Professional manufacturers regularly perform pull-force testing and crimp inspections to verify quality.
Quality Focus: Crimp height, pull strength, and visual inspection.
After crimping, terminals are inserted into connector housings according to the wiring diagram. Each terminal must be positioned correctly and securely locked to prevent connection failures.
Quality Focus: Pin assignment, connector locking, and orientation.
Depending on the application, heat shrink tubing, braided sleeves, corrugated tubing, or protective tape are applied to protect the harness from abrasion, moisture, heat, and vibration. The wires are then bundled using cable ties or wrapping materials to improve organization and durability.
Quality Focus: Proper routing, protection coverage, and appearance.
Each wire harness is labeled according to customer requirements using printed labels, barcodes, or QR codes. Proper identification improves traceability, simplifies installation, and supports after-sales maintenance.
Quality Focus: Label accuracy and readability.
Before shipment, every wire harness should undergo comprehensive electrical testing. Typical tests include continuity testing, short-circuit testing, insulation resistance testing, and, when required, high-voltage (Hi-Pot) testing.
Many professional manufacturers perform 100% electrical testing to ensure every harness meets design specifications.
Quality Focus: Electrical performance and functional verification.
The finished wire harness is visually inspected for workmanship, labeling, dimensions, and overall appearance. After passing inspection, the product is packaged according to customer specifications to prevent damage during transportation.
Quality Focus: Final quality audit and protective packaging.
Quality control is integrated into every production stage rather than performed only at the end of manufacturing. Professional wire harness manufacturers implement multiple inspection points to reduce defects and improve product consistency.
Production Stage | Quality Check |
Material Preparation | Material verification |
Wire Cutting | Length accuracy |
Wire Stripping | No conductor damage |
Crimping | Pull-force test & visual inspection |
Connector Assembly | Correct pin assignment |
Electrical Testing | Continuity & insulation testing |
Final Inspection | Appearance and packaging |
By following standardized procedures, manufacturers can significantly reduce production errors and improve long-term product reliability.
Reliable wire harness manufacturers comply with internationally recognized standards to ensure product quality and safety.
Common standards include:
l IPC/WHMA-A-620 – Acceptance requirements for cable and wire harness assemblies.
l ISO 9001 – Quality management system.
l IATF 16949 – Automotive quality management.
l UL – Product safety certification.
l RoHS & REACH – Environmental compliance requirements.
Compliance with these standards helps ensure consistent manufacturing quality and gives customers greater confidence in the finished product.
Choosing the right manufacturing partner is just as important as selecting the right design. When evaluating suppliers, consider the following factors:
l Experience with custom wire harness projects
l Engineering and design support
l Modern production equipment
l Compliance with international quality standards
l 100% electrical testing capability
l Flexible prototype and mass production services
l Stable delivery times
l Responsive technical support
A professional manufacturer should not only produce wire harnesses but also help optimize designs, improve manufacturability, and reduce overall production costs.
It is the process of assembling wires, terminals, connectors, and protective materials into a complete electrical wiring system.
Proper crimping creates a secure electrical and mechanical connection, reducing the risk of loose terminals and electrical failures.
Typical tests include continuity testing, insulation resistance testing, short-circuit testing, and Hi-Pot testing when required.
Yes. Most OEM manufacturers require custom wire harnesses designed according to their drawings, electrical specifications, and application requirements.
Automotive, industrial automation, robotics, medical devices, renewable energy, telecommunications, consumer electronics, and many other industries.
At XSD SINGDER, we specialize in providing custom wire harness assembly solutions for customers worldwide. From prototype development to high-volume production, our experienced engineering team and advanced manufacturing equipment help ensure every harness meets your exact requirements.
Our capabilities include:
l Custom wire harness manufacturing
l OEM & ODM services
l Prototype and mass production
l Professional engineering support
l Strict quality control
l 100% electrical testing
l Fast delivery and global shipping
Whether you need a simple cable assembly or a complex custom wiring harness, we are committed to delivering reliable, cost-effective solutions tailored to your project.
Looking for a trusted custom wire harness manufacturer? Contact XSD SINGDER today. Simply send us your drawings, samples, or technical requirements, and our engineering team will provide a customized solution and competitive quotation for your project.
