Wire Cutting And Stripping Technologies: A Complete Guide for Wire Harness Manufacturing

Wire cutting is the process of cutting electrical wires or cables into specific lengths according to engineering drawings or customer requirements.

In wire harness production, every wire must meet precise dimensional requirements because incorrect wire lengths can affect:

· Harness installation

· Electrical performance

· Assembly efficiency

· Product appearance

Professional wire harness manufacturers typically use automatic wire cutting machines to achieve high accuracy and repeatability.

Modern wire cutting equipment can process different types of wires, including:

· Single-core wires

· Multi-core cables

· Shielded cables

· UL certified cables

· Customized industrial cables

The cutting process usually includes:

1. Wire feeding

2. Length measurement

3. Automatic cutting

4. Wire collection and sorting

Advanced equipment allows manufacturers to program different wire lengths and production quantities, improving manufacturing efficiency for both prototypes and mass production.

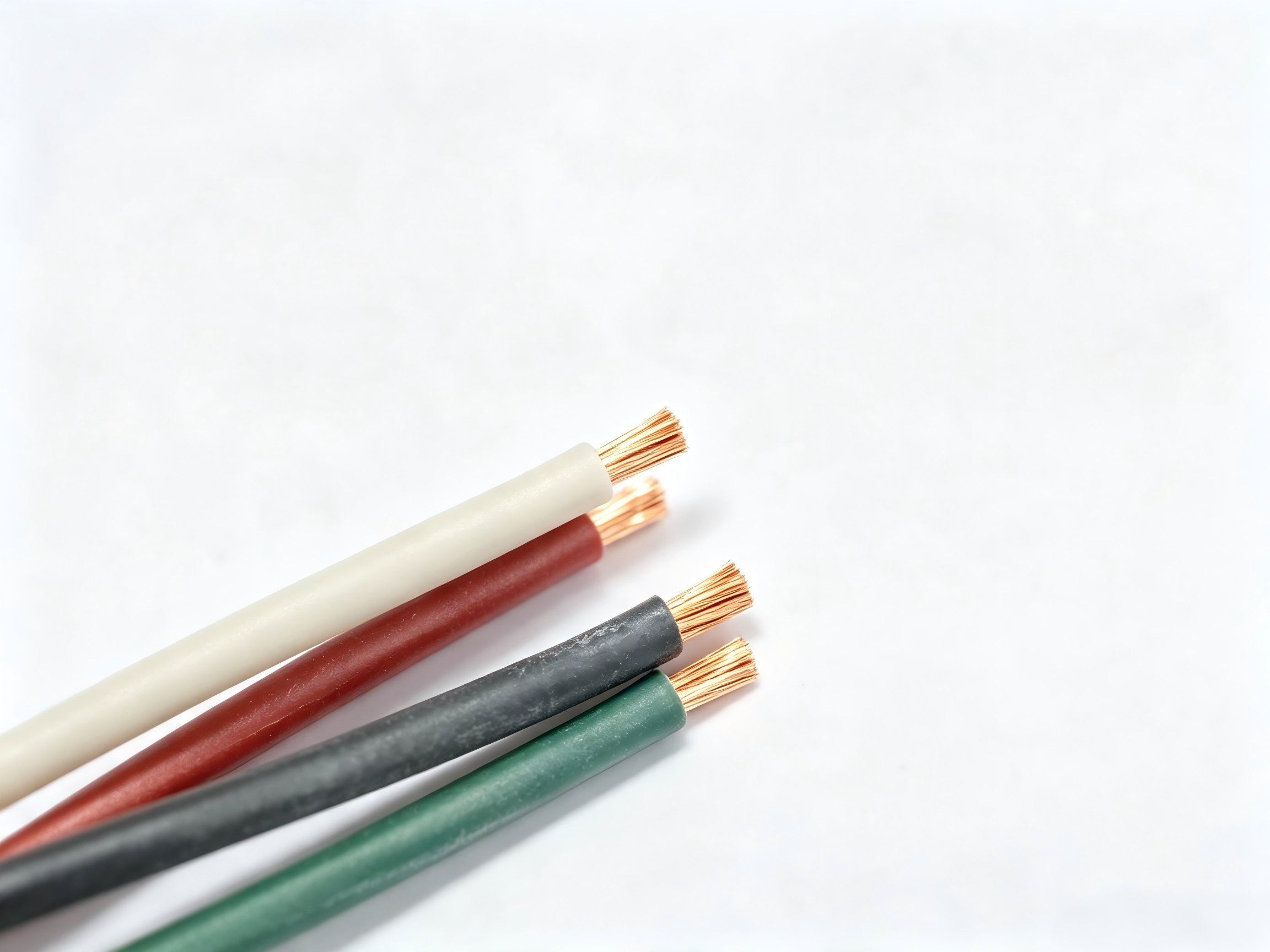

What Is Wire Stripping?

Wire stripping is the process of removing insulation from a specific section of a wire to expose the conductive material underneath.

The purpose of stripping is to prepare the wire for further operations such as:

· Terminal crimping

· Soldering

· Connector assembly

· Electrical testing

A high-quality stripping process must remove insulation without damaging the conductor.

Common stripping parameters include:

· Strip length

· Strip tolerance

· Conductor protection

· Insulation removal consistency

For example, excessive stripping force may damage copper strands, while insufficient stripping may prevent proper electrical contact.

Therefore, precise wire stripping technology is critical for producing reliable wire harness assemblies.



Different Types of Wire Cutting and Stripping Methods

Wire harness manufacturers typically use three main processing methods depending on production volume, complexity, and quality requirements.



1. Manual Wire Cutting and Stripping

Manual processing uses hand tools to cut and strip wires.

Advantages:

· Low initial investment

· Suitable for prototypes

· Flexible for small quantities

Limitations:

· Lower production efficiency

· Higher labor cost

· Greater possibility of human error

· Difficult to maintain consistency in large production runs

Manual processing is generally used for:

· Sample development

· Engineering validation

· Low-volume customized projects



2. Semi-Automatic Wire Processing

Semi-automatic equipment improves productivity by combining machine assistance with operator control.

Benefits include:

· Better stripping consistency

· Higher production speed

· Reduced operator fatigue

This method is commonly used for:

· Medium-volume production

· Customized wire harness projects

· Products requiring frequent setup changes

However, operator skill is still an important factor in maintaining quality.



3. Automatic Wire Cutting and Stripping Technology

Fully automatic wire processing systems represent the most advanced solution for modern wire harness manufacturing.

These machines integrate:

· Automatic wire feeding

· Precise length measurement

· Computer-controlled cutting

· Programmable stripping functions

Key advantages include:

Higher Precision

Automatic machines can maintain consistent cutting and stripping dimensions, reducing production variation.

Improved Efficiency

High-speed processing allows manufacturers to handle large production volumes while reducing labor requirements.

Better Quality Stability

Automation minimizes human errors and improves product consistency.

For customers requiring reliable and repeatable wire harness production, automatic wire cutting and stripping technology is an essential capability.



Advanced Wire Cutting and Stripping Technologies in Modern Wire Harness Production

CNC-Controlled Wire Processing Equipment

Modern CNC wire processing machines provide precise control over:

· Cutting length

· Strip length

· Processing speed

· Wire handling

Through digital programming, manufacturers can quickly switch between different wire specifications, making them suitable for customized wire harness projects.



High-Speed Automatic Wire Processing

High-speed wire processing systems are designed for manufacturers handling large production volumes.

They improve:

· Production efficiency

· Manufacturing consistency

· Delivery capability

These systems are especially valuable for industries requiring thousands or millions of wire harness assemblies annually.



Multi-Core and Complex Cable Processing

Many modern applications require complex cables with multiple conductors, shielding layers, or special insulation materials.

Advanced stripping technology allows manufacturers to process:

· Multi-core cables

· Shielded cables

· Twisted pair cables

· Small gauge wires

· Large industrial cables

Professional processing capability enables wire harness suppliers to support more challenging customer requirements.



Key Factors Affecting Wire Cutting and Stripping Quality

1. Cutting Length Accuracy

Wire length accuracy is critical in wire harness manufacturing.

Incorrect cutting dimensions may result in:

· Difficult installation

· Mechanical stress

· Poor appearance

· Assembly delays

Professional manufacturers use calibrated equipment and inspection procedures to ensure cutting accuracy.



2. Stripping Quality and Conductor Protection

A high-quality stripping process should:

· Remove insulation completely

· Maintain conductor integrity

· Avoid scratches or broken strands

Damaged conductors may increase electrical resistance and reduce product reliability.

3. Wire Type and Material Compatibility

Different wires require different processing methods.

Factors include:

· Wire gauge

· Insulation material

· Conductor structure

· Shielding requirements

For example, processing a flexible silicone cable requires different settings compared with standard PVC insulated wires.

Experienced wire harness manufacturers must understand these differences to achieve stable results.

4. Equipment Maintenance and Process Control

Even advanced equipment requires proper maintenance.

Important practices include:

· Regular machine calibration

· Blade replacement

· Tool inspection

· Process monitoring

Consistent equipment performance helps maintain product quality throughout production.

How Professional Wire Harness Manufacturers Ensure Wire Processing Quality

For customers sourcing custom wire harness assemblies, manufacturing capability is just as important as equipment.

A reliable wire harness supplier should have a complete quality control system.

Incoming Material Inspection

Before production begins, manufacturers verify:

· Wire specifications

· Cable dimensions

· Insulation quality

· Material compliance

This ensures only qualified materials enter production.

First Article Inspection

Before mass production, the first completed samples are checked carefully.

Inspection items include:

· Cutting length

· Strip length

· Wire appearance

· Terminal compatibility

This step prevents production problems before large quantities are manufactured.

In-Process Quality Inspection

During production, manufacturers monitor:

· Processing consistency

· Wire dimensions

· Stripping quality

Regular inspections help identify issues quickly and reduce waste.

Electrical Testing

After wire harness assembly, professional manufacturers perform electrical testing such as:

· Continuity testing

· Resistance testing

· Hi-pot testing

These tests ensure the finished harness meets customer requirements.

Wire Cutting and Stripping Technologies for Different Applications

Automotive Wire Harnesses

Automotive applications require:

· High reliability

· Stable performance

· Large production capacity

Precision wire processing helps ensure safety and durability.

Industrial Equipment

Industrial machines often require customized wiring solutions.

Important requirements include:

· Durable connections

· Complex cable configurations

· Long service life

Medical Equipment

Medical applications require extremely high precision and reliability.

Wire processing must meet strict quality requirements to ensure safe operation.

Robotics and Automation Systems

Robotic equipment requires flexible and reliable cable assemblies.

Advanced wire cutting and stripping technologies help produce compact and high-performance harness solutions.

How to Choose the Right Wire Harness Manufacturing Partner

Choosing the right supplier is critical for product quality and project success.

When evaluating a wire harness manufacturer, customers should consider:

1. Wire Processing Capability

Check whether the supplier can handle:

· Different wire sizes

· Custom cable requirements

· Complex assemblies

2. Manufacturing Equipment

Advanced equipment indicates stronger production capability.

Important equipment includes:

· Automatic wire cutting machines

· Automatic stripping machines

· Crimping equipment

· Testing systems

3. Quality Management System

A professional manufacturer should have:

· Standardized production procedures

· Inspection processes

· Traceability systems

4. Engineering Support

A reliable supplier should provide technical support, including:

· Drawing review

· Process optimization

· Prototype development

· Manufacturing recommendations

Frequently Asked Questions (FAQ) About Wire Cutting and Stripping Technologies

1. What is wire cutting and stripping technology?

Wire cutting and stripping technology refers to the manufacturing processes used to cut electrical wires into precise lengths and remove insulation from specific areas before further assembly.

In wire harness manufacturing, these processes prepare wires for operations such as terminal crimping, connector assembly, and electrical testing.

Advanced wire cutting and stripping technologies improve production efficiency, accuracy, and overall wire harness reliability.

2. Why is precision important in wire cutting and stripping?

Precision is critical because incorrect wire dimensions can affect the performance and assembly of a wire harness.

Accurate cutting and stripping help prevent:

· Incorrect wire lengths

· Poor terminal connections

· Conductor damage

· Electrical failures

· Assembly problems

Professional wire harness manufacturers use automated equipment and inspection procedures to maintain consistent processing quality.

3. What types of wires can be processed by automatic cutting and stripping machines?

Modern automatic wire processing equipment can handle a wide range of wires and cables, including:

· Single-core wires

· Multi-core cables

· Shielded cables

· Twisted pair cables

· UL certified wires

· Industrial cables

· Different AWG wire sizes

The processing capability depends on the machine configuration and the wire specifications.

4. What is the difference between manual and automatic wire stripping?

The main difference is processing efficiency, accuracy, and consistency.

Manual wire stripping:

· Suitable for prototypes and small quantities

· Requires more labor

· Has higher variation between operators

Automatic wire stripping:

· Provides consistent stripping length

· Reduces human error

· Improves production efficiency

· Suitable for high-volume wire harness production

For professional wire harness manufacturing, automatic stripping technology is usually preferred for stable quality.

5. How do wire harness manufacturers prevent conductor damage during stripping?

Professional manufacturers prevent conductor damage by controlling:

· Stripping blade settings

· Processing parameters

· Equipment calibration

· Operator training

· Quality inspections

Proper stripping technology removes insulation while protecting copper strands from cuts, scratches, or deformation.

6. What factors should be considered when selecting wire cutting and stripping equipment?

Important factors include:

· Wire size range

· Cable structure

· Required production volume

· Cutting accuracy requirements

· Stripping length tolerance

· Material type

Manufacturers should select equipment based on their customers’ application requirements rather than only production speed.

7. Can wire cutting and stripping technology support custom wire harness projects?

Yes. Advanced wire processing technology is essential for custom wire harness manufacturing.

Professional suppliers can support customized requirements such as:

· Different wire lengths

· Special stripping dimensions

· Multiple wire specifications

· Complex cable assemblies

· Prototype and mass production needs

8. What industries use advanced wire cutting and stripping technologies?

Wire cutting and stripping technologies are widely used in:

· Automotive

· Industrial automation

· Medical equipment

· Robotics

· Energy systems

· Electronic devices

· Communication equipment

Any application requiring reliable electrical connections can benefit from precise wire processing.

9. How do I choose a reliable wire harness manufacturer?

When selecting a wire harness supplier, consider:

· Manufacturing equipment capability

· Wire processing experience

· Quality control system

· Engineering support

· Production capacity

· Certification requirements

A professional manufacturer should be able to support the entire process from wire preparation and assembly to testing and final delivery.

10. Why should I work with a manufacturer that has advanced wire processing capabilities?

A supplier with advanced wire cutting and stripping capabilities can provide:

· More consistent product quality

· Faster production efficiency

· Lower manufacturing risks

· Better support for complex projects

For companies developing custom products, working with an experienced wire harness manufacturer helps improve reliability and shorten product development cycles.



Conclusion: Advanced Wire Cutting and Stripping Technologies Improve Wire Harness Reliability

Wire cutting and stripping technologies play a critical role in modern wire harness manufacturing. From simple wire preparation to complex cable processing, precision and consistency determine the quality of the final product.

Advanced automatic wire processing equipment helps manufacturers achieve:

· Higher production efficiency

· Better dimensional accuracy

· Reduced manufacturing errors

· Improved product reliability

For companies looking for a professional wire harness manufacturing partner, choosing a supplier with advanced wire cutting and stripping capabilities is essential.

At Singder, we provide professional wire harness processing services, including wire cutting, stripping, crimping, assembly, and customized cable solutions. With advanced manufacturing equipment and strict quality control processes, we support customers from prototype development to mass production.

If you are looking for a reliable partner for custom wire harness or cable assembly projects, contact our team to discuss your requirements.
