What Are Wire Harness Testing Methods?

Wire harness testing methods are quality assurance procedures used to verify the electrical, mechanical, and functional integrity of a wire harness before it is installed into equipment or shipped to customers.

The most common wire harness testing methods include continuity testing, short-circuit testing, insulation resistance testing, Hi-Pot testing, pull force testing, voltage drop testing, and functional testing. These tests help manufacturers identify defects such as open circuits, incorrect pin assignments, poor crimps, insulation failures, and wiring errors before products reach the field.

For OEM manufacturers, proper wire harness testing is not simply a quality control step—it is a critical process that directly impacts product reliability, safety, warranty costs, and customer satisfaction.

As electrical systems become increasingly complex across industries such as industrial automation, robotics, electric vehicles, energy storage systems, medical equipment, and consumer electronics, comprehensive wire harness testing has become an essential part of modern manufacturing.

Why Wire Harness Testing Matters

A wire harness serves as the central nervous system of an electrical product. It distributes power, transmits signals, and connects critical components throughout the system.

Even a minor wiring defect can cause significant problems, including:

·  Equipment malfunction

·  Unexpected downtime

·  Signal transmission errors

·  Safety hazards

·  Product recalls

·  Increased warranty claims

For example, a single miswired connector in an industrial control cabinet may stop an entire production line, resulting in thousands of dollars in lost production within hours.

This is why leading OEM manufacturers require strict testing procedures and documented quality records from their wire harness suppliers.

The primary objectives of wire harness testing are:

·  Verify electrical continuity

·  Confirm correct wiring configuration

·  Detect short circuits

·  Evaluate insulation performance

·  Validate crimp quality

·  Assess mechanical strength

·  Ensure compliance with customer specifications





Overview of Common Wire Harness Testing Methods

Each testing method serves a different purpose and together they create a comprehensive quality assurance process.

1. Continuity Testing

What Is Continuity Testing?

Continuity testing is the most fundamental wire harness testing method. It verifies that electrical current can flow from one end of a conductor to the other without interruption.

The test confirms that all intended electrical paths are complete.

How It Works

A low-voltage signal is applied to one end of the conductor while the tester checks for signal reception at the opposite end.

If the signal successfully passes through the circuit, the connection is considered continuous.

Common Defects Detected

·  Broken conductors

·  Open circuits

·  Missing terminals

·  Improper crimps

·  Incomplete assembly



Typical Testing Equipment

·  Digital multimeters

·  Continuity testers

·  Automated wire harness testers



2. Pin-to-Pin Verification Testing

Why Pin Mapping Is Critical

A wire harness may pass continuity testing but still fail if wires are connected to incorrect terminals.

Pin-to-pin verification ensures that every conductor is connected to the correct connector position according to engineering drawings.

Common Errors Detected

·  Crossed wires

·  Reversed circuits

·  Incorrect terminal insertion

·  Missing circuits



This test is particularly important in applications involving multiple connectors and complex signal routing.

Industries that heavily rely on pin mapping verification include:

·  Robotics

·  Industrial automation

·  Medical equipment

·  Electric vehicles

·  Energy storage systems



3. Short Circuit Testing

What Is Short Circuit Testing?

Short circuit testing identifies unintended electrical connections between conductors.

These defects can occur due to:

These defects can occur due to:

· Damaged insulation

· Assembly mistakes

· Connector contamination

· Crushed cables

Why It Matters

Undetected short circuits can cause:

· Equipment damage

· Overheating

· Signal interference

· Safety hazards

Most automated wire harness testing equipment combines continuity and short-circuit testing into a single inspection cycle.

4. Insulation Resistance Testing

Purpose of Insulation Resistance Testing

Insulation resistance testing evaluates the quality of insulating materials surrounding conductors.

The goal is to ensure that electrical current remains confined to its intended path.

Testing Procedure

A DC voltage is applied between conductors and ground.

The tester measures resistance values and identifies leakage paths.

Higher resistance values generally indicate better insulation performance.

Common Problems Detected

· Damaged insulation

· Moisture contamination

· Material degradation

· Manufacturing defects

Typical Testing Equipment

· Insulation resistance testers

· Megohmmeters

· Automated safety testing systems

This test is particularly important for products operating in humid, outdoor, or high-voltage environments.

5. Hi-Pot (Dielectric Withstand) Testing

What Is Hi-Pot Testing?

Hi-Pot testing, short for High Potential Testing, verifies whether insulation can withstand voltages significantly higher than normal operating conditions.

This test evaluates the dielectric integrity of the wire harness.

How It Works

A high voltage is applied between conductors and insulation barriers.

The testing system monitors leakage current during the test period.

If insulation breaks down, the harness fails the test.

Applications

Hi-Pot testing is widely used in:

· Medical devices

· Industrial machinery

· Energy storage systems

· Power distribution equipment

· EV charging infrastructure

Benefits

Hi-Pot testing provides an additional level of confidence that insulation systems will remain reliable throughout the product's service life.

6. Pull Force Testing

Why Crimp Quality Matters

Industry studies consistently show that many wire harness failures originate from poor crimping rather than conductor defects.

A weak crimp may initially function correctly but fail after exposure to vibration, temperature changes, or mechanical stress.

Testing Method

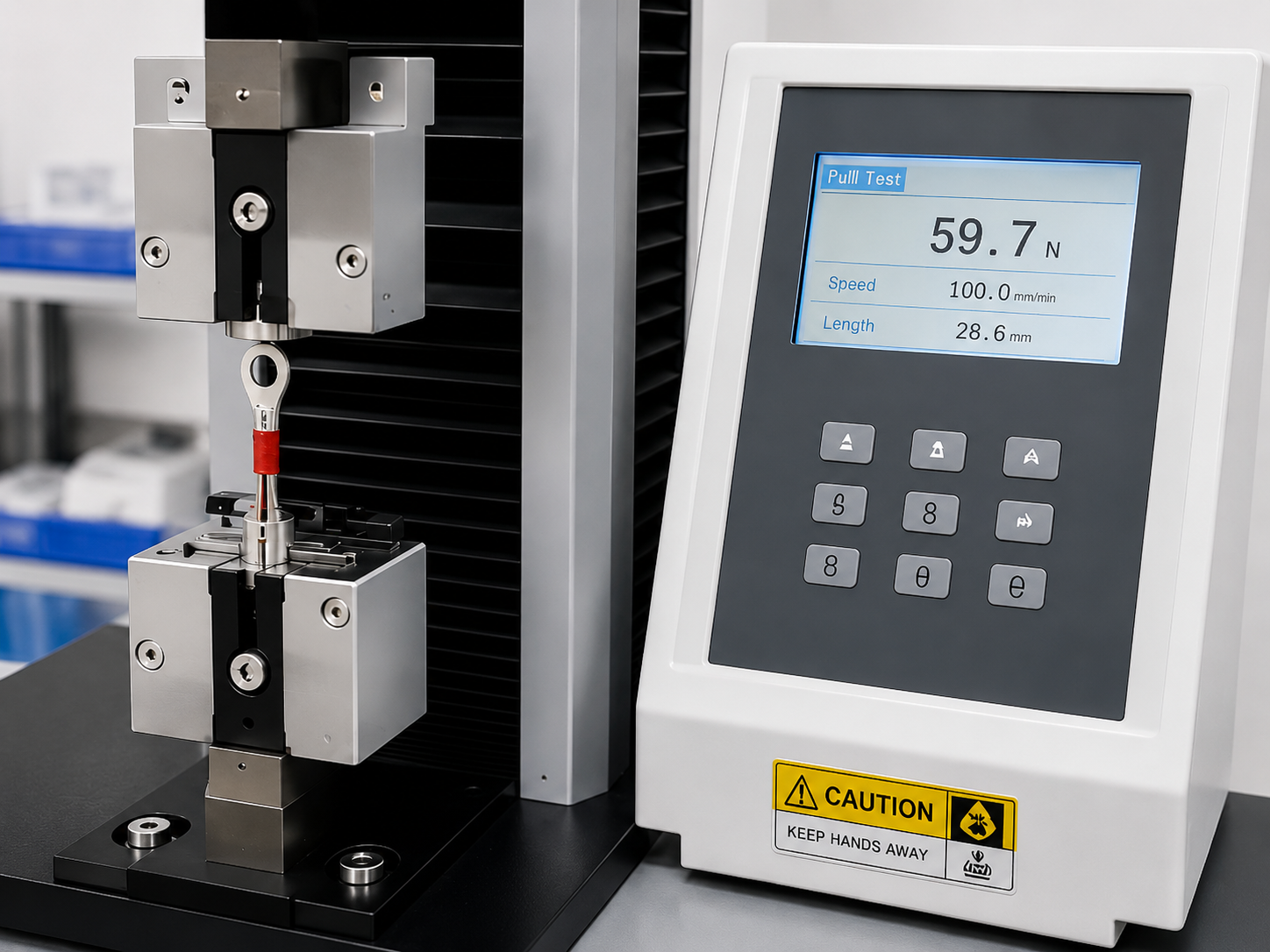

The terminal is pulled using a calibrated tensile testing machine until separation occurs.

The measured force is compared against customer requirements and industry standards.

Defects Identified

· Under-crimping

· Over-crimping

· Improper conductor insertion

· Terminal defects

Testing Equipment

· Pull force testers

· Tensile testing machines

· Crimp analyzers



7. Voltage Drop Testing

Purpose

Voltage drop testing measures the amount of voltage lost as electrical current travels through the circuit.

Excessive voltage drop often indicates high resistance connections.

Causes of High Voltage Drop

· Poor crimps

· Corrosion

· Damaged conductors

· Undersized wire gauges

· Connector defects

This testing method is especially important in high-current applications such as battery systems and industrial power distribution.



8. Functional Testing

What Is Functional Testing?

Functional testing evaluates the wire harness under actual operating conditions.

Rather than simply checking electrical paths, the test verifies real-world performance.

Examples

Functional testing may include:

· Sensor validation

· Switch operation

· CAN bus communication

· Signal transmission verification

· Power distribution testing

Among all testing methods, functional testing often provides the highest confidence level because it closely replicates the final application environment.



What Testing Equipment Is Used in Wire Harness Manufacturing?

Modern wire harness manufacturers increasingly rely on automated testing equipment to improve quality consistency and production efficiency.

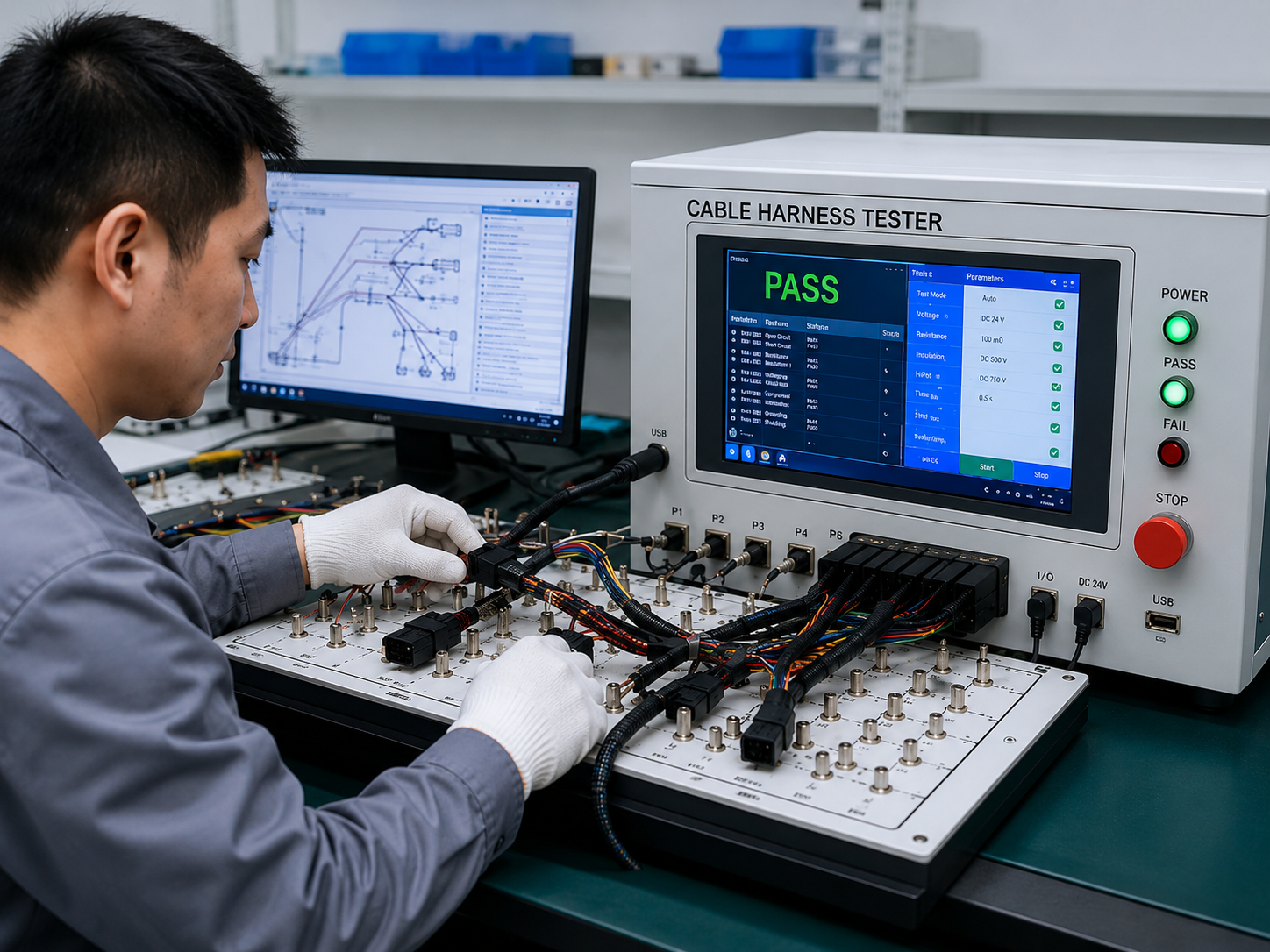

Automated Harness Testers

Used for:

· Continuity testing

· Pin mapping verification

· Short-circuit detection

Benefits include:

· High testing speed

· Reduced human error

· Automated reporting

Hi-Pot Testers

Used to verify insulation withstand voltage and dielectric integrity.

Insulation Resistance Testers

Measure leakage resistance between conductors and ground.

Pull Force Testers

Verify crimp strength and terminal retention.

Micro-Ohm Testers

Measure extremely low resistance values to identify poor electrical connections.

Advanced testing equipment often integrates barcode systems, traceability records, and digital quality reporting to support modern manufacturing requirements.

How Professional Wire Harness Manufacturers Perform Quality Testing

Testing should not be viewed as a single inspection step at the end of production.

Professional manufacturers implement quality control throughout the entire manufacturing process.

A typical testing workflow includes:

Incoming Material Inspection

Verification of:

· Wire specifications

· Terminal dimensions

· Connector quality

In-Process Inspection

Monitoring:

· Crimp quality

· Wire stripping dimensions

· Assembly accuracy

Electrical Testing

Including:

· Continuity testing

· Short-circuit testing

· Pin-to-pin verification

Final Inspection

Verification of:

· Product appearance

· Labeling

· Packaging

· Customer-specific requirements

Manufacturers that perform 100% electrical testing before shipment generally achieve significantly lower defect rates compared to those relying solely on sampling inspections.



Wire Harness Testing Standards and Industry Requirements

Different industries maintain different testing requirements.

IPC/WHMA-A-620

Widely recognized as the industry standard for cable and wire harness assemblies.

It defines workmanship requirements and acceptance criteria.

IATF 16949

Commonly required in automotive manufacturing.

Focuses on defect prevention and continuous improvement.

UL Standards

Provide safety requirements for electrical products and cable assemblies.

IEC Standards

Widely adopted for international electrical safety compliance.

Customer-Specific Standards

Many OEMs establish their own testing protocols beyond industry requirements.

An experienced wire harness supplier should be capable of supporting both standard and customized testing procedures.



Choosing a Wire Harness Manufacturer with Reliable Testing Capabilities

When evaluating a wire harness supplier, testing capabilities should be a major consideration.

Ask the following questions:

Do they perform 100% electrical testing?

Can they provide test reports?

What testing equipment do they use?

Do they have traceability systems?

Are they ISO 9001 certified?

Are they IATF 16949 certified?

Can they support customer-specific testing requirements?

A supplier's ability to answer these questions confidently often reflects the maturity of its quality management system.



Frequently Asked Questions About Wire Harness Testing

What is the most important wire harness test?

Continuity testing is the most basic and essential test because it verifies complete electrical connections.

What is the difference between continuity testing and Hi-Pot testing?

Continuity testing verifies electrical pathways, while Hi-Pot testing evaluates insulation strength under high voltage conditions.

Is Hi-Pot testing required for every wire harness?

Not always. Requirements depend on application voltage, industry standards, and customer specifications.

What causes most wire harness failures?

Common causes include poor crimps, incorrect wiring, insulation damage, and connector defects.

Can wire harness testing be automated?

Yes. Modern automated testing equipment can perform continuity, short-circuit, and pin mapping verification rapidly and accurately.

How often should testing equipment be calibrated?

Calibration frequency depends on equipment type and quality procedures but is typically performed annually or according to internal quality standards.

Why is pull force testing important?

It verifies the mechanical integrity of crimped connections and helps prevent field failures caused by weak terminations.

What industries require extensive wire harness testing?

Automotive, industrial automation, robotics, medical devices, renewable energy, aerospace, and energy storage systems all require rigorous testing procedures.



Conclusion

Wire harness testing is a critical component of modern manufacturing and product reliability. From continuity testing and short-circuit detection to insulation resistance evaluation and functional validation, each testing method serves a unique role in ensuring quality and safety.

As electrical systems become increasingly sophisticated, manufacturers must adopt comprehensive testing strategies supported by advanced testing equipment and robust quality management systems.

For OEMs seeking a reliable wire harness partner, evaluating testing capabilities is just as important as evaluating manufacturing capacity. A supplier with strong testing procedures, documented quality systems, and proven inspection processes can help reduce failures, improve product performance, and support long-term business success.
