In any electrical or electronic system, wire insulation plays a crucial role in ensuring safe, reliable, and efficient operation. Whether you're working with industrial control panels, consumer electronics, renewable energy systems, or power transmission infrastructure, choosing the right type of insulation is just as important as selecting the correct wire gauge or conductor material.This in-depth guide covers everything you need to know about wire insulation: its purpose, types, material options, and ideal applications across various industries. By understanding these factors, you can make decisions that ensure your systems operate safely.

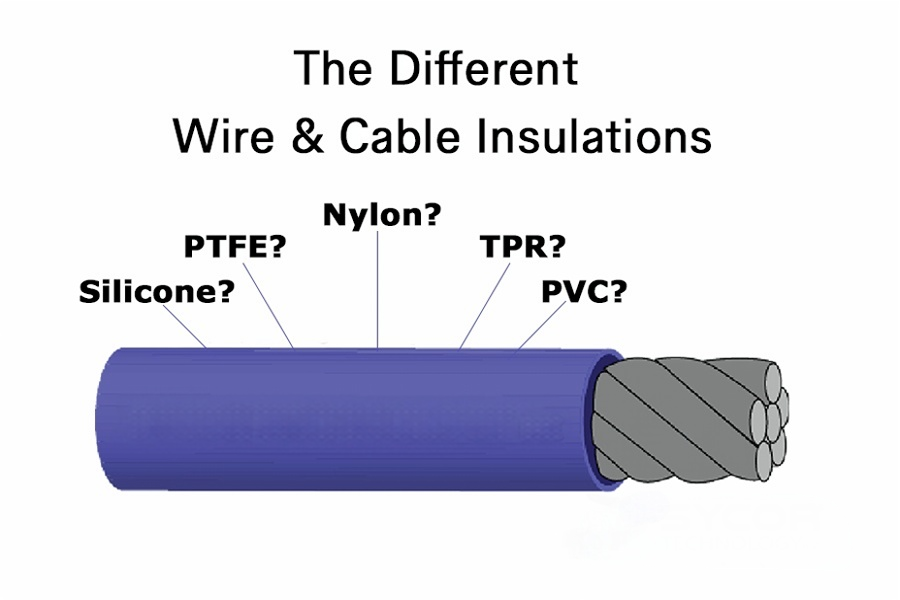

Wire insulation is a non-conductive layer that covers and protects the wire conductor. Its primary functions include:
Preventing short circuits and electrical leakage
Protecting the conductor from moisture, chemicals, and mechanical damage
Resisting high temperatures or environmental exposure
Maintaining signal integrity in data or RF applications
The material used for insulation can significantly affect the wire’s performance, lifespan, and compliance with safety standards.
Insulation is more than just a coating—it determines how a wire behaves in specific environments. For instance:
In aerospace, insulation must withstand extreme temperature variations.
In automotive, it must be resistant to oils and vibrations.
In medical equipment, insulation should be biocompatible and flexible.
In data communication, insulation with low dielectric loss is crucial.
Properties: Flame-retardant, moisture- and abrasion-resistant.
Temp Range: -55°C to 105°C.
Applications: Versatile; used in household wiring, industrial cables, and automotive.
Stronger mechanical resistance than regular PVC.
Ideal for applications where abrasion resistance is critical.
Specifically designed for air-circulating spaces like raised floors and ceilings.
Flame-retardant and low-smoke emitting.
High dielectric strength; excellent for coaxial and RF cables.
Temp Range: -65°C to 80°C.
Not flame-resistant unless modified.
Lighter and stiffer than PE; used in lightweight electronic applications.
Highly flexible with excellent abrasion and chemical resistance.
Ideal for retractile cords, marine, and robotic cables.
Good resistance to heat, oil, and chemicals.
Common in industrial power and control cables.
Typically used as an outer jacket for abrasion protection.
Highly resistant to oil, chemicals, and cut-through.
Flexible at low temps, good resistance to water and alcohol.
Not ideal for oil or ozone exposure.
Combines the benefits of plastics and rubbers.
Excellent for flexible applications requiring wider temperature range.
Oil-, abrasion-, and flame-resistant.
Long service life, used in harsh environments.

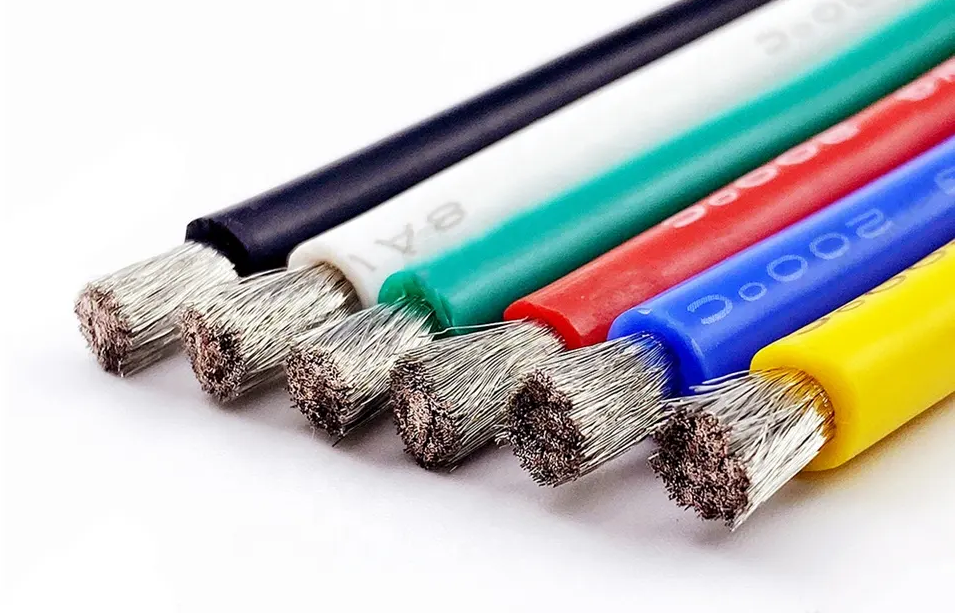

Extremely heat-resistant (up to 180°C) and flexible.
Common in medical and high-temperature electronics.
Great for high-voltage applications due to superior electrical properties.
Also resists water, alcohol, acid, and oxidation.
Known for its ozone, weather, and abrasion resistance.
Suitable for outdoor, automotive, and appliance wires.
UV-, chemical-, and weather-resistant.
Found in transformers, motor leads, and appliance wiring.
Non-stick, extremely chemical- and heat-resistant.
Operating temps up to 204°C.
Excellent for harsh or corrosive environments.
Flame-resistant, low smoke.
Common in plenum and military cables.
Combines PTFE's resistance with greater strength.
Used in high-frequency and high-temperature applications.
Higher tensile strength than PTFE/FEP.
Ideal for weight-sensitive and foamed cable constructions.
Cost-effective alternative to PTFE.
Good abrasion and flame resistance.
Meets UL 910 plenum cable rating.
When selecting a wire insulation type, consider the following:
Temperature Range: Will the wire face freezing or extreme heat?
Flexibility: Does the wire need to bend or retract repeatedly?
Chemical Exposure: Will it be near oil, acids, or solvents?
Electrical Requirements: High voltage? High-speed data?
Fire Safety: Is the cable routed through plenum spaces?
Material | Temp Range | Key Traits | Typical Use |
PVC | -55°C to 105°C | Flame retardant, low cost | General wiring |
PE | -65°C to 80°C | Excellent dielectric | Coaxial, RF |
PUR | -62°C to 93°C | High flex, abrasion resistant | Robotics, retractiles |
PTFE | -73°C to 204°C | Chemically inert, high-temp | Aerospace, lab |
Silicone | Up to 180°C | Very flexible, heat resistant | Medical, high-temp |
EPR | -50°C to 160°C | Great electrical insulation | Power cables |
FEP | -65°C to 200°C | Flame resistant, low smoke | Plenum, military |
When choosing wire insulation, it’s not just about materials and temperature—compliance with safety standards is crucial, especially in regulated environments like construction, healthcare, transportation, or military applications.
Here are key certifications and standards you should be aware of:
UL tests and certifies wiring insulation based on flame resistance, electrical performance, and mechanical durability. Common UL ratings include:
UL 62 – Flexible cords and cables
UL 758 – Appliance wiring material
UL 910 – Flame test for plenum cables (important for building codes)
A UL mark ensures that the insulation material meets safety performance benchmarks for flammability, voltage resistance, and heat aging.
Published by the NFPA (National Fire Protection Association), the NEC defines where and how different types of insulated wires can be used. For example:
Plenum-rated insulation (like FEP or Plenum PVC) is required in HVAC spaces with air circulation.
THHN, THWN, and MTW types must meet environmental and fire resistance requirements for buildings.
In Europe and many global markets, environmental regulations like RoHS (Restriction of Hazardous Substances) and REACH govern the use of harmful chemicals in wire insulation. Look for certifications confirming that insulation materials are:
Free from lead, cadmium, mercury, and other restricted substances
Environmentally safe and recyclable when possible
Many industrial and aerospace applications require compliance with:
ISO 6722 (for road vehicles)
MIL-DTL-16878, MIL-W-22759, and similar military specs for high-performance wires
Always check the datasheet or specification sheet for your wire or cable product to confirm certification markings before installation.
Wire insulation isn't just a protective layer — it's a performance component. The wrong choice could lead to overheating, breakdowns, or signal interference. Whether you're selecting cable for a data center, factory floor, or aerospace system, understanding the strengths and limits of each insulation material will ensure your project runs safely and efficiently.
