25mm2 35mm2 UL11627 1KV 3KV Solar Connection Cable for ESS

Overview

Designed specifically for large-scale Energy Storage Systems (ESS), this 25mm2 and 35mm2 solar connection cable delivers uncompromising power transmission for demanding environments. Engineered to handle rated voltages of 1KV to 3KV and currents ranging from 60A to 600A, the cable assembly forms the critical lifeline of battery packs, energy storage cabinets, and power converters. The robust outer jacket offers a firm, resilient tactile feel, indicating its heavy-duty construction designed to withstand extreme outdoor conditions. By utilizing tightly stranded, high-purity copper conductors, the design minimizes electrical resistance, ensuring that every watt of generated power is transferred with maximum efficiency. Whether deployed in freezing -40℃ climates or sweltering 125℃ operational setups, the materials resist degradation, cracking, and UV exposure. The integrated quick-lock mechanism on the connectors provides a reassuring, audible click upon engagement, confirming a secure, touch-proof connection that protects operators and infrastructure alike while maintaining a seamless integration with various renewable energy platforms.

Plug/Socket Model

The plug and socket components are molded from premium PA66 reinforced with 30% glass fiber, resulting in a dense, rigid shell with a matte finish that resists mechanical impacts and environmental stress. Inside these durable housings, the electrical copper rows feature precision-machined brass with a thick silver plating. This silver layer not only provides a bright, tarnish-resistant visual appearance but also drastically lowers contact resistance for heavy current loads up to 350A. During installation, the press-to-release design facilitates rapid assembly while maintaining exceptional pull-out strength. Operators will notice the smooth engagement and the tight, weatherproof seal that achieves an IP67 rating, keeping moisture and dust completely out of the contact zone. Furthermore, the UL94 V-0 flame retardant property ensures that the housings self-extinguish instantly in the event of thermal anomalies, providing a critical layer of safety for high-capacity battery storage tanks.

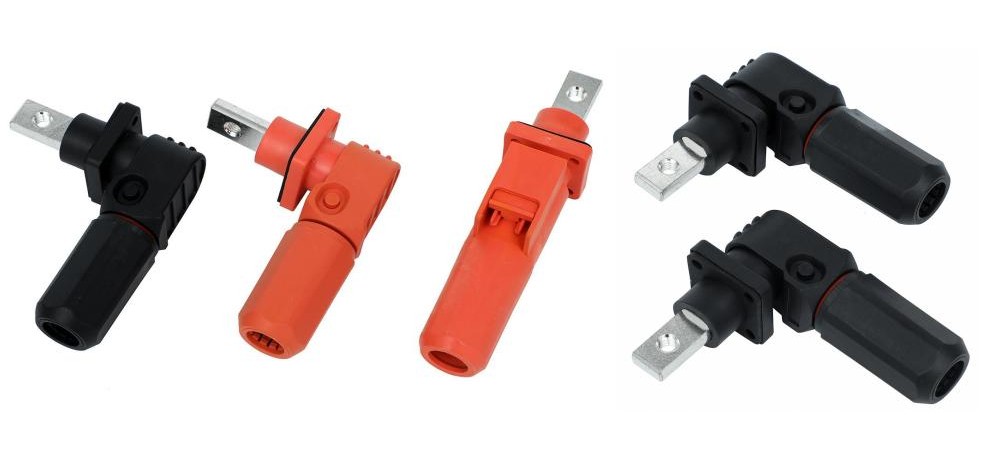

Plug Datasheet

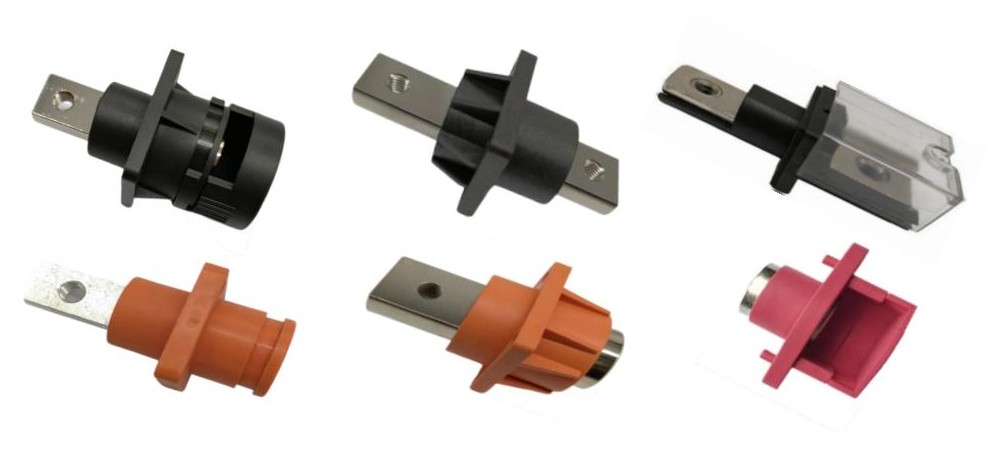

Socket Datasheet

Wire Model

Selecting the appropriate wire model is crucial for optimizing the lifespan and efficiency of any solar energy storage system. Our portfolio includes a diverse range of UL-certified and VDE-approved cables, such as the highly flexible NSGAFÖU rubber wire and the robust UL3321 XLPE insulated models. The insulation layers are extruded with absolute concentricity, providing a smooth, uniform surface that resists abrasion during cable routing in tight energy storage cabinets. Beneath the tough exterior, the core consists of exceptionally pure bare or tinned copper strands. The tinned variants offer a subtle silver luster and provide enhanced defense against oxidation in humid environments, maintaining high conductivity. These cables are engineered to preserve their structural integrity and electrical properties across a broad temperature spectrum, preventing the insulation from becoming brittle in freezing conditions or softening under intense thermal loads up to 150ºC. This steadfast reliability translates to zero-maintenance operation and consistent energy flow over decades of continuous use.

Lug/Terminal Model

Secure termination is the cornerstone of safe high-voltage power distribution. The SC series copper lugs, accommodating wire ranges from 1mm2 all the way to heavy-gauge 120mm2, are manufactured through precision stamping and forming processes. Each terminal exhibits a flawlessly smooth interior barrel, allowing for effortless insertion of the stranded copper wire without snagging or fraying. The substantial wall thickness of the lugs ensures that once crimped, the connection becomes virtually cold-welded, eliminating microscopic air gaps where moisture could initiate galvanic corrosion. The exterior of the lugs features a clean, polished metallic finish, reflecting the pure copper composition that guarantees unimpeded electron flow. By matching the exact stud size requirements from 4.2mm to 17mm, these terminals provide a flush, high-contact-area interface with busbars and battery posts, effectively dissipating heat and preventing thermal runaway at the connection points.

Certification

Reliability in energy storage cannot be left to chance; it must be proven through rigorous, standardized testing. This solar connection cable assembly has undergone exhaustive evaluation to secure highly respected certifications, including UL, VDE, CCC, and RoHS compliance. During the manufacturing process, advanced automated testing equipment subjects each batch to 5000V AC impulse withstand voltage tests, ensuring leakage current remains strictly below 1mA. The components are also exposed to brutal 48-hour salt spray chambers to verify their anti-corrosion capabilities, guaranteeing they will endure coastal or highly industrial atmospheres without degradation. This uncompromising approach to quality control means that every shipped unit arrives free of defects and ready for immediate deployment. By adhering to ISO 9001 and IATF 16949 quality management systems, we maintain complete traceability and consistency, providing project engineers with the absolute confidence required when designing grid-scale energy storage converters.

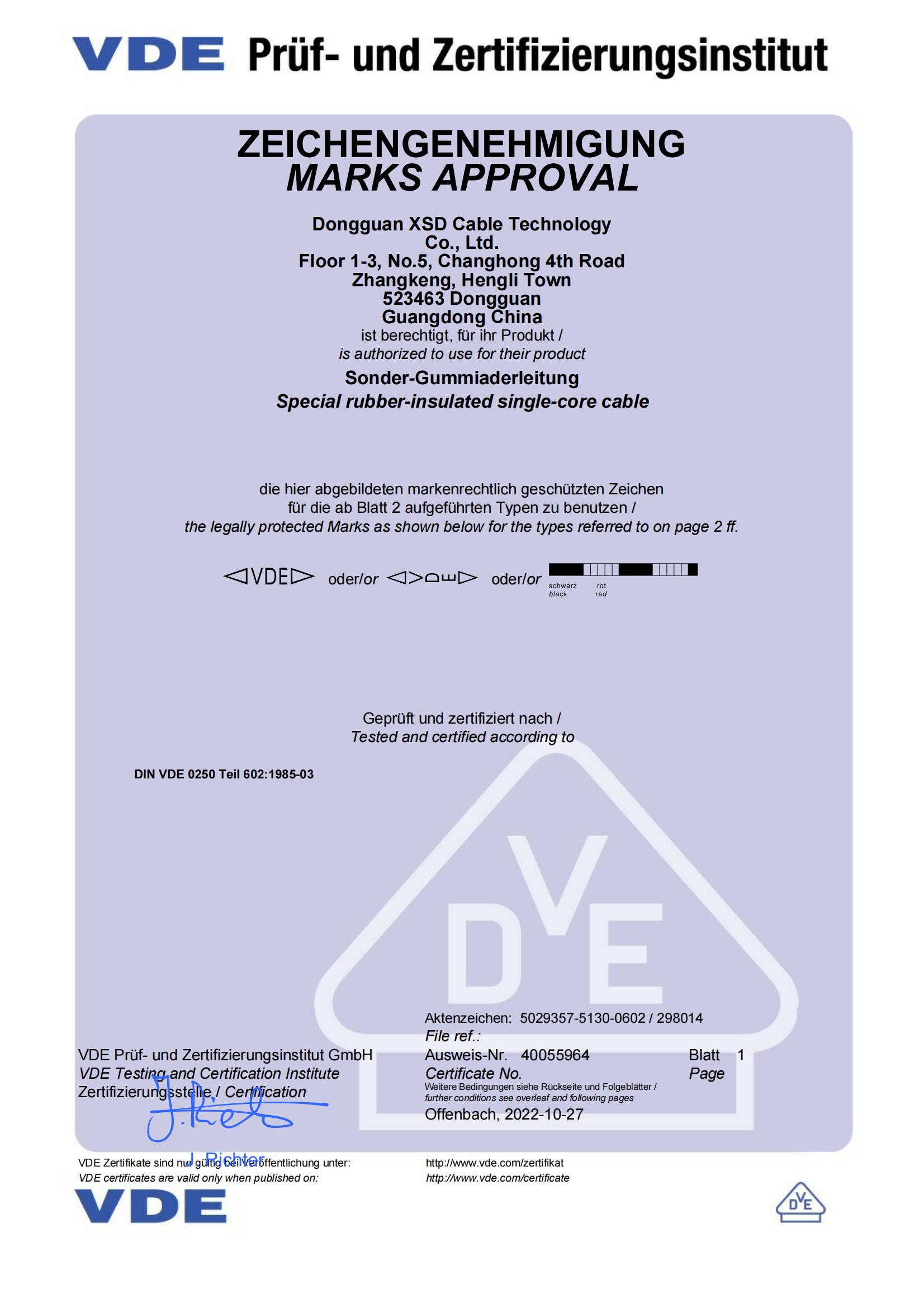

VDE Certificate

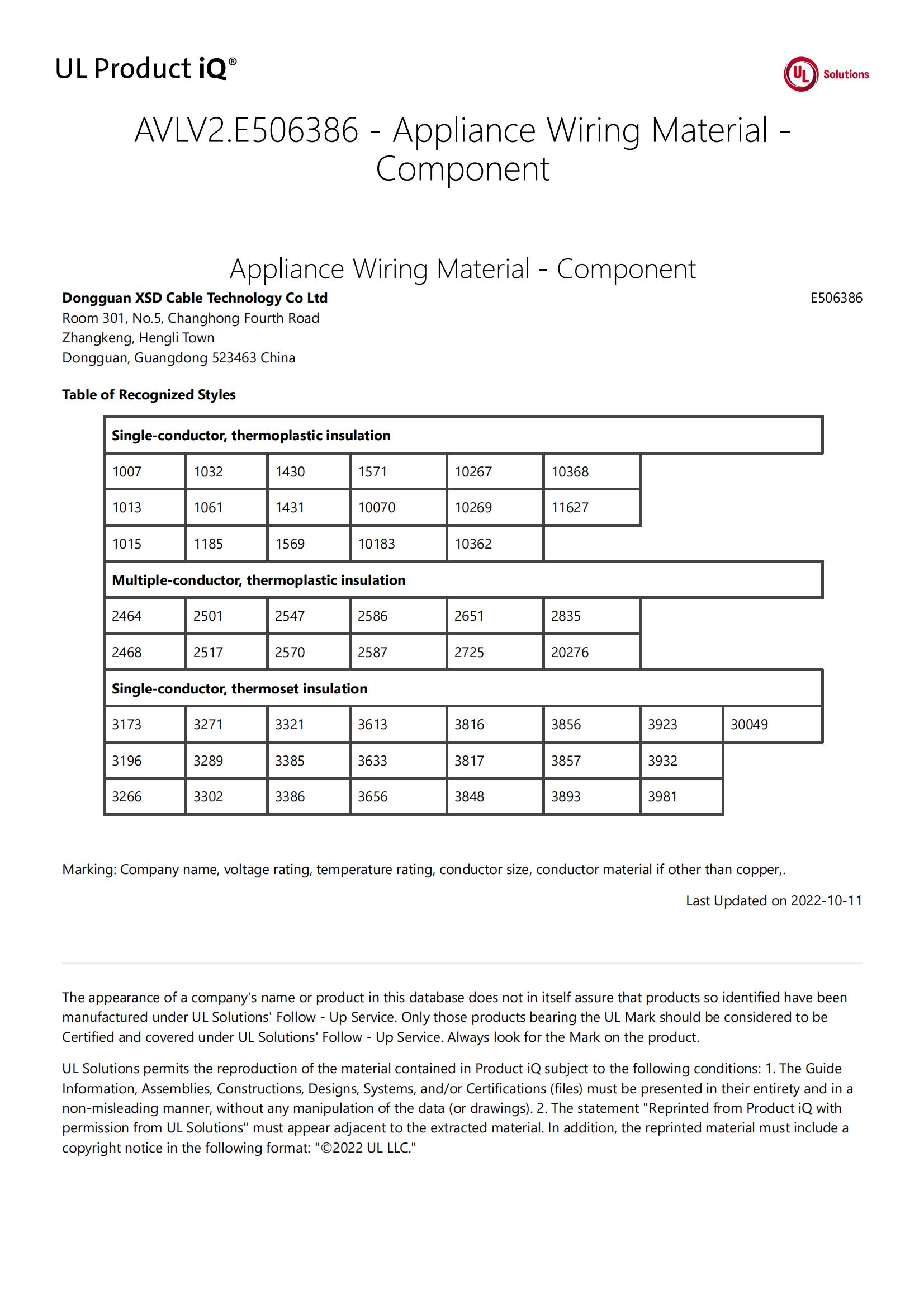

UL Certificate-XSD

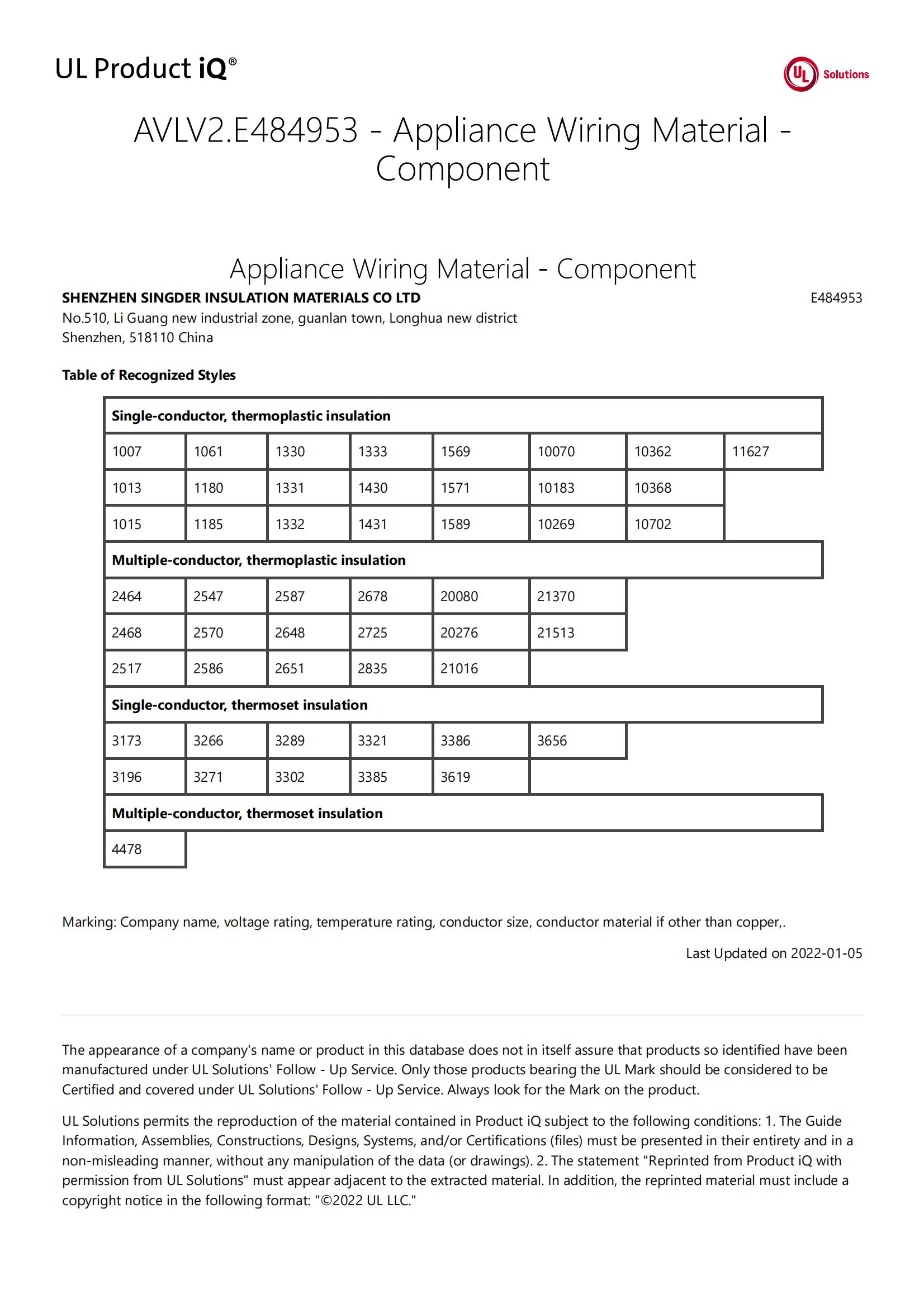

UL Certificate-SINGDER

Manufacturing Capabilities & Customization

Recognizing that no two energy storage projects are perfectly identical, we offer comprehensive OEM and ODM customization services tailored to specific architectural and electrical demands. Our advanced manufacturing facilities are equipped to modify cable lengths, integrate specialized corrugated pipes for added mechanical protection, and adapt terminal configurations to interface seamlessly with proprietary battery packs. We support engineering teams with rapid prototyping and the availability of free, off-the-shelf samples to validate performance in real-world setups prior to bulk procurement. Backed by decades of wire and cable manufacturing expertise, our dedicated technical support team works closely with clients to navigate complex routing challenges and compliance requirements. From initial design consultation to global logistics and swift delivery, our end-to-end service ensures that your project timelines are met with precision and your energy storage systems operate at peak efficiency.
