In the world of electrical systems, wire harness connectors serve as the critical link that joins various circuits together. Whether you're designing an automotive wiring system, building industrial equipment, or repairing consumer electronics, understanding the different connector types used in wire harnesses is essential for ensuring reliable, safe, and efficient performance.
This comprehensive guide explores the most common wire harness connector types, their applications, and how to choose the right one for your project.
A wire harness connector is a device that enables pluggable interconnections between wire harnesses and electrical components. It typically consists of two main parts: terminals (metal components that conduct electricity) and housings (plastic casings that protect and secure the terminals).
The terminal serves as the core for current transmission, featuring a front contact area for conductivity, a crimping zone for securing the wire, and insulation crimp wings for strain relief. The housing, made from engineering plastic, secures terminals, prevents short circuits, and guards against dust ingress.
Wire harness connectors can be classified in several ways:
Classification | Categories |
By Connection Target | Wire-to-Wire, Wire-to-Board, Board-to-Board |
By Environment | Sealed (waterproof), Non-Sealed |
By Current Rating | Power Connectors, Signal Connectors |
By Shape | Circular, Rectangular, D-type |

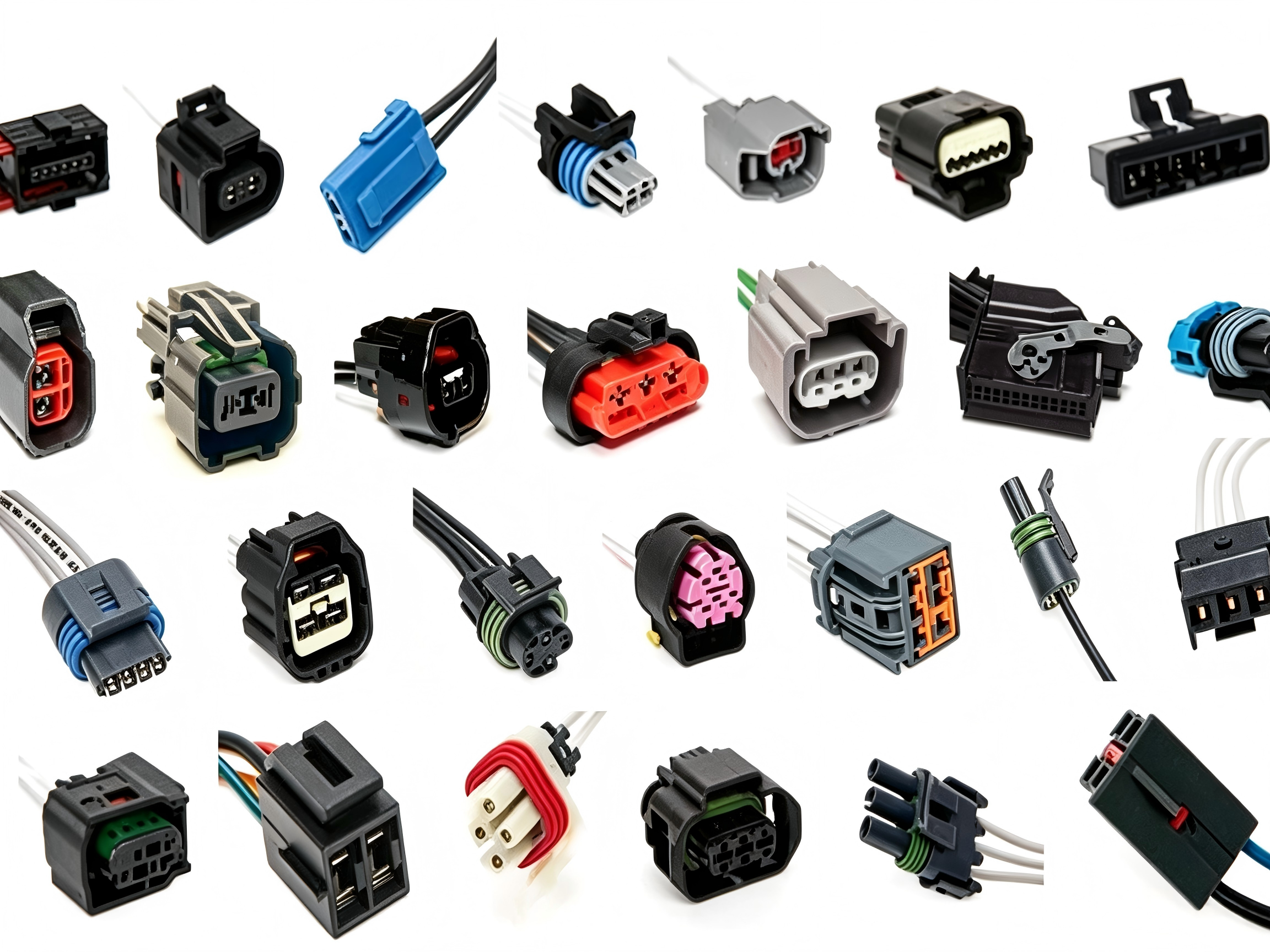

Plug and socket connectors are perhaps the most common type used in wiring harnesses. They consist of a male plug (with pins) and a female socket (with holes) that fit together to form a secure connection.

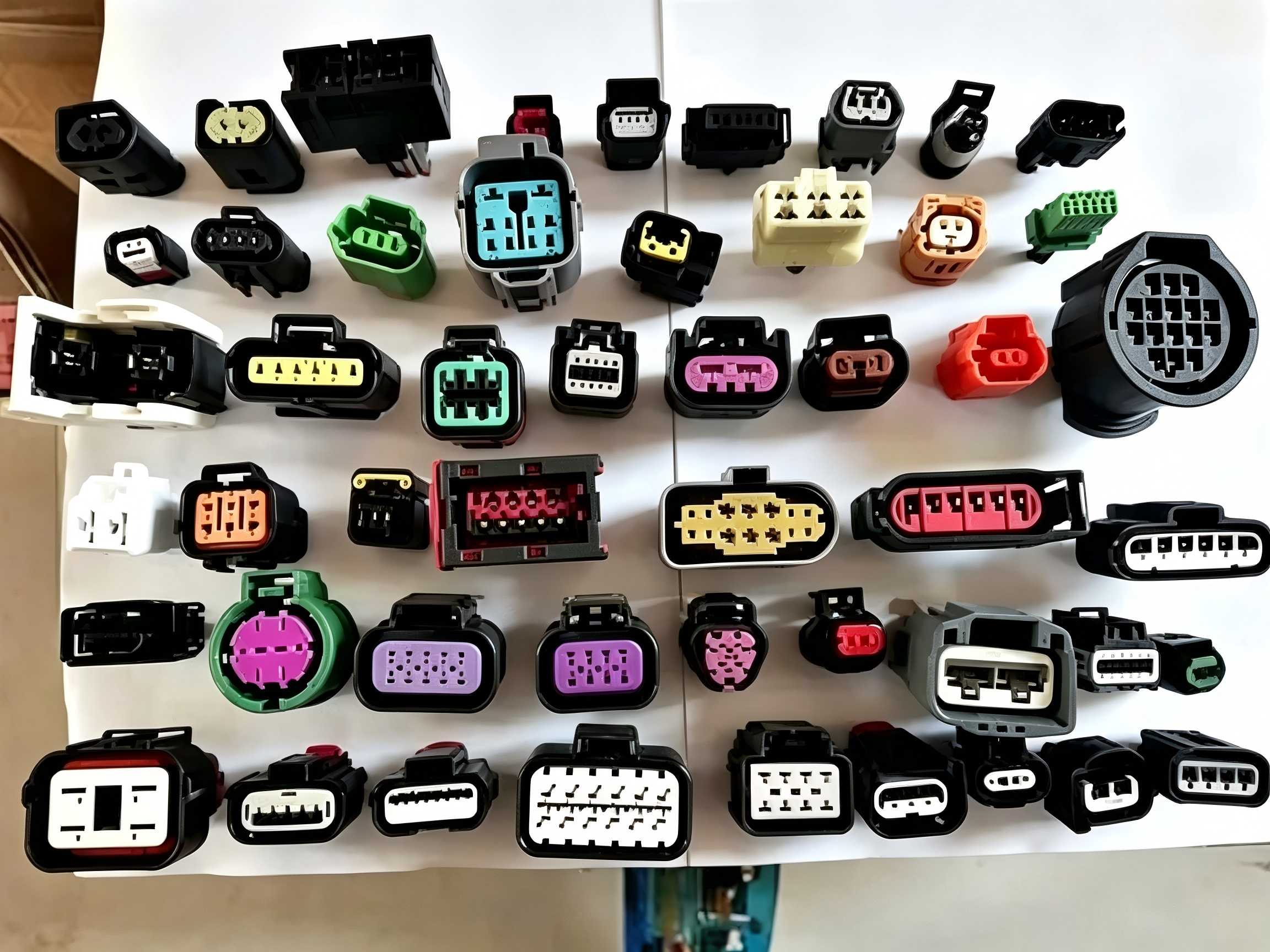

Applications: Consumer electronics, automotive systems, industrial applications. Examples include USB ports, audio jacks, and automotive sensor connections.

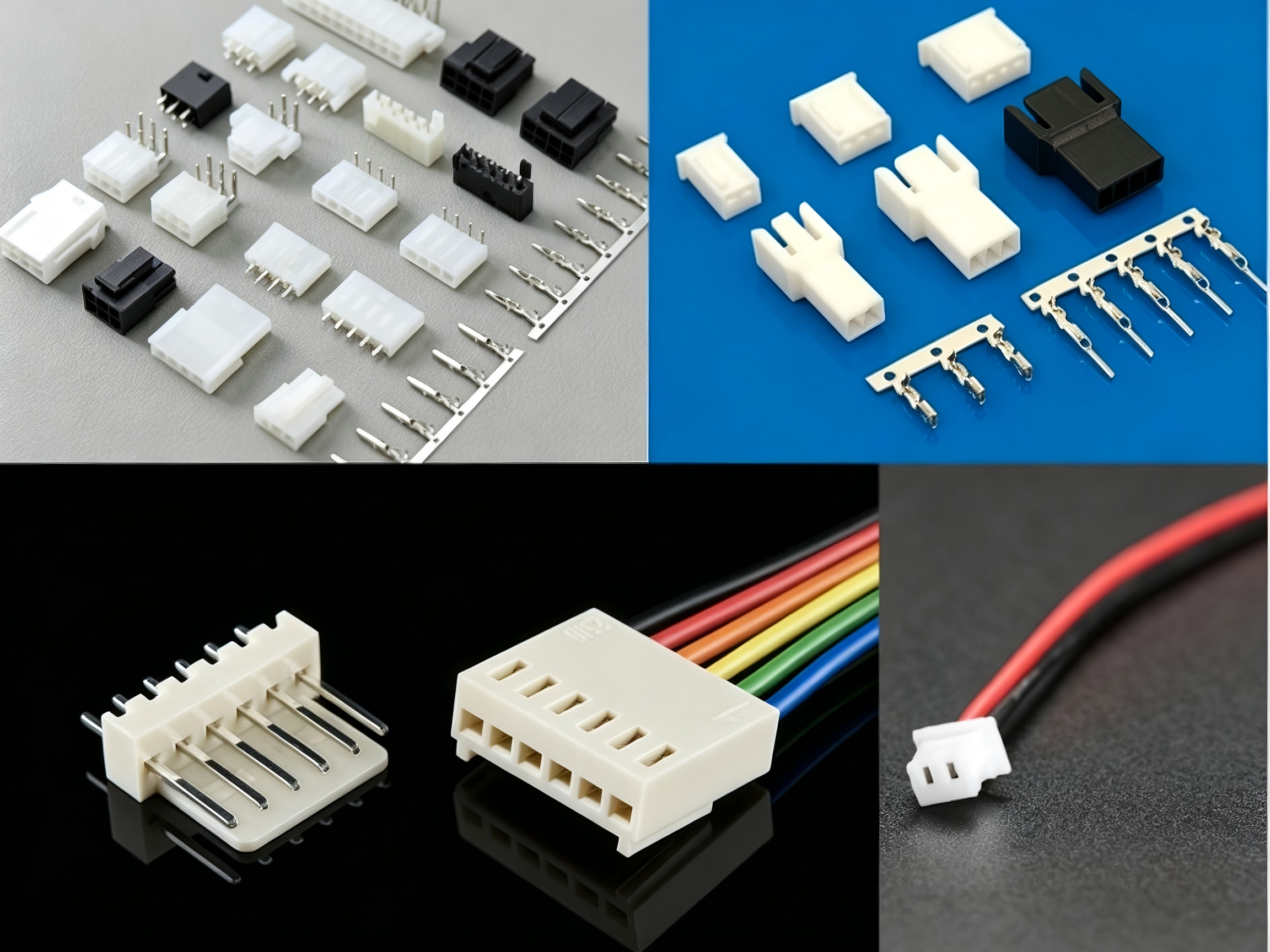

Terminal connectors are used to terminate a wire and connect it to a terminal block, another wire, or a mating part. They come in various shapes including ring, spade, fork, pin, blade, bullet, butt, and quick-disconnect terminals.
Applications: Electrical control panels, automotive wiring repairs, power distribution systems.
Circular connectors feature a round housing and are ideal for applications requiring robust, vibration-resistant connections. Most industrial circular connectors use metric threads like M8, M12, or M23—the M12 form factor alone makes up an estimated 60% of all circular connectors sold for factory automation.
Applications: Industrial equipment, aerospace, military, factory automation sensors and actuators.
Rectangular connectors have a rectangular housing and typically consist of a plug and socket. They are versatile and can be easily customized based on the number of pins required.
Applications: Widely used across automotive, industrial, and consumer electronics industries.
Blade connectors—also known as spade or flat connectors—feature a flat, conductive blade that slides into a corresponding slot or receptacle. They provide a quick way to make and break connections.
Applications: Automotive and household electrical systems, connecting wires to switches, relays, and motors.

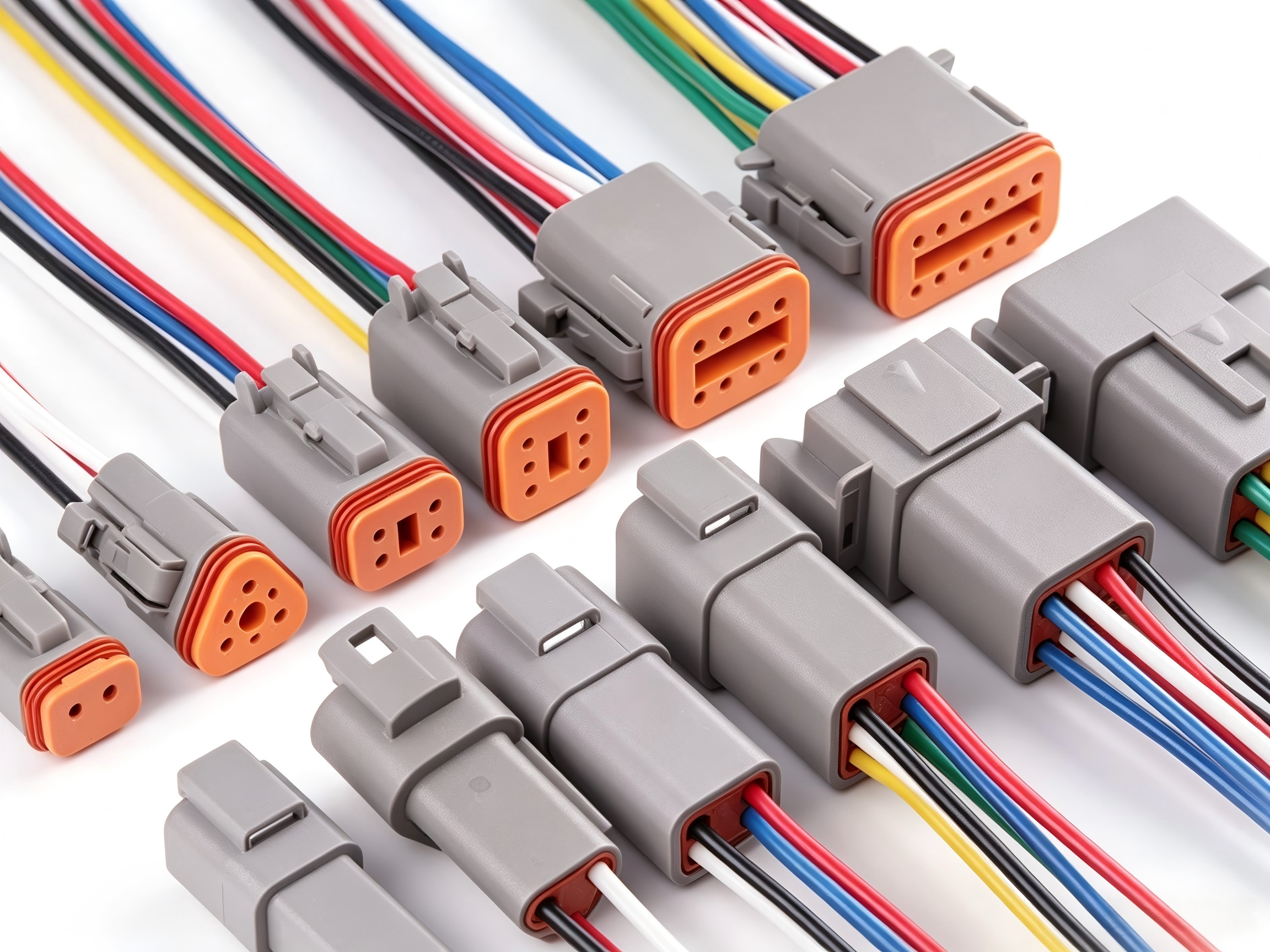

Deutsch connectors are known for their ruggedness and reliability in harsh environments. They feature a locking mechanism and are sealed to prevent moisture and dirt ingress.
Applications: Automotive, marine, and industrial applications requiring durable, weather-resistant connections.
Molex connectors are a popular choice for a wide range of electrical applications, known for their reliability and versatility in power, signal, and data transmission. They come in various configurations including different pitch sizes and pin counts.
Applications: Consumer electronics, automotive systems, industrial equipment.
PCB connectors are designed to connect wires and cables to printed circuit boards or to connect multiple PCBs together. Types include header connectors, socket connectors, and edge connectors.
Applications: Computers, electronic devices, industrial control panels.
Wire-to-wire connectors join individual wires or cables, allowing for extension or modification of electrical circuits. Wire-to-board connectors connect a wire harness directly to a printed circuit board.
Applications: Vehicle maintenance and repair, electronic devices like laptops and smartphones.
One of the most important distinctions in connector selection is whether the connector needs to be sealed:
Sealed Connectors: Designed for external or humid environments. They use seals and locking mechanisms to prevent water and dust ingress.
Non-Sealed Connectors: Suitable for dry environments like instrument panel harnesses. They help reduce costs and assembly force.
When choosing connectors for your wire harness, consider these key factors:
Electrical Requirements: Current (1A to 50A or more) and voltage ratings determine contact area and plating specifications.
Environmental Conditions: Temperature, moisture, vibration, and chemical exposure dictate whether sealed or non-sealed connectors are needed.
Mechanical Constraints: Installation space, assembly cycle times, and vibration environments influence connector design.
Mating Type: Determine whether you need wire-to-wire, wire-to-board, or board-to-board connections.
Reliability and Durability: Select connectors that meet long-term performance standards with minimal maintenance.
The diversity of wire harness connector types reflects the broad spectrum of applications across the electrical and electronics industries. From simple plug and socket connectors to sophisticated sealed Deutsch and Molex connectors, the right choice ensures reliability, efficiency, and performance of your electrical systems. Understanding the various types and their applications is crucial for making informed decisions that meet the specific needs of your project.
