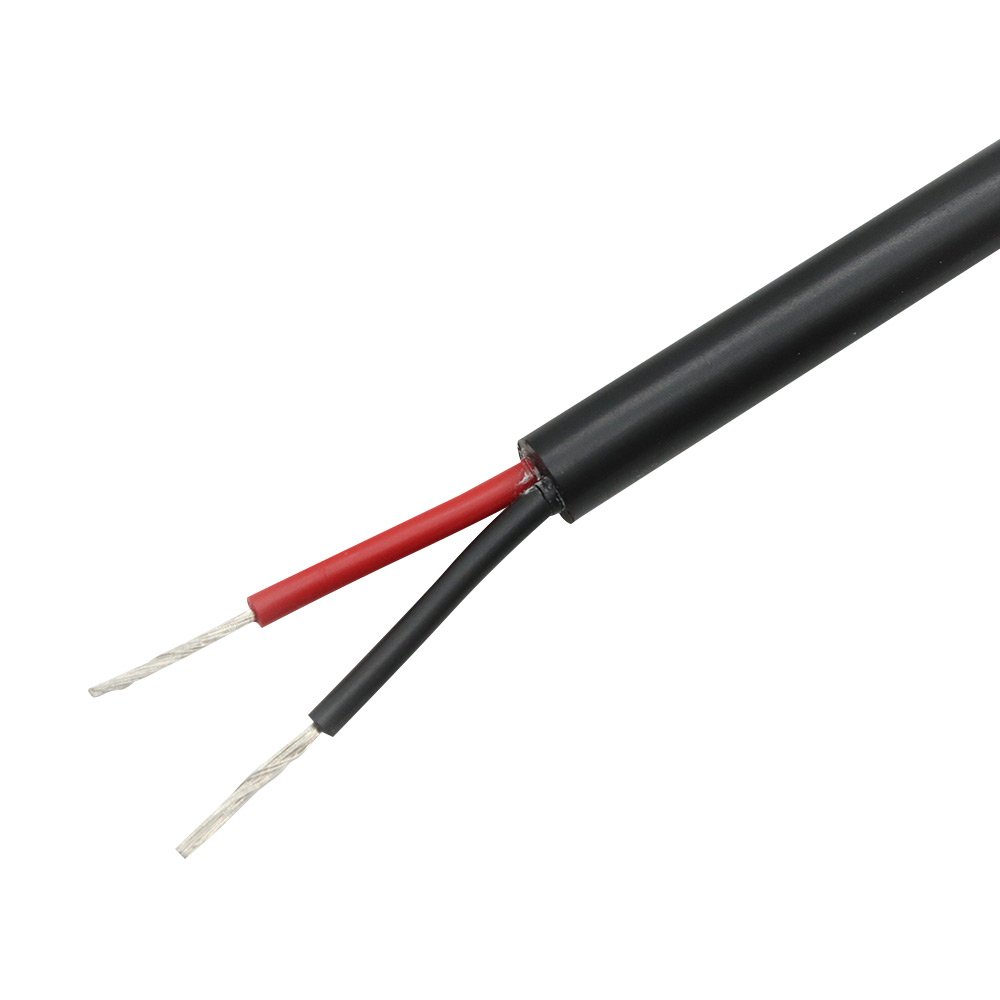

Engineered for demanding renewable energy environments, the UL 2586 multi-conductor power cable delivers consistent electrical transmission across complex solar arrays and industrial automation systems. The cable features a precision-extruded, smooth tactile finish that resists abrasion during routing, while the tightly stranded copper core provides a flexible yet resilient feel. Designed to withstand prolonged exposure to harsh outdoor conditions, this specialized cabling solution prevents premature material degradation, ensuring long-term operational stability and safety for critical infrastructure.
Rated Voltage: 600V or 1000V – This dual-rating flexibility allows electrical engineers to specify the exact threshold required for various solar inverter capacities, ensuring safe energy transfer without risking dielectric breakdown under peak loads.
Rated Temperature: 105ºC – Engineered to withstand intense thermal stress, the insulation maintains its structural integrity even during peak sunlight hours, preventing melting or brittleness in demanding outdoor environments.
Insulation Material: PVC – The specialized polyvinyl chloride compound offers exceptional dielectric strength while presenting a smooth, uniform surface that facilitates precise stripping without damaging the underlying conductors.
Jacket Material: PVC – Formulated specifically for UV resistance, this rugged outer layer protects the internal components from environmental weathering, moisture ingress, and prolonged sun exposure, extending the operational lifespan of the installation.
Conductor: Tinned or Bare, Stranded or Solid Copper – Precision-drawn copper cores provide optimal electrical conductivity. The tinned option adds a critical layer of oxidation resistance, maintaining a clean, bright finish that ensures reliable terminal connections over years of service.
Optional: AL-Mylar, Copper Braided – For environments with heavy electromagnetic interference, these shielding options provide a robust barrier, ensuring signal integrity and preventing cross-talk in complex automated systems.
Reference Standard: UL758, UL1581, C22.2 No.210 – Strict adherence to these North American safety codes guarantees that every meter of cable meets rigorous electrical and physical performance benchmarks for industrial applications.
Passes UL VW-1 & CSA FT1 vertical flame test. – This critical fire-retardant characteristic ensures that in the event of an electrical fault, the cable will not propagate flames, significantly enhancing the safety profile of the entire facility.
Uniform insulation thickness of wire to ensure easy stripping and cutting. – The precision extrusion process guarantees absolute concentricity. This tactile consistency allows installers to work efficiently, reducing labor time and minimizing the risk of accidental conductor scoring during preparation.
For internal wiring of solar inverter, solar battery, solar power system, equipments, appliances, motor, automation, power supply, machine tool equipment, logistics transportation equipment, cranes, automatic elevators, lifting parking, etc. – This exceptional versatility makes it a standardized solution across multiple engineering disciplines, consolidating inventory requirements for complex projects.
| Conductor | Insulation | Jacket | Max. Cond. Resistance at 20°C (Ω/km) | ||||
| No. of Cores | AWG | Construction (No./mm) | Thickness (mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 4 | 28 | 7/0.127 | 0.15 | 0.75 | 0.76 | 3.5 | 237 |
| 20 | 24 | 11/0.16 | 0.51 | 1.7 | 0.76 | 12.5 | 94 |
| 2 | 22 | 17/0.16 | 0.23 | 1.4 | 0.76 | 5 | 59.4 |
| 2 | 20 | 26/0.16 | 0.76 | 2.58 | 0.76 | 7.5 | 36.7 |
| 2 | 18 | 41/0.16 | 0.8 | 2.8 | 0.76 | 7.2 | 23.2 |
| 3 | 18 | 41/0.16 | 0.58 | 2.35 | 0.76 | 7.1 | 23.2 |
| 2 | 16 | 26/0.254 | 0.8 | 3.08 | 0.78 | 7.8 | 15.1 |
| 3 | 16 | 26/0.254 | 0.4 | 2.4 | 1 | 8.5 | 14.6 |
| 4 | 16 | 26/0.254 | 0.81 | 3.1 | 1.83 | 11.2 | 15.1 |
| 7 | 16 | 26/0.254 | 0.6 | 2.8 | 0.76 | 10.7 | 13.7 |
| 2 | 14 | 41/0.254 | 0.8 | 3.46 | 0.76 | 8.8 | 8.96 |
| 3 | 14 | 41/0.254 | 0.8 | 3.46 | 0.76 | 9.2 | 8.96 |
| 2 | 12 | 65/0.254 | 0.51 | 3.5 | 0.76 | 8.9 | 5.64 |
| 3 | 12 | 65/0.254 | 0.51 | 4 | 0.76 | 10.5 | 5.5 |
| 5 | 12 | 65/0.254 | 0.79 | 3.94 | 0.76 | 13.5 | 5.64 |
| 3 | 10 | 105/0.254 | 0.78 | 4.56 | 0.76 | 12.2 | 3.55 |
| 5 | 10 | 105/0.254 | 0.78 | 4.56 | 0.76 | 15 | 3.55 |
| 2 | 8 | 169/0.254 | 0.76 | 6 | 0.76 | 14 | 2.23 |
| ※The above datasheet is for reference only, please refer to the final specification. | |||||||
Beyond standard specifications, we provide comprehensive end-to-end manufacturing capabilities tailored to specific project demands. Our facilities are equipped with dozens of specialized production lines, managed by a veteran research and development team. This infrastructure allows us to deliver consistent, reliable capacity for large-scale infrastructure projects, backed by extensive experience partnering with Fortune 500 enterprises. As a recognized high-tech enterprise, we focus on engineering precision into every batch of wire and cable we produce.
We understand that complex installations often require unique specifications. Our engineering team offers full OEM and ODM services, allowing for deep customization across all physical and electrical parameters. Clients can specify exact American Wire Gauge (AWG) dimensions, color-coding for complex wiring harnesses, custom cut lengths, and specific jacket material formulations. Furthermore, we provide specialized shielding configurations and precision terminal crimping services, delivering a ready-to-install solution that eliminates secondary processing on the job site.
Reliability begins with traceable material sourcing. Our quality control framework includes a meticulously documented raw material traceability system. Inside our dedicated testing laboratories, every product batch undergoes severe evaluations, including vertical flame resistance, high-voltage breakdown thresholds, and dynamic bending fatigue tests. This ensures complete compliance before dispatch. Our commitment to excellence is validated by a comprehensive suite of international certifications. In addition to UL standards, our operations and products are certified under ISO9001, ISO13485, and IATF16949 quality management systems, alongside strict adherence to RoHS, REACH, and CE environmental and safety directives.
To protect the physical integrity of the cables during transit, we utilize industrial-grade packaging solutions, offering a choice of heavy-duty wooden, steel, or reinforced plastic spools based on the shipment volume and handling requirements. Our optimized supply chain guarantees rapid fulfillment, with standard and customized orders typically delivered within a 7 to 15-day window to keep your project schedules on track. From the initial inquiry, our specialized export team provides rapid quotations and complimentary samples for engineering evaluation. Post-delivery, we stand behind our manufacturing with a minimum one-year warranty and a responsive framework for resolving any technical or application inquiries.
