UL3302 UL AWM Tinned Copper PV Wire

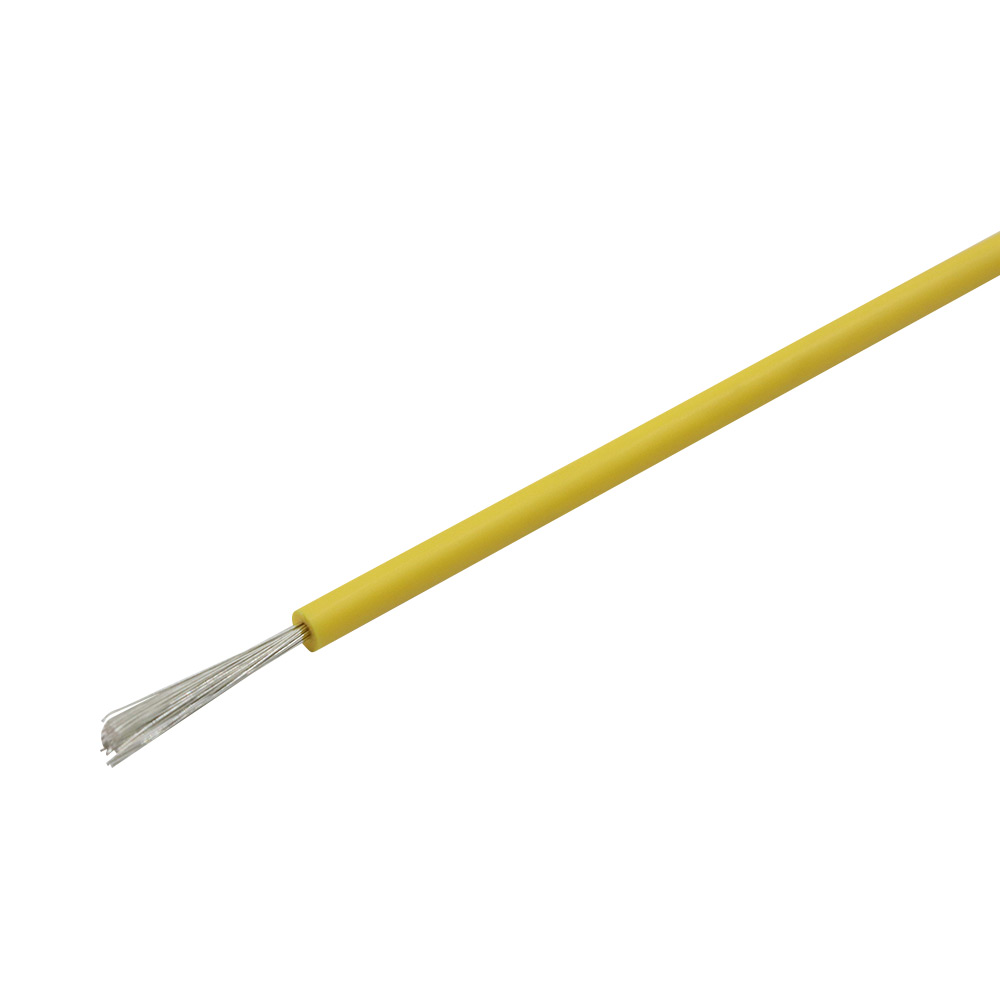

Product Overview: UL AWM 3302 105℃ 30V XLPE Heat Resistant Hookup Wire

When engineering precision electronic equipment, the internal routing demands components that deliver absolute thermal stability and physical flexibility. The UL AWM 3302 105℃ 30V XLPE Heat Resistant Hookup Wire is meticulously constructed to meet these exacting requirements. Encased in a specialized cross-linked polyethylene (XLPE) insulation, this wire presents a distinctively smooth, low-friction exterior that glides effortlessly through tight enclosures, narrow conduits, and complex electromechanical assemblies. The tactile flexibility of the wire ensures that routing around sharp corners or within compact motor housings does not compromise the structural integrity of the insulation or the internal copper core. Designed specifically for enclosed environments where heat accumulation is a constant operational factor, the XLPE material actively resists thermal deformation. It maintains its protective dielectric properties even during continuous operation at elevated temperatures, preventing short circuits and electrical degradation. This reliable, precision-extruded construction minimizes maintenance interventions, enhances overall safety, and significantly extends the operational lifecycle of the final electrical appliance.

Core Specifications & Application Advantages

• Rated Voltage: 30V — Optimized specifically for low-voltage control circuits, sensors, and sensitive electronic applications, providing a highly stable electrical pathway without the risk of dielectric breakdown in compact spaces.

• Rated Temperature: 105ºC — Demonstrates exceptional thermal endurance and heat resistance. This ensures the insulation will not melt, crack, or degrade when exposed to the continuous ambient heat generated by operational motors, lighting fixtures, and densely packed circuit boards.

• Insulation Material: XLPE — The cross-linked molecular structure of the polyethylene delivers superior mechanical toughness. It actively resists abrasion and chemical exposure while maintaining a smooth surface finish for easier handling during complex assembly procedures.

• Conductor: Tinned or Bare, Stranded or Solid Copper — Featuring ultra-pure copper cores, the tinned variants offer a bright, reflective sheen that actively repels oxidative degradation. This guarantees rapid, secure, and highly conductive solder joints during manual or automated assembly.

• Reference Standard: UL758, UL1581, C22.2 No.210 — Strictly compliant with authoritative international safety frameworks. Furthermore, the materials fully satisfy RoHS and REACH environmental directives, ensuring unhindered global export compliance for your finished products.

• Uniform insulation thickness of wire to ensure easy stripping and cutting. — Advanced precision extrusion technology guarantees an exceptionally low eccentricity rate. This uniform concentricity perfectly accommodates automated wire harness processing machinery, preventing accidental conductor damage during rapid stripping cycles and significantly accelerating high-volume production workflows.

• For internal wiring of electronic and electrical equipment and appliance, motors, wiring circuits, control circuits, lighting, automobile, etc. — Serves as a highly dependable and versatile routing solution across a vast spectrum of confined electromechanical environments, ensuring uninterrupted signal and power transmission.

Technical Specifications & Conductor Datasheet

The precise physical dimensions and electrical resistance of a conductor directly dictate the efficiency and safety of the entire electrical circuit. The following technical datasheet outlines the exacting specifications of our UL3302 wire series, offering a comprehensive range from 32 AWG for ultra-compact micro-electronic devices to 20 AWG for more robust power routing applications. Each specific stranding configuration—such as the delicate 7/0.08mm or the thicker 26/0.16mm constructions—is carefully calculated to balance tactile flexibility with maximum tensile strength. By maintaining strict, uncompromising control over the maximum conductor resistance at 20°C, we ensure that power loss, voltage drop, and unwanted heat generation remain at absolute minimums. These precise measurements guarantee consistent electrical performance across every single batch, allowing electrical engineers and product designers to calculate load capacities and thermal dynamics with complete confidence.

Quality Assurance & Custom Manufacturing Capabilities

Securing a reliable, long-term supply of critical internal components requires a manufacturing partner deeply committed to rigorous testing and highly flexible production capabilities. Every single spool of our XLPE heat-resistant hookup wire undergoes a comprehensive suite of diagnostic evaluations before it is cleared to leave the facility. High-voltage spark testing is conducted continuously along the entire extrusion line to instantly detect and eliminate even microscopic pinholes, ensuring absolute insulation integrity and zero risk of electrical leakage. Simultaneously, dedicated thermal aging chambers and highly precise conductor resistance meters verify that both the physical toughness and electrical conductivity remain completely stable under prolonged environmental stress.

Beyond our standardized testing protocols, we offer extensive customization options designed to align perfectly with your specific manufacturing operations. The XLPE insulation can be precision color-matched across the full spectrum to facilitate intuitive identification within complex, multi-wire circuits. Depending on the scale and setup of your assembly lines, we provide tailored packaging solutions. These range from standard, easy-to-handle spools to high-capacity barrel packaging, specifically engineered to minimize changeover times on automated cutting and stripping machines. This robust approach to quality control and adaptable delivery ensures a continuous, defect-free flow of premium materials to support your most demanding production schedules.
