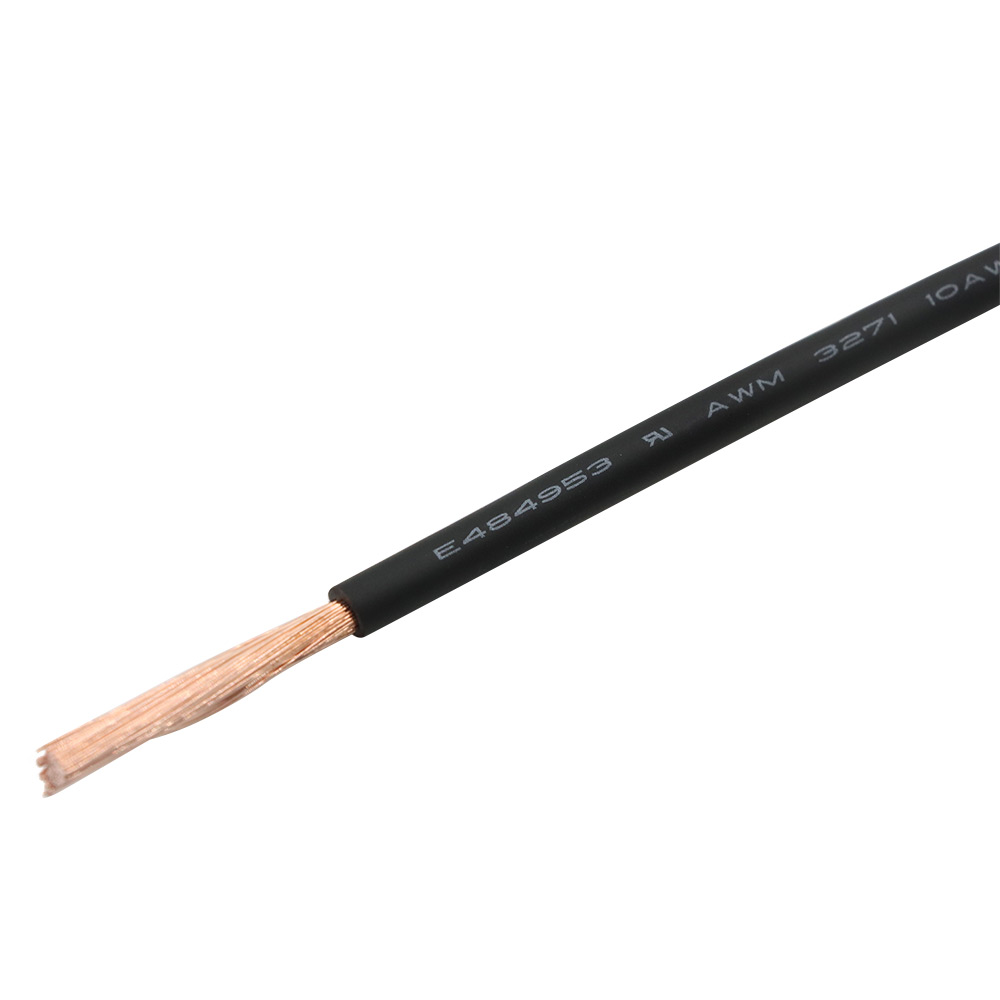

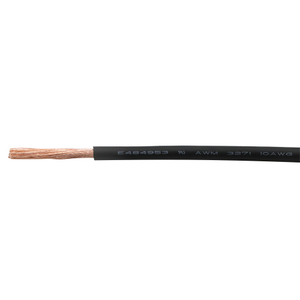

UL3271 UL AWM Tinned Copper PV Wire

Product Overview: UL AWM 3271 125℃ 600V XLPE Halogen Free Hookup Wire

Engineered for demanding electrical environments, the UL3271 photovoltaic (PV) wire represents a superior standard in internal wiring solutions. Designed with precision, this hookup wire features a highly conductive copper core protected by a robust, halogen-free cross-linked polyethylene (XLPE) jacket. When handling this wire, engineering teams will immediately notice the smooth, uniform texture of the insulation, which is specifically formulated to resist harsh environmental factors while maintaining excellent flexibility. Whether integrated into a complex solar energy grid, a high-capacity energy storage unit, or a compact motor assembly, it delivers consistent power transmission without compromising safety. The advanced construction ensures that the wire remains pliable yet highly durable, resisting cracking or degradation even after prolonged exposure to elevated operational temperatures.

• Rated Voltage: 600V. Designed to handle substantial electrical loads, this 600-volt rating ensures stable and secure power delivery across various demanding applications, minimizing the risk of electrical faults or voltage drops in high-capacity circuits.

• Rated Temperature: 125ºC. The advanced XLPE insulation provides exceptional thermal stability. It maintains its structural integrity and insulating properties even when subjected to continuous operating temperatures up to 125 degrees Celsius, preventing melting in heat-intensive compartments.

• Insulation Material: Premium Halogen-Free XLPE. Utilizing cross-linked polyethylene, the outer jacket offers outstanding defense against abrasion, chemicals, and moisture. Being completely halogen-free, it guarantees that in the rare event of extreme heat or combustion, it will not release toxic or corrosive gases, thereby protecting sensitive electronic components and ensuring operational safety.

• Conductor: Tinned or Bare, Stranded or Solid Copper. Sourced from high-purity copper, the core delivers optimal electrical conductivity. The optional tinned coating provides an extra layer of defense against oxidation and corrosion, ensuring long-lasting performance in humid atmospheric conditions. The stranded configuration also offers enhanced physical flexibility for intricate routing in tight spaces.

• Reference Standard: UL758, UL1581, C22.2 No.210. Strictly adhering to international compliance frameworks, this wire passes rigorous safety and performance evaluations. By fully meeting RoHS and REACH environmental directives, it ensures that your final assembled equipment faces no regulatory barriers when exported to global markets.

• Uniform insulation thickness of wire to ensure easy stripping and cutting. Manufactured with ultra-low eccentricity, the precise concentricity of the insulation layer is specifically engineered for modern automated wire harness processing equipment. This precise geometry allows mechanical stripping blades to remove the jacket cleanly without nicking the delicate copper strands, drastically reducing material waste and boosting assembly line throughput.

• Core Application Scenarios: Highly versatile and reliable, this wire is the preferred choice for the internal wiring of sophisticated electronic and electrical equipment. It is extensively utilized in photovoltaic (PV) inverters, new energy storage systems, industrial motors, engine compartments, and high-density power modules where space is limited but performance requirements are absolutely critical.

Technical Specifications & Dimensional Data

The following datasheet outlines the precise dimensional and electrical characteristics of our UL3271 wire across various American Wire Gauge (AWG) sizes. From the delicate 26 AWG suitable for tight circuit boards to the robust 10 AWG designed for heavy current flow, every variant is manufactured to exact tolerances. The maximum conductor resistance is strictly monitored at 20°C to guarantee efficient energy transfer with minimal heat generation. Please consult this matrix to select the optimal configuration for your specific engineering and load requirements.

Frequently Asked Questions & Service Capabilities

Q1: Are you a manufacturer?

A1: Yes, we are a premier manufacturer located in Dongguan, Guangdong, China. Operating directly from our source factory, we provide highly competitive solutions without intermediaries. We offer extensive OEM and ODM services for clients around the globe. Our engineering team supports deep customization, allowing you to specify exact wire gauges (AWG), custom insulation colors for complex harness identification, specific surface printing, and tailored electrical performance characteristics to perfectly align with your unique research and development demands.

Q2: Can I get a free sample?

A2: Yes, we can provide existing items' samples without charge, with freight collected. We highly encourage engineering teams to request samples to physically verify the tactile flexibility, the smooth finish of the XLPE jacket, and the effortless stripping performance on your own automated processing machines. If there is any special sample requirement tailored to a custom project, please contact our technical support team for further coordination and rapid prototyping.

Q3: Is the quality of your product guaranteed?

A3: Absolutely. Our production workshops are equipped with brand-new, advanced extrusion machines and highly sensitive testing equipment. Our workforce consists of seasoned professional technicians who oversee every critical step. Our comprehensive quality control system includes continuous high-voltage spark testing during extrusion, precise conductor resistance measurements, and accelerated thermal aging tests. This rigorous protocol ensures that every single batch of wire delivers 100% stable and reliable electrical performance, strictly in accordance with international standards and exact customer specifications.

Q4: What is the order production lead time?

A4: Production lead time depends on the exact quantity and specification of your order. Generally, standard production is completed within 10 to 15 working days. To ensure your materials arrive in pristine condition, we utilize industrial-grade packaging solutions. Depending on your facility's requirements, we offer standard roll packaging, durable plastic spools, or heavy-duty wooden reels. These packaging methods are designed to be moisture-proof and scratch-resistant, perfectly accommodating both large-scale warehousing and seamless integration into automated wire payoff systems.
