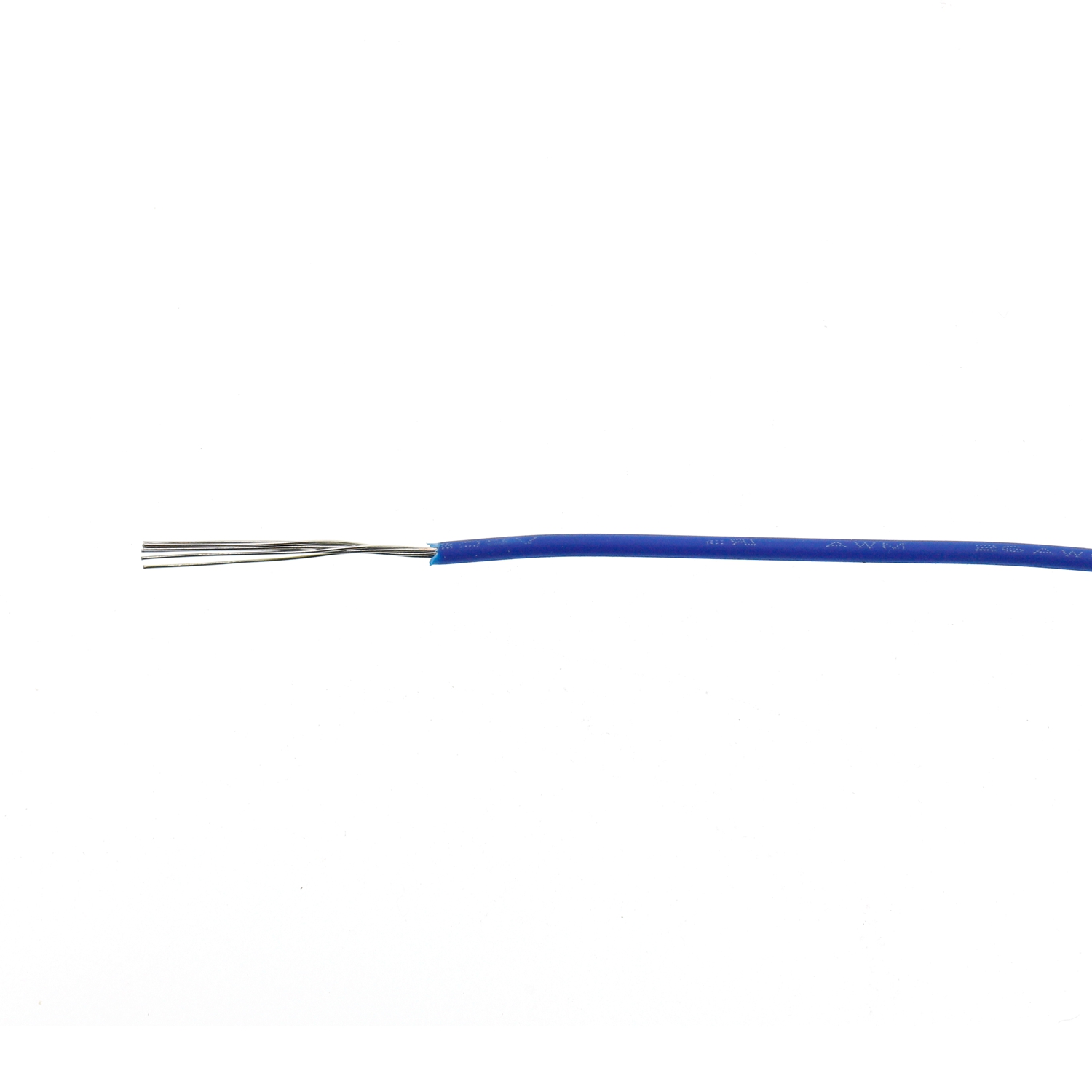

UL10368 105℃ 300V XLPE LSZH Flame Retardant UL Hook Up Wire

UL10368 105℃ 300V XLPE LSZH Flame Retardant UL Hook Up Wire

Selecting the appropriate internal wiring is a critical decision that directly impacts the longevity, safety, and operational efficiency of any electrical assembly. The UL10368 hook-up wire is meticulously engineered to address these complex demands, offering an optimal balance of thermal endurance and mechanical flexibility. At the core of this wire lies a premium conductor, surrounded by an advanced Cross-linked Polyethylene (XLPE) insulation. Unlike standard PVC, this FR-XLPE material boasts a remarkably smooth and uniform tactile finish, allowing it to glide effortlessly through tight conduits and complex wiring harnesses without snagging. Furthermore, the Low Smoke Zero Halogen (LSZH) formulation ensures that, in the rare event of extreme thermal exposure, the wire will not emit corrosive or toxic halogen gases. This absence of acrid chemical odors and dense smoke is crucial for safeguarding sensitive electronic components and personnel in enclosed environments. By integrating superior materials with precise manufacturing techniques, this wire delivers a dependable foundation for critical power and signal transmission.

• Rated Voltage: 300V — Engineered to provide stable and secure electrical transmission, this 300-volt rating ensures ample dielectric strength for a wide array of internal circuitry, minimizing the risk of voltage breakdown or electrical arcing in densely packed enclosures.

• Rated Temperature: 105ºC — The robust cross-linked molecular structure of the insulation allows the wire to continuously operate in elevated thermal environments up to 105 degrees Celsius, maintaining its physical integrity without melting, softening, or degrading over time.

• Insulation Material: XLPE — Utilizing eco-friendly, Low Smoke Zero Halogen (LSZH) Cross-linked Polyethylene, the insulation is fully compliant with stringent RoHS environmental directives. It offers excellent resistance to abrasion, moisture, and chemical exposure while delivering superior fireproof properties.

• Conductor: Tinned or Bare, Stranded or Solid Copper — Crafted from high-purity copper, the conductor options provide exceptional electrical conductivity. The tinned copper variants offer an added layer of defense against oxidation and corrosion, ensuring long-lasting solderability and reliable terminations.

• Reference Standard: UL758, UL1581, C22.2 No.210 — Strictly adhering to internationally recognized safety protocols, this wire has successfully passed rigorous UL horizontal flame and CSA FT2 combustion tests, guaranteeing outstanding flame retardant and high-voltage safety performance for global compliance.

• Processing Convenience: Uniform insulation thickness of wire to ensure easy stripping and cutting. The precise concentricity of the jacket allows automated wire processing equipment to cleanly sever the insulation without nicking the underlying copper strands, dramatically accelerating downstream assembly workflows.

• Broad Applications: For internal wiring of electronic and electrical equipment and appliance, lighting equipment, motor, transformers, control panels, military equipment, industrial controls, computers, etc. Its versatile nature makes it an indispensable component across multiple rigorous industrial sectors.

Detailed Dimensional and Electrical Specifications

The following technical datasheet outlines the precise dimensional and electrical characteristics of the UL10368 series. Ranging from an ultra-fine 30 AWG suitable for delicate micro-electronics, up to a robust 20 AWG designed for higher-current control panels, each configuration is manufactured to exacting tolerances. A key highlight of this series is the strictly maintained insulation thickness of 0.26 mm across all gauges. This precise uniformity not only provides a consistent physical and electrical barrier but also ensures predictable behavior during automated crimping, cutting, and termination processes. Moreover, the maximum conductor resistance values at 20°C serve as a testament to the exceptional purity and structural integrity of the copper core. Lower resistance translates directly to minimal energy dissipation and reduced internal heat generation during continuous operation. Procurement engineers and system designers can rely on these verified measurements to accurately match the wire's current-carrying capacity with the specific spatial constraints and thermal budgets of their compact equipment enclosures.

Comprehensive Manufacturing Strength and Custom Services

Sourcing reliable electrical components requires a manufacturing partner with proven technical capabilities and a steadfast commitment to quality assurance. As a direct source factory, we maintain complete oversight of every production phase, from the initial drawing and annealing of the pure copper conductors to the precision extrusion of the LSZH XLPE jacket. Our advanced, highly automated production lines operate under comprehensive quality and environmental management systems, ensuring that every spool of wire consistently meets exact international standards before it is dispatched. During production, the wire undergoes rigorous continuous spark testing, thermal aging evaluations, and tensile strength analysis to verify its structural and electrical resilience.

Understanding that diverse industrial projects often dictate unique specifications, we provide extensive customization capabilities to meet your exact operational demands. Whether your application necessitates specialized stranding configurations for enhanced flex life, specific insulation color-coding for complex harness identification, or custom spool sizes for seamless integration with your automated dispensing machinery, our engineering team is prepared to deliver tailored solutions. Furthermore, we offer free evaluation samples, enabling your technical and assembly teams to conduct rigorous in-house testing. This allows you to verify the wire's tactile flexibility, stripping efficiency, and thermal performance firsthand. Supported by robust inventory management and streamlined production schedules, we guarantee prompt fulfillment for both standard volume orders and specialized custom runs, empowering your continuous manufacturing operations with uncompromised reliability.
