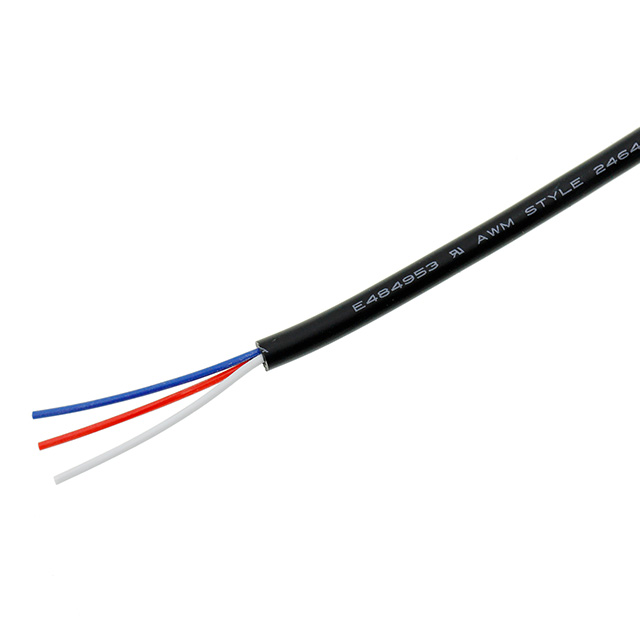

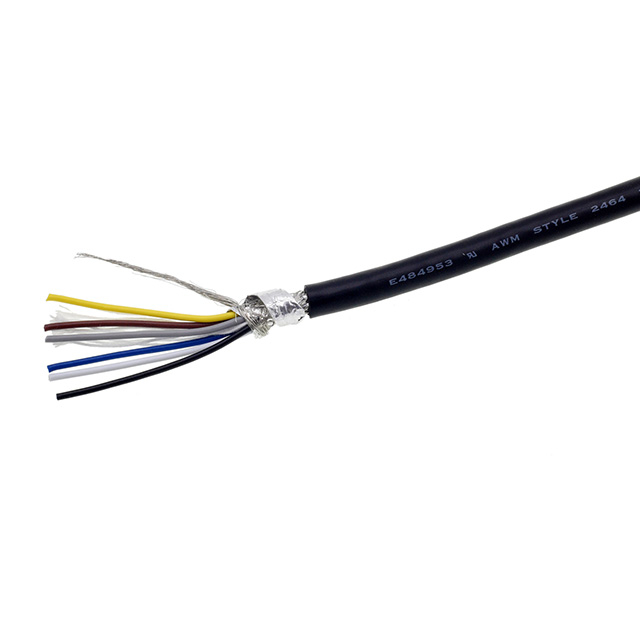

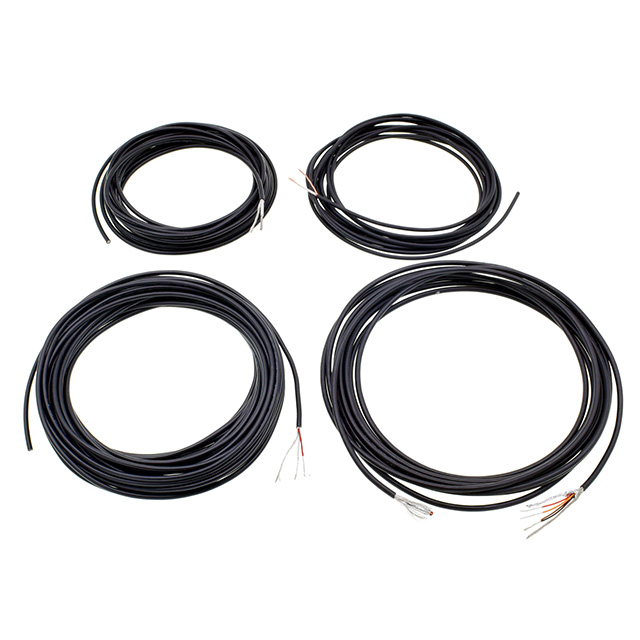

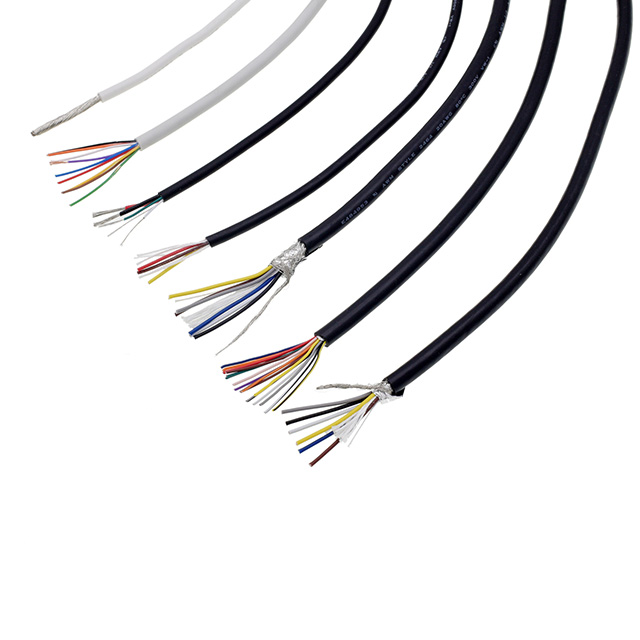

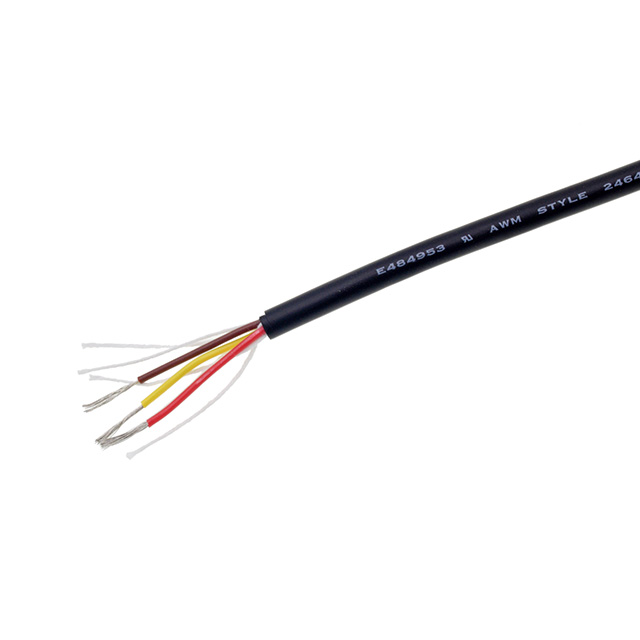

UL2464 Multi Conductor Shielded Cable
① Rated temperature: 80ºC
② Rated voltage: 300V
③ Reference Standard: UL758, UL1581, C22.2 No.210
④ Passes UL VW-1 & CSA FT1 vertical flame test.
⑤ Uniform insulation thickness of wire to ensure easy stripping and cutting.
⑥ For internal wiring of electronic and electrical equipment and appliance.
| Conductor | Insulation | Jacket | Max. Cond Resistance at 20°C (Ω/km) | |||
| No. of Cores | AWG | Construction (No./mm) | Thickness (mm) | Diameter (mm) | Diameter (mm) | |
| 3 | 28 | 7/0.127 | 0.26 | 0.90 | 4.00 | 239 |
| 4 | 28 | 7/0.127 | 0.26 | 0.90 | 4.80 | 239 |
| 5 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 6 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 8 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 9 | 26 | 7/0.16 | 0.26 | 1.00 | 6.30 | 150 |
| 10 | 26 | 7/0.16 | 0.26 | 1.00 | 6.60 | 150 |
| 11 | 26 | 7/0.20 | 0.26 | 1.00 | 6.60 | 150 |
| 12 | 28 | 7/0.16 | 0.26 | 0.90 | 6.00 | 239 |
| 15 | 24 | 7/0.127 | 0.26 | 1.12 | 8.00 | 94.2 |
| 18 | 28 | 7/0.127 | 0.26 | 0.90 | 7.40 | 239 |
| 20 | 24 | 7/0.20 | 0.26 | 1.12 | 8.50 | 94.2 |
