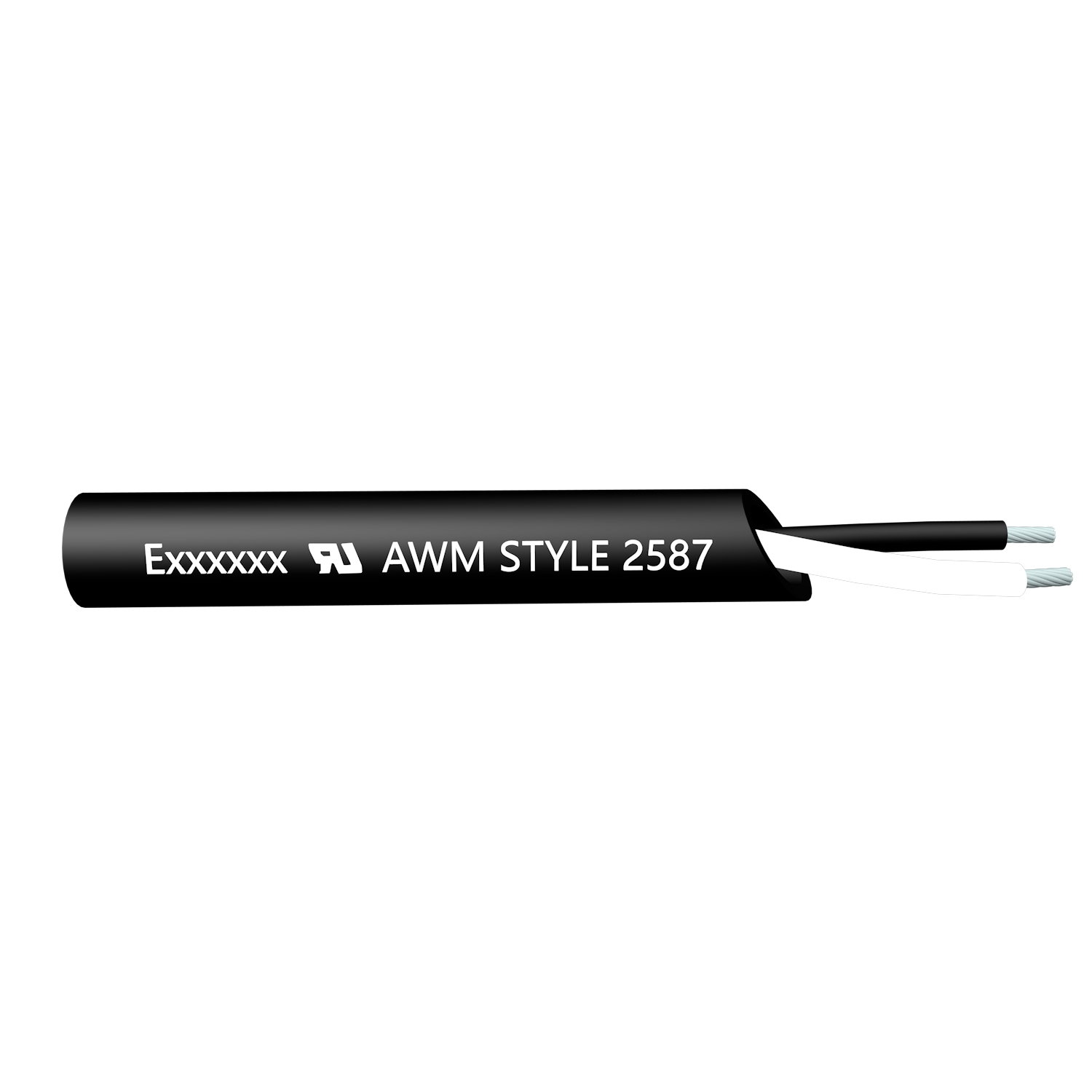

UL2587 2 Core 26 AWG Shielded Cable PVC Jacket Wire Cable

UL2587 2 Core 26 AWG Shielded Cable PVC Jacket Wire Cable

Engineered specifically for demanding industrial and commercial environments, the UL2587 2 Core 26 AWG Shielded Cable delivers exceptional signal integrity and reliable power transmission. When handling this precision-manufactured cable, technicians immediately notice the supple flexibility combined with a dense, smooth PVC jacket. This tactile, uniform exterior not only resists mechanical wear but also ensures the cable remains highly maneuverable when routed through tight enclosures or complex drag chains. Designed as a robust solution for intricate internal wiring, it effectively mitigates electromagnetic interference (EMI) through its carefully applied shielding layers. Whether deployed in damp, oil-exposed machinery or subjected to fluctuating temperatures, the advanced polymer materials maintain their structural integrity without cracking, stiffening, or degrading. By sourcing directly from our advanced manufacturing facilities, project managers and engineers are assured of consistent batch-to-batch uniformity, ensuring that every single roll performs exactly to specification and streamlines the installation process.

Core Features & Performance Characteristics

• Rated Voltage: 600V — Capable of handling substantial electrical loads safely, providing a stable and secure power pathway for heavy-duty industrial equipment, control circuits, and automated systems without the risk of voltage drops.

• Rated Temperature: 90ºC — Exhibits excellent thermal endurance. The cable remains highly flexible and structurally sound in extreme cold, while actively resisting heat deformation, oil exposure, and UV radiation in harsh outdoor or factory settings.

• Insulation Material: PVC — Formulated for optimal dielectric strength, this internal insulation prevents electrical leakage while offering a firm, protective layer around the inner conductive cores, ensuring long-term operational safety.

• Jacket Material: PVC — The outer sheath features a smooth, abrasion-resistant finish that glides easily through conduits. It acts as a formidable barrier, protecting internal components from environmental hazards, moisture, and chemical exposure.

• Conductor: Tinned or Bare, Stranded or Solid Copper — Precision-drawn copper ensures superior electrical conductivity. The tinned copper option provides an essential extra layer of defense against oxidation, significantly extending the operational lifespan in humid or corrosive conditions.

• Optional: AL-Mylar, Copper Braided — Advanced shielding configurations effectively block external radio frequency interference (RFI) and EMI. This guarantees clean, uninterrupted data and signal transmission, which is critical in noisy electronic environments.

• Reference Standard: UL758, UL1581, C22.2 No.210 — Manufactured in strict compliance with globally recognized safety and performance benchmarks, while fully satisfying RoHS environmental directives for responsible production.

• Passes UL VW-1 & CSA FT1 vertical flame test. — Engineered for critical safety, the materials are inherently self-extinguishing. In the event of an electrical fault, the cable prevents the spread of fire, ensuring maximum protection for valuable infrastructure and personnel.

• Uniform insulation thickness of wire to ensure easy stripping and cutting. — Utilizing advanced extrusion technology, the concentricity of the insulation is meticulously controlled. This results in a clean, precise cut during installation, significantly reducing labor time, preventing accidental damage to the conductor, and boosting overall construction efficiency.

• For internal wiring of electronic and electrical equipment and appliance, motor, automation machine, machine tool equipment, logistics transportation equipment, cranes, automatic elevators, lifting parking, measurement, detection and control, air conditioning systems, refrigeration equipment, office automation equipment and data processing systems, driving, etc. — A highly versatile, industrial-grade solution tailored specifically for complex routing in CNC machinery, HVAC units, and large-scale automated logistics networks.

Technical Specifications & Data Sheet

The following parameters detail the precise construction, dimensions, and electrical resistance of the UL2587 series across various American Wire Gauge (AWG) sizes. These exact specifications are strictly maintained during production to ensure seamless compatibility and reliable integration into your complex engineering projects.

Customization, Packaging & Supply Capabilities

Understanding that every engineering project has unique operational requirements, we offer comprehensive OEM and ODM customization services. Beyond the standard 26 AWG configuration, our flexible production lines are fully equipped to manufacture variations ranging from 20 to 26 AWG, with adaptable core counts to suit specific signal and power distribution needs. Clients can also specify their preferred shielding materials—such as AL-Mylar foil or tinned copper braiding—to achieve the exact level of electromagnetic protection required for their specific installation environment.

As a source manufacturer, our facility implements rigorous quality control protocols at every stage of production. From the initial drawing of the copper wire to the final extrusion of the PVC jacket, automated optical inspection ensures dimensional accuracy and uniform insulation thickness. This direct-supply model not only guarantees consistent structural integrity but also allows us to maintain sufficient production capacity to fulfill large-scale procurement demands without compromising on precision.

To facilitate efficient logistics and inventory management, we provide standardized roll packaging designed to protect the cable from moisture and physical damage during transit and storage. For specialized assembly lines and automated cutting machines, customized spooling and packaging options are readily available. Our streamlined supply chain and robust manufacturing capabilities ensure rapid lead times, safeguarding your project schedules and ensuring an uninterrupted workflow from order placement to final delivery.
