Comprehensive Guide to XLPE Cable (Cross-Linked Polyethylene): Properties, Benefits, and Applications

Performance Wire and Cable is recognized as a premier manufacturer and supplier of various types of electrical cables, notably XLPE cables. The growing adoption of XLPE insulation underscores its effectiveness across diverse industries. This article thoroughly examines XLPE cable, its characteristics, comparative advantages, and common applications to help professionals select the ideal cable solution.

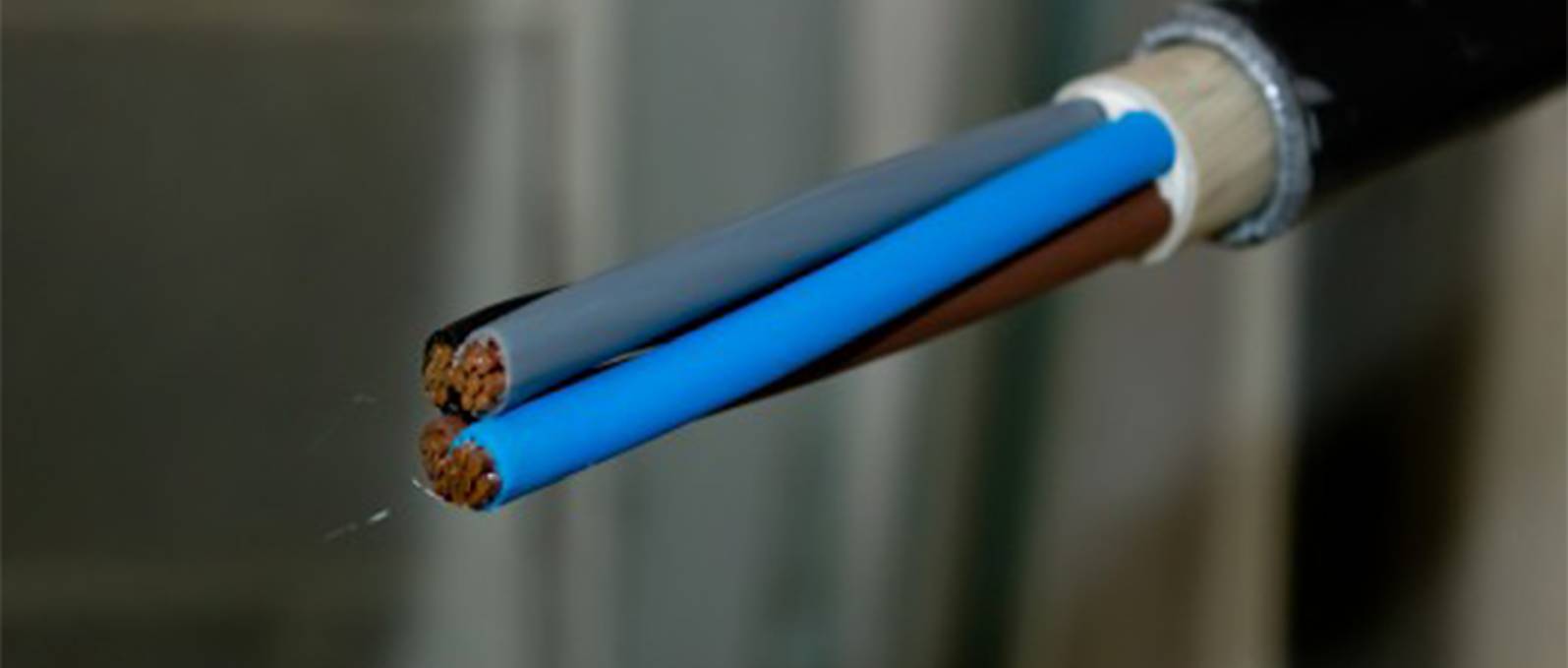

What Is XLPE Cable?

Cross-linked polyethylene (XLPE) cable is a specialized electrical cable widely utilized for power transmission and distribution applications. XLPE insulation comprises a thermoset plastic material, resulting in excellent resistance to heat, moisture, chemicals, and physical stress.

The core strength of XLPE insulation lies in its production method. Polyethylene molecules are chemically cross-linked through exposure to heat and chemical catalysts. This cross-linking process significantly enhances the mechanical stability and thermal resilience of the insulation, enabling XLPE cables to operate safely at higher temperatures and withstand greater electrical stresses compared to traditional insulation materials, such as PVC (polyvinyl chloride).

Key Benefits of XLPE Insulation

XLPE insulation provides multiple advantages, making it the preferred choice in demanding applications:

Superior Electrical Insulation: XLPE effectively insulates electrical conductors, preventing power leakage and enhancing overall cable reliability.

Thermal Stability: Exceptional performance under both high and low-temperature conditions, suitable for diverse climates and challenging environments.

Mechanical Durability: Enhanced resistance to abrasion, tearing, and mechanical stress ensures longer service life.

Chemical and Moisture Resistance: XLPE is highly resistant to chemicals, moisture, oils, and solvents, preserving cable integrity in harsh industrial environments.

High-Voltage Compatibility: XLPE insulation safely handles high-voltage conditions without compromising performance or safety.

Cost-Efficient: While offering premium properties, XLPE remains relatively cost-effective over its extended operational lifetime.

Ideal Applications of XLPE Cable

XLPE cableis suitable for various industries, particularly where exposure to challenging environments is expected:

Power Distribution: Widely deployed in residential, commercial, and industrial electrical networks, ensuring safe and efficient energy transfer.

Extreme Temperature Environments: Suitable for areas experiencing significant temperature variations, such as arctic installations, desert climates, and high-temperature industrial facilities.

High-Voltage Transmission: Ideal for transmission lines and power grids where high-voltage conditions demand durable insulation materials.

Underground and Underwater Installations: Its robust insulation protects cables from corrosion, moisture penetration, and environmental degradation in underground tunnels, subways, and underwater cables.

Chemical Industries: Resistant to chemical exposure, XLPE cables reliably operate within refineries, chemical processing plants, and pharmaceutical manufacturing facilities.

Medical and Healthcare Facilities: Often employed within hospitals, dental offices, and diagnostic centers for critical, stable power supply requirements.

Sports Venues and Stadiums: Used for groundskeeping electrical applications, outdoor lighting systems, and other power-dependent equipment.

XLPE Insulation vs. PVC Insulation

Cross-linked polyethylene (XLPE) insulation and polyvinyl chloride (PVC) insulation differ significantly:

Types of XLPE Insulated Cables

XLPE cables are available in various designs and voltage ratings, each optimized for specific requirements:

1. Low Voltage XLPE Insulated Cables (up to 1 kV)

Used widely in domestic electrical wiring, commercial buildings, offices, and factories.

2. Medium Voltage XLPE Insulated Cables (1 kV to 35 kV)

Ideal for urban power distribution, large-scale commercial complexes, industrial zones, and renewable energy systems (solar parks, wind farms).

3. High Voltage XLPE Insulated Cables (up to 500 kV)

Employed for long-distance transmission of electricity between power plants and substations. Vital for ensuring minimal energy losses over extended distances.

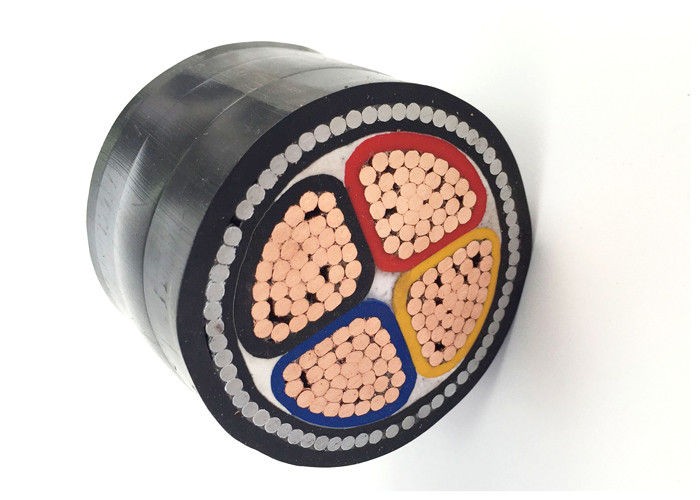

4. Armored XLPE Insulated Cables

Feature a protective metallic armor layer (steel wire or tape), suited for underground or subsea installations, where mechanical protection against impacts and physical stresses is essential.

5. Unarmored XLPE Insulated Cables

Utilized in environments where cables face minimal mechanical stress, providing efficient electrical transmission without additional armor protection.

6. Fire Resistant XLPE Insulated Cables

Engineered to maintain operational integrity during fire events, critical for applications in high-occupancy buildings, tunnels, transportation systems, and public safety infrastructure.

7. Instrumentation XLPE Insulated Cables

Specifically designed for control and instrumentation systems, providing low signal interference, minimal capacitance, and high insulation resistance, ensuring precise and reliable data transmission.

Performance Wire and Cable’s XLPE Product Line

Performance Wire and Cable manufactures XLPE-insulated products tailored to diverse applications:

USE-2 Wire: Typically used in direct burial applications and solar power installations.

RHW-2 Cable: Suited for general-purpose wiring in both dry and wet locations, excellent for industrial plants.

RHH Cable: Preferred for dry and damp locations, ideal for high-temperature industrial environments.

Each cable type meets rigorous industry standards, ensuring optimal safety, durability, and performance.

Conclusion

Cross-linked polyethylene (XLPE) cables represent an advanced cable insulation solution that significantly enhances electrical, mechanical, chemical, and environmental performance. Their versatility makes XLPE cables indispensable across diverse industries, from traditional power distribution to specialized installations in challenging environments.

Professionals involved in electrical engineering, construction, maintenance, and facility management benefit greatly from understanding the unique advantages of XLPE insulation. Choosing the correct XLPE cable type ensures reliability, safety, longevity, and overall operational excellence in electrical systems.
