Automotive wiring harnesses are crucial to your vehicle's performance, acting as its central nervous system. They connect vital components like the engine, lights, and sensors. Maintaining them properly is key to preventing costly electrical issues. In this article, we’ll share essential tips for troubleshooting and maintaining automotive wiring harnesses, focusing on durability, efficiency, and early detection to save you time and money.
An automotive wiring harness is a group of wires, connectors, and terminals that transmit electrical power and data signals to various components in a vehicle. Think of it as the central communication network within the vehicle, connecting parts like the engine, lighting system, dashboard, airbags, and various sensors. A properly functioning wiring harness ensures that these systems can work together efficiently and reliably, providing the necessary power and communication for your vehicle to operate.
These harnesses are critical because they ensure all the electrical systems in your vehicle are connected, allowing you to control the vehicle's performance, safety features, and comfort functions seamlessly.
Over time, automotive wiring harnesses are exposed to wear and tear from heat, moisture, vibration, and physical stress. Some common causes of wiring harness problems include:
● Corrosion: Exposure to moisture, salt, or chemicals can lead to rust or corrosion on connectors, compromising the electrical connections.
● Physical Damage: Rough handling, abrasion against other components, or excessive bending can lead to damaged wires or broken connections.
● Rodent Damage: In some cases, animals may chew through wires, which can lead to shorts or total electrical failure.
● Overheating: If the harness is exposed to excessive heat, such as near the engine or exhaust system, the wires or connectors can melt, causing short circuits or complete failure of electrical systems.

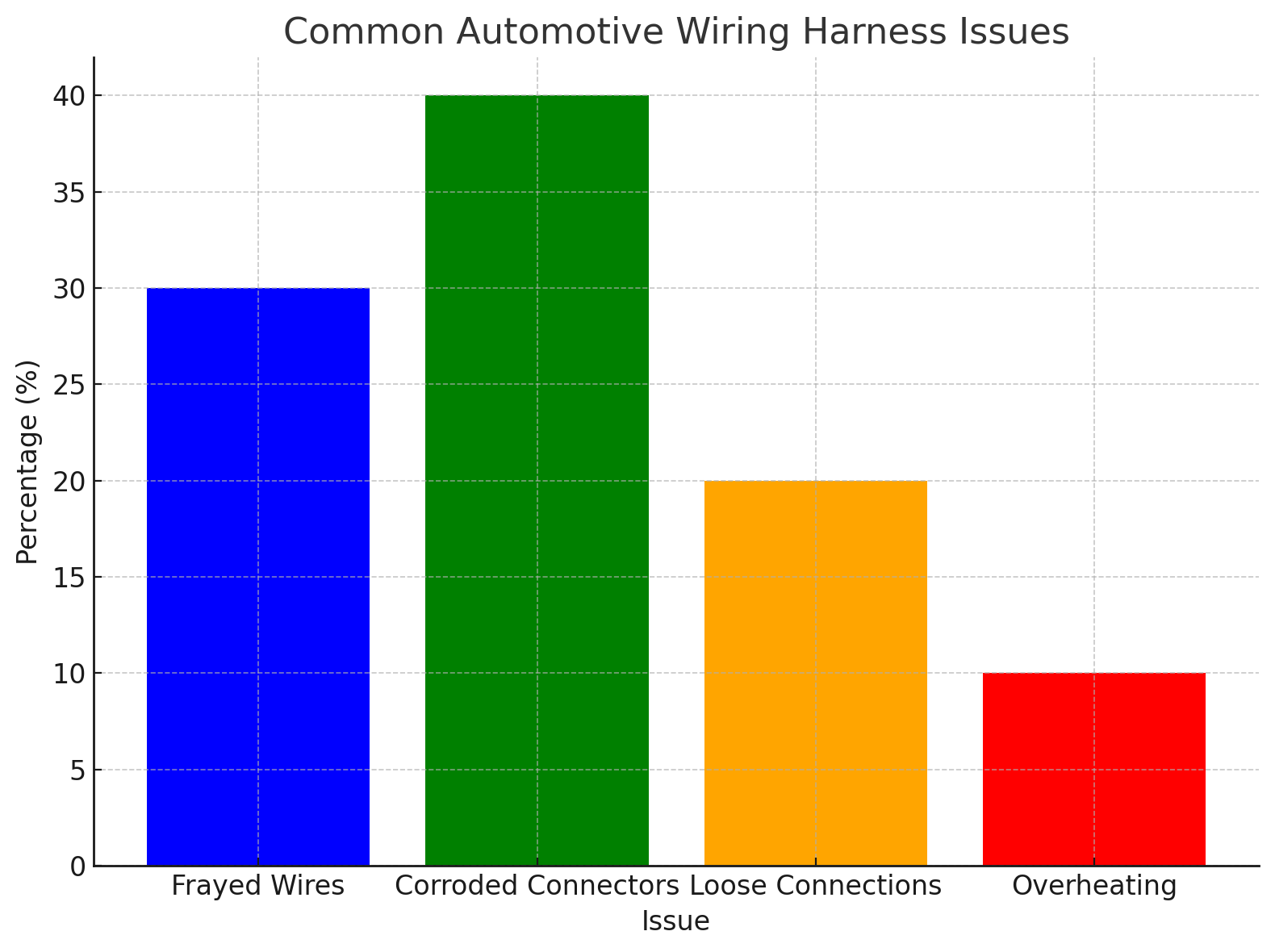

Issue | Description | Signs to Look For |
Frayed Wires | Wires may wear out or become damaged over time. | Visible cuts, exposed copper. |
Corroded Connectors | Moisture and chemicals lead to rust and poor connection. | Greenish or white buildup on terminals. |
Loose Connections | Vibrations or wear may loosen connectors, causing failure. | Flickering lights, inconsistent signals. |
Overheating | Excessive electrical load or poor insulation causes wires to overheat. | Melted insulation, burnt wires. |
Neglecting the maintenance of an automotive wiring harness can result in a range of issues, from short circuits to complete system failures. Regular inspection and care can prevent the accumulation of dirt, corrosion, and wear, ensuring that the wiring harness continues to operate reliably. Preventive maintenance helps reduce the risk of major electrical issues, saving both time and money in the long run. Furthermore, it ensures that your vehicle remains safe and functional by maintaining optimal electrical connections.
The first line of defense in maintaining your automotive wiring harness is visual inspection. Look for signs of damage, including:
● Frayed or exposed wires: If the insulation on the wires is worn out, it can lead to short circuits or sparks.
● Cracked insulation: Cracked or brittle insulation can result from exposure to heat or chemicals.
● Loose or corroded connectors: Corroded or improperly connected terminals can affect electrical conductivity, leading to poor vehicle performance.
Performing these checks regularly will help catch potential issues early before they escalate into major problems. If you spot any damage, take corrective action immediately, such as replacing damaged wires or connectors.
Automotive wiring harnesses often have connectors that link various electrical components. Over time, these connectors can accumulate dirt, moisture, or corrosion, leading to electrical failures. Cleaning connectors with electrical contact cleaner and applying dielectric grease can help prevent corrosion and ensure a strong electrical connection.
When cleaning connectors, ensure they are dry before reattaching them. Regularly check the seals to make sure they’re intact and functioning as they should.
A multimeter is an essential tool for testing the health of your wiring harness. It allows you to measure voltage, resistance, and continuity in the harness, ensuring the electrical current is flowing correctly. By regularly testing the continuity of your wiring, you can identify breaks or poor connections that might not be visible during a visual inspection. If you detect irregularities, repair them immediately to avoid system failures.
Task | Frequency | Notes |
Inspect for visible wear (fraying, cuts) | Every 3-6 months | Pay special attention to areas with high friction. |
Clean connectors with dielectric grease | Every 6 months | Helps prevent corrosion and ensures better contact. |
Test wiring for continuity using a multimeter | Annually or as needed | Check for hidden breaks in the circuit. |
Inspect routing and securing methods | Every 6 months | Ensure wires are not rubbing against sharp edges. |
Automotive wiring harnesses are frequently exposed to harsh conditions, including high temperatures and moisture, which can cause significant damage over time. To protect the wiring harness:
● Use heat-resistant sleeves or Teflon coatings around areas exposed to high temperatures, such as near the exhaust or engine.
● Use waterproof connectors in areas vulnerable to rain or road salt, preventing moisture from penetrating the wiring.
By using the right protective materials, you can extend the lifespan of your wiring harness and ensure it operates efficiently under tough conditions.
Rodents, particularly mice and rats, can cause severe damage to automotive wiring harnesses by chewing on the wires. This can lead to electrical shorts or component malfunctions. To prevent rodent damage:
● Consider using rodent-repellent cables or protective conduit to shield wires from potential damage.
● Regularly inspect the vehicle for signs of rodent activity and take immediate action if any damage is found.
The durability of your wiring harness depends heavily on the materials used. High-quality, automotive-grade wiring and connectors are essential for reliable operation. Using low-grade materials can increase the risk of corrosion, overheating, and early failure. Always use quality heat shrink tubing, crimp connectors, and dielectric grease to ensure the harness performs optimally.
Protection Measure | Purpose | Best For |
Heat-Resistant Sleeves | Protects against excessive temperatures. | Areas near exhaust pipes and engine parts. |
Waterproof Connectors | Prevents moisture from causing corrosion. | Underbody, wheel wells, or areas prone to water exposure. |
Rodent-Proof Wiring Conduit | Guards against rodent chewing. | Engine bay, areas with rodent activity. |
Protective Coatings (e.g., Dielectric Grease) | Repels moisture and prevents corrosion. | Connectors and exposed terminals. |
Routing the wiring harness away from sharp edges, hot surfaces, and areas that experience excessive flexing can prevent unnecessary wear and tear. Sharp metal edges can easily cut or wear down the insulation on wires, leading to short circuits. Avoid tight bends, which can stress the wires, causing internal breakage.
Properly securing the wiring harness is crucial for preventing vibration and movement that could cause wear over time. Use high-quality cable ties and clips to secure the harness in place, ensuring it doesn’t rub against moving parts or other hot components. Regularly check the clips and ties to ensure they haven’t loosened, and replace damaged ones immediately.
While securing the harness is important, maintaining some slack is equally critical. Ensure that the wires have enough room to move without tension, especially in areas like doors or the engine bay, where they may be subject to vibrations or slight shifts. Adequate slack helps prevent wires from stretching, cracking, or breaking over time.
When repairing or replacing sections of a wiring harness, it’s important to use proper splicing methods. Here are common techniques:
● Soldering: Provides a durable and reliable connection, especially for smaller wires.
● Crimping: Ideal for larger wires and offers a strong, secure connection.
● Heat-shrink tubing: After splicing, use heat-shrink tubing to insulate and protect the splice from moisture, dirt, and abrasion.
Always use the correct gauge wire and quality connectors to ensure the repair lasts.
Sometimes, repairing the harness is not enough, and replacing a section is necessary. If the wire has extensive damage, multiple breaks, or the connectors are beyond repair, replacing the affected section of the harness is the best course of action. When doing so, ensure you use parts that match the original specifications to maintain the integrity of the system.
To prevent future issues, ensure that all repairs and replacements use high-quality parts. Choose automotive-grade connectors, wires, and insulation to ensure that the harness remains durable and reliable, even in harsh conditions. Taking the time to choose quality materials can prevent frequent repairs and ensure the long-term health of the wiring system.
Short circuits are a common issue in automotive wiring harnesses, often caused by damaged insulation or poor connections. To diagnose a short circuit:
● Use a multimeter to check for continuity where there shouldn’t be any.
● Look for areas where wires may be pinched or touching metal parts of the car.
Once located, repair the wiring or replace damaged sections of the harness.
Overheating is often a sign that a wire or connector is carrying too much current. If you discover overheating:
● Check the wire gauge to ensure it's appropriate for the electrical load.
● Inspect the fuse box for any faulty fuses or mismatched circuit protection.
Burned or melted wires should be replaced immediately to avoid further damage.
Loose or corroded connectors can result in intermittent electrical issues. To identify these issues:
● Look for signs of corrosion on terminals, often seen as green or white deposits.
● Use a continuity test to confirm the integrity of the electrical connection.
Clean the connections with electrical cleaner and apply dielectric grease to protect against future corrosion.
Upgrading your vehicle’s wiring harness can improve performance and durability. Whether it’s adding more electrical components or enhancing the power distribution, ensure that your wiring harness is up to the task. Use thicker wires or more advanced materials for high-performance applications, ensuring they can handle the additional electrical load without issues.
In some cases, especially with custom vehicles or modified systems, a bespoke wiring harness may be necessary. Custom harnesses are designed to meet the specific needs of the vehicle, ensuring the proper fit, functionality, and durability. Work with a trusted manufacturer to design a harness that suits your vehicle's requirements.
As modern vehicles incorporate more advanced technologies, including sensors and infotainment systems, it’s essential to upgrade the wiring harness to accommodate these new systems. Ensure the harness is equipped to handle the additional wiring and power demands of these new technologies without compromising the vehicle’s electrical performance.
Maintaining and troubleshooting your automotive wiring harness is crucial for your vehicle’s longevity. Regular inspections and using high-quality materials prevent most electrical failures. Proper routing and securing can avoid costly repairs, ensuring peak efficiency. For premium automotive wiring solutions, XSD Cable provides durable, custom cable assemblies designed to meet the highest standards of reliability and performance.
A: An automotive wiring harness is a bundle of wires that connects electrical components in a vehicle, enabling power and signals to flow to essential systems like the engine, lights, and sensors.
A: To protect your automotive wiring harness, ensure proper routing, avoid sharp edges, use heat-resistant sleeves, and secure wires with clips or ties to prevent wear and exposure to environmental damage.
A: Inspect your automotive wiring harness for visible signs of damage, such as fraying or corrosion. Clean connectors with dielectric grease and use a multimeter to check for continuity.
A: Replace your automotive wiring harness if you notice severe damage, such as continuous electrical failures, or if the insulation is deteriorated and causing shorts.
A: Regular maintenance of the automotive wiring harness prevents electrical failures, improves safety, and ensures optimal vehicle performance. Neglect can lead to costly repairs and safety risks.
