Did you know that without solar panel connectors, your entire solar system could fail? These small but vital components ensure your system works efficiently and safely.
In this article, we'll explore what solar panel connectors are, why they're important, and how they keep your system running smoothly. You’ll also learn about different types of connectors and how to choose the best one for your needs.
A solar panel connector is a specialized electrical connector that enables the connection of solar panels to each other and to other system components, such as inverters and batteries. These connectors allow solar power systems to operate efficiently by ensuring that electrical energy generated by the panels is transferred seamlessly to the rest of the system. Solar connectors typically come in male and female pairs, allowing for easy and secure connections that minimize the risk of accidental disconnections or electrical faults.
The primary function of a solar panel connector is to provide a secure and weatherproof electrical connection. Solar connectors are engineered to resist environmental factors such as UV radiation, dust, water, and extreme temperatures. This ensures that the connectors maintain their integrity and reliability throughout the life of the solar system, which can span 25 to 30 years.
Solar panel connectors play a vital role in linking the various components of a photovoltaic system. They connect the solar panels to the inverter, which converts the direct current (DC) produced by the panels into alternating current (AC) for use in homes and businesses. In addition to inverters, solar connectors also link the panels to the battery storage systems, enabling excess power generated during the day to be stored for later use. By establishing these connections, solar panel connectors ensure that energy flows efficiently and reliably throughout the system.
The efficiency of a solar power system is largely dependent on the integrity of its electrical connections. Solar panel connectors help ensure proper energy flow between the components by maintaining a solid and secure link. When connectors are not properly fitted, or when they degrade over time, electrical resistance increases, causing energy loss. A poor connection can lead to lower energy output, increased power losses, and reduced system efficiency. By using high-quality, reliable connectors, you ensure that your solar system performs optimally, maximizing the energy generated and reducing unnecessary wastage.
One of the most critical aspects of solar panel connectors is safety. These connectors are designed to minimize the risk of hazards like electrical shorts, arcing, and overheating. Poorly connected or damaged connectors can cause sparks or fires, which can lead to costly damage or even system failure. High-quality solar panel connectors feature locking mechanisms that prevent accidental disconnections, ensuring that the system remains intact and operates safely. Moreover, many solar connectors are designed with a built-in safety feature that ensures proper polarity, reducing the chances of wiring mistakes that could damage the system.
Solar panel connectors are exposed to harsh environmental conditions, including direct sunlight, high temperatures, rain, snow, and dust. To withstand these elements, solar connectors are designed with robust weatherproofing features. They are typically made from materials that are resistant to UV rays and moisture, ensuring that the connectors maintain their functionality over time. Many modern solar connectors are rated with an Ingress Protection (IP) rating, which indicates their ability to withstand water and dust ingress. A high IP rating, such as IP68, means that the connectors are fully protected against dust and can be submerged in water for extended periods without compromising their performance.
The most widely used type of solar panel connector is the MC4 connector. MC4 connectors have become the industry standard due to their high reliability, ease of use, and ability to withstand harsh environmental conditions. They are characterized by a simple plug-and-play design, which allows for quick and secure installation without the need for special tools. MC4 connectors are available in both male and female versions and feature a locking mechanism to prevent accidental disconnections.
These connectors are also weatherproof, UV-resistant, and durable, making them ideal for use in outdoor solar installations. The MC4 connector’s ability to handle high voltage and current makes it suitable for both residential and commercial solar systems.
In addition to the MC4 connector, several other types of solar panel connectors are commonly used in the industry:
● T4 Connectors: Developed by Amphenol Industrial Solar Technologies, T4 connectors are known for their tool-free installation process and high current-carrying capacity. They are a popular choice for residential and commercial applications but are not as widely adopted as MC4 connectors.
● SolarLok Connectors: Also known as Tyco connectors, SolarLok connectors feature a gender-neutral design, allowing any two connectors to mate without the need for male or female components. These connectors offer excellent resistance to environmental factors like UV radiation and moisture.
● Radox Connectors: Manufactured by HUBER+SUHNER, Radox connectors are known for their high performance in extreme conditions. They are used in high-temperature environments and offer superior durability against abrasion and environmental stress.

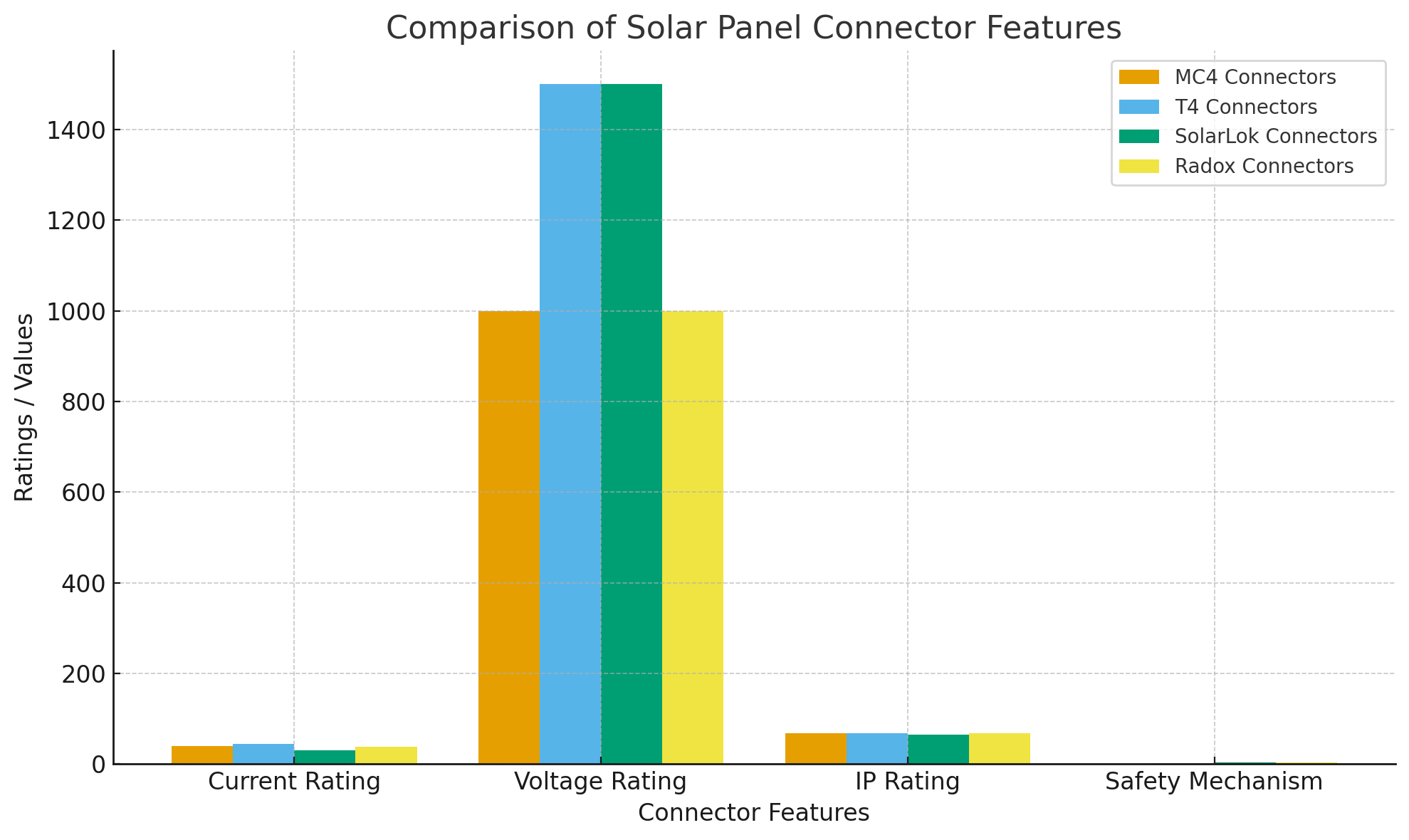

Connector Type | Features | Applications |
MC4 | Industry standard, UV-resistant, weatherproof | Most common in modern solar systems |
T4 | Tool-free design, higher current capacity | Alternative to MC4 in specific installations |
SolarLok | Gender-neutral, high-quality materials | Used in older or specialized systems |
Radox | High performance, suitable for extreme conditions | Harsh environment installations |
Solar panel connectors consist of male and female components that fit together securely. The male connector has a pin that inserts into the female connector’s socket. When the connectors are pushed together, a locking mechanism clicks into place, ensuring that the connection remains stable and secure. This mechanism prevents accidental disconnections, which can lead to system inefficiency or damage.
The locking mechanism in solar panel connectors is designed to provide additional safety and security. When the connectors are joined, the locking mechanism ensures that they stay in place, even in adverse weather conditions. To disconnect the connectors, a special tool is often required to release the lock. This design prevents accidental disconnections during maintenance or cleaning, ensuring that the solar system operates reliably.
To attach connectors to the solar panel cables, the crimping process is used. Crimping involves stripping the insulation from the cable, inserting it into the connector’s metal pin, and using a crimping tool to secure the connection. This creates a strong and stable electrical link between the cable and the connector, which is crucial for maintaining system performance.
When selecting a solar panel connector, it’s essential to ensure compatibility with the system’s components. Different solar panels and inverters may require different types of connectors, so it’s important to choose connectors that match the specifications of your equipment. Universal connectors, like the MC4, are designed to be compatible with most solar panels and components, making them a versatile choice for many installations.
Solar panel connectors are rated to handle specific voltage and current levels. It’s important to select connectors that can handle the voltage and current generated by your solar panels to avoid overheating, power loss, or system failure. For most residential solar systems, connectors rated for 1000V or 1500V are sufficient, but commercial systems may require connectors that can handle higher ratings.
Consider the environmental conditions in which the solar system will be installed. If the system is in a region with high humidity, extreme temperatures, or exposure to UV radiation, it’s important to choose connectors that are weatherproof and UV-resistant. Many high-quality connectors come with an IP rating, which indicates their ability to resist water and dust ingress.
Environment | Recommended Connector | Reason |
Residential Installations | MC4 Connectors | Standard, reliable, weather-resistant |
Commercial Systems | T4 or MC4 Connectors | Higher current capacity, durable |
Harsh Outdoor Areas | Radox Connectors | Extreme durability, high performance in tough conditions |
Older Systems | SolarLok Connectors | Compatibility with older installations |
One of the most common issues with solar panel connectors is loose connections. This can occur if the connectors are not properly locked into place or if the locking mechanism becomes damaged. Loose connections can lead to power loss, overheating, or even electrical fires. Regularly checking the connectors to ensure they are secure is essential to maintaining system efficiency and safety.
Solar panel connectors are exposed to harsh environmental conditions, which can lead to wear and tear over time. The UV rays, moisture, and temperature fluctuations can cause the connectors to degrade, affecting their performance. It’s important to inspect connectors regularly and replace them if signs of wear, such as cracking or discoloration, are observed.
Over time, connectors may need to be replaced due to damage or wear. When replacing connectors, it’s important to ensure that the new connectors are compatible with the existing system and that they meet the necessary voltage and current ratings. Proper installation and crimping of the new connectors are essential to maintaining system performance.
Issue | Cause | Solution |
Loose Connections | Incorrect installation, poor locking | Ensure connectors are locked correctly, check if connectors are fully inserted |
Wear and Tear | Exposure to UV, temperature changes, moisture | Inspect connectors regularly for damage, replace worn-out connectors |
Connector Corrosion | Exposure to harsh environmental conditions | Use weatherproof connectors, replace damaged parts promptly |
Investing in high-quality solar panel connectors ensures that your solar power system operates efficiently and reliably. High-quality connectors are designed to withstand the elements and maintain secure connections over time, reducing the risk of power loss or system failure.
Superior connectors come with built-in safety features such as locking mechanisms and polarity protection. These features help prevent accidental disconnections, electrical shorts, and other hazards that could compromise the safety of the system.
Quality connectors ensure minimal power loss by maintaining a stable electrical connection. This increases the overall efficiency of the system, ensuring that as much energy as possible is transferred from the panels to the inverter and battery storage.
Solar panel connectors are vital for the performance and safety of solar systems. Choosing the right connector type and ensuring compatibility can optimize energy output and reduce risks. High-quality connectors, like those offered by XSD Cable, ensure durability and efficiency in both residential and commercial setups, maximizing system performance and minimizing maintenance concerns.
A: A solar panel connector is an electrical component used to link solar panels to other parts of a photovoltaic system, such as inverters and batteries. It ensures safe, reliable energy transfer.
A: Solar panel connectors are crucial for maintaining energy efficiency, preventing hazards like short circuits, and ensuring a weatherproof connection for the solar system's longevity.
A: To install a solar panel connector, strip the wire insulation, crimp the connector onto the cable, and securely lock the male and female connectors together to ensure a stable electrical connection.
A: The most common types are MC4 connectors, which are weather-resistant, durable, and widely compatible with solar panels. Other types include T4 and SolarLok connectors.
A: Regular inspection and maintenance of solar panel connectors, along with choosing high-quality connectors, will help ensure long-term performance and prevent wear from environmental factors.
